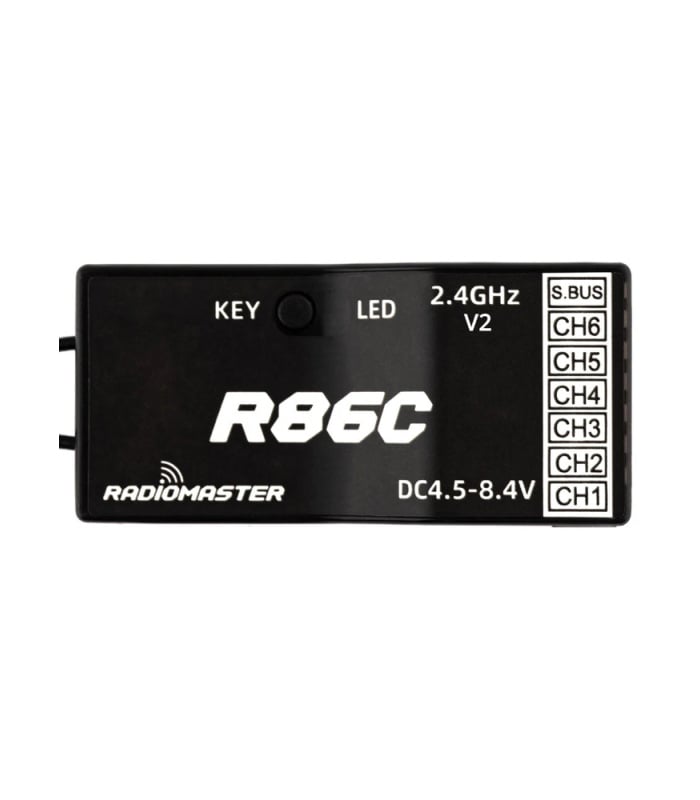

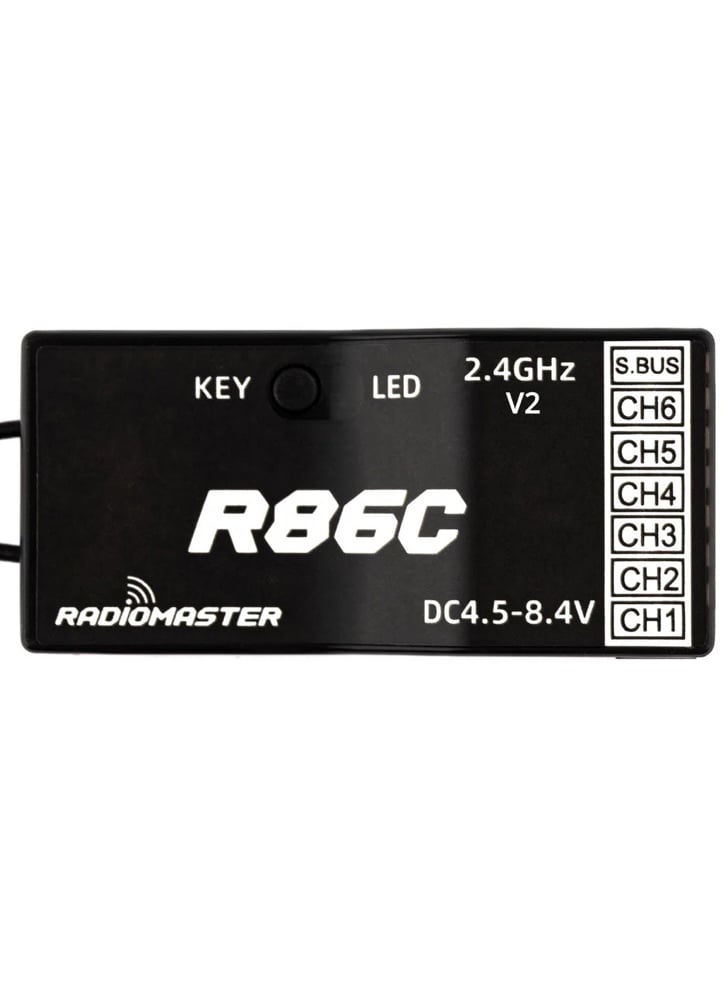

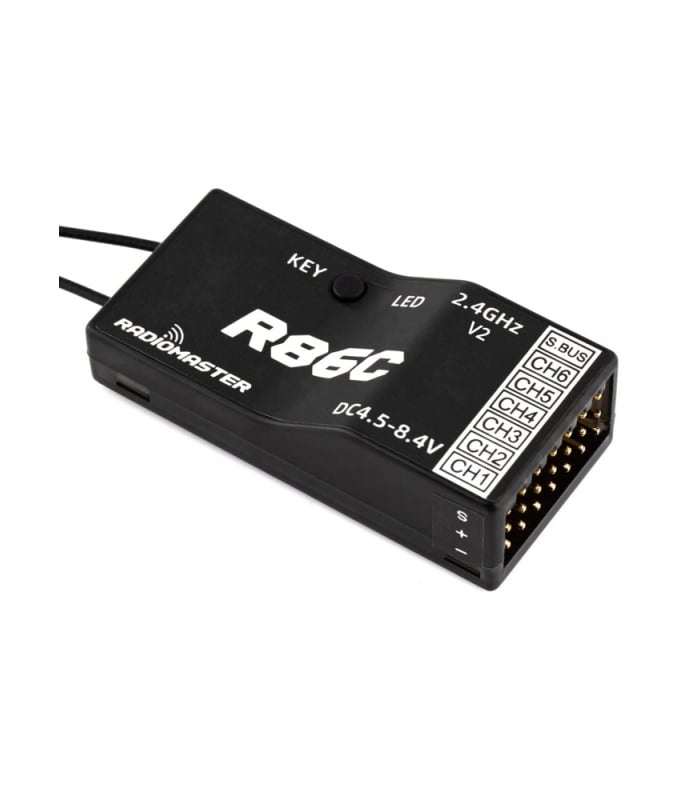

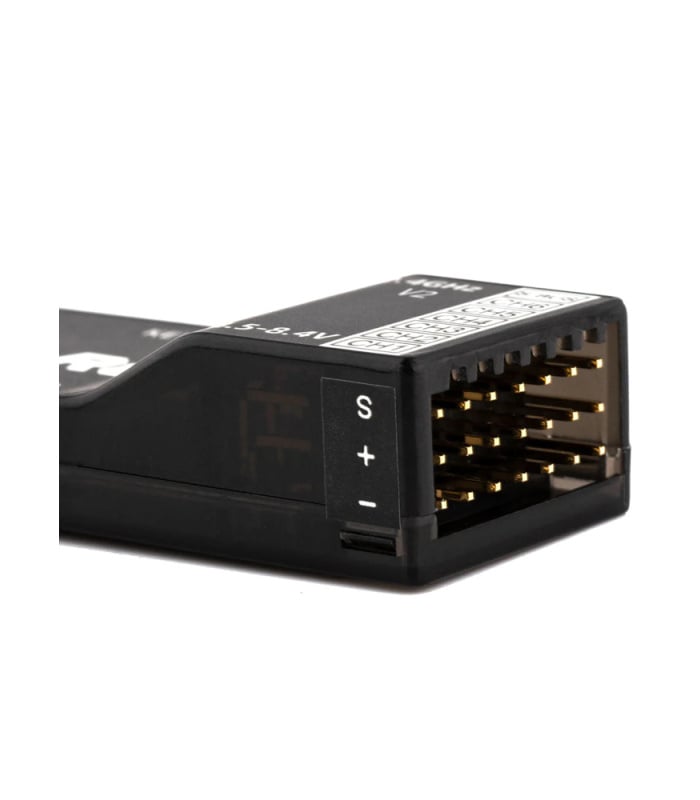

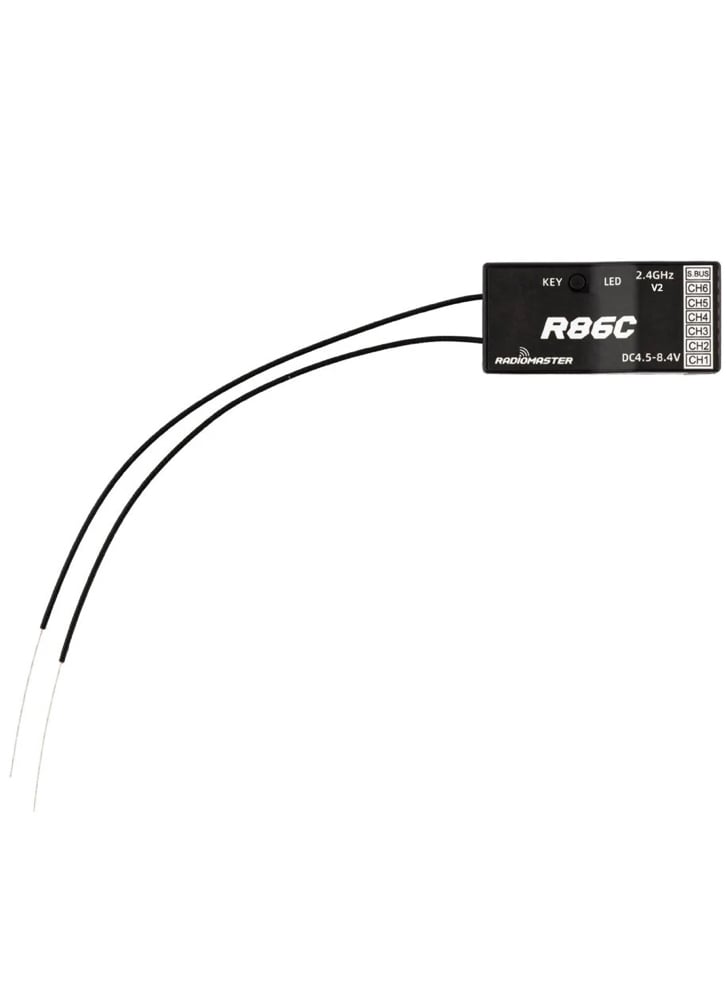

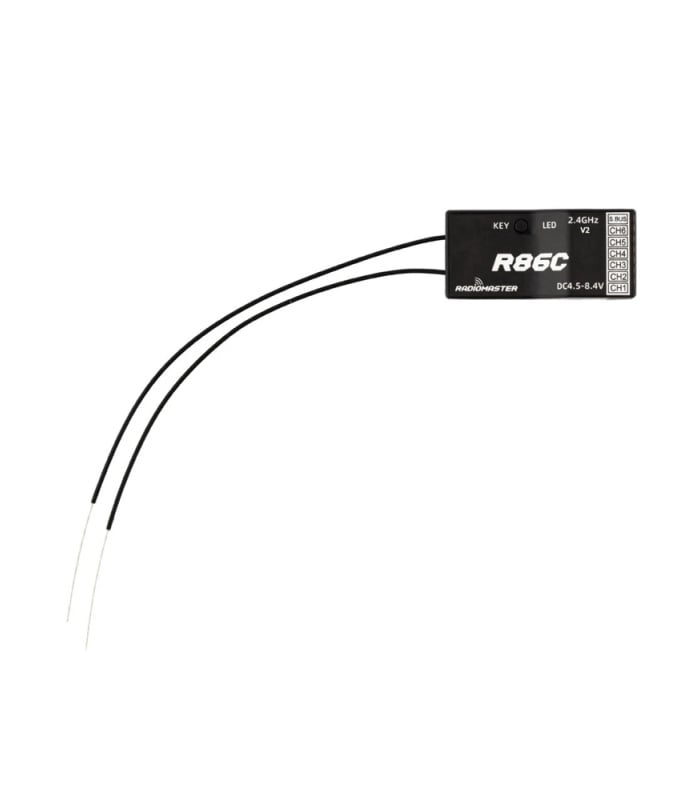

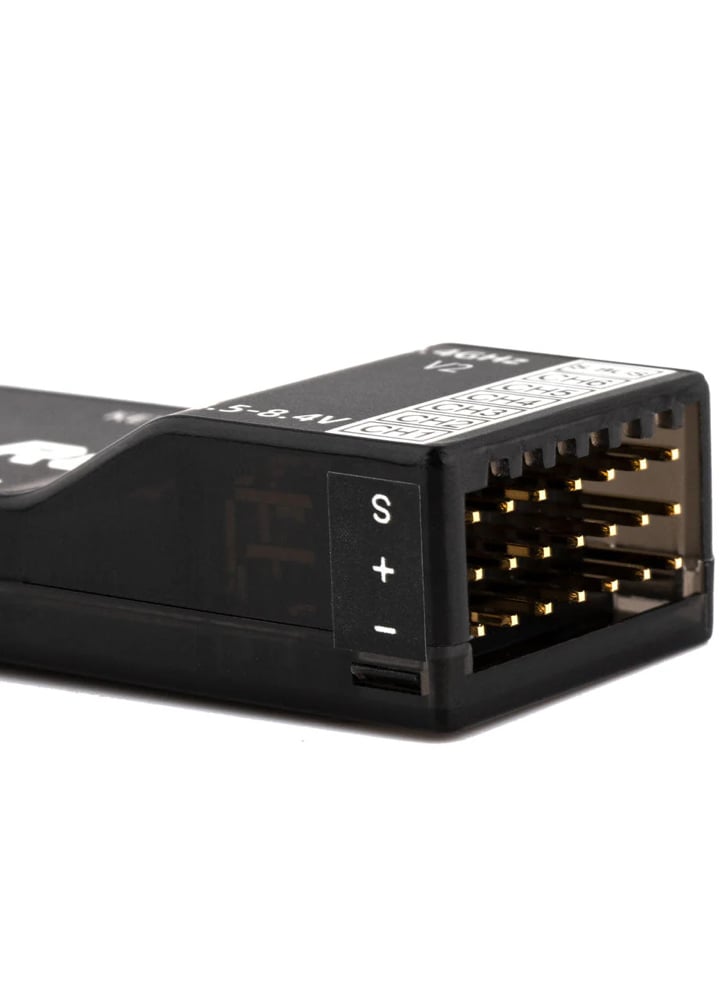

RadioMaster R Series R86C V2 Receiver with SBUS – D8, D16 & SFHSS Compatible

RadioMaster R Series R86C V2 Receiver with SBUS – D8, D16 & SFHSS Compatible - Image 3

RadioMaster R Series R86C V2 Receiver with SBUS – D8, D16 & SFHSS Compatible - Image 4

RadioMaster R Series R86C V2 Receiver with SBUS – D8, D16 & SFHSS Compatible

Name: RadioMaster R Series R86C V2 Receiver with SBUS – D8, D16 & SFHSS Compatible - Flying Tech
Brand: RadioMaster
SKU: RX-RMR86CV2
Price: 15.90 GBP
Availability: InStock

£15.90 Inc. VAT

Adds SBUS to the trusted R86—6 PWM + 8 SBUS channels in one compact, long‑range package.

In stock

Add to compare

0 People watching this product now!

SKU: RX-RMR86CV2 Categories: 2.4GHz Radio Receivers, Radio Control Tags: 2.4GHz, D8, PWM, R Series, Receiver, SBUS

Description

The RadioMaster R86C V2 is essentially the R86 with the addition of SBUS output—offering both PWM (6 channels) and SBUS (8 channels + RSSI). It supports FrSky D8, D16, and Futaba SFHSS when used with a multi‑protocol radio. Maintains the same solid range of over 1 km, built‑in fail‑safe, RSSI return, and operates on 4.5–8.4 V (requires limiting to 6.6 V when using SBUS). At 45×21.2×12.7 mm and 8 g, it’s a compact, versatile option for builds needing PWM or SBUS. Requires an external multi-protocol module for binding—does not work with FrSky internal RF systems.

RadioMaster R Series Receivers: There is a choice of 4 receivers to suit different applications. In addition to PWM channels, R86C & R88 both have SBUS connections and support RSSI. All feature dual antennas and are full range (>1km Control distance) with support for setting a failsafe.

Options:

R81 Receiver – SBUS
R84 – 4 PWM Channels
R86 – 6 PWM Channels
R86C – 6 PWM Channels / SBUS (8CH)

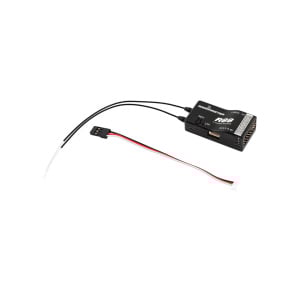

R88 – 8 PWM Channels / SBUS (8CH)

Frsky transmitter not supported, only for MPM radio.

Selecting protocol:

Once the receiver has been put into bind mode, it will then cycle between the 3 protocol options: D8, D16 (FCC V1) and S-FHSS:

Three singles flashes = D8 Protocol
Three double flashes = D16 Protocol
Three triple flashes = S-FHSS Protocol

Select Bind on your radio when the receiver reaches the matching protocol.

Associated Products

Replacement Antenna for R84 R86 R86C R88 Receiver

Specification

Item: R86C V2 Receiver
Channels: 6 channels (PWM), 8 channels (SBUS)
Frequency range: 2400-2483.5Mhz
Power input range: 4.5-8.4V (4.5-6.6V when using SBUS)
Signal format: D8, D16 & SFHSS Compatible
Output format: PWM / Sbus
Range: more than 1km
Antenna length: 15cm
Size: 45×21.2×12.7mm
Weight: 8 grams
