Name: KST DS565X HV Digital Metal Geared Tail Coreless Servo 6.0Kgf.cm 0.04sec for Heli 325-425 - Flying Tech
Brand: KST
SKU: SERVO-KSTDS565X
Price: 67.99 GBP
Availability: InStock

£67.99 Inc. VAT

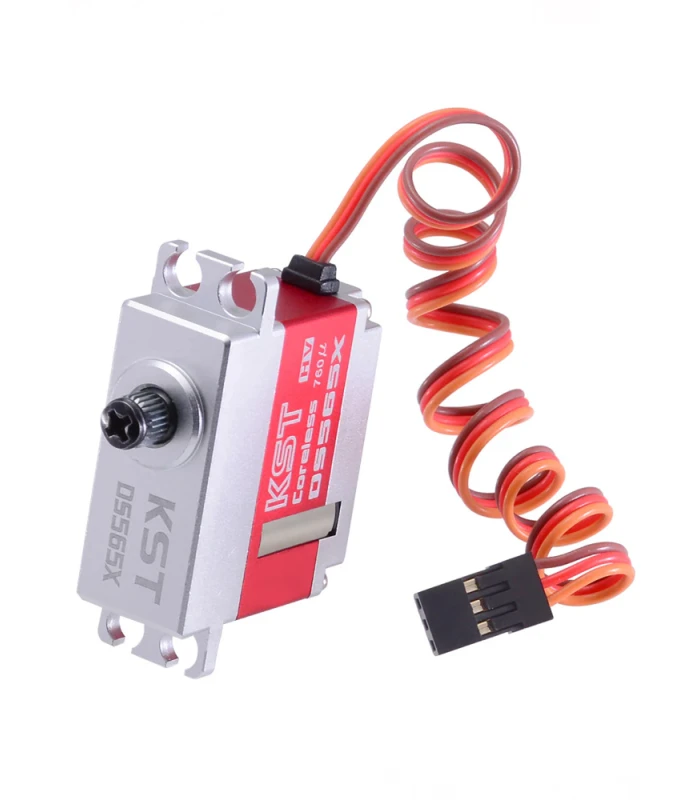

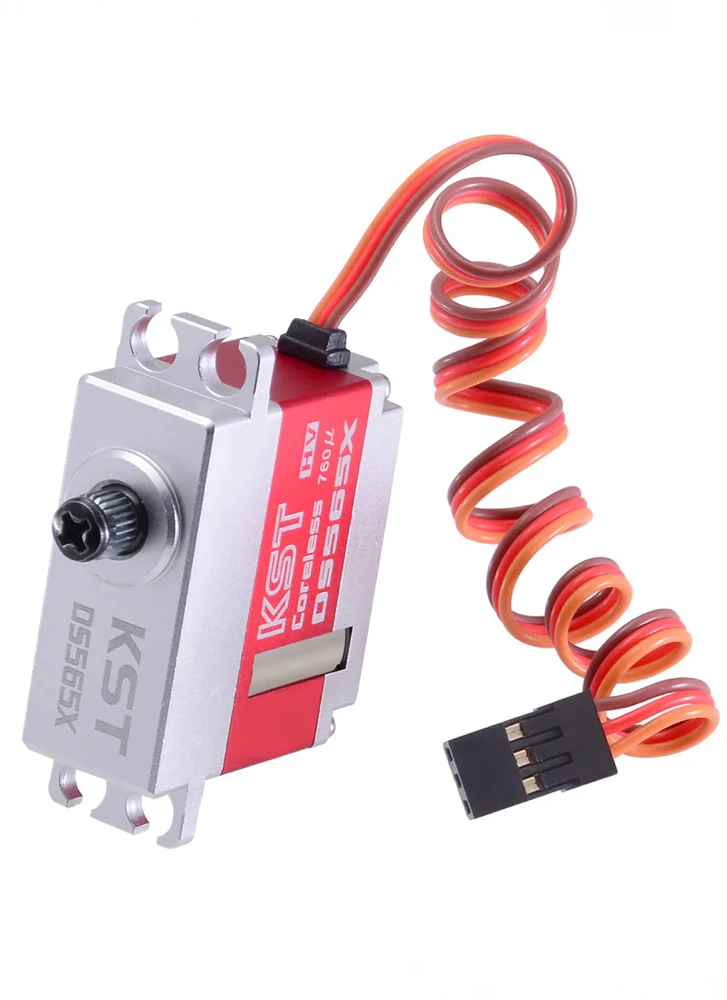

Compact, high-speed digital tail servo with coreless motor and hardened steel gears—designed specifically for 325–425 size helicopters needing precise tail control.

In stock

Add to compare

0 People watching this product now!

SKU: SERVO-KSTDS565X Categories: Servos, Planes & Wings, Plane Electronics, Spare Parts Tags: HV Servo, Servo, Tail Servo

Description

Mini Size Servo For 325-425 Class Helicopter Tail

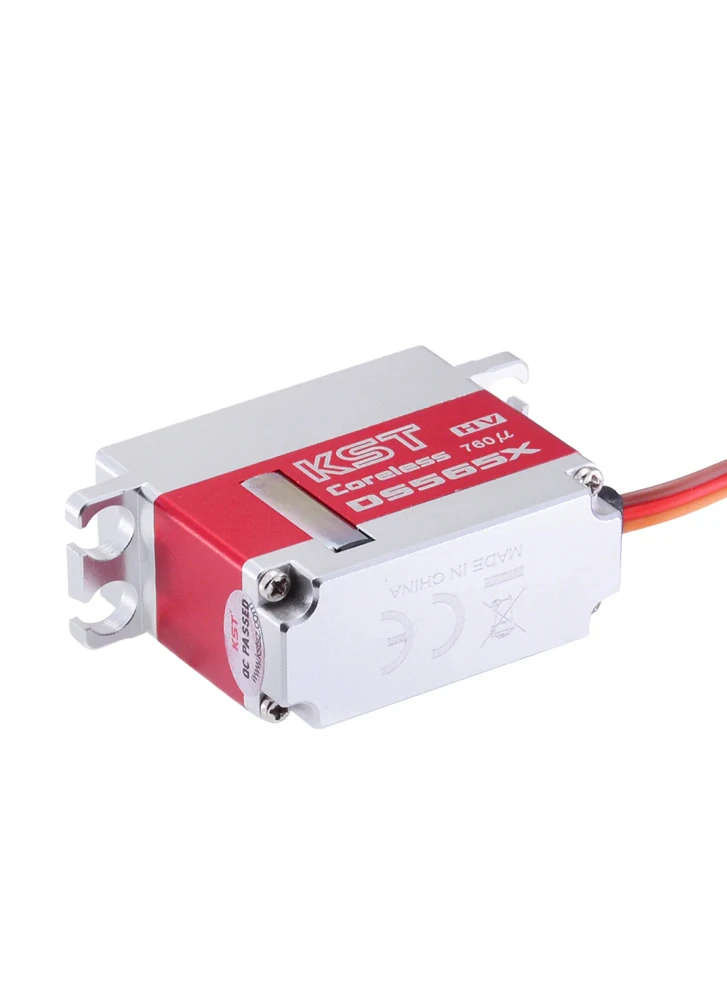

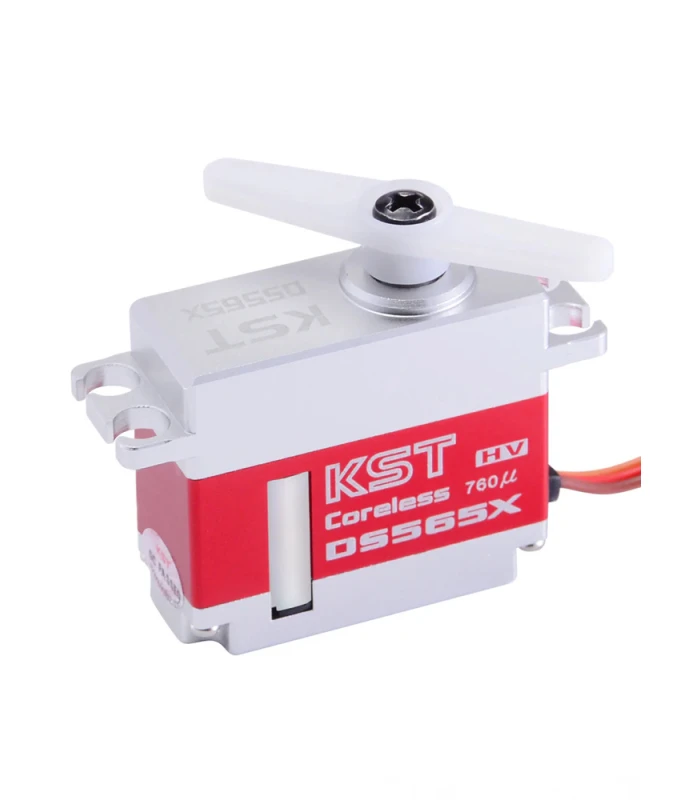

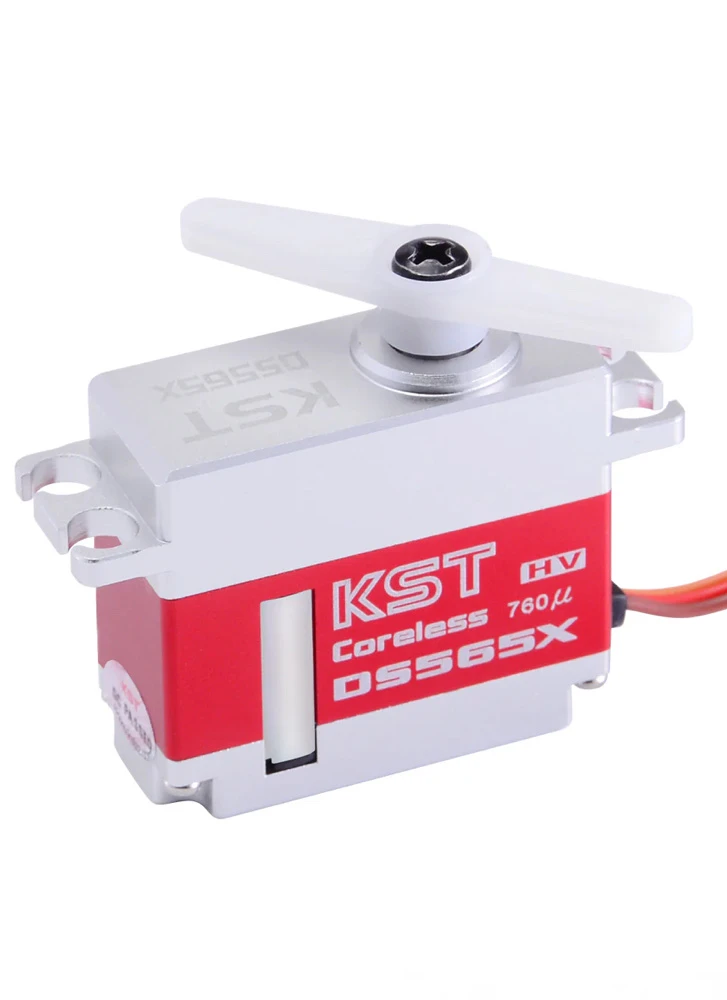

The KST DS565X HV is a compact, high-performance digital tail servo designed specifically for helicopters with rotor blades measuring 325mm to 425mm. Featuring a coreless motor and hardened steel gears housed in a lightweight aluminium alloy case, this servo delivers reliable, smooth, and responsive control tailored for precise tail rotor adjustments.

With a fast 0.04 sec/60° speed at 8.4V and solid torque up to 6.0 kg·cm, the DS565X offers excellent agility for aerobatic maneuvers.

It runs on 760μs / 560Hz, so be sure your gyro system supports this narrow-pulse, high-frequency specification.

Key Features

Fast response time: 0.04 sec/60° @ 8.4V
Strong torque: up to 6.0 kg·cm
High-voltage operation: 6.0V – 8.4V
Coreless motor for smooth, efficient operation
Durable hardened steel gears
Aluminum alloy case for lightweight strength
Programmable soft start and other settings
Compact size ideal for 325–425 class helicopters

Specification

Item: DS565X Servo
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Stalling Torque:

4.0Kgf.cm@6.0V
5.0Kgf.cm@7.4V
6.0Kgf.cm@8.4V

No-load Speed:

0.06sec/60°@6.0V
0.05sec/60°@7.4V
0.04sec/60°@8.4V

Working Frequency:760μs/560Hz
Temperature Range: -10℃……+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminum Alloy
Motor Type: Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer

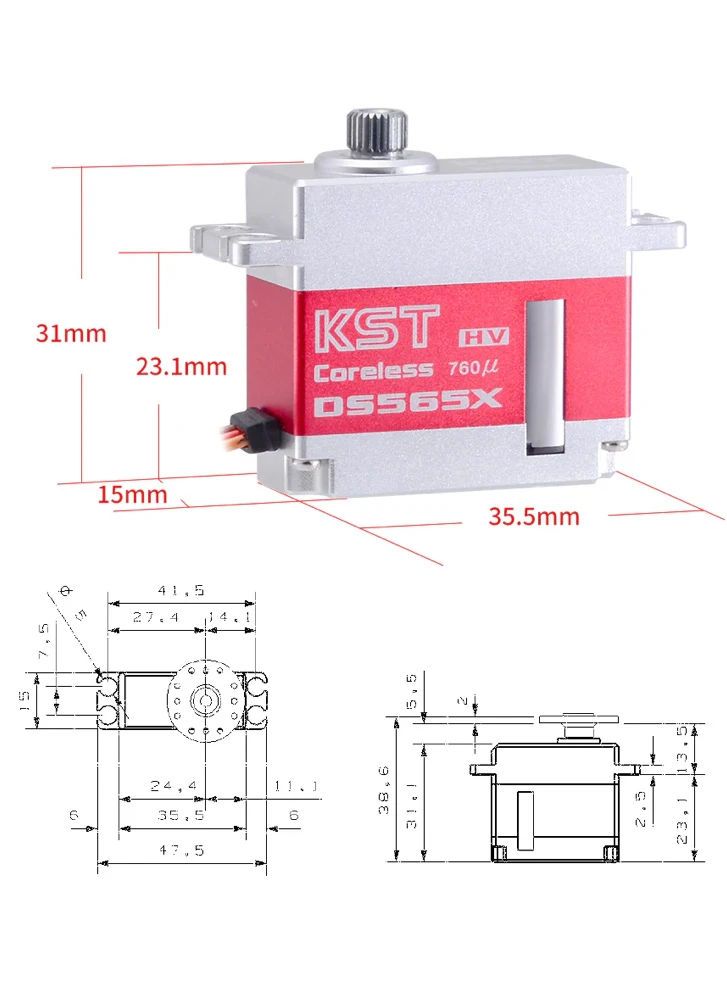

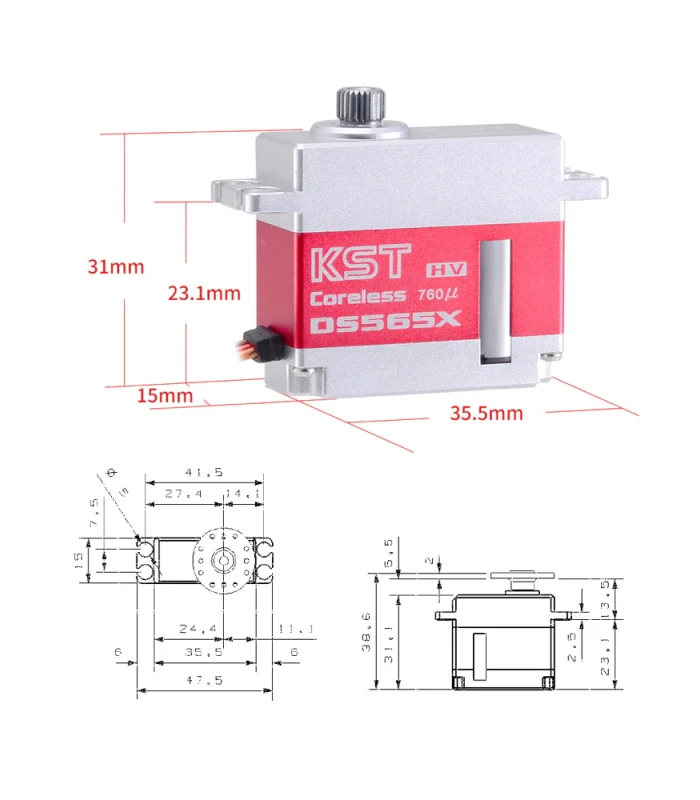

Case Dimensions: 35.5mm*15mm*32.5mm±0.2mm
Weight: 40g±10%

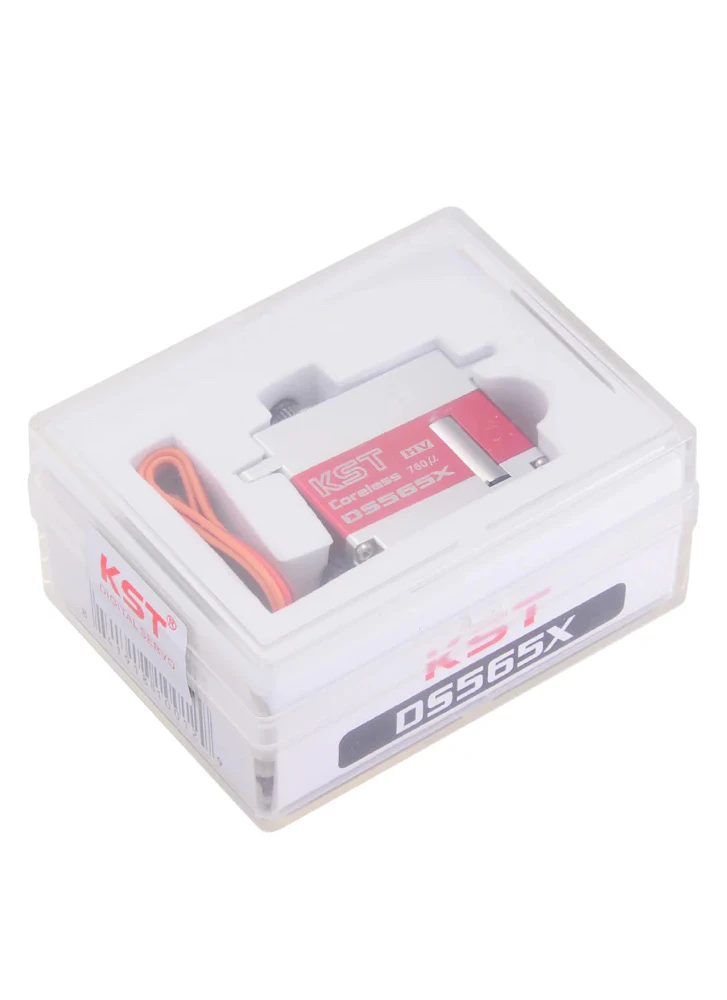

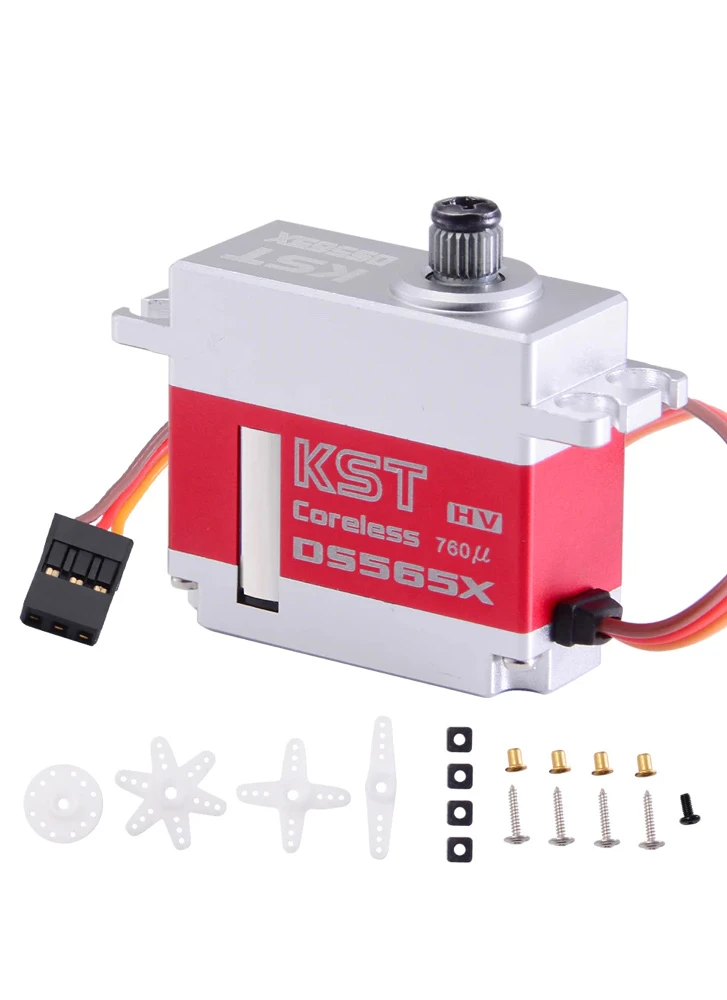

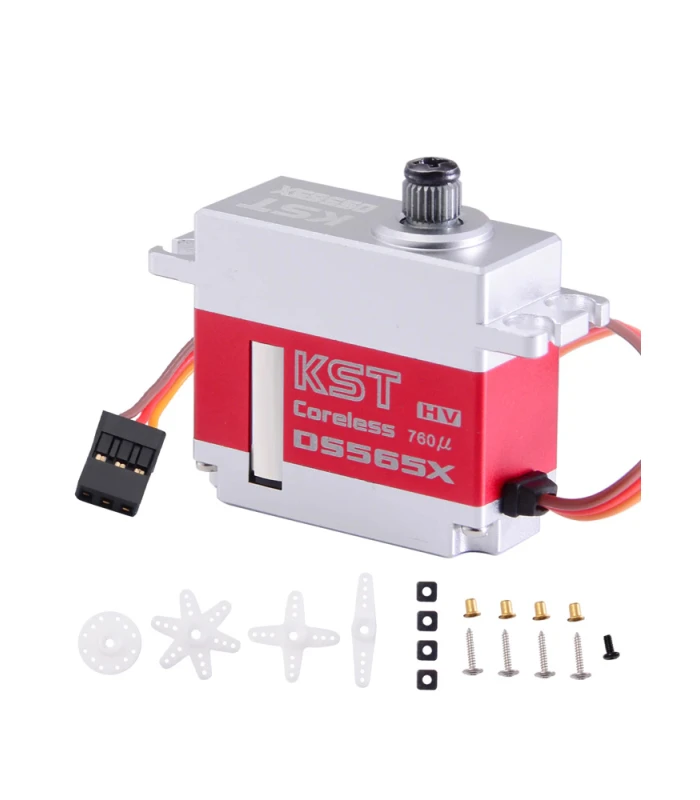

Included:

1 * KST DS565X Servo
1 * Pack of Accessories

Downloads

Data Sheet (pdf, 694KB)
