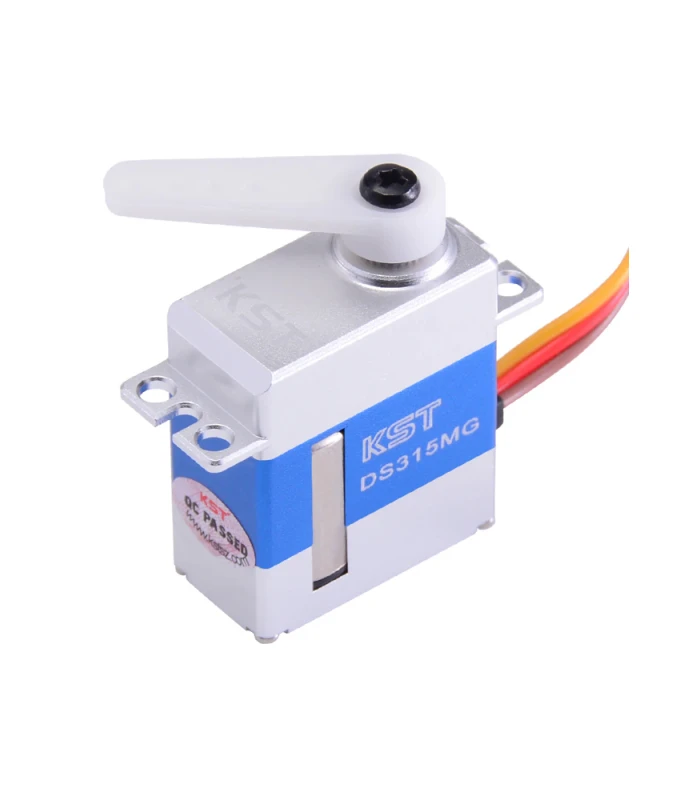

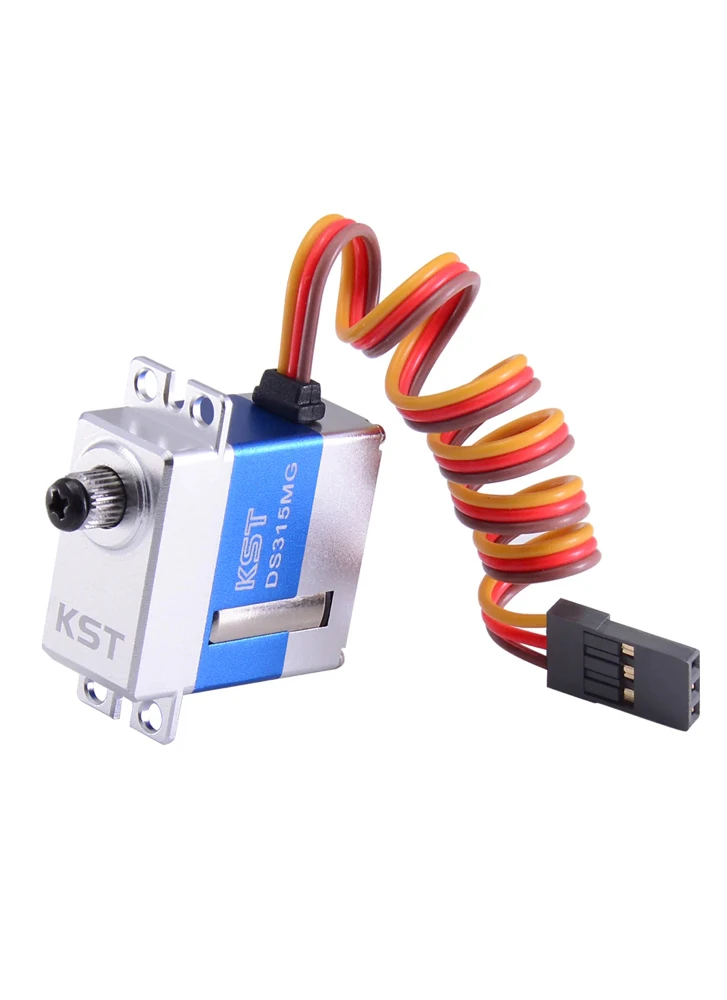

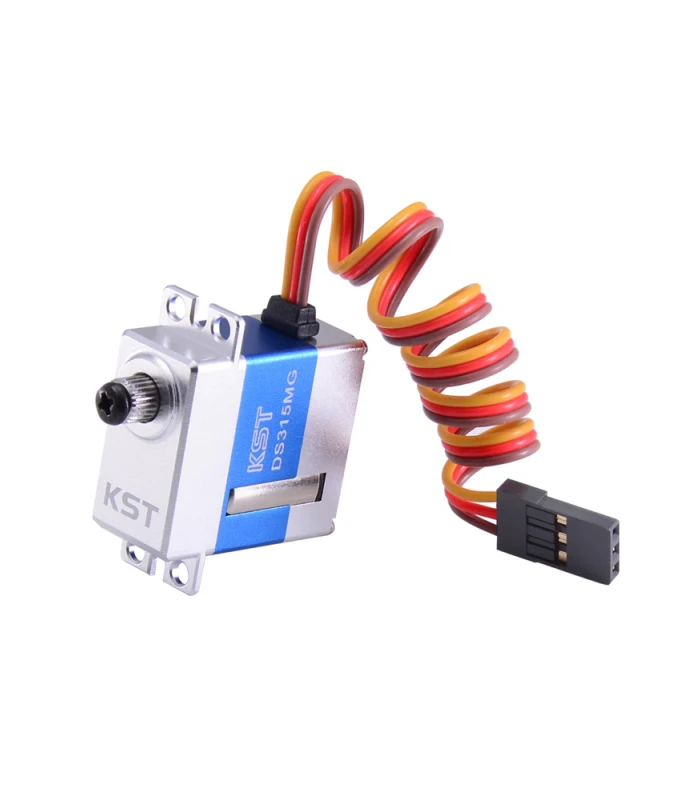

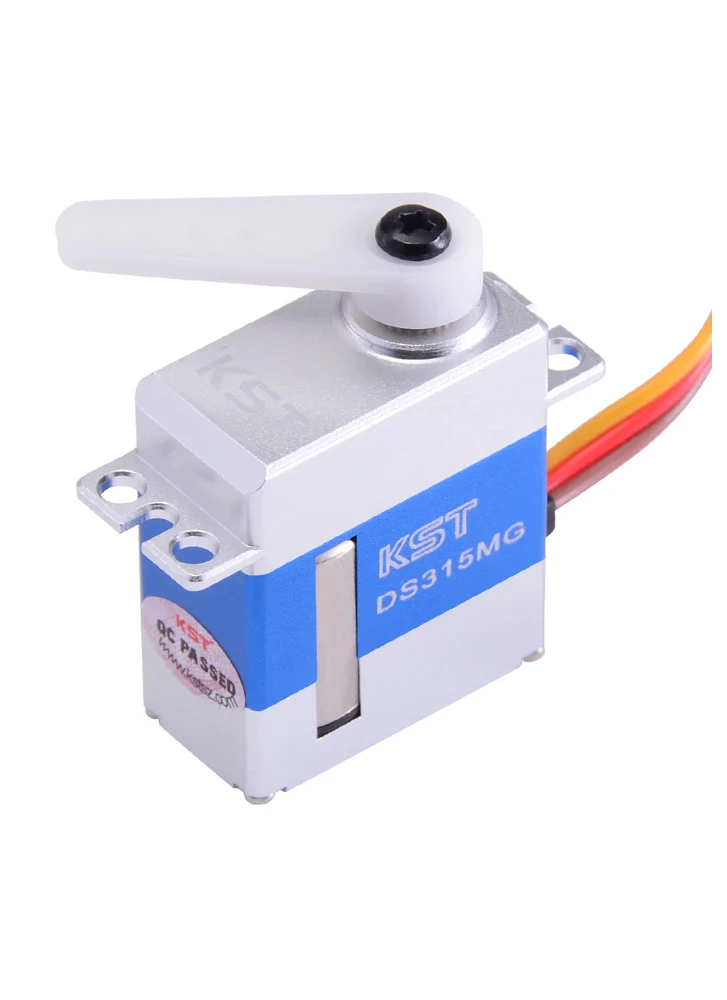

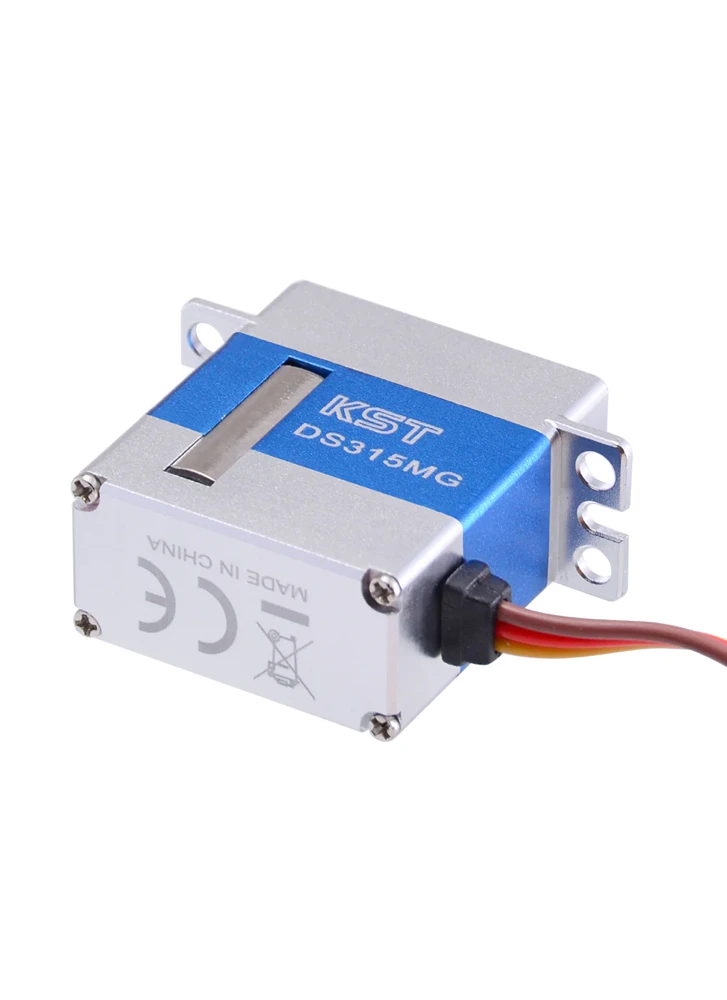

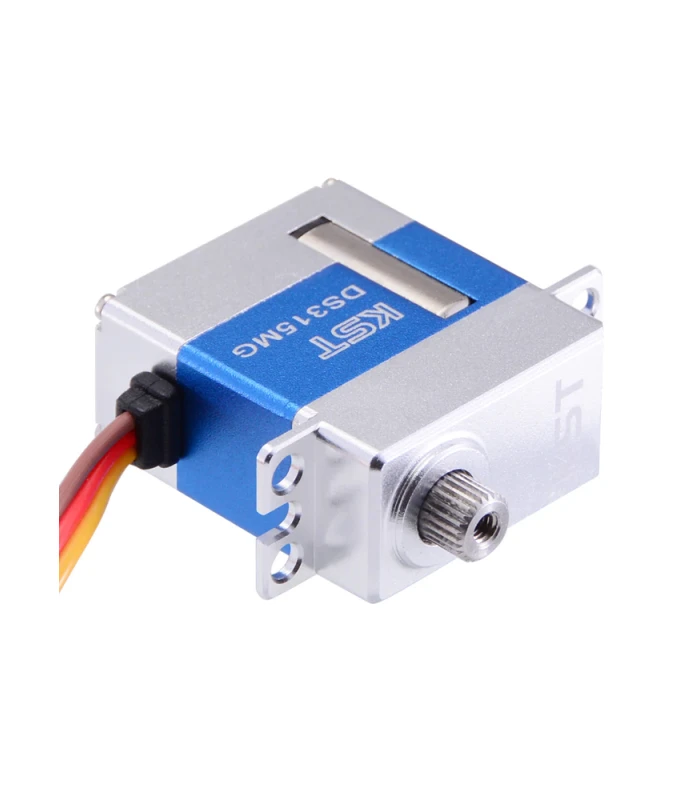

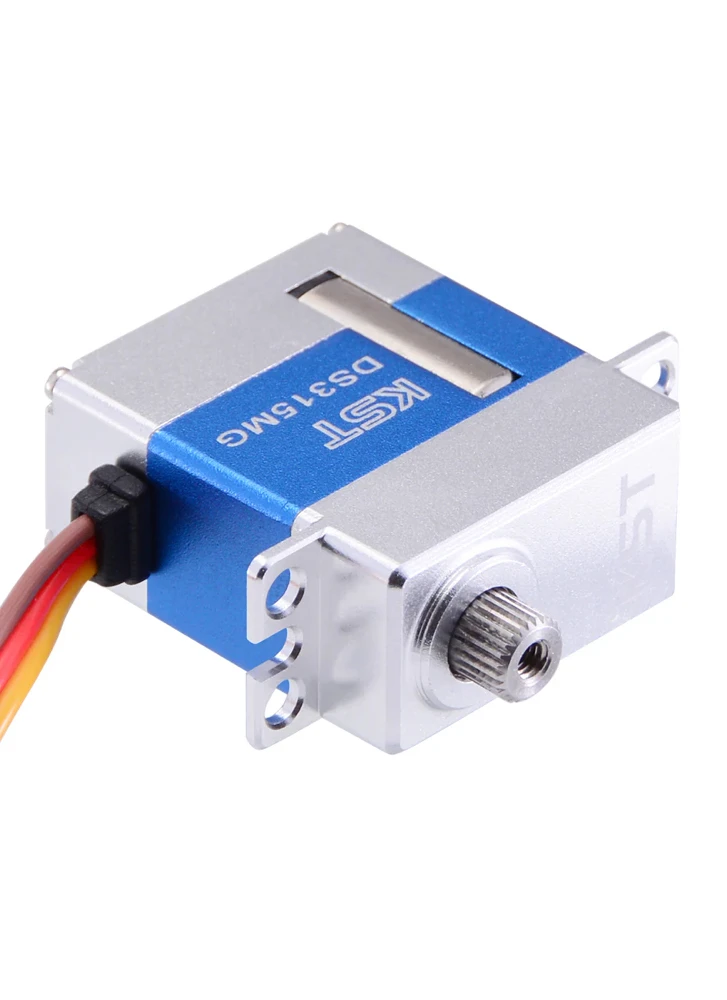

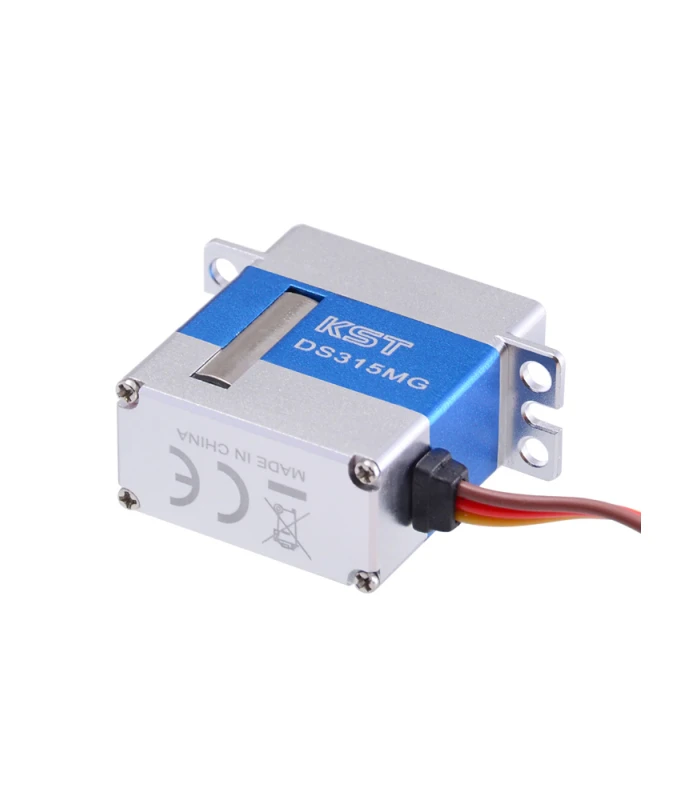

KST DS315MG V8.0 Mini Digital Metal Gear Coreless Servo 4.8kg 0.07sec for RC Helicopters

KST DS315MG V8.0 Mini Digital Metal Gear Coreless Servo 4.8kg 0.07sec for RC Helicopters - Image 3

KST DS315MG V8.0 Mini Digital Metal Gear Coreless Servo 4.8kg 0.07sec for RC Helicopters - Image 4

KST DS315MG V8.0 Mini Digital Metal Gear Coreless Servo 4.8kg 0.07sec for RC Helicopters - Image 5

KST DS315MG V8.0 Mini Digital Metal Gear Coreless Servo 4.8kg 0.07sec for RC Helicopters

Name: KST DS315MG V8.0 Mini Digital Metal Gear Coreless Servo 4.8kg 0.07sec for RC Helicopters - Flying Tech
Brand: KST
SKU: SERVO-DS315MG
Price: 34.99 GBP
Availability: InStock

£34.99 Inc. VAT

Compact, fast, and precise mini servo for high-performance helicopter control.

In stock

Add to compare

0 People watching this product now!

SKU: SERVO-DS315MG Categories: Servos, Planes & Wings, Plane Electronics, Spare Parts Tags: HV Servo, Micro Servo, Servo

Description

The KST DS315MG V8.0 is a compact, high-speed mini digital servo designed for RC helicopter cyclic and tail applications where precise, fast response is essential. Featuring a hardened steel gear train and a robust CNC-machined aluminium case, this servo delivers a strong 4.8 kgf.cm torque with impressive speeds as fast as 0.07 sec/60°, ensuring crisp, reliable control during aggressive maneuvers.

Utilizing a 12mm coreless motor, the DS315MG provides smooth, accurate performance across a wide voltage range of 4.8V–8.4V, making it suitable for use directly on 2S LiPo systems. Its lightweight design (only 20g) and high-precision control make it an excellent choice for pilots seeking consistent cyclic and tail performance in 450–500 class helicopters or compact RC models.

Key Features

Mini class servo (23×12×27.5mm, 20g) for RC helicopters and compact RC models
High torque: up to 4.8 kgf.cm @ 8.4V
Fast response: down to 0.07 sec/60° @ 8.4V
Wide voltage range: 4.8V – 8.4V (4-cell NiMH to 2S LiPo)
Coreless motor with hardened steel gears for precision and durability
CNC-machined aluminium alloy case for strength and heat dissipation
Programmable soft start and other settings
Dual ball bearings for smooth, reliable operation

Specification

Item: DS315MG V8.0 Mini Servo
Rated Voltage: DC6.0V
Voltage Range: DC4.8V-8.4V
Torque: 2.8Kgf.cm@4.8V / 3.5Kgf.cm@6.0V / 4.3Kgf.cm@7.4V / 4.8Kgf.cm@8.4V
Speed: 0.10sec/60°@4.8V / 0.09sec/60°@6.0V / 0.08sec/60°@7.4V / 0.07sec/60°@8.4V
Working Frequency: 1520μs/333Hz
Default Travel Angle: ±70°=140° Total
Temperature Range: -20℃……+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminium Alloy
Motor Type: Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Ball Bearing: 2BB

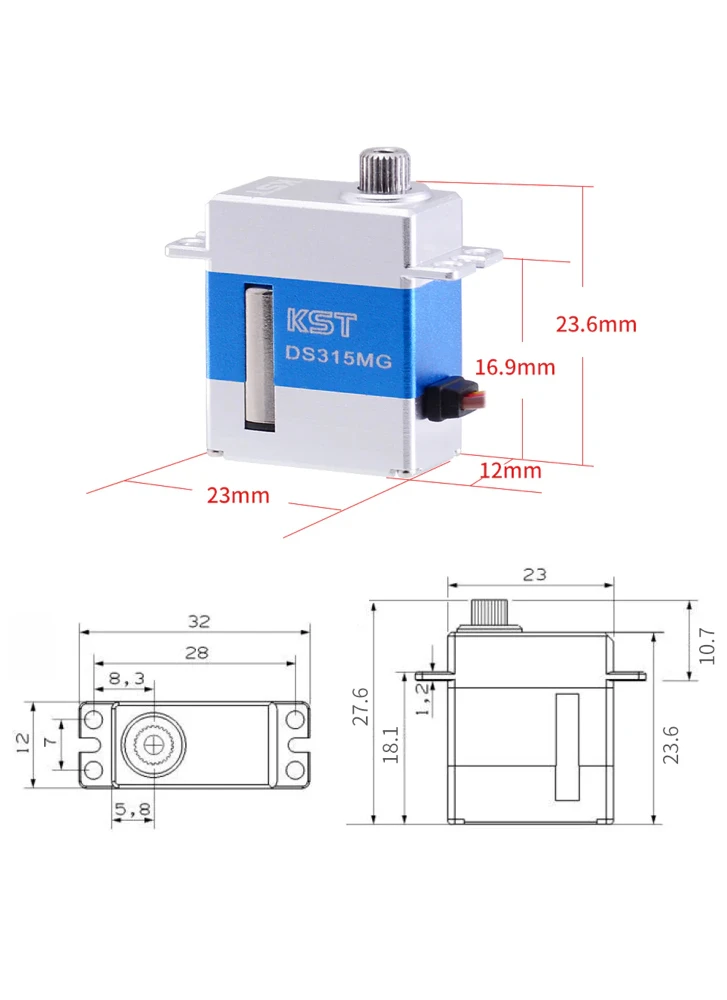

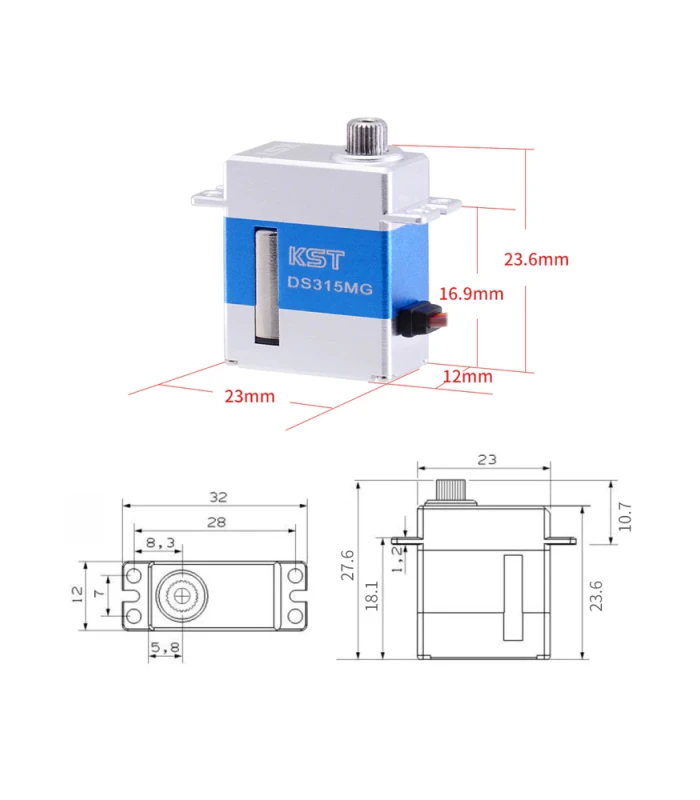

Case Dimensions: 23mm*12mm*27.5mm±0.2mm
Weight: 20g±10%

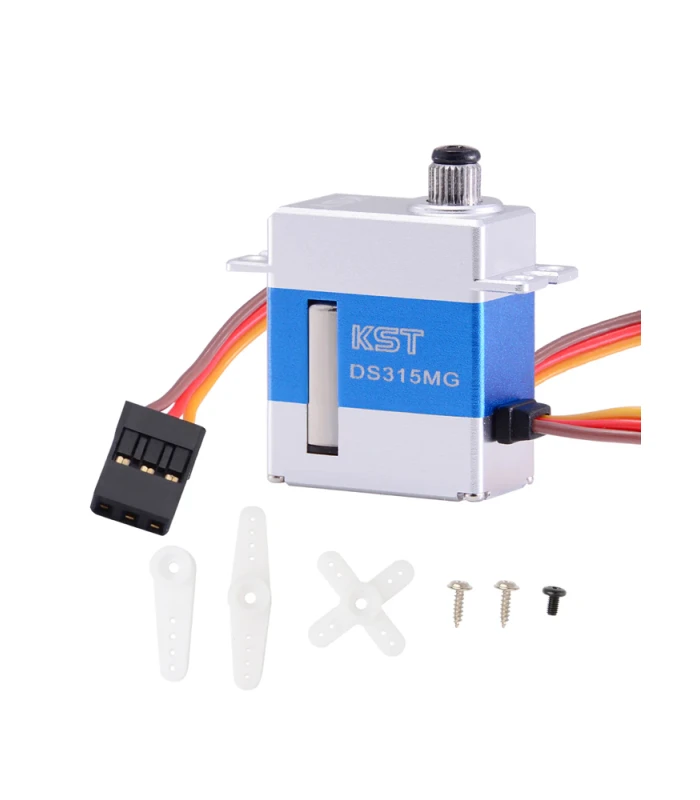

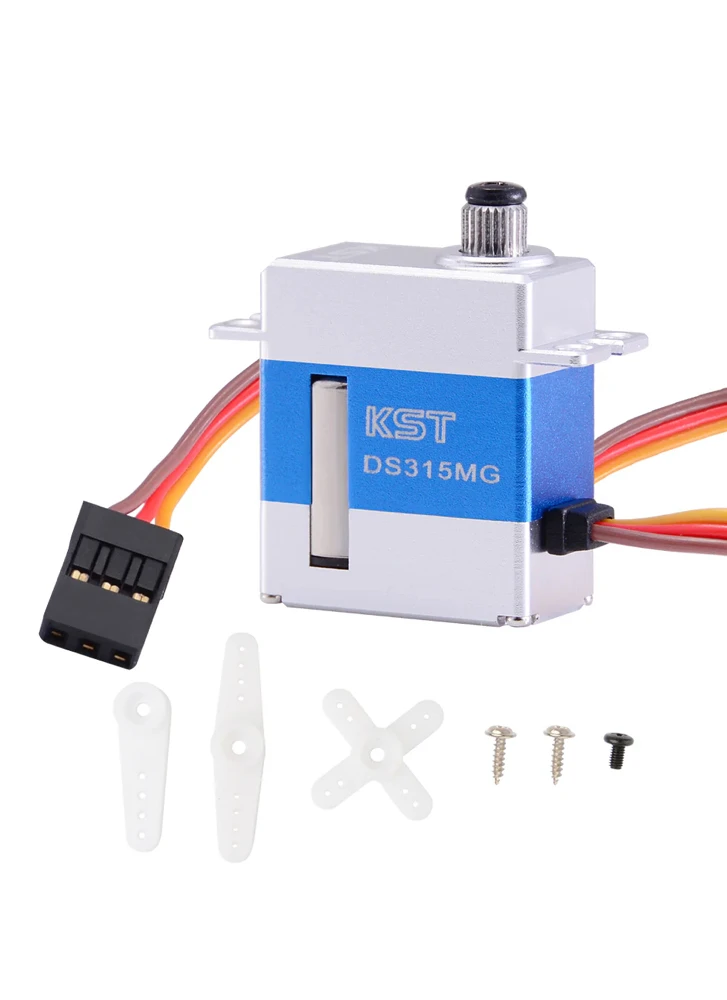

Included:

1 * DS315MG V8.0 Mini Servo
3 * Plastic Servo Horn
2 * Mounting Screw
1 * Servo Horn Screw

Downloads

Data Sheet (pdf, 699KB)

Download
