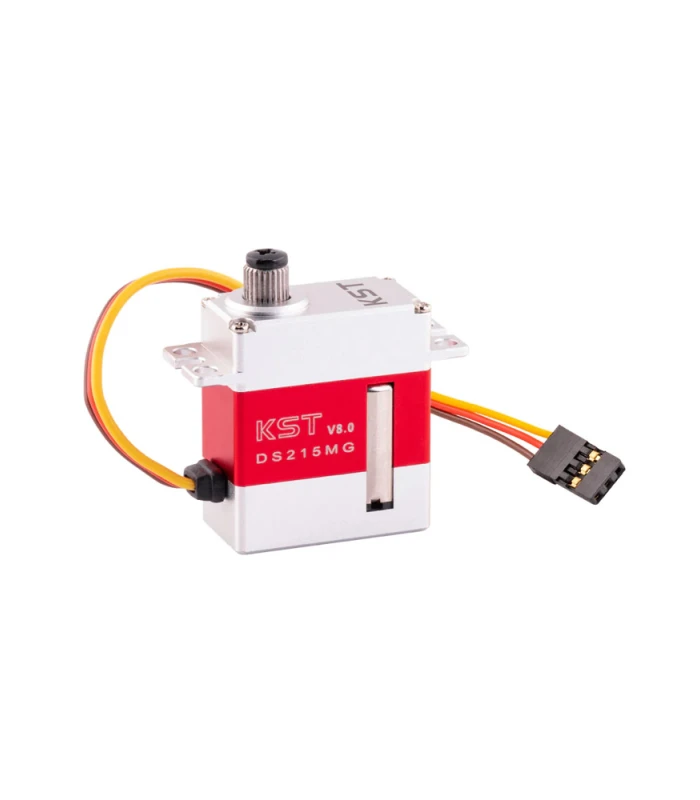

KST DS215MG V8.0 Digital Metal Geared Micro Servo 4.0Kgf.cm 0.05sec for RC Glider and Helicopters

£28.90 Inc. VAT

Compact, fast, and powerful micro servo for precise control in RC gliders, helicopters, and EDF jets.

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

0 People watching this product now!
SKU: SERVO-KSTDS215MG Categories: , , , Tags: , ,
Description

Micro Size Servo For RC Glider and HelicoptersDS215MG V8 Banner

The KST DS215MG V8.0 Digital Metal Geared Micro Servo delivers exceptional speed and power in a lightweight, compact package, making it ideal for RC gliders, helicopter cyclic and tail rotor, and EDF jets. Weighing only 20g, it offers a strong 4.0 kgf.cm torque and lightning-fast 0.05 sec/60ยฐ speed, ensuring precise and responsive control for your high-performance models.

Designed for direct connection to 2S LiPo or LiFe batteries without the need for a regulator, the DS215MG handles high voltage reliably while maintaining excellent heat dissipation thanks to its robust aluminium alloy case. With hardened steel gears and a coreless motor, it combines durability with smooth, accurate operation, while programmable features including soft start allow fine-tuning to match your setup.

The DS215MG V8.0 is a trusted choice for pilots who demand top-level performance for glider elevators and rudders, helicopter cyclics and tails, and EDF jet control surfaces, where every gram and every millisecond of response matters.

Key Features

  • Fast response time: 0.04 sec/60ยฐ @ 8.4V
  • Strong torque: up to 6.0 kgยทcm
  • High-voltage operation: 6.0V โ€“ 8.4V
  • Coreless motor for smooth, efficient operation
  • Durable hardened steel gears
  • Aluminium alloy case for lightweight strength
  • Programmable soft start and other settings
  • Compact size ideal for 325โ€“425 class helicopters
Specification
  • Item: DS215MG Micro Servo
  • Rated Voltage: DC7.4V
  • Voltage Range: DC6.0V-8.4V
  • Torque: 3.1Kgf.cm@6.0V, 3.7Kgf.cm@7.4V, 4.0Kgf.cm@8.4V
  • Speed: 0.060sec/60ยฐ@6.0V, 0.055sec/60ยฐ@7.4V, 0.050sec/60ยฐ@8.4V
  • Working Frequency: 1520ฮผs/333Hz

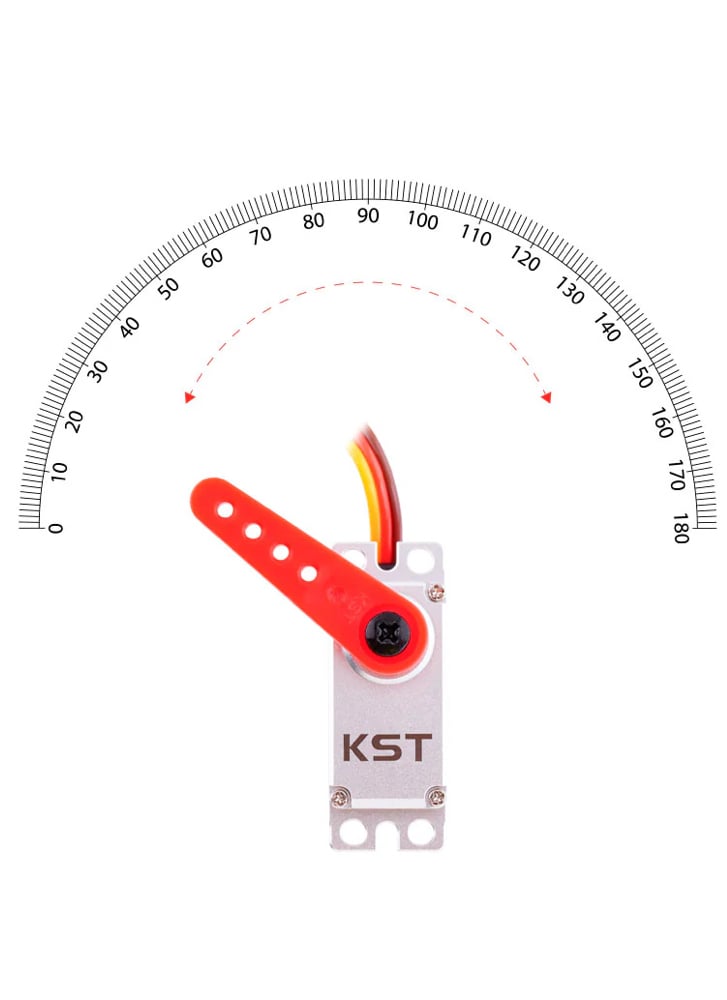

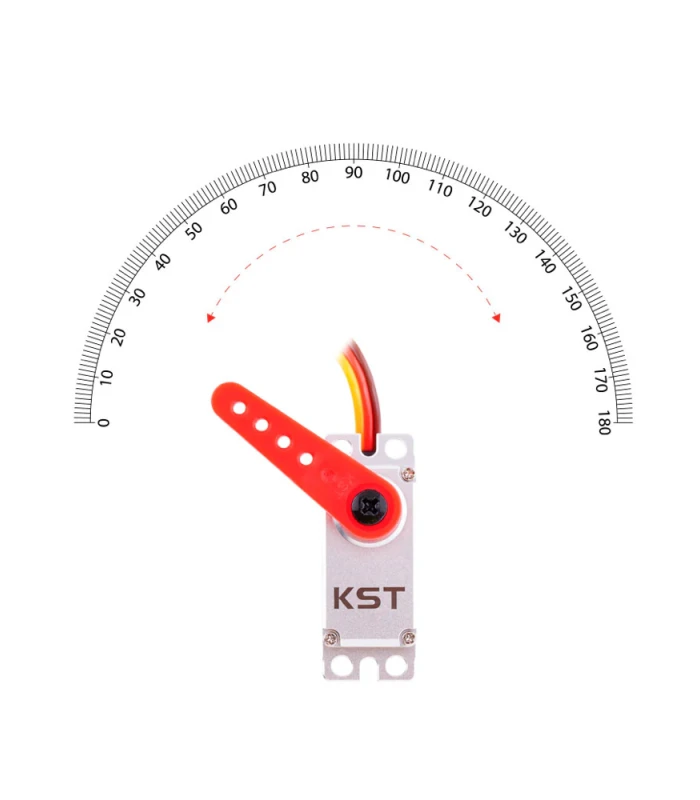

  • Default Travel Angle: ยฑ70ยฐ = 140ยฐ Total
  • Temperature Range: -10โ„ƒโ€ฆโ€ฆ+65โ„ƒ
  • Soft Start: Programmable
  • Programmable: Yes
  • Case Material: Aluminium Alloy
  • Motor Type: Coreless DC Motor
  • Gear Set Material: Hardened Steel
  • Position Sensor: Potentiometer
  • Ball Bearing: 2BB

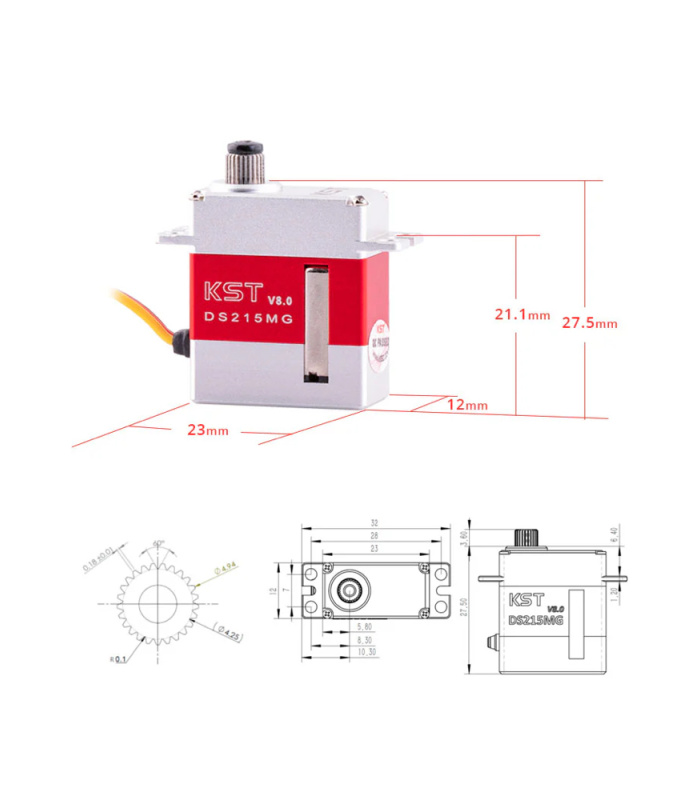

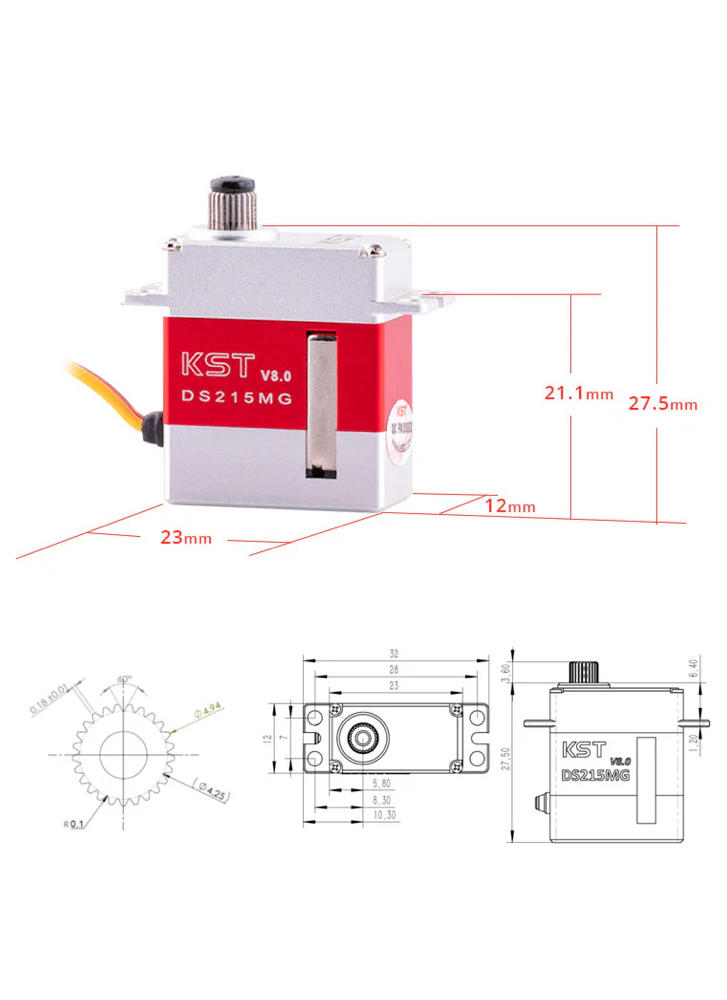

  • Case Dimensions: 23mm*12mm*27.5mmยฑ0.2mm
  • Weight: 20gยฑ10%

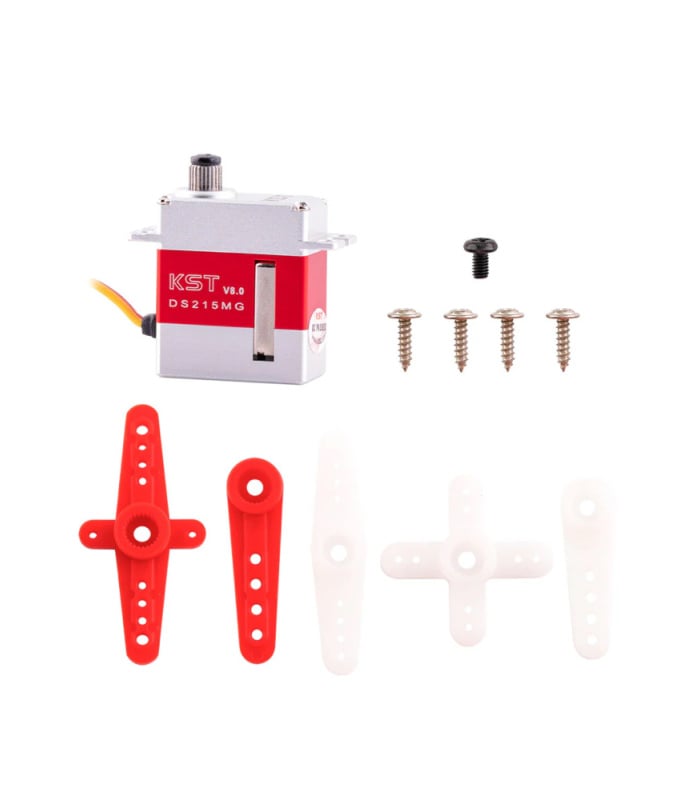

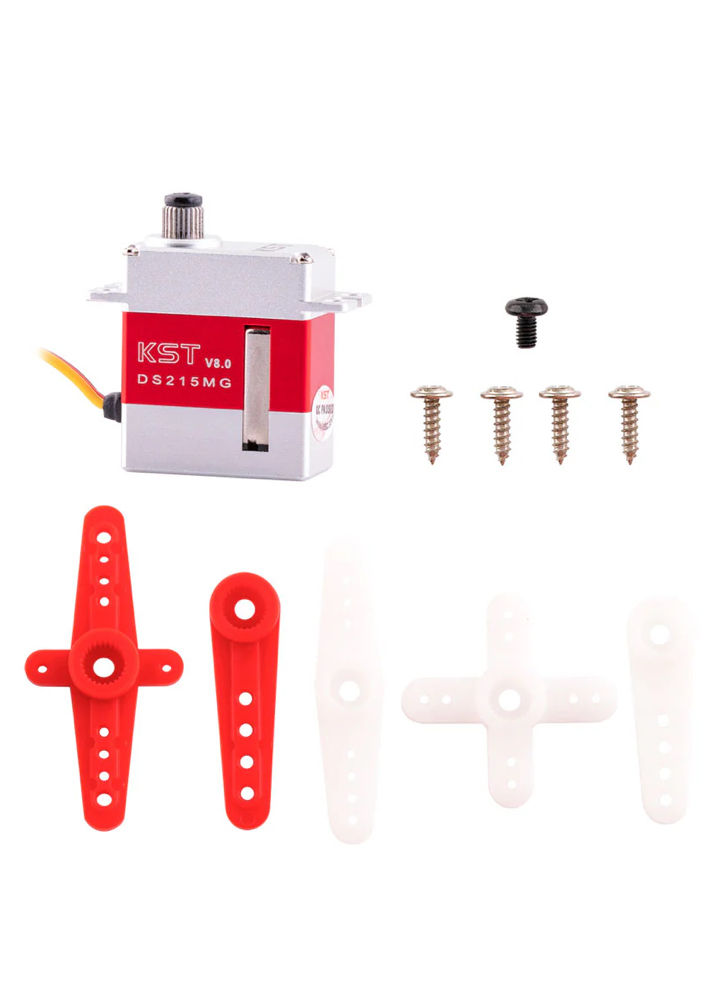

Included:

  • 1 * DS215MG V8.0 Servo
  • 1 * Servo Horn Screw
  • 4 * Mounting Screw
  • 5* ย Plastic Servo Horn
Downloads
Data Sheet (pdf, 691KB)
