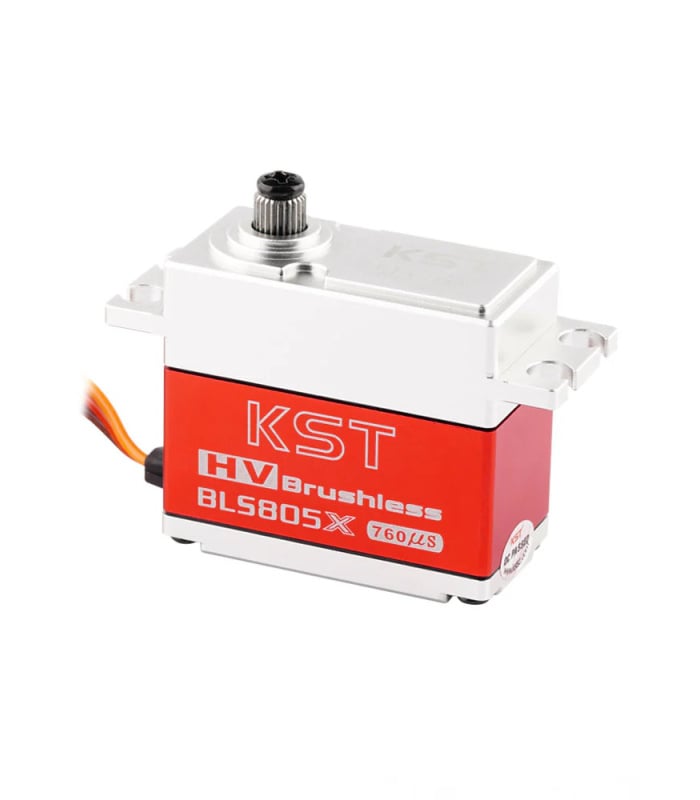

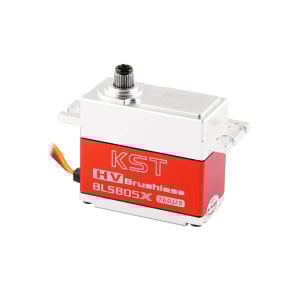

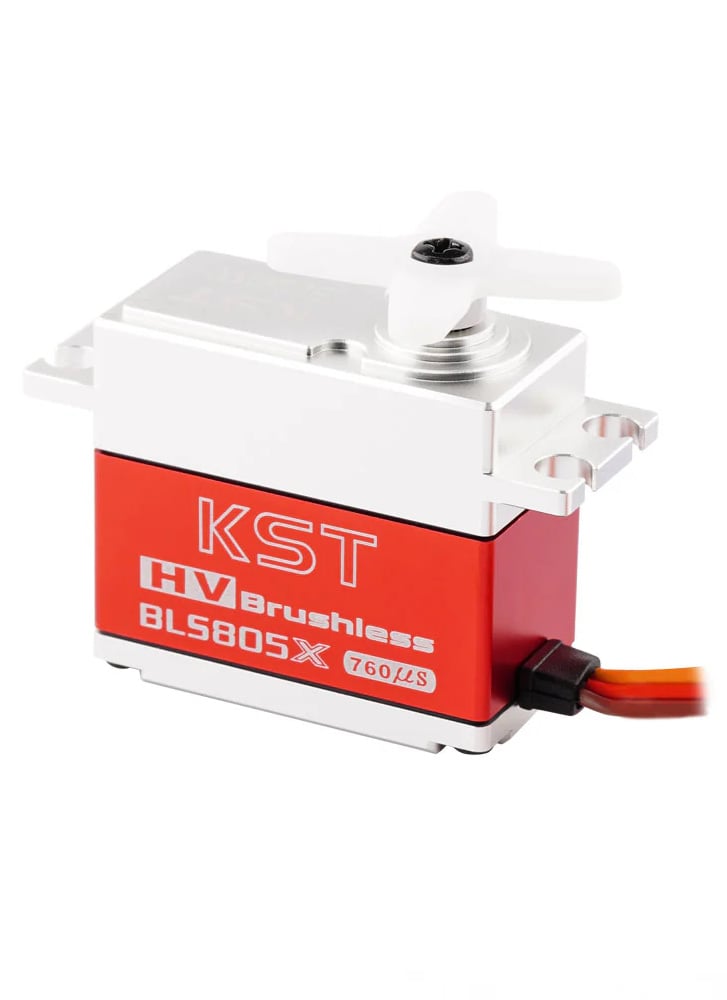

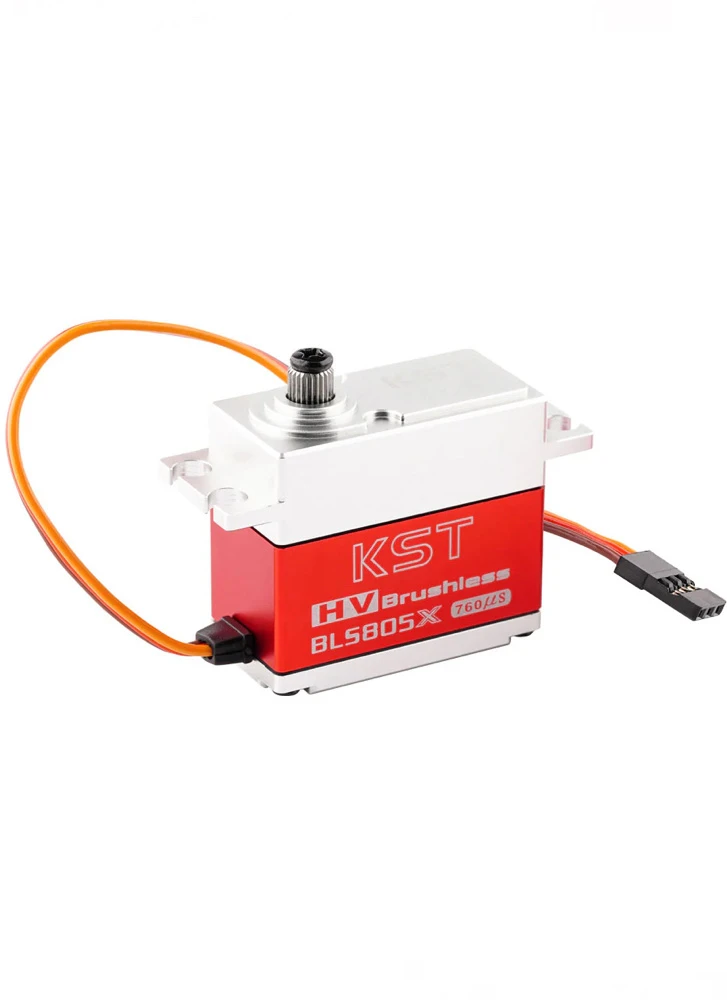

KST BLS805X HV Brushless Digital Tail Servo 7.5Kgf.cm 0.039sec for Heli 550-700

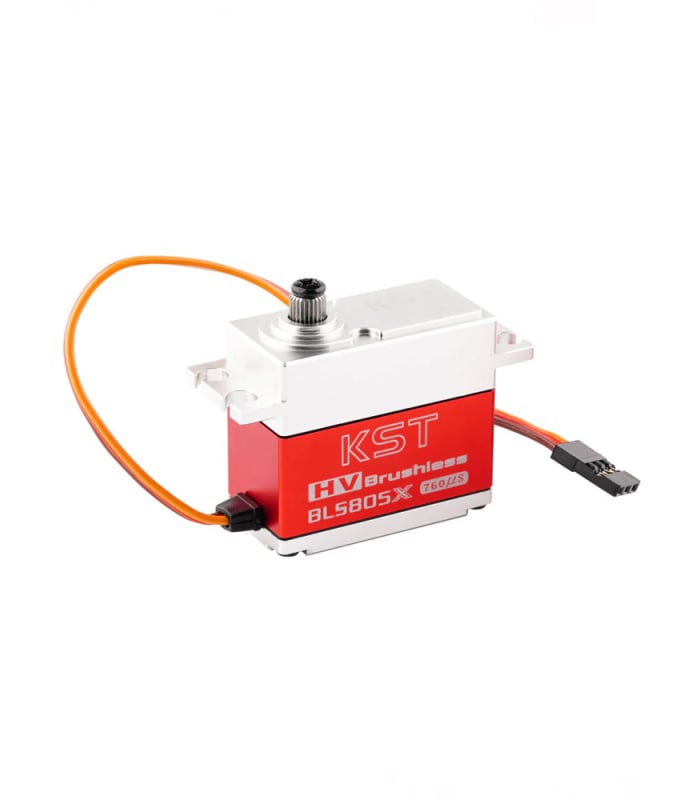

KST BLS805X HV Brushless Digital Tail Servo 7.5Kgf.cm 0.039sec for Heli 550-700 - Image 3

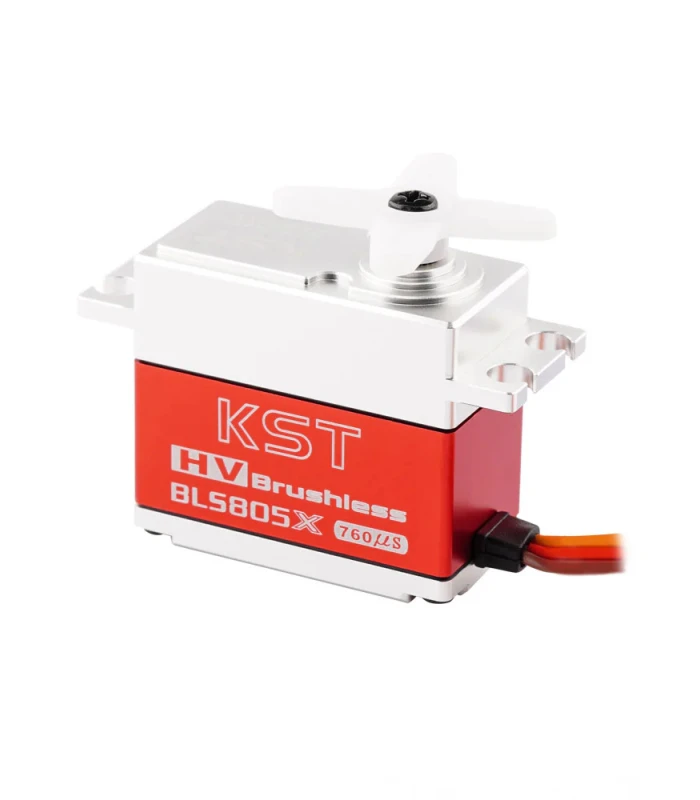

KST BLS805X HV Brushless Digital Tail Servo 7.5Kgf.cm 0.039sec for Heli 550-700 - Image 4

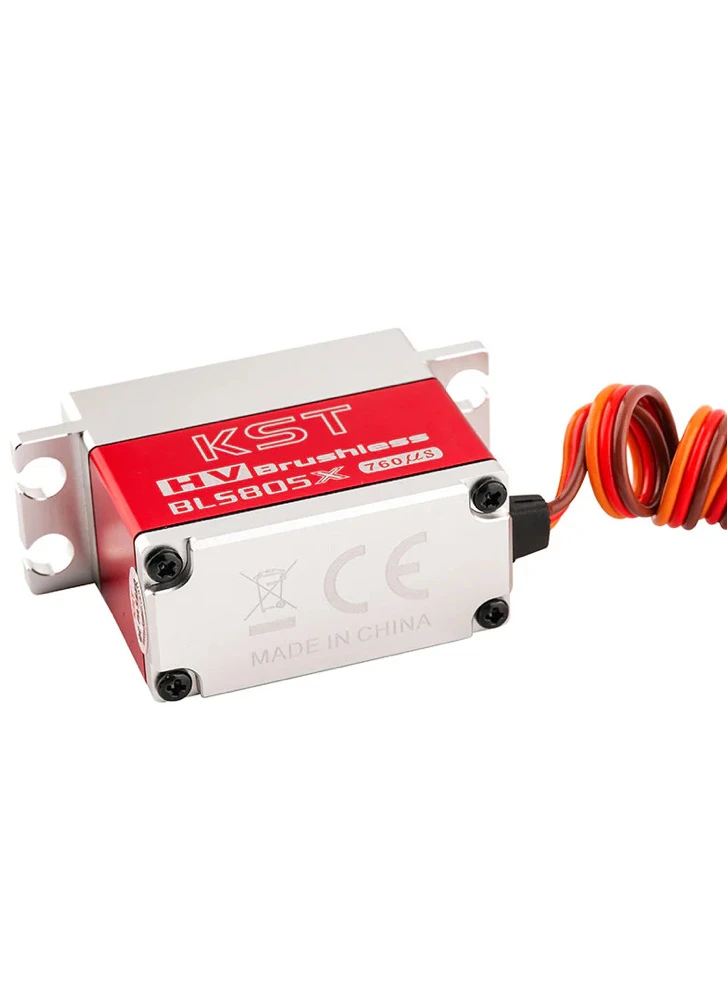

KST BLS805X HV Brushless Digital Tail Servo 7.5Kgf.cm 0.039sec for Heli 550-700 - Image 5

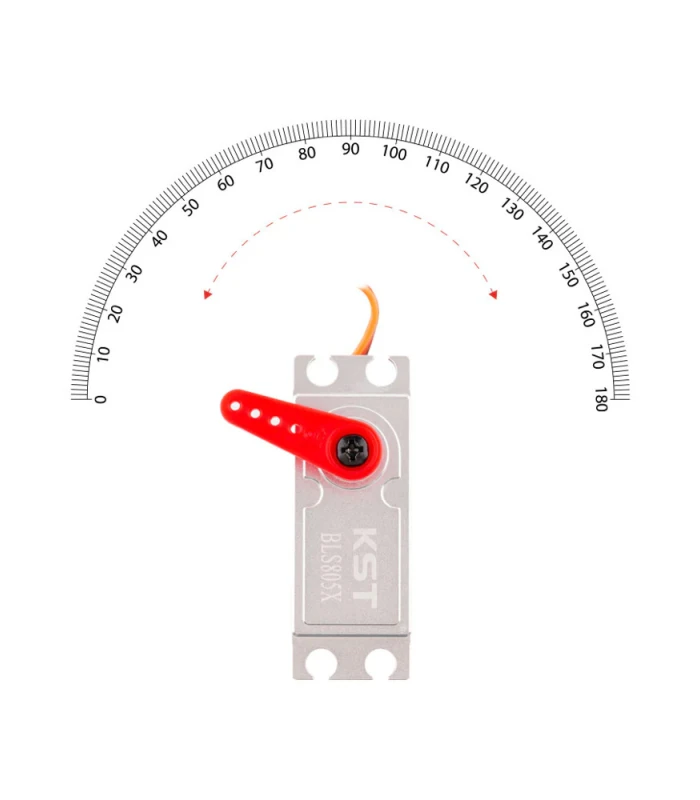

KST BLS805X HV Brushless Digital Tail Servo 7.5Kgf.cm 0.039sec for Heli 550-700 - Image 6

KST BLS805X HV Brushless Digital Tail Servo 7.5Kgf.cm 0.039sec for Heli 550-700

Name: KST BLS805X HV Brushless Digital Tail Servo 7.5Kgf.cm 0.039sec for Heli 550-700 - Flying Tech
Brand: KST
SKU: SERVO-KSTBLS805X
Price: 69.99 GBP
Availability: InStock

£69.99 Inc. VAT

High-speed, brushless HV tail servo with 760μs/560Hz input—perfect for 550–700 size helis needing fast, precise tail control.

In stock

Add to compare

0 People watching this product now!

SKU: SERVO-KSTBLS805X Categories: Servos, Planes & Wings, Plane Electronics, Spare Parts Tags: HV Servo, Servo, Tail Servo

Description

Standard Size Servo For 550-700 Class Helicopter Tail

The KST BLS805X HV Tail Servo is engineered for high-speed, high-precision performance, making it an ideal choice for 3D helicopter pilots flying models in the 550 to 700 class. Built around a high-voltage brushless motor, it delivers lightning-fast response with a pulse speed of just 0.039 sec/60° at 8.4V, giving you sharp, confident tail authority even in the most aggressive maneuvers.

Housed in a robust CNC-machined aluminium case, and equipped with durable steel gears and dual ball bearings, the BLS805X is designed for long-term reliability and resistance to heat and vibration. It runs on 760μs / 560Hz, so be sure your gyro system supports this narrow-pulse, high-frequency specification.

Key Features

Blazing-fast speed: 0.039 sec/60° @ 8.4V
Solid torque: Up to 7.5 kg·cm
High-voltage compatible: 6.0V – 8.4V
Optimized for tail use: 760μs / 560Hz pulse input
All-metal housing: CNC aluminum for durability and cooling
Brushless motor: Smooth, efficient operation with longer life
Perfect for: 550–700 size helicopters

Specification

Item: BLS805X HV Brushless Tail Servo
Operating Voltage: DC6.0V-8.4V

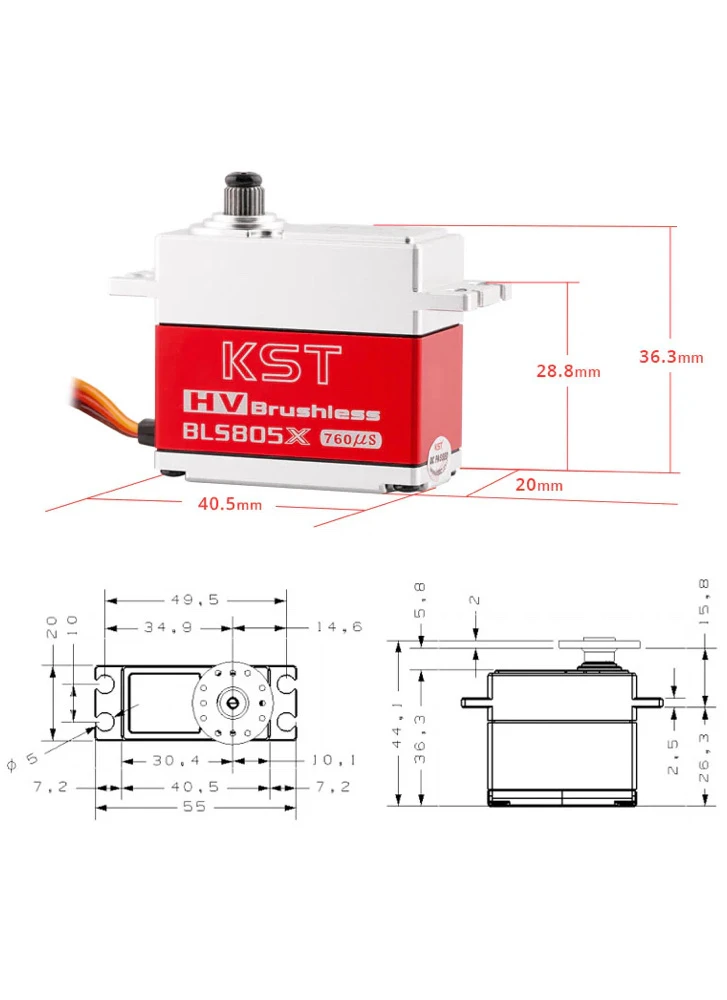

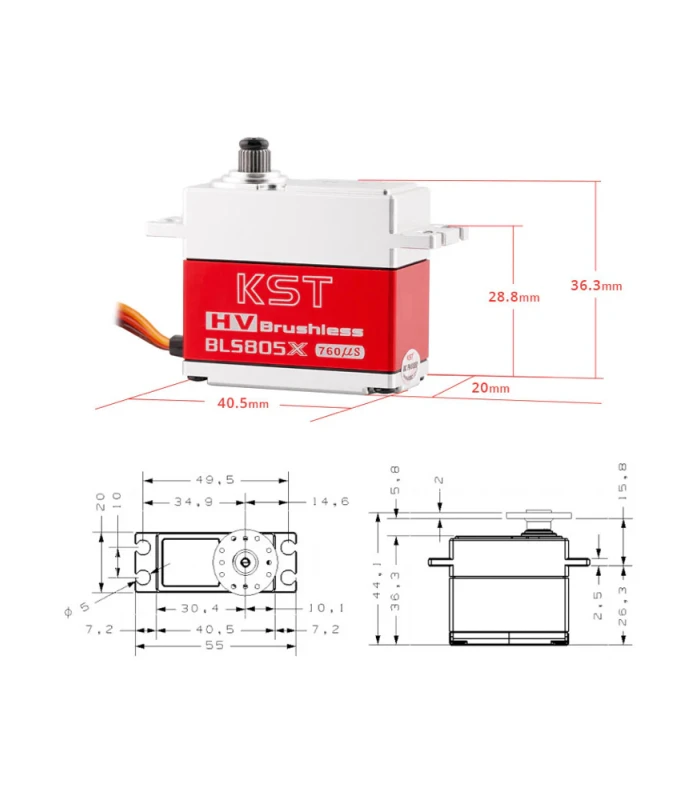

Dimension: 40.5mm*20mm*38mm±0.2mm
Torque: 5.5Kgf.cm@6.0V, 6.5Kgf.cm@7 .4V, 7. 5Kgf.cm@8.4V
Speed: 0.048sec/60° @6.0V, 0.042sec/60°@7.4V, 0.039sec/60°@8.4V
Temperature Range: -10℃……+65℃
Weight: 70g±10%
Working Frequency: 760μs/560Hz
Case Material: Aluminium Alloy
Motor Type: Brushless DC Motor
Position Sensor: Potentiometer
Ball Bearing: 2BB

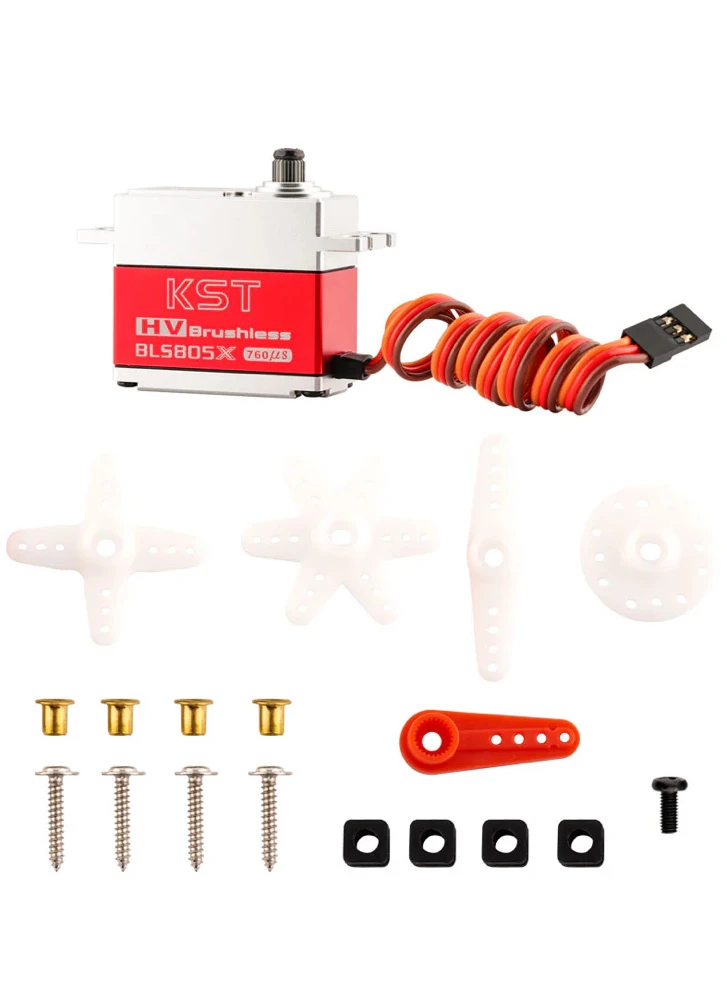

Included:

1 * BLS805X HV Servo
5 * Plastic Servo Horn
1 * Servo Horn Screw
4 * Rubber Grommet
4 * Eyelet
4 * Mounting Screw

Downloads

Data Sheet (pdf, 723KB)

Download
