iSDT BattAir Plugins - Smart Battery Balance Adapter

Version	Clear

Description

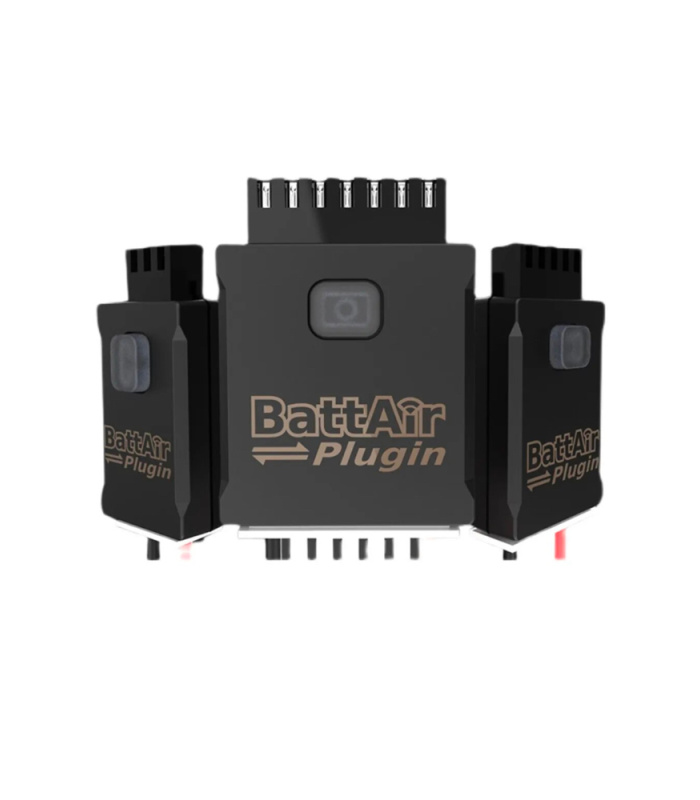

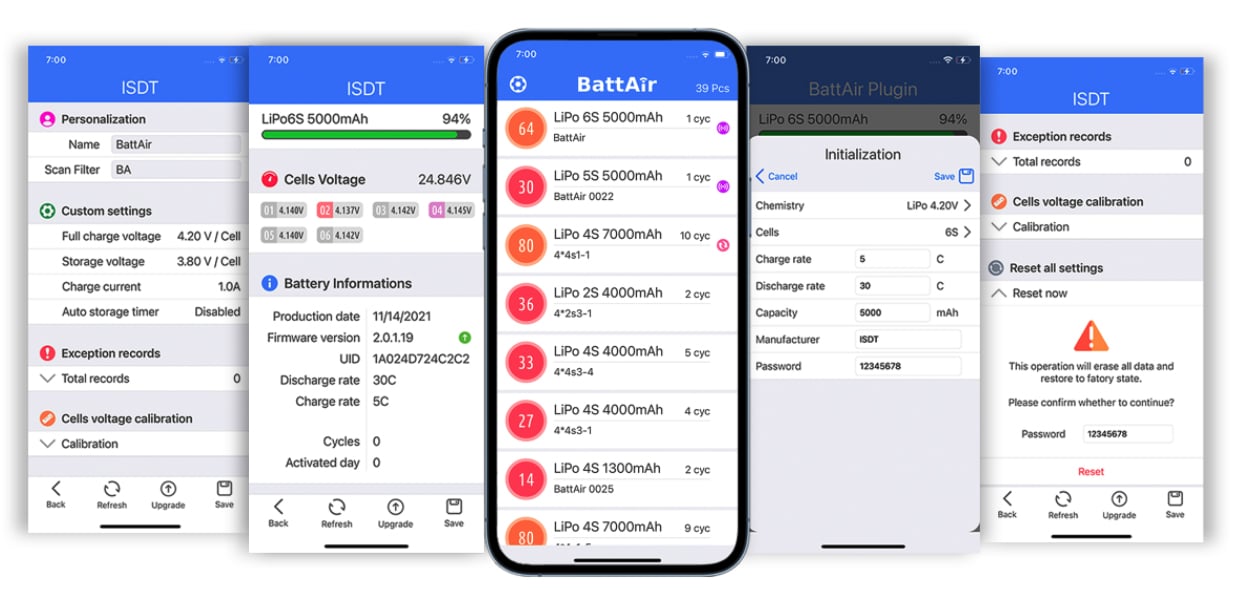

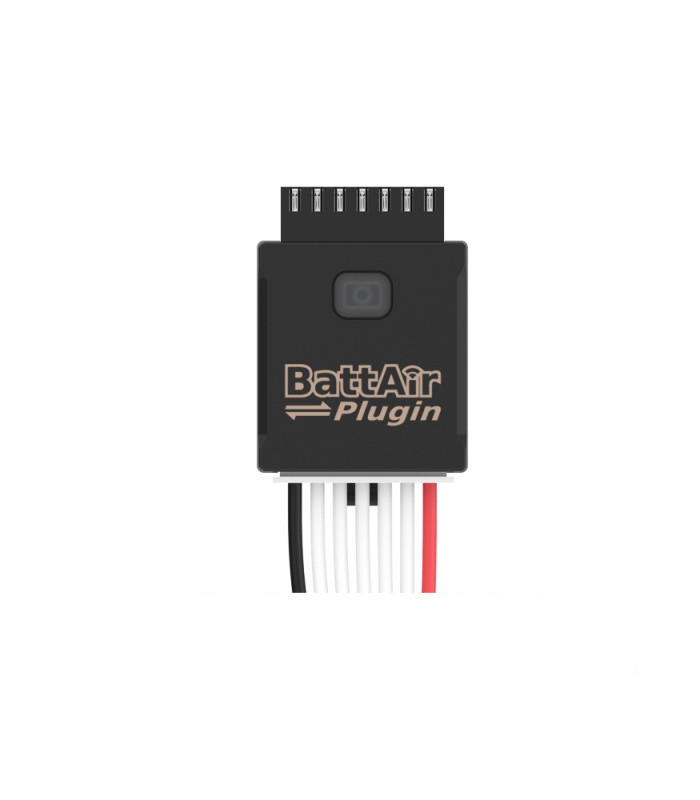

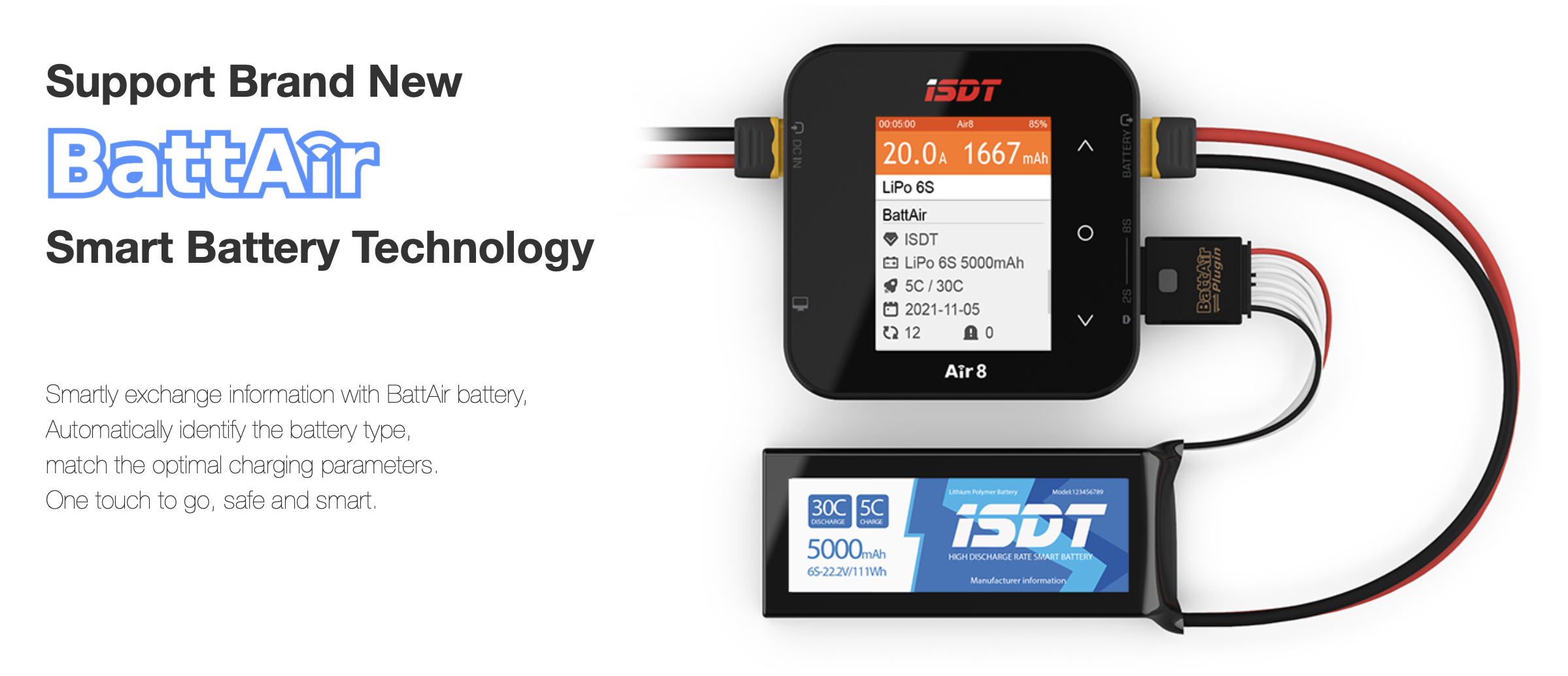

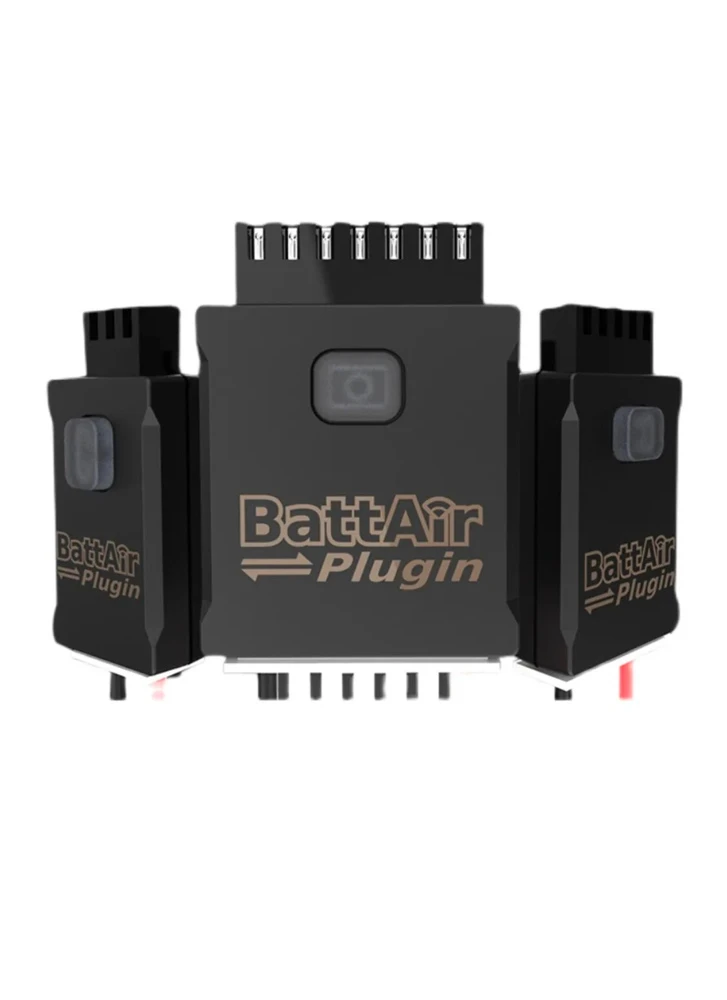

The BattAir Plugin makes all batteries smart. The BattAir Plugin is placed between the balance port of BattAir compatible ISDT chargers and the XH2.54 balance plug on your LiPo battery. From there, using the iSDT BattAir smart device app, you can monitor battery charging status in real time, recognise power levels, battery parameters and usage records.

Note: This plugin is currently supported by the iSDT Air8, K4 and K2Air.

Features:

Fully compatible with existing balance port structure, just plug it in.
Upgrades your Battery to a Smart Battery
XH2.54 Universal Port
Press and Show – LED indicates charge status

Specification

Supported Battery Type: LiFe, LiPo, LiHv, ULiHv
Supported Battery Cells: 3-4S BAP4 / 5-6S BAP
Dimensions: 36x19x9mm BAP4 / 36x24x9mm BAP6
Quiescent Current: 50uA
Weight: 3.8g BAP4 / 4.7g BAP6

LED FUNCTIONS

BattAir Plugin is not calibrated/Error
BattAir Plugin is not initialized
20% < Power < 90%
Firmware upgrading
APP Connected
Power > 90%
Power < 20%
Discharging

Included

1x iSDT BattAir Plugin

Q&A

Questions and answers of the customers

Hi is this compatible with the Battgo BG-8S?

0 votes

Q Hi is this compatible with the Battgo BG-8S? answer now

A
Hi, it is not. The plugin is currently supported by the iSDT Air8, K4 and K2Air.
