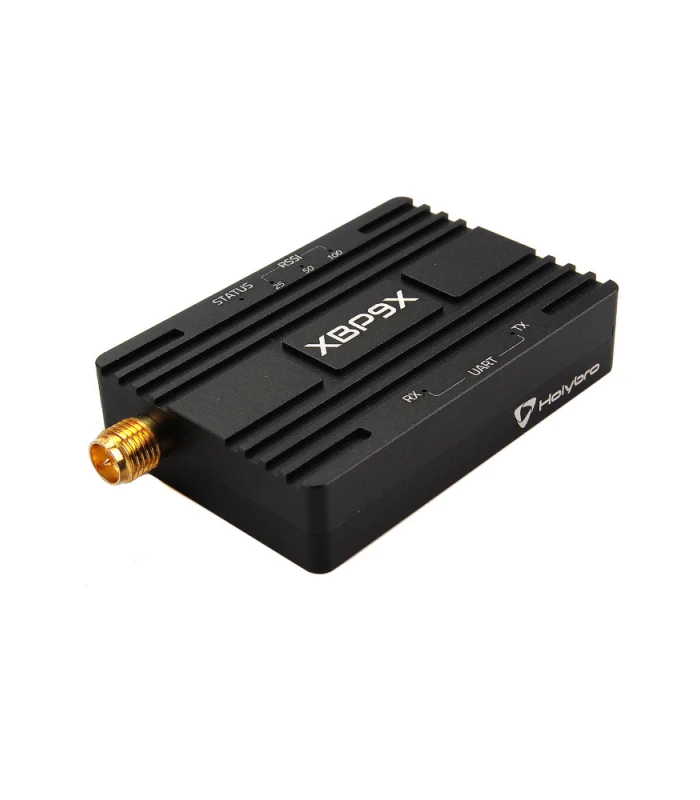

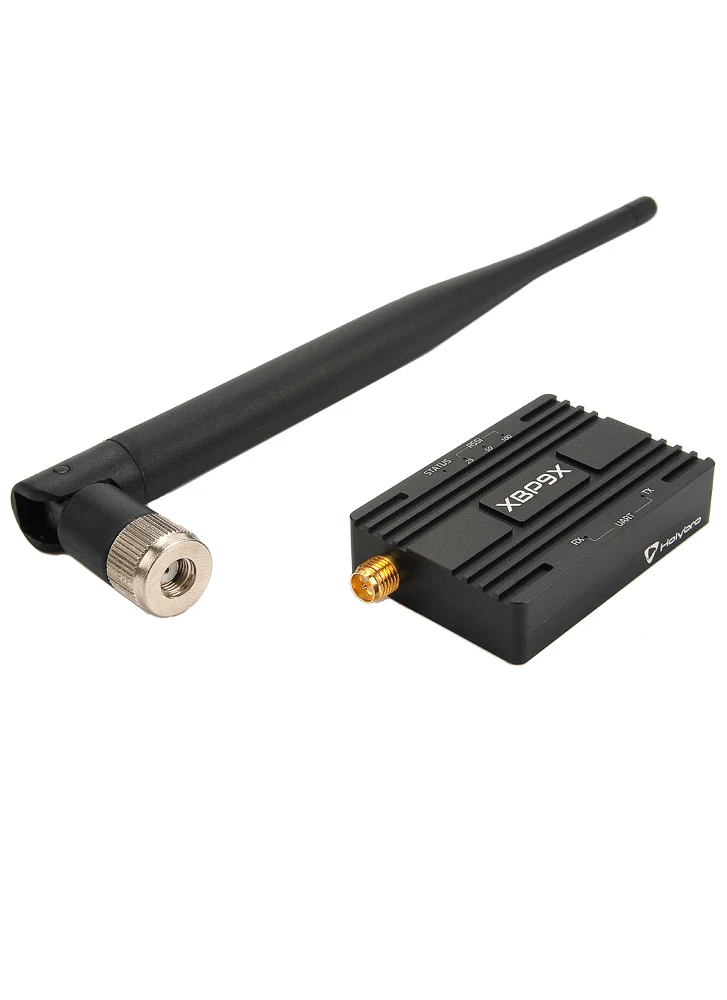

Holybro XBP9X Long Range 900MHz Telemetry Radio Set

£219.90 – £429.90 Inc. VAT

Long radio telemetry radios using with 256-bit AES encryption.

Version

Clear

Add to compare

0 People watching this product now!

SKU: N/A Categories: Telemetry, Electronics, Flight Controller Accessories Tags: 900MHz, Telemetry, Telemetry Radio

Description

Holybro XBP9X Radio can be configured easily using Digi’s free XCTU software or via Digi’s simplified AT or API command sets. The Radios provide secure, reliable delivery of critical data between devices with 256-bit AES encryption. With RF line-of-sight ranging up to 65 miles* and strong interference blocking capabilty, the Radios are ideal for those applications requiring the combination of range, data redundancy and data reliability.

FCC ID :MCQ-XBPSX

Features:

USB Type-C port, integrated USB to UART converter
6-position JST-GH connector, can be directly connected to pixhawk4 flight controller
High voltage BEC on board, Support DC7~35V voltage supply
Can be powered by USB or flight controller in 100mW transmit power mode

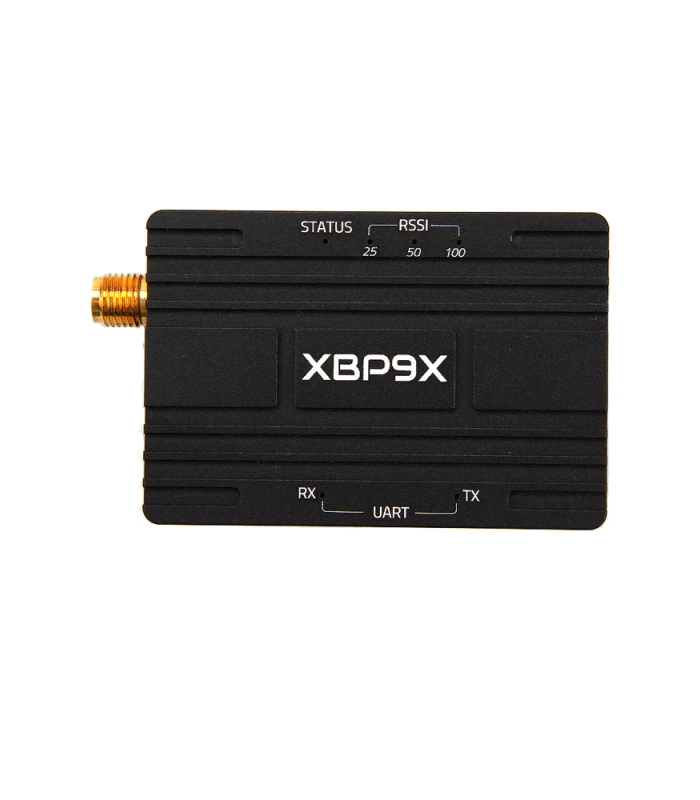

UART transmission LED indicator
Three-stage RSSI LED indicator
256-bit AES encryption for secure data communications
DigiMesh networking topology for redundancy and reliability
Fully certified for use in unlicensed 900 MHz band

Specification

FREQUENCY RANGE: ISM 902 to 928 MHz
TRANSMIT POWER (Software Selectable): Up to 30 dBm*
CHANNELS: 10 hopping sequences share 50 frequencies
RF DATA RATE: Low data rate: 10 kb/s; Middle data rate: 110 kb/s; High data rate: 250 kb/s
MAXIMUM DATA THROUGHPUT: High data rate: 120 kb/s
AVAILABLE CHANNEL FREQUENCIES: Low and middle data rate: 101; High data rate: 50
RECEIVER SENSITIVITY: Low data rate: -113 dBm; Middle data rate: -106 dBm; High data rate: -103 dBm
RECEIVER IF SELECTIVITY: Low data rate, +/- 250 kHz: 40 dB; Low data rate, +/- 500 kHz: 50 dB Middle data rate, +/- 250 kHz: 30 dB; Middle data rate, +/- 500 kHz: 40 dB High data rate, +/- 500 kHz: 30 dB; High data rate, +/- 1000 kHz: 45 dB RECEIVER RF SELECTIVITY Below 900 MHz and above 930 MHz; > 50 dB
RURAL RANGE LINE OF SIGHT: Low data rate: Up to 105 km (65 mi)
URBAN RANGE LINE OF SIGHT: Low data rate: Up to 18 km (11 mi)
INDOOR RANGE: Low data rate: Up to 300 m (1,000 feet)
MODULATION: Gaussian Frequency Shift Keying Gaussian Frequency Shift Keying
SPREADING TECHNOLOGY: Frequency Hopping Spread Spectrum (FHSS)
SUPPORTED NETWORK TOPOLOGIES (Software Selectable): Peer-to-peer (master/slave relationship not required), point-to-point/point-to-multipoint, mesh
ENCRYPTION: Optional 256-bit AES CBC encryption. Encryption is enabled with the ATKY command.

Power:

Supply voltage: 5V DC from USB or 6-position JST-GH (100mW)
7~35V DC form 4-position JST-GH (500mW or 1000mW)
Transmit current: 300 mA/5V at 20dBm
500mA/7V at 27dBm
800 mA/7V at 30dBm
Receive current: 40 mA
Serial interface: 3.3 V UART
51.9×35.4 x 11.5mm (without antenna)

Please note: when 500MW or 1000MW output is taken, battery must be used for power supply, otherwise the transmission will be unstable.

Downloads

Quick Start Guide (pdf, 344KB)

Download

XCTU UserGuide (pdf, 8032KB)

Download
