Holybro QAV250 Quadcopter Development Drone Kit

Name: Holybro QAV250 Quadcopter Development Drone Kit - Flying Tech
Brand: Holybro
SKU: KIT-HBQAV250-30175
Price: 524.99 GBP
Availability: InStock

£524.99 Inc. VAT

The QAV250 Kit is the perfect way to get started developing on either PX4 or Ardupilot.

Only 1 left in stock

Compare

0 People watching this product now!

SKU: KIT-HBQAV250-30175 Categories: DIY Drone Kits, Pre-built Drones & Kits Tags: Drone, Educational, Kit, Pixhawk, Project, Quadcopter

Description

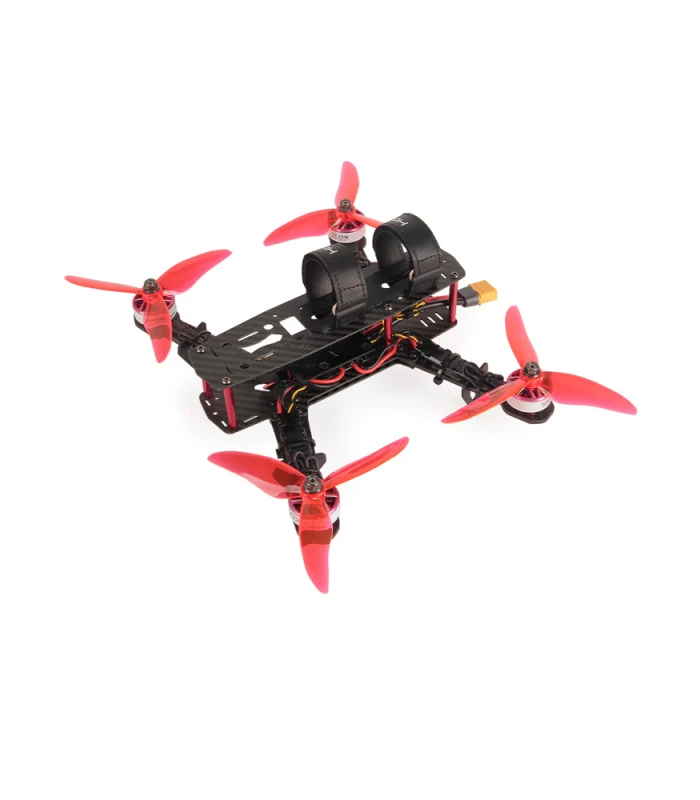

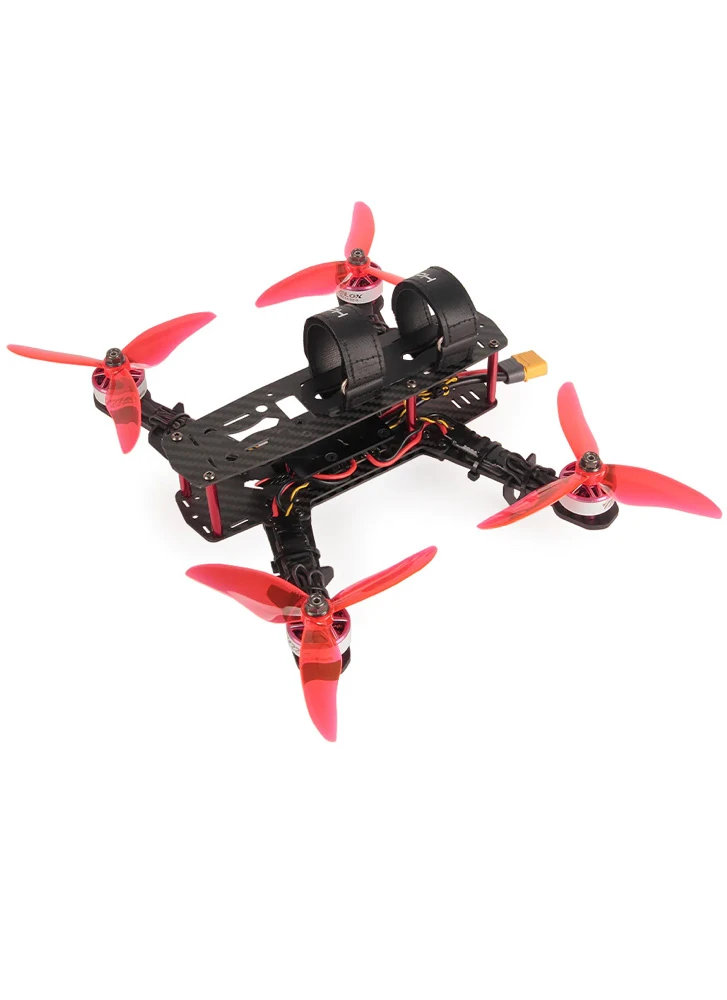

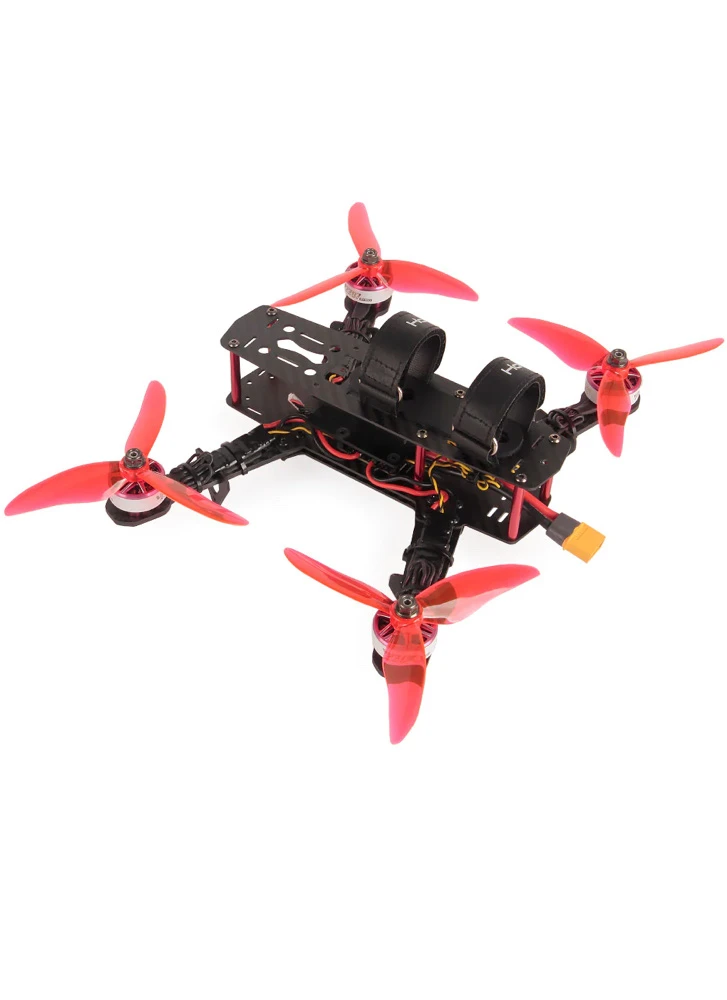

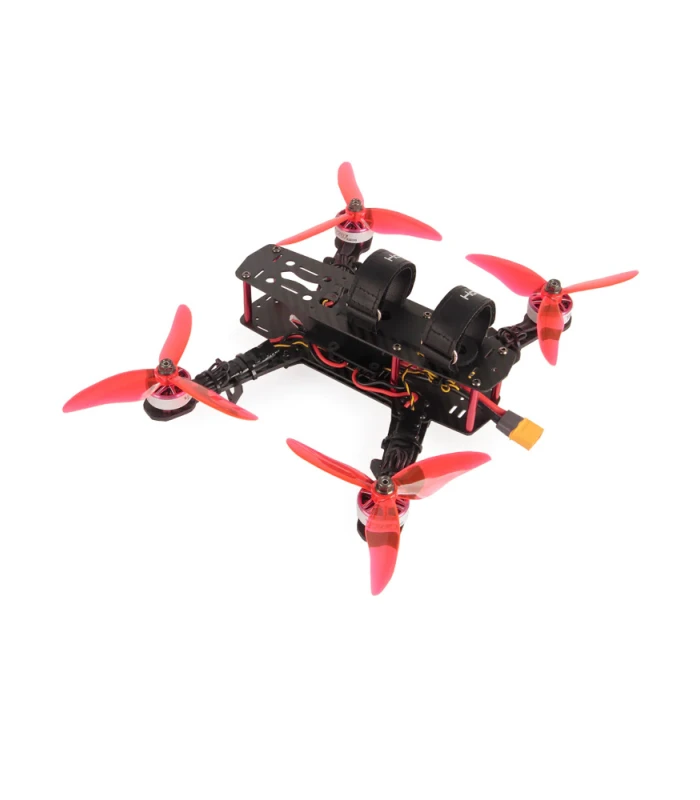

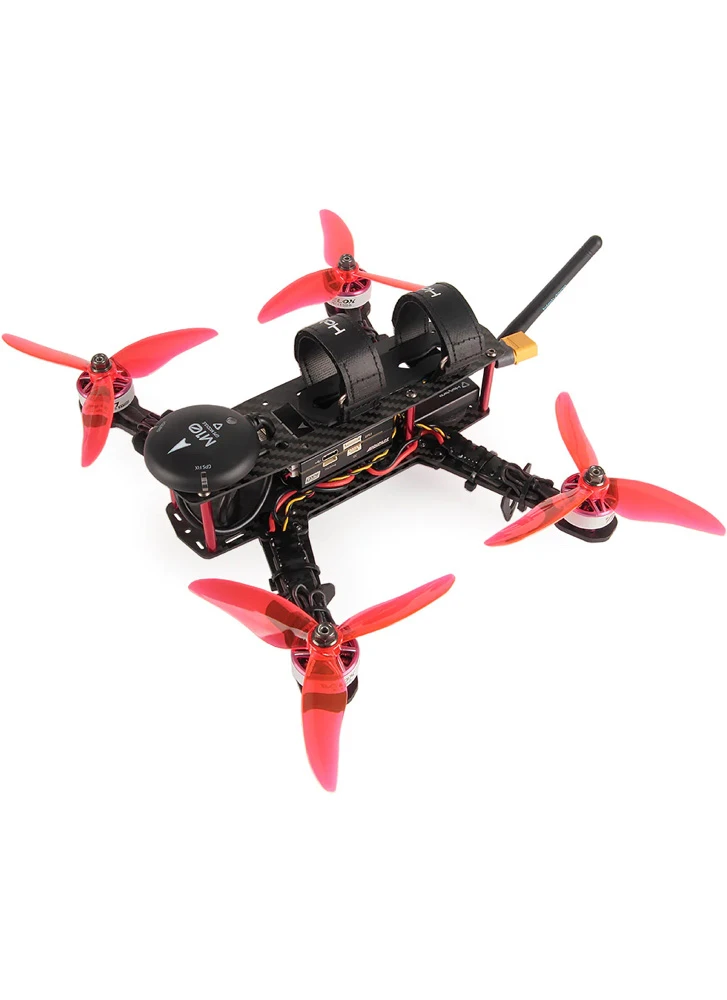

The QAV250 Kit is the perfect way to get started developing on either PX4 or Ardupilot. The kit pairs a 5inch / 250 size carbon fibre quadcopter frame and essential electronics with a Pixhawk 6C Mini autopilot. The kit is easy to assemble. No soldering needed.

There are variants of the kit both with (Complete) and without (Basic) FPV support. Here we are selling the Complete Kit that includes a FPV camera and video transmitter – a video receiver / display is required to view the live video from the drone.

Pixhawk 6C Mini:

The Pixhawk® 6C Mini is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. It shares the same STMH743 microprocessor and sensors as the Pixhawk® 6C. Compared to the standard Pixhawk® 6C, this Mini version has a built-in PWM header, and some ports have been removed in order to fit this Mini form factor.

Features:

Great platform to learn programming of PX4 or Ardupilot
Matched electronic components included
Comes with wireless Telemetry Radio Set
Plug and play installation, no soldering required
FPV ready – includes camera, video transmitter and OSD (On Screen Display)

Build Guide (for older model using Pixhawk 4 Mini FC, but similar steps)

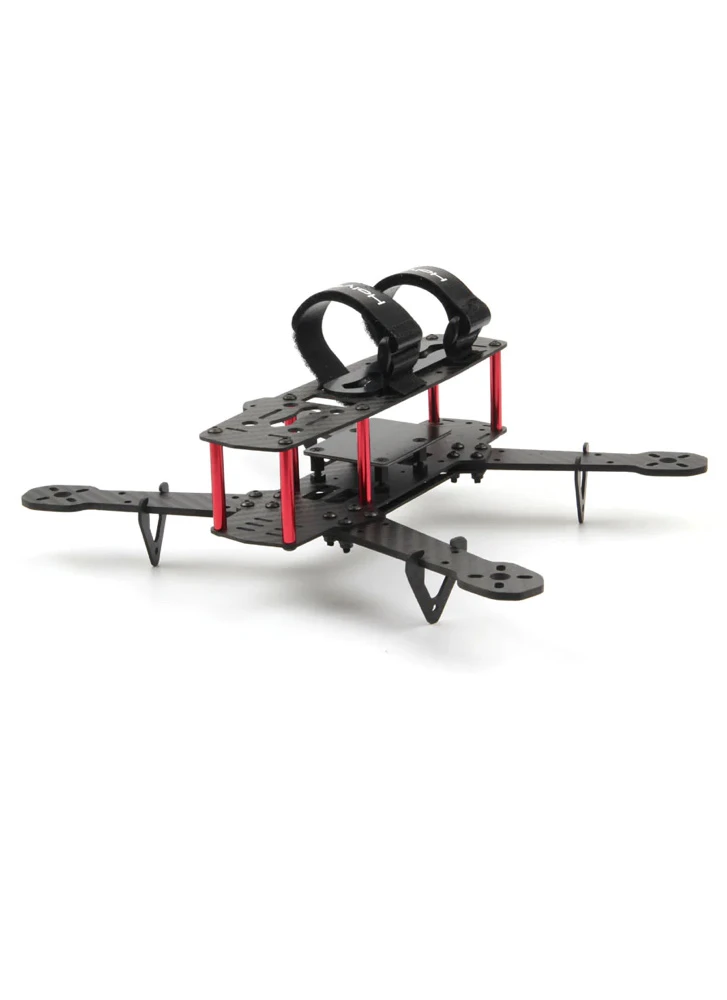

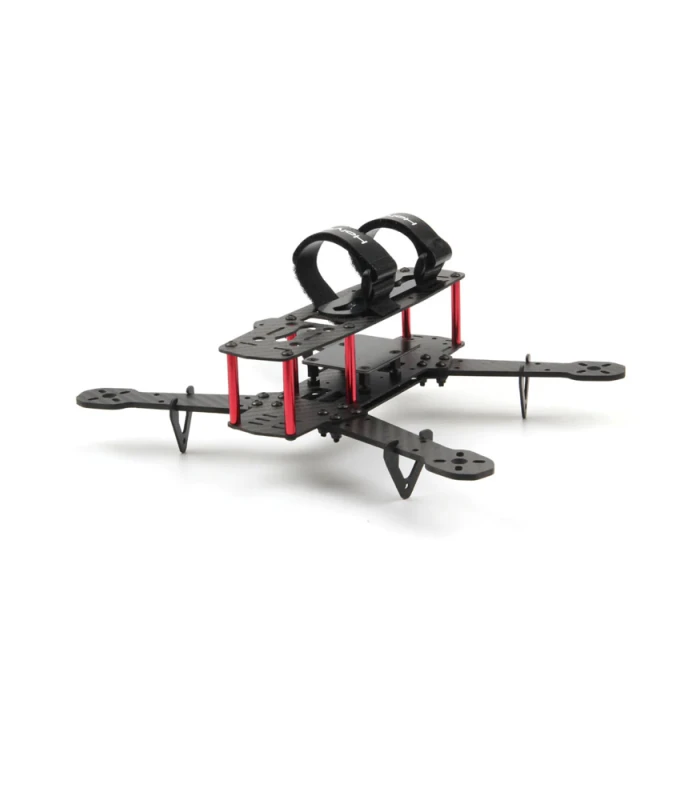

Included Parts:250mm sized carbon fibre air-frame

Pixhawk 6C Mini flight controller system
M10 GPS

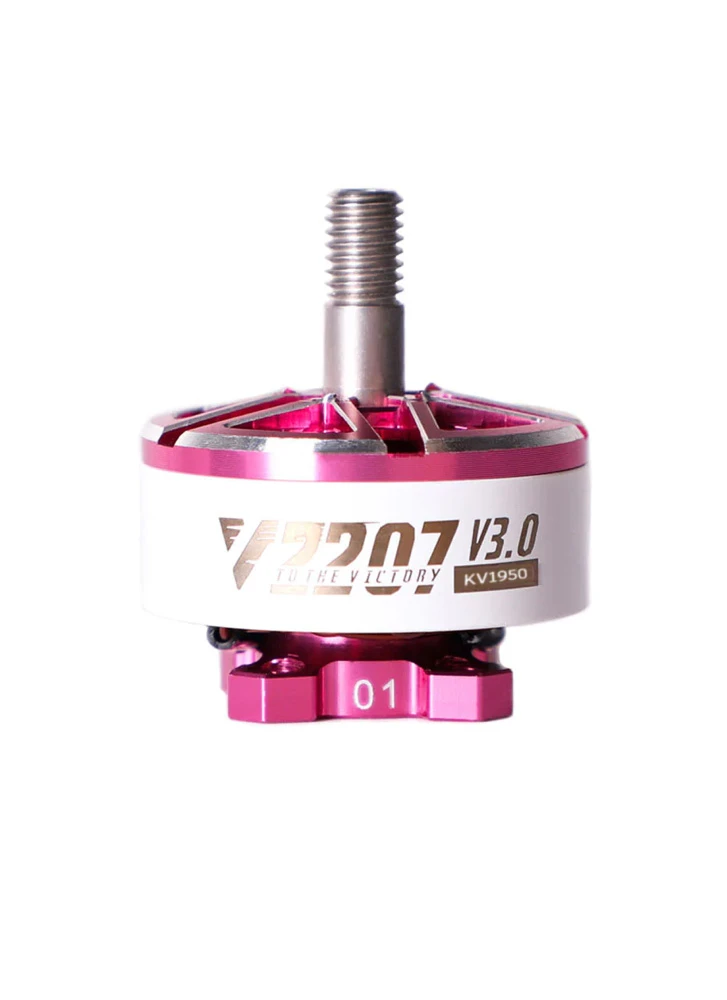

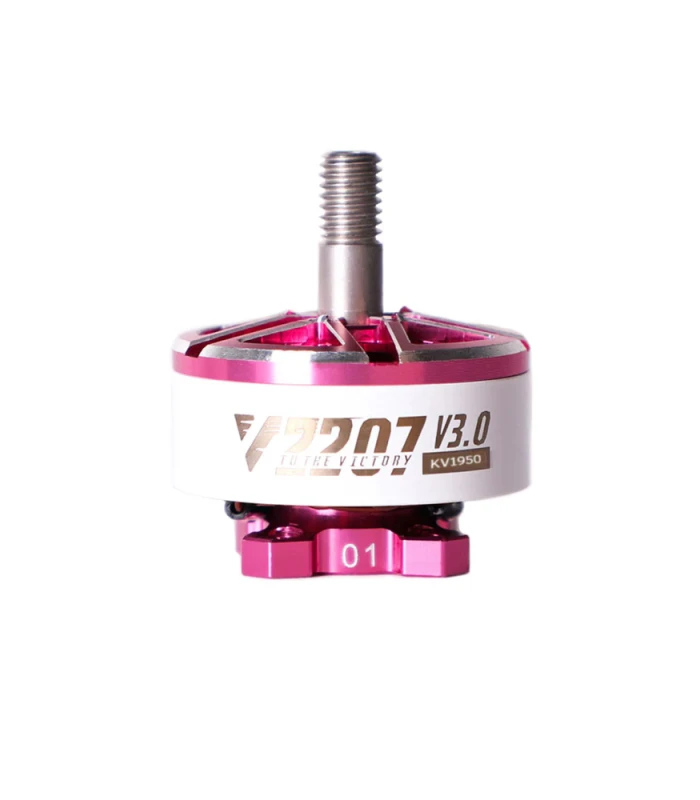

Motors – 2207 KV1950
20A Speed Controllers (ESCs)
PM06 Power Distribution Board
433MHz Telemetry Radios
5.8G FPV Video Transmitter
Foxeer Predator 5 Micro FPV Camera
Holybro Micro OSD V2
5″ propellers

Parts required:

You will need a radio control receiver and transmitter; we recommend the FlySky i6X Set. For FPV flights you will also need a FPV monitor/goggles. For that we recommend this simple video receiver which can be connected to a Windows / Mac or Android tablet or a dedicated FPV monitor. Finally, a LiPo battery to power it: a 3S or 4S from 1500 to 2300mAh.

Recommended Battery Specification: 4S 2200~3000mAh Lipo
Max payload: up to 500g (With 4S 3000 mAh battery)

Specification

Included:

Pixhawk 6C Mini autopilot with mini baseboard
Carbon fiber 250 airframe with hardware
Motors – 2206 KV2300
5” Plastic Props
M10 GPS
Fully assembled Power Management Board with ESCs(BLHeli S ESC 20A)
433MHz Telemetry Radio
5.8G FPV Video Transmitter
Micro OSD V2
Foxeer Predator 5 Micro FPV Camera
Power and Radio Cables
Battery Straps
Dimensions: 198x235x85mm
Wheelbase:250mm
Weight: 456g

Note: No LiPo battery included.
