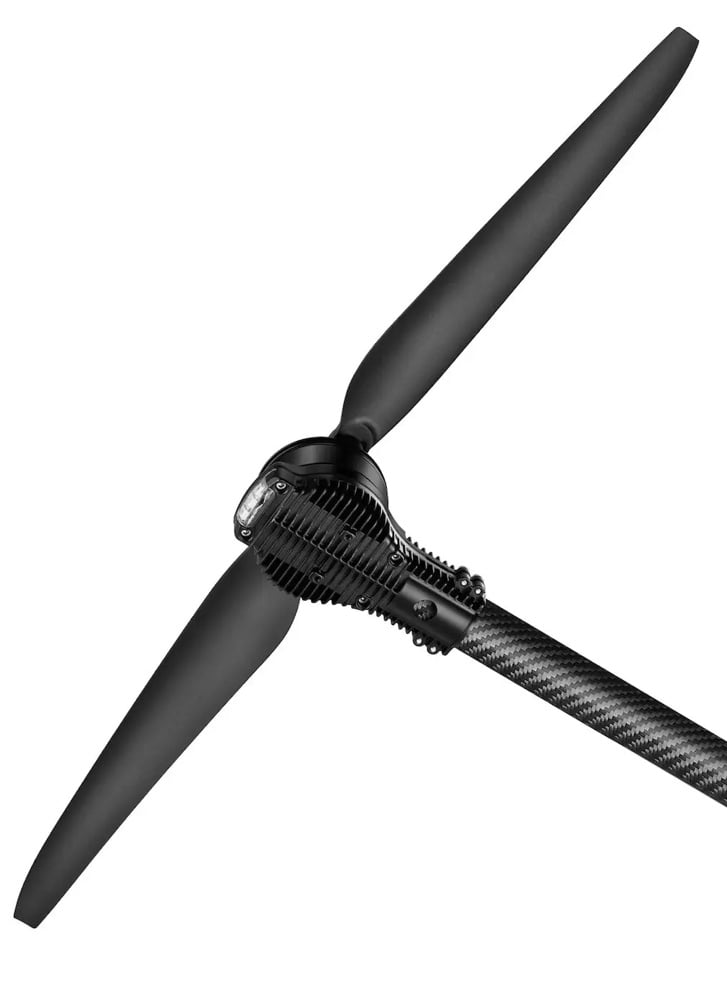

Hobbywing X6 Plus 6218 150KV 12-14S Propulsion System (Motor + ESC)

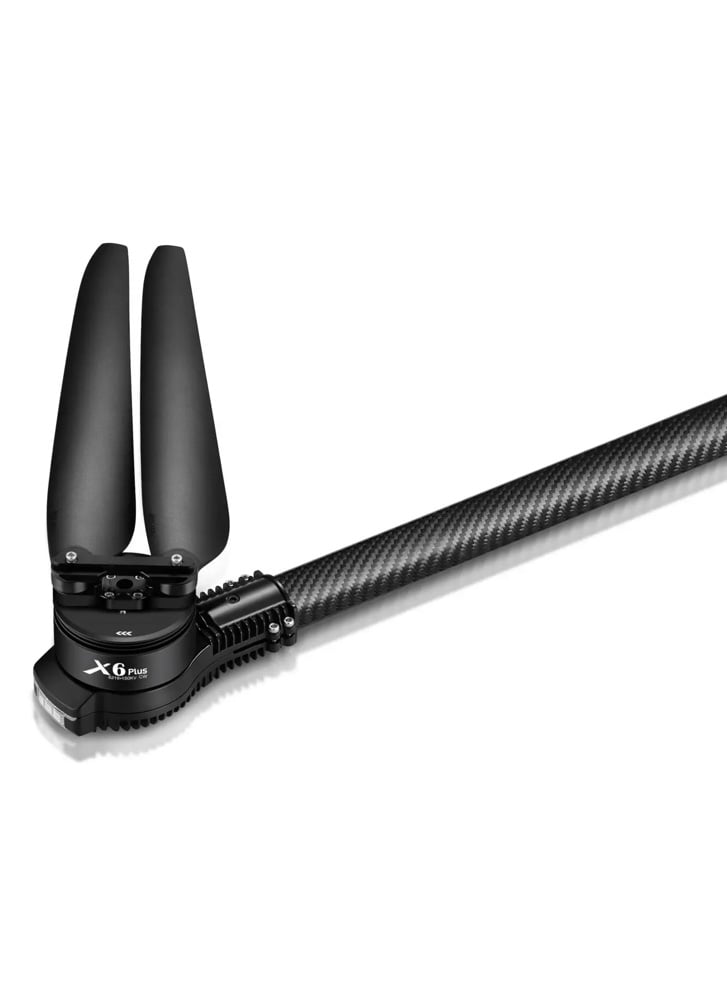

Hobbywing X6 Plus 6218 150KV 12-14S Propulsion System (Motor + ESC) - Image 3

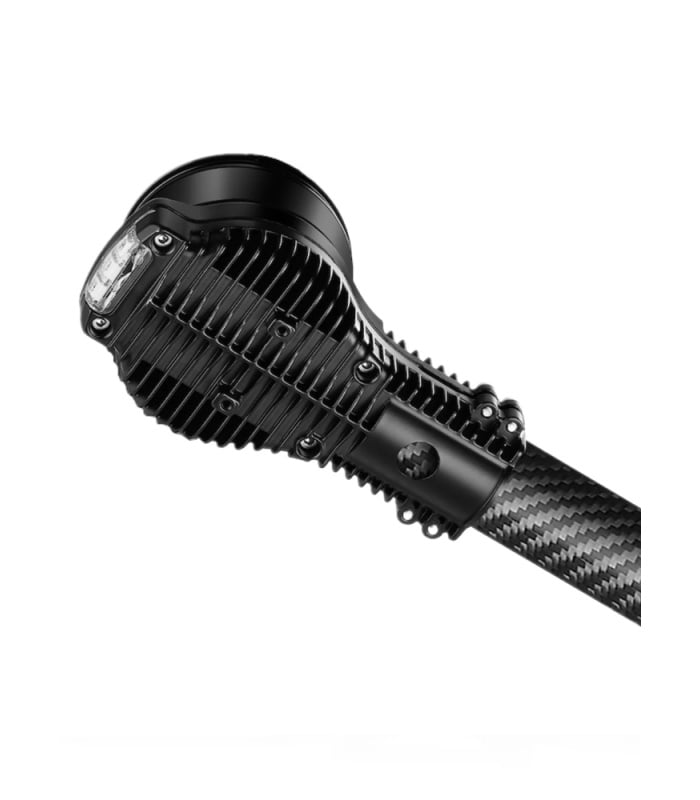

Hobbywing X6 Plus 6218 150KV 12-14S Propulsion System (Motor + ESC) - Image 4

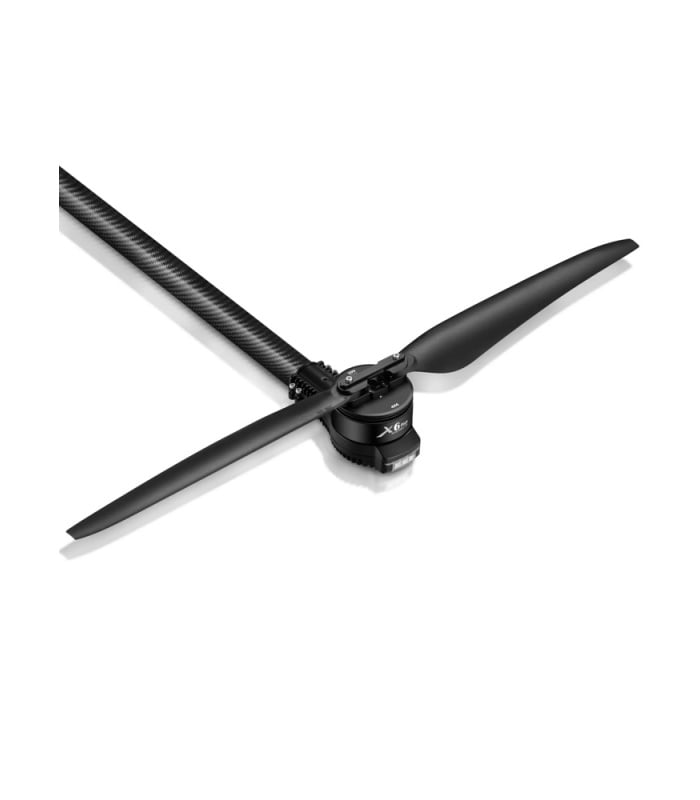

Hobbywing X6 Plus 6218 150KV 12-14S Propulsion System (Motor + ESC) - Image 5

Hobbywing X6 Plus 6218 150KV 12-14S Propulsion System (Motor + ESC)

£144.90 Inc. VAT

A high-efficiency, pre-assembled power system delivering reliable performance, real-time CAN telemetry, and seamless integration with 30mm carbon fibre arms.

Version

Clear

Add to compare

0 People watching this product now!

SKU: N/A Categories: Multirotor Motors (22XX +), Brushless Motors, Electronics, Motors, Speed Controllers (ESCs) Tags: 12S, 14S, CAN

Description

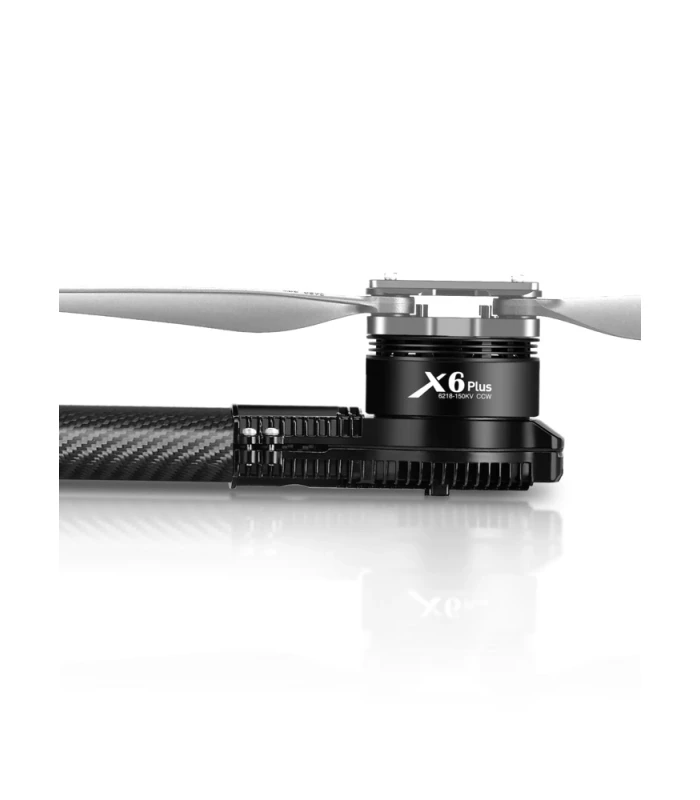

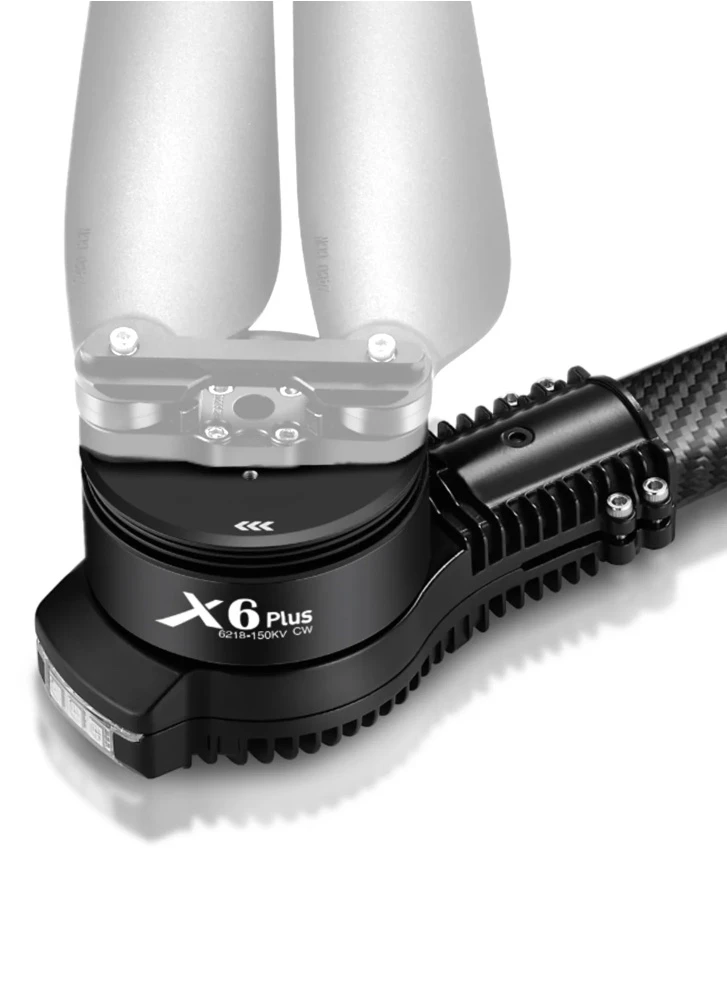

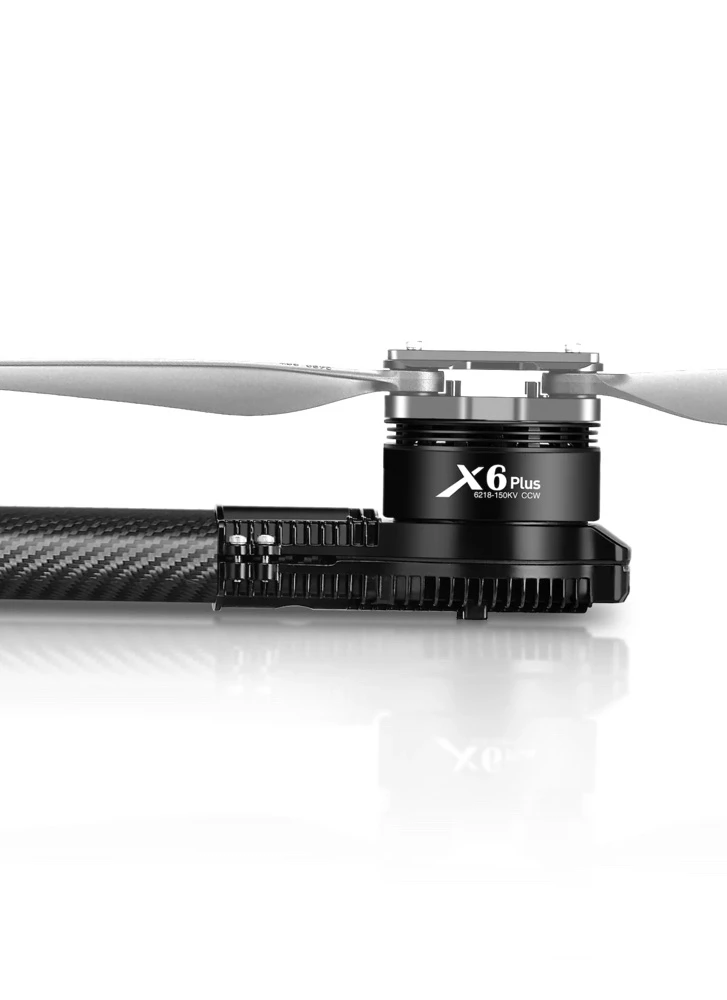

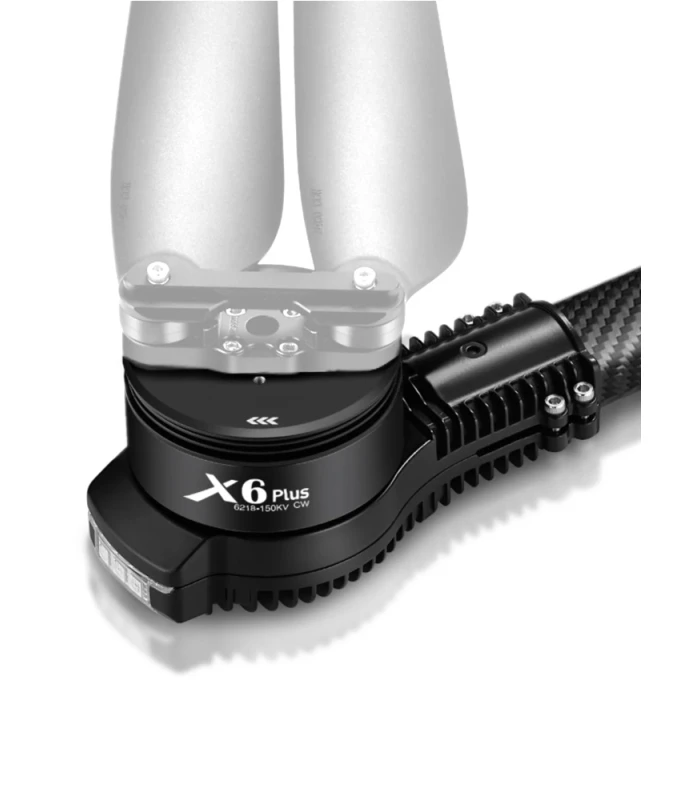

The Hobbywing X6 Plus 6218-150KV Power System is a high-performance, IPX6-rated brushless combo designed for agricultural and industrial UAVs. Built to support single-rotor loads of 3.5–5.5kg, it features the powerful 6218-150KV motor and a smart FOC (Field-Oriented Control) ESC, compatible with both CAN and PWM throttle input.

Rated IPX6 for water and dust resistance, this system is ready to operate in harsh environments including rain, pesticide exposure, salt spray, and high temperatures. The advanced FOC ESC ensures smoother, quieter, and more efficient motor control with enhanced stability. It also includes multiple safety features such as stall, over-current, and throttle signal loss protection, along with real-time telemetry and built-in fault logging for easy diagnostics.

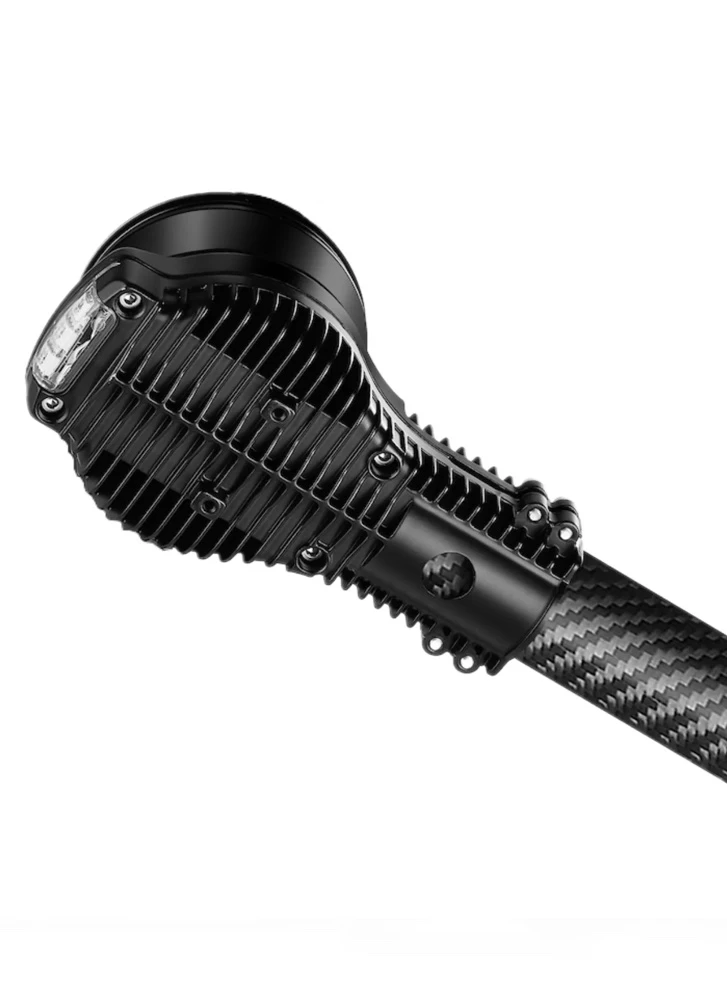

A built-in LED module provides configurable navigation lighting and system status indication, helping with orientation and offering visual fault alerts through coded flashing patterns.

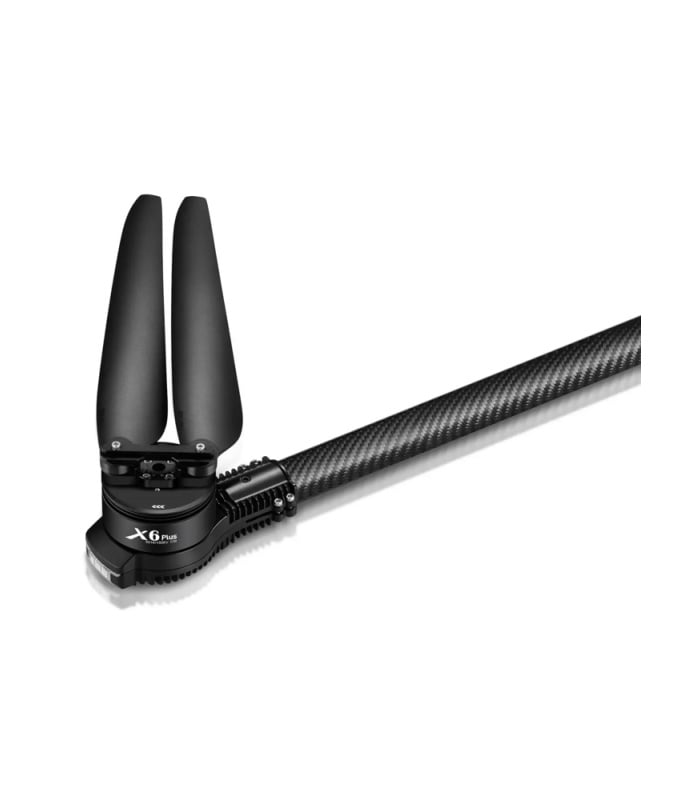

With plug-and-play installation, this pre-assembled power system is ready to elevate your UAV’s performance and efficiency straight out of the box. Compatible with 30mm carbon fibre arms.

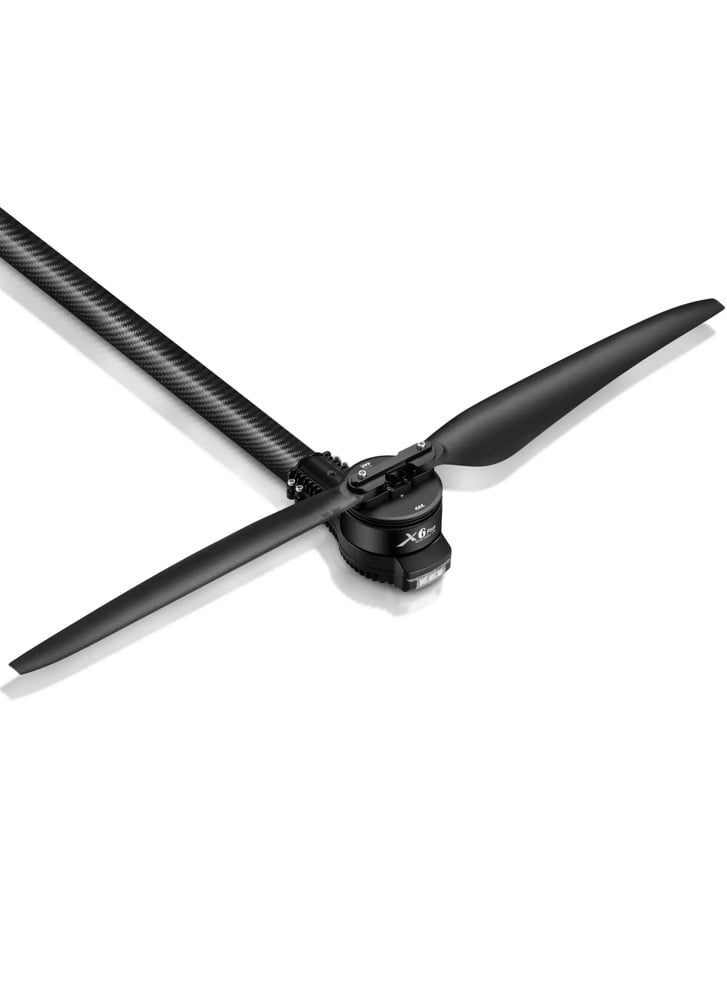

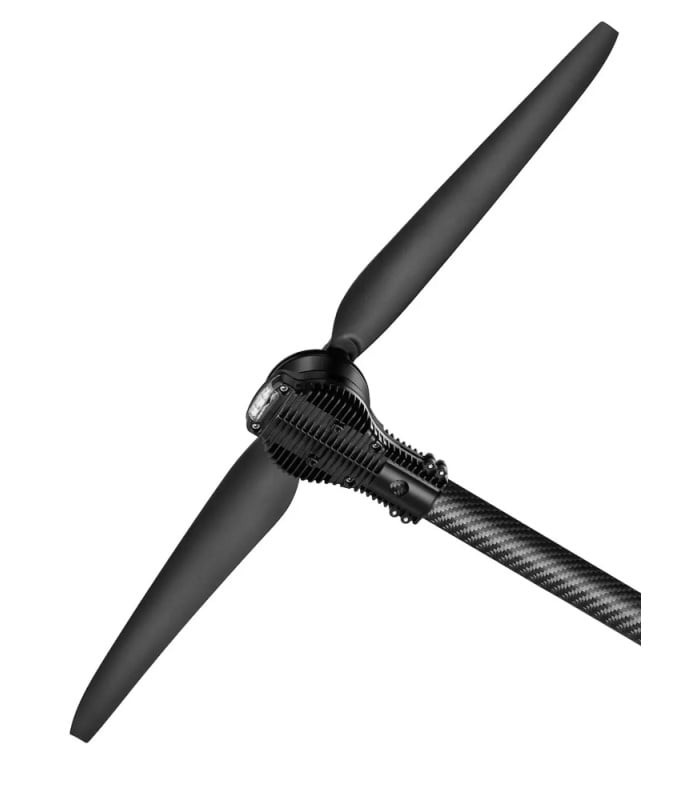

Note: Propellers are not included and must be purchased separately. Compatible with Hobbywing Xrotor 24×8.0 folding propellers.

**Carbon Tube is not included**

Key Specs:

Motor: 6218 stator, 150KV
ESC: 25A continuous / 80A peak, FOC (Field-Oriented Control), supports 1050–1950µs PWM or CAN digital throttle
Recommended Battery: 12–14S LiPo (up to 61V)
Mount Compatibility: 30mm tube arms
Protection Level: IPX6 waterproof and dustproof
Communication: CAN & PWM with real-time telemetry
Includes: Motor, ESC, LED module, mounting hardware

Compared to the original X6, the X6 Plus offers several key upgrades:

Telemetry communication via CAN (previously UART)
Matched with larger 24×8.0″ propellers (previously 23×8.8″)
Improved efficiency, now rated at 7.6–9.3g/W (previously 7.0–8.6g/W) — an 8% improvement that helps extend flight time
Enhanced heat dissipation structure for improved thermal performance under load

Specification

Recommend Take-off Weight: 3.5-5.5kg/rotor (46V, Sea Level)
Max thrust: 11.8kg
Max power: 2400W
Recommended Battery: 12-14S LiPo (Max 61V)
Powertrain Arm Tube Outer Diameter: 30mm
Protection Grade: IPX6
Operating Temperature: -20℃-50℃ Total
Support throttle Frequency: 50-500Hz

Motor:

Motor Stator Size: 6218
KV: 150
Motor dimension: 69.4*40.3mm

ESC:

ESC Continuous Current: 25A (Non-hermetic Ambient Temperature ≤60℃)
Maximum Current.: 80A (Non-hermetic Ambient Temperature ≤60℃)
Recommended Battery: 12-14S LiPo
Throttle Pulse Width.: 1050-1950µs

Prop:

Propeller Diameter Pitch: 24*8.0 inch
Weight (INC. adapter): 107g
Weight (single propeller): 33g

Downloads

Manual (pdf, 2481KB)

Download

Datasheet (pdf, 171KB)

Download

Dimensions (pdf, 400KB)

Download

3D Model (zip, 3017KB)

Download
