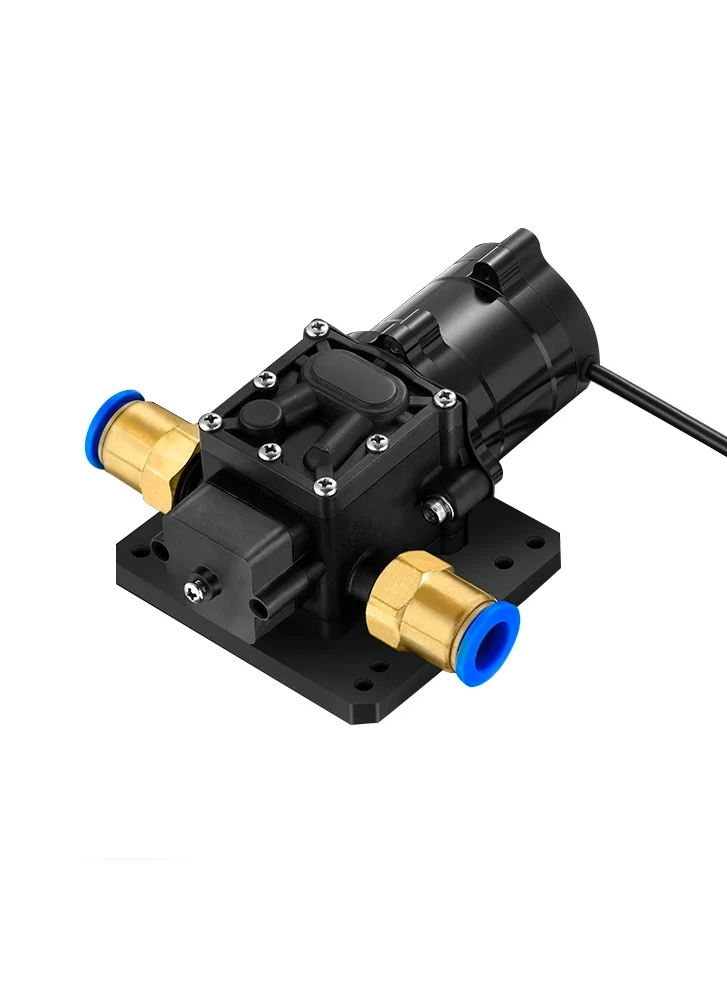

HobbyWing Brushless Water Pump 5L / 8L

£74.99 – £89.89 Inc. VAT

High-powered brushless motor water pumps with RC control.

Version	Clear

0 People watching this product now!

Description

From agriculture to firefighting, drones are increasingly becoming a go-to tool for multiple scenarios. If you are developing your own UAV for such applications you are going to need a pump and here HobbyWing have the answer. Two choices, one that offers a maximum 5L/min flow rate and a more powerful 8L/min option – please select as required. The 5L pump can be used with up to 7 sets of VP110015 sprinklers and the 8L pump 12 sets.

Both are powered by a high-performance brushless motor, ensuring exceptional efficiency and durability, with a lifetime 3-5 times longer than a brushed motor pump. The unit incorporates a ESC so it is a neat standalone unit that be can used straightaway. Simply provide power and a PWM signal source. The speed of the pump is controllable allowing you to tune the flow rate as required.

The pumps are integrated with both temperature and over current protection. Lastly the units have a IP67 waterproof rating.

Specification

Working Voltage: 12-14S（DC44-60.9V)
Rated Power: 120W (8L) / 150W (5L)
Working Pressure: 0.8-1.0Mpa (8L) / 0.35Mpa (5L)
Working Current: ≤2.5A
Maximum Flow: 8L/min / 5L/min
Protection Class: IP67
Weight: 744g (8L) / 388g (5L)
Size: 139x95x70mm (8L) / 123x76x52mm (5L)
Inner Diameter Of Water Inlet Pipe: Outside diameter 14mm
Inner Diameter Of Water Outlet Pipe: Outside diameter 14mm
Operating PWM Width: 1050-1950μS

Downloads

5L Manual

Download File

8L Manual

Download File
