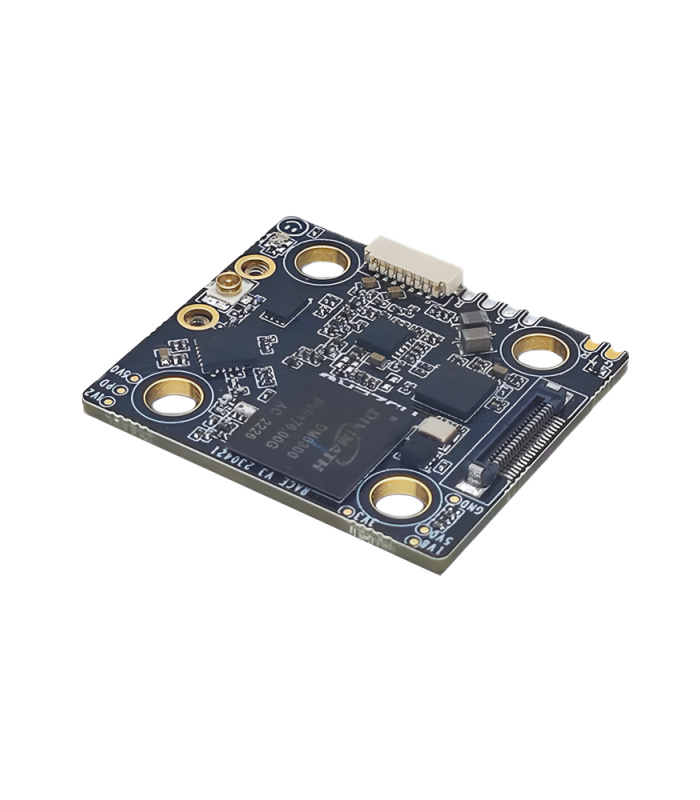

HDZero Race V3 Video Transmitter

Name: HDZero Race V3 Video Transmitter - Flying Tech
SKU: HD-FPV-HZRACEV3
Price: 69.90 GBP
Availability: InStock

£69.90 Inc. VAT

The VTx Race Edition is a compact and lightweight VTX with 25/200mW switchable RF power.

Only 2 left in stock

Add to compare

0 People watching this product now!

SKU: HD-FPV-HZRACEV3 Categories: HDZero, Digital FPV, Digital FPV Transmitters, FPV Tags: Digital FPV, HDZero, VTX

Description

The V3 video transmitter has increased durability compared to the previous version.

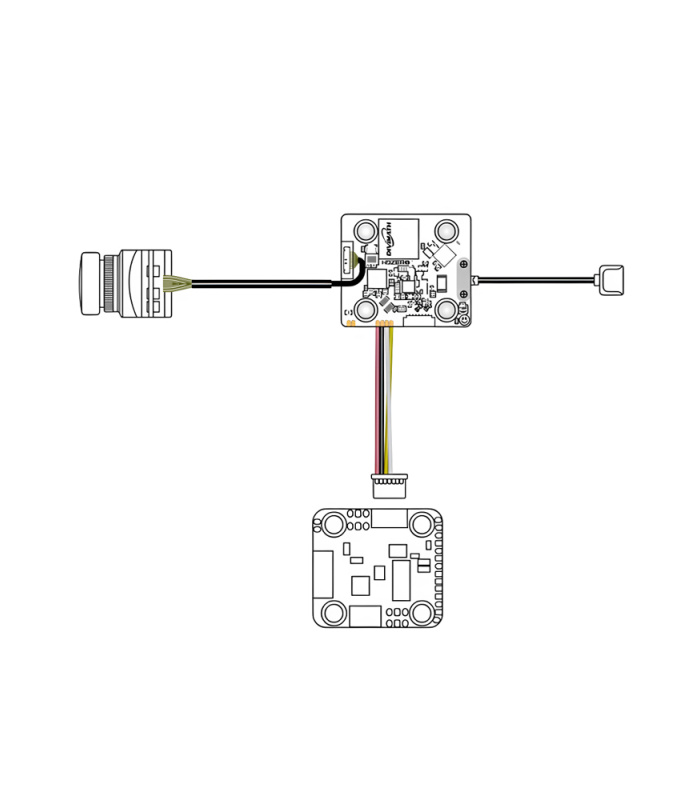

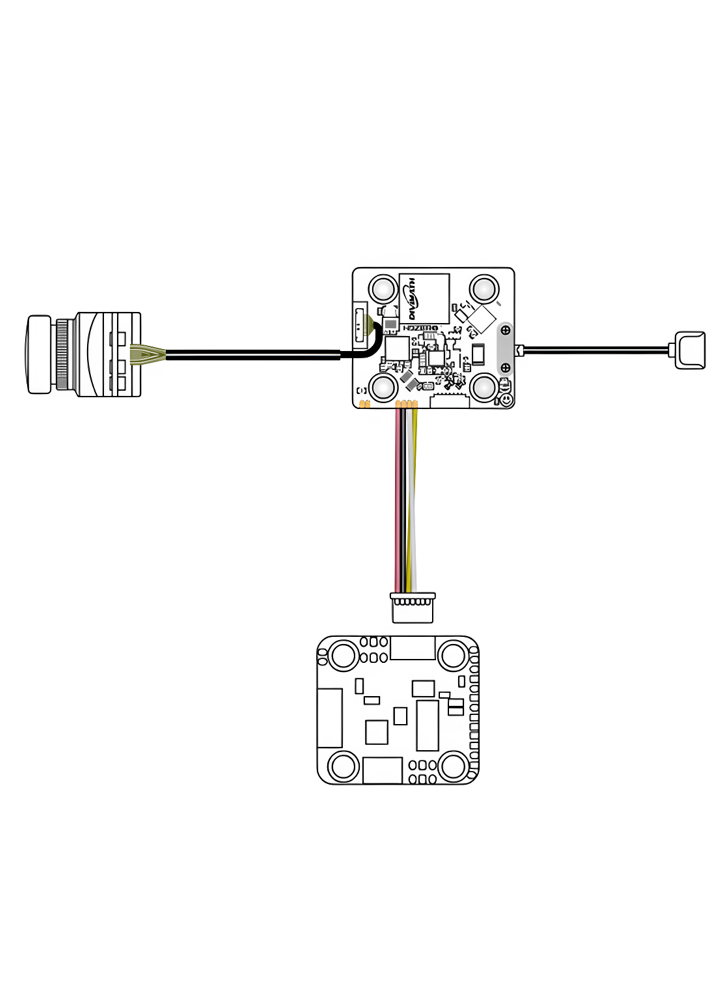

Designed for FPV racing, the HDZero Race V3 VTX is our 3rd generation digital video transmitter. With a voltage range starting at 4V, it can be powered by the 5V 1.5A regulator of most FC’s or up to 12V for FC’s that include a HD VTX plug. It is small (28x32x5mm) and light (5.5 grams). With a width of only 28mm, the VTX is now a similar width to many FC’s, which improves durability and reduces weight. The antenna is securely attached with a metal bar and screws. No soldering needed – just plug the wire harness into a compatible HD-ready FC.

The HDZero Race V3 VTX is designed with durability in mind, rather than weight. It is made with a 1.6mm thick PCB, in comparison to the 1.0mm PCB used in the Whoop lite VTX. Moreover, it uses more large package size components for stability consideration. For the smaller components, an additional glue coating is applied to increase crash protection. The Race V3 VTX also has a reverse polarity protection circuit, which is not present in the Whoop lite VTX.

The HDZero Race V3 VTX offers high-quality video in 540p90, 720p60 and 1080p30 resolutions with 25/200mW switchable power on 5.8GHz.

No antenna or MIPI cable included.

Specification

Model:	HDZero Race V3
SKU：	HDZ3143
Frequency:	5.725-5.850GHz
Resolution Default:	540p90/720p60/1080p30
RF power：	25mw/200mw
RF Connector:	Secured U.FL
Interface:	4 lane MIPI CSI YUV422
Video Connector:	20 Position 0.30mm Pitch
Size:	32mm x 28mm x 5mm
Weight:	5.5g
Harness length:	40mm
power input：	4V-12V
Mounting：	20mm x 20mm M4 with rubber grommets

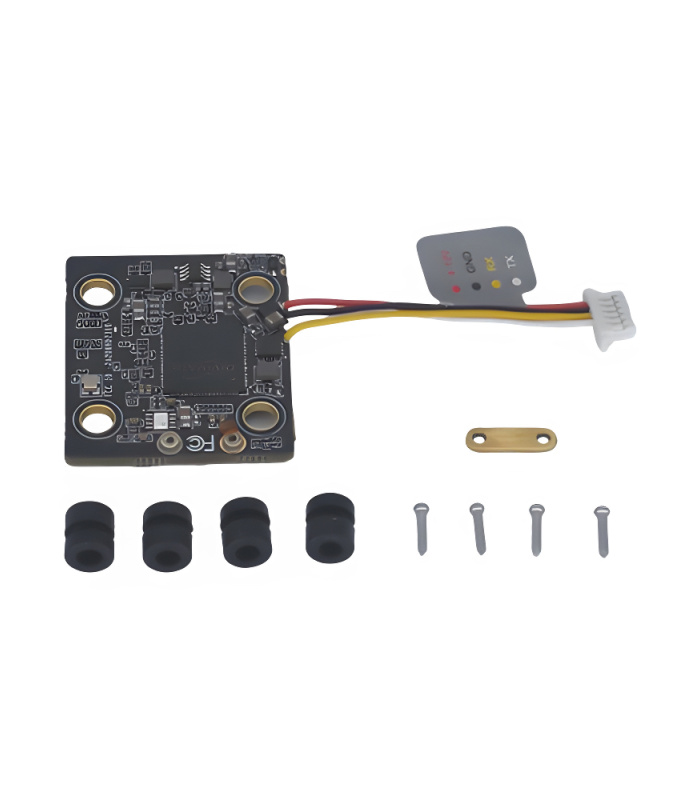

Included:

VTX-R3 board with pre-soldered harness * 1;
Rubber Grommet (M4 to M3) * 4；
u.FL Antenna Retention Screws * 4
Metal bar * 1
