HDZero Freestyle V2 Digital HD Video Transmitter

£97.80 Inc. VAT

The Freestyle Digital Video Transmitter is the best pick for long range performance on HDZero.

Only 2 left in stock

Frequently Bought Together

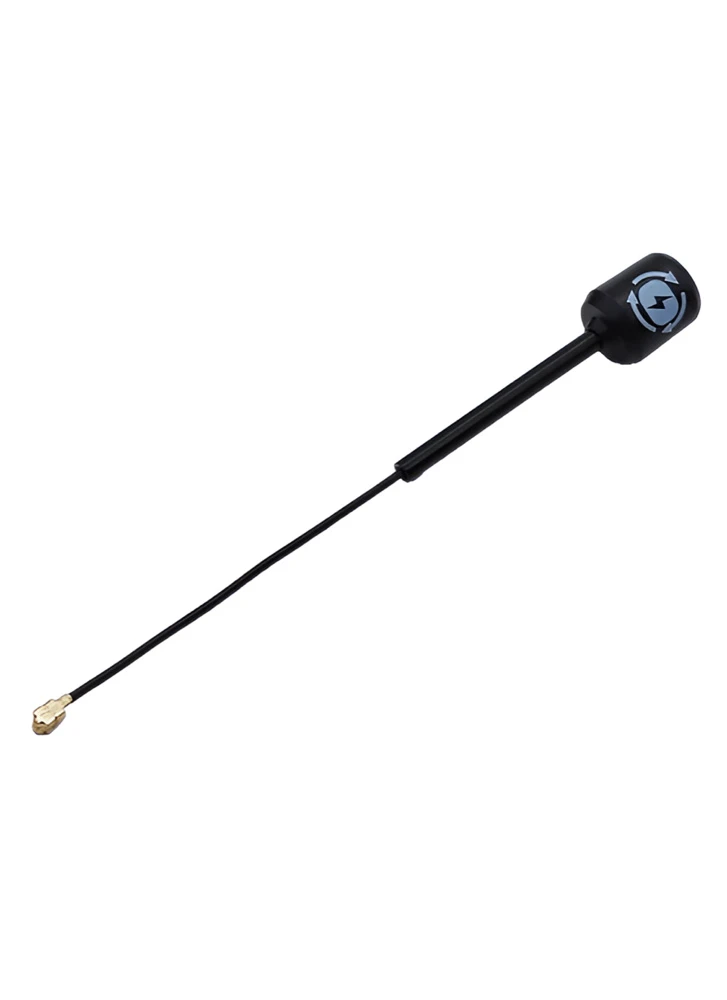

HDZero VTX Antenna (UFL RHCP)

5.8GHz RHCP antenna for HDZero transmitters.

0 People watching this product now!
SKU: FPV-HD-HZFRVTXV2 Categories: , , , Tags: , , ,
Description

VTX Only – No Antenna / Camera included

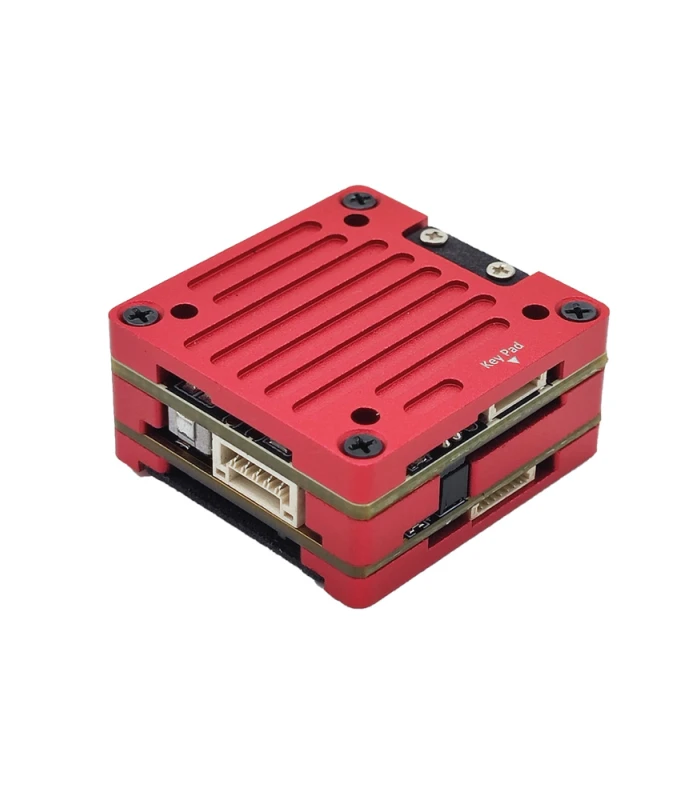

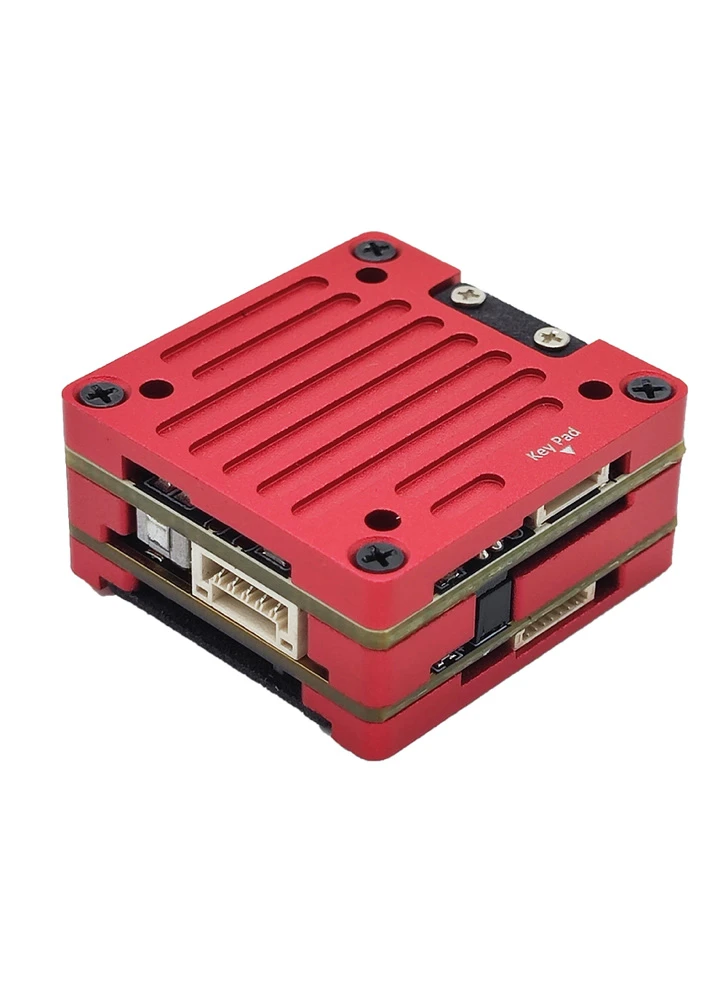

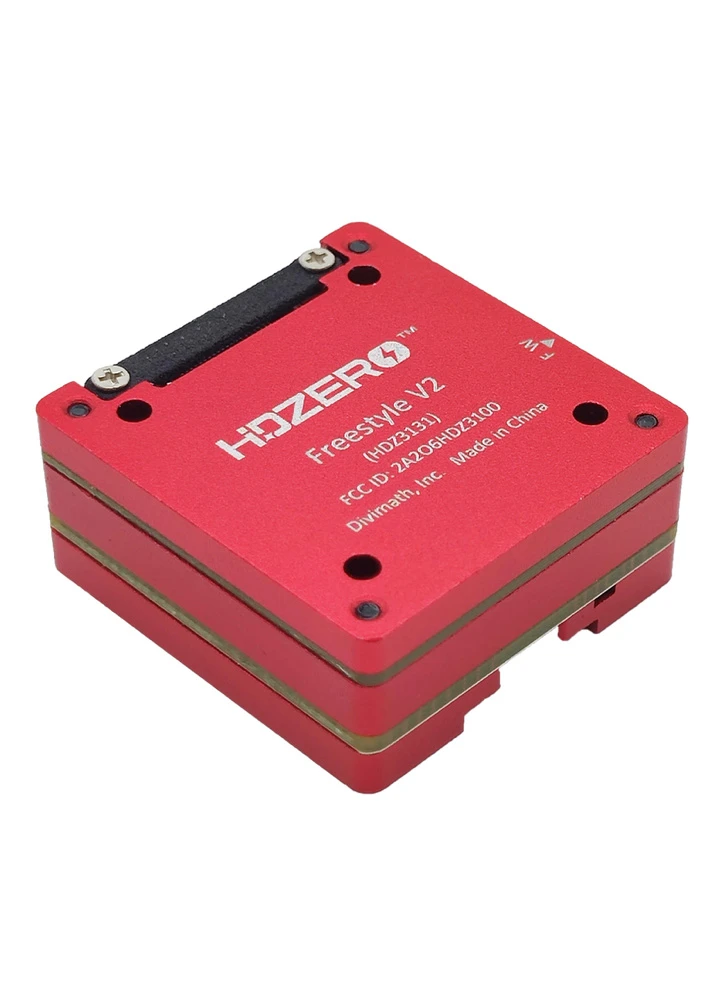

Theย HDZero Freestyle V2 VTX Kitย is a 2nd generation 5.8GHz digital video transmitter kit with a camera, VTX, and antenna that can fit most of the 3.5-inch and 5-inch drones (now using 20×20 form factor). The CNC case protects all the sockets well, providing durability, RF shielding, and improved signal integrity. A wire harness is included for solderless connection for power and MSP UART port. The included retention bar and screws secure the antenna and MIPI cable. The VTX supports 720p60,1080p30, 540p60, and 540p90 video modes, and has a maximum 1W RF output at the R1 channel if unlocked or authorised with a license or approval.

Features

  • CNC case for socket protection, durability, RF shielding, and improved signal integrity
  • Capable of up to 1W RF output on R1 channel with proper licensing or approval
  • Included wire harness for solderless power and MSP UART port connection
  • Supports multiple video modes: 720p60, 1080p30, 540p60, and 540p90
  • Secured antenna and MIPI cable with retention bar and screws
  • 2nd generation 5.8GHz digital video transmitter
  • Compatible with 3.5-inch and 5-inch drones

The VTX with without antenna. Requires an U.FL RHCP antenna – HERE.

NOTE: An antennaย mustย be installed properly before power is applied to the transmitter. Powering on without a correctly installed antenna may easily burn the transmitter. Power spikes from other components such as ESC’s can also damage the transmitter if powered directly from battery voltage. Such damage will not be covered under warranty.

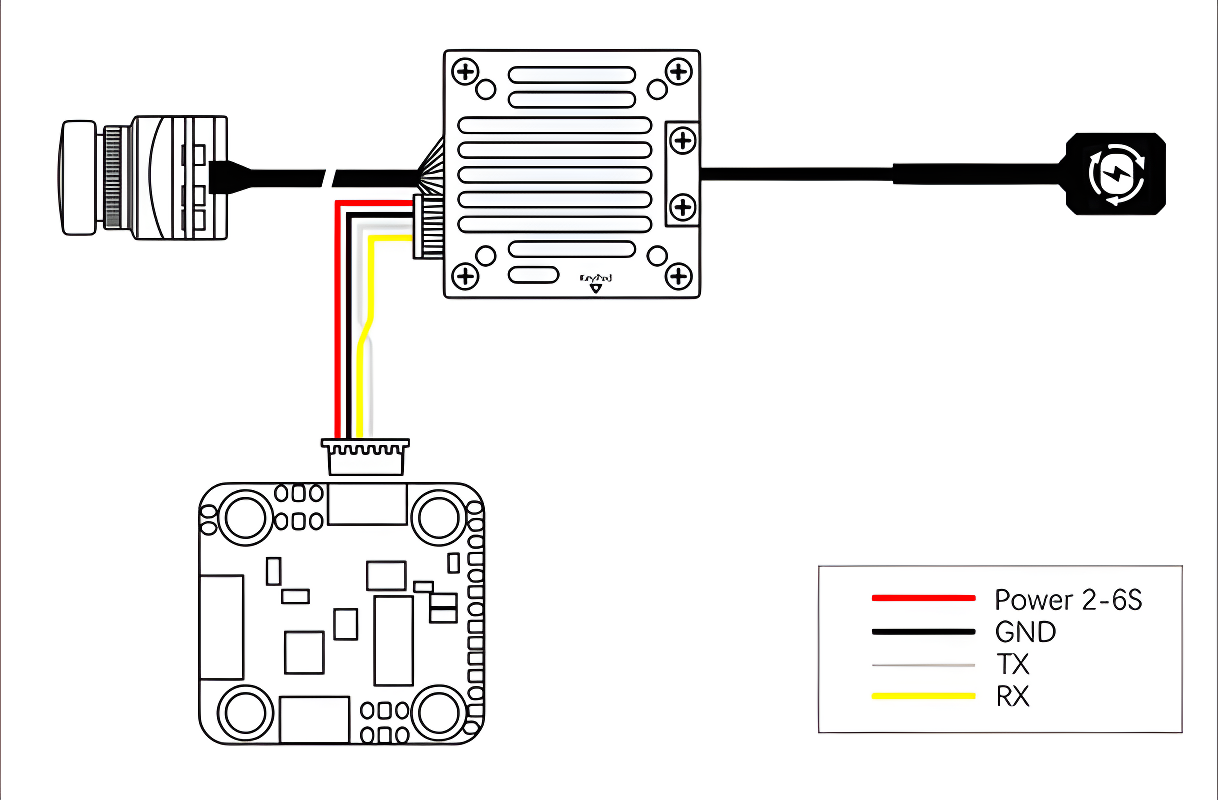

HDZero Freestyle V2 Video Transmitter Wiring

Specification
  • Manufacturer: Divimath, Inc
  • Model: HDZero Freestyle V2 VTX
  • Weight: 22.3g
  • Dimensions: 29x30x14mm
  • Mounting Pattern: 20x20mm M2 holes
  • Operating Frequency: 5.725-5.850GHz
  • Transmitter Power: 25mW, 200mW (Out of the box), 500mW, 1W if with HAM license
  • Antenna Interface: Secured U.FL
  • Video In Secured: Secured MIPI
  • SmartAudio: Yes
  • MSP Canvas Mode: Yes
  • Input Power: 7-25V
  • Operating Temperature: 32หšF-104 หšF (0หš-40หšC)
  • Power Consumption: 6-15W

Included:

  • 1x Freestyle V2 VTX
  • 1x Power Cable
  • 1x SA Cable
  • 1x Plastic bar for Mipi Cable with 3 x screws (M1.4 x 2mm).
  • 1x Plastic bar for U.FL with 3 x screws (M1.4 x 8mm)
  • 1x Double Sided Tape (29 x 30 x 1mm)
Downloads
Manual (pdf, 1973KB)
