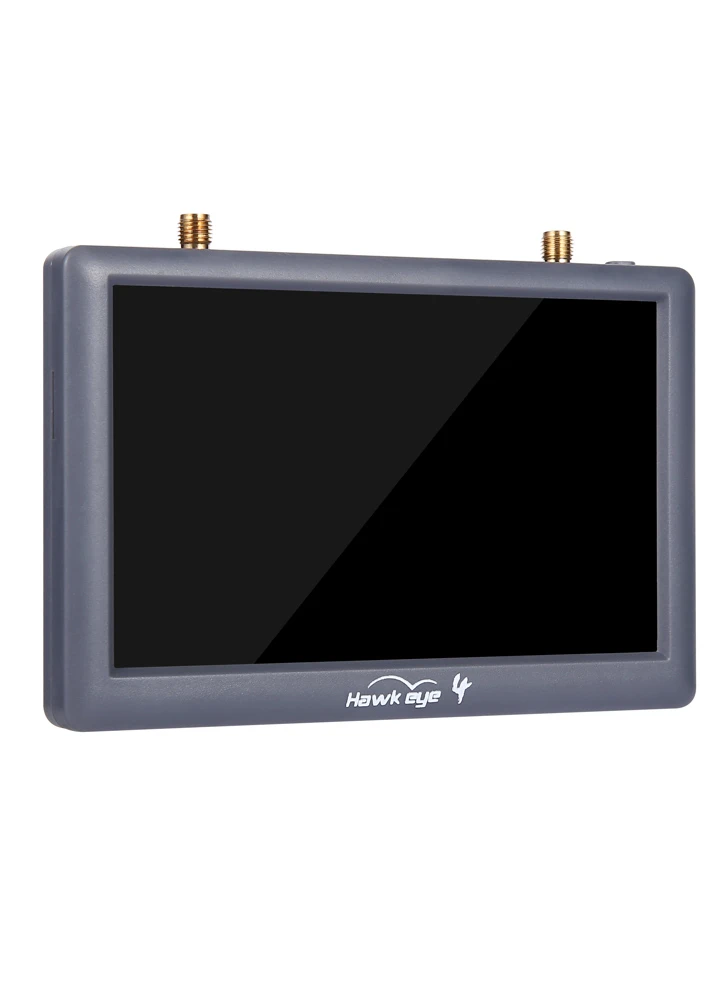

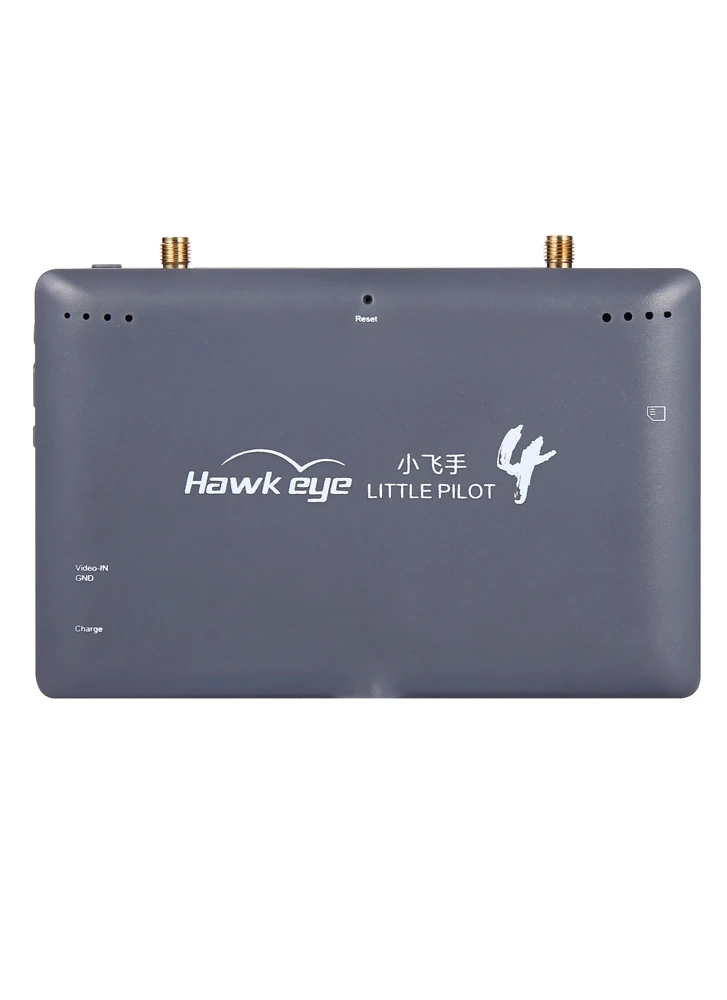

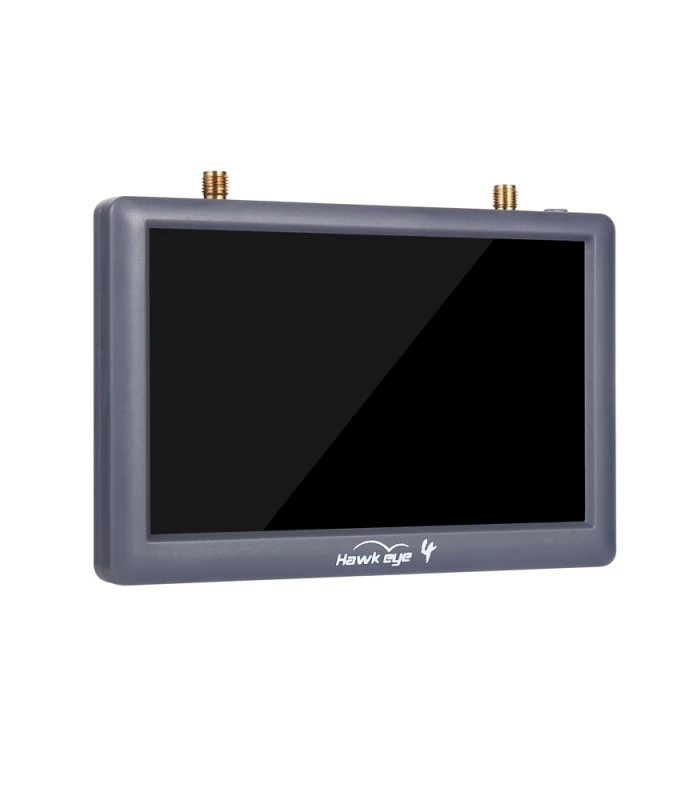

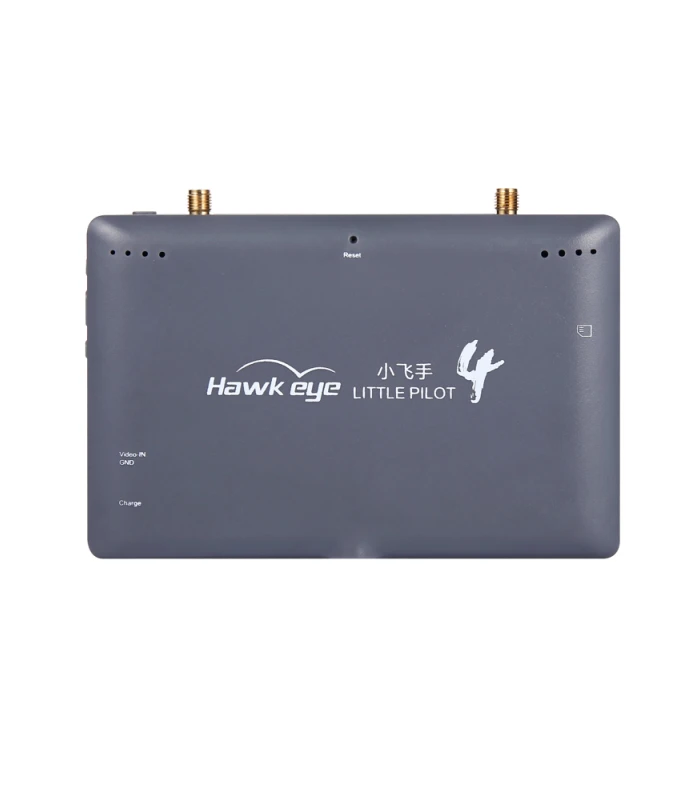

Hawkeye Little Pilot 4 Monitor 5.8GHz 48CH Diversity Receiver

£89.50 Inc. VAT

A popular 5inch monitor, with diversity receiver and DVR.

In stock

0 People watching this product now!
SKU: FPV-MONITOR-LPILT5V4 Categories: , , Tags: , , , ,
Description

This is the diversity receiver version of Hawkeye’s fantastic Little Pilot 5inchย FPV Monitor. The inclusion of a 5.8GHz diversity receiver is a real bonus and a good choice for those seeking longer range from their FPV. A diversity receiver is essentially two receivers combined together. This allows you two mix and match antennas for a solid video link. So it might be that you select a circular polarised omnidirectional antenna, which will provide good reception in all directions in the near field, and a directional high gain patch antenna for long distance flights. The diversity receiver is clever in that it will seamlessly switch between the receiver with the strongest signal.

A new feature added to the V4 model is the inclusion of a DVR. Thisย allows you to record video/audioย on a MicroSD memory card (not included, supports max 32GB). It is also possible to review the recorded footage on the monitor.

As before, this version of the monitor features the same 5inchย high resolutionย LCD display as other models and integrated rechargeable battery, with a runtime of approx. 2.5hrs.ย It also comes complete with its own handy radio transmitter mount and FPV antennas.

Features:

  • 800×480ย 5 inch backlit led screen
  • Inbuilt Dual 48ย channel diversityย receiver with raceband
  • Video buffer. Can record and playback on the monitor.
  • On screen timer and signal strength indicator (OSD)
  • One key automatic frequency search
  • Manual selection of channel frequency also supported
  • Compact size, includes cnc aluminium bracket for radio mounting
  • Includes circular polarised antenna
  • Built in battery, charge via usb

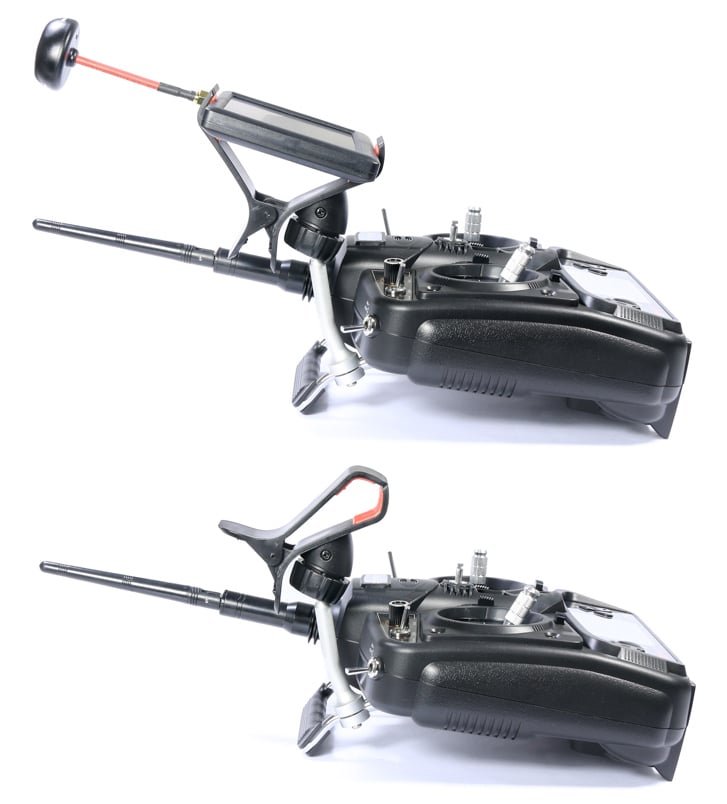

Hawkeye Mount

Compact size, includesย aย RH-CPย antenna andย aย CNCย aluminiumย bracket for radio mounting

Specification
  • Resoultion: 800×480
  • Backlight: LED
  • Backlight luminance: 700 Lux
  • Display ratio: 16:9 / 4:3
  • Response time: 10ms
  • Format: PAL / NTSC
  • Video Resolution PAL: 720×28 / NTSC: 720×240
  • Operating time: 2.5 – 3 hours

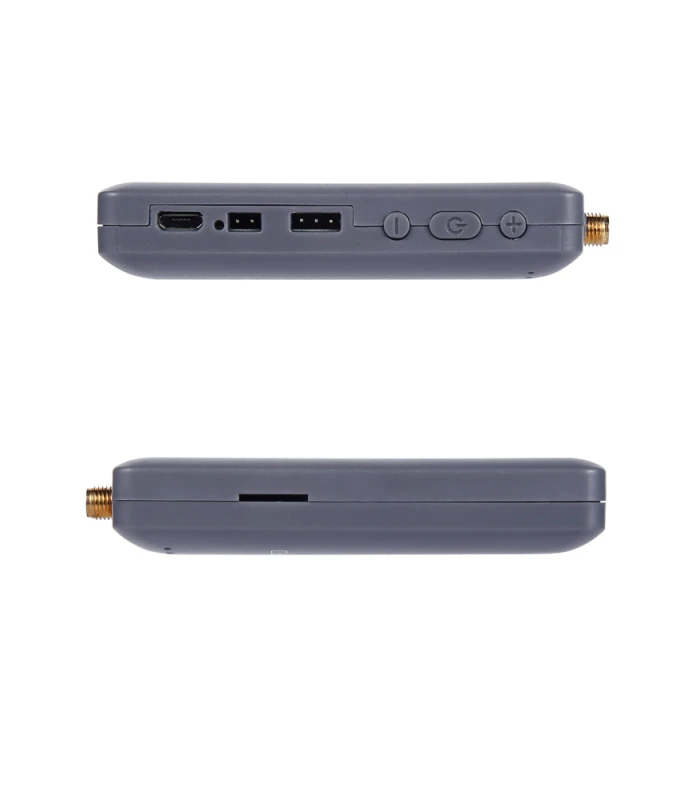

  • Input: Video (PAL / NTSC)
  • Output: Video
  • Power: Internal battery
  • Charging: Micro USB port
  • Antenna connector: SMA
  • 5.8G sensitivity: -94db
  • Weight (without antenna): 220g
  • Dimension (without antenna): 128×83.5×16.8mm

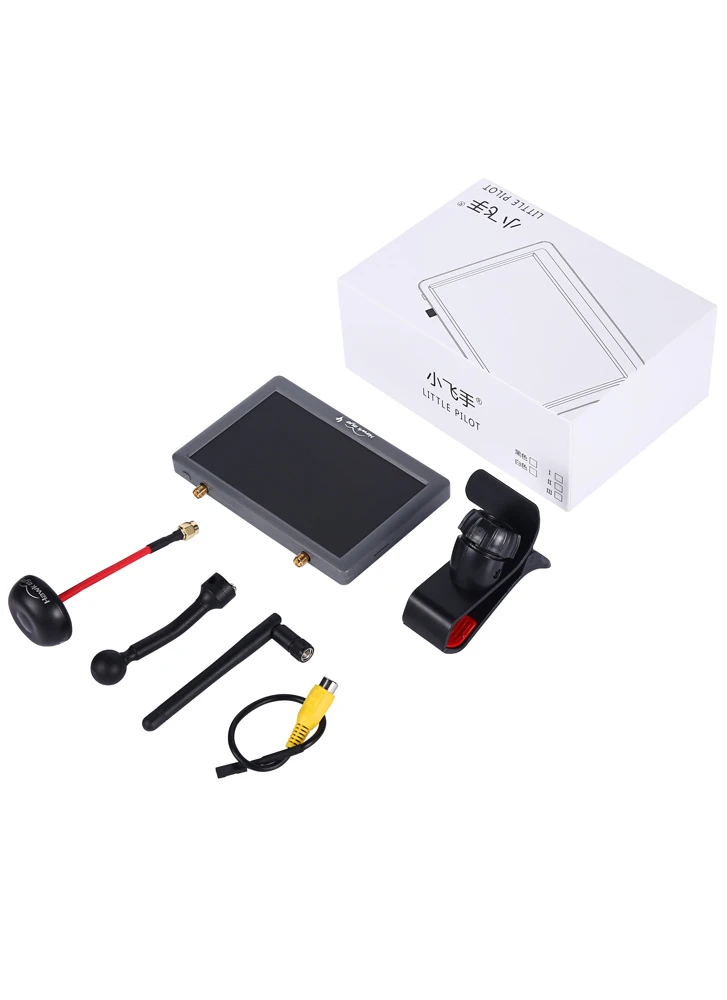

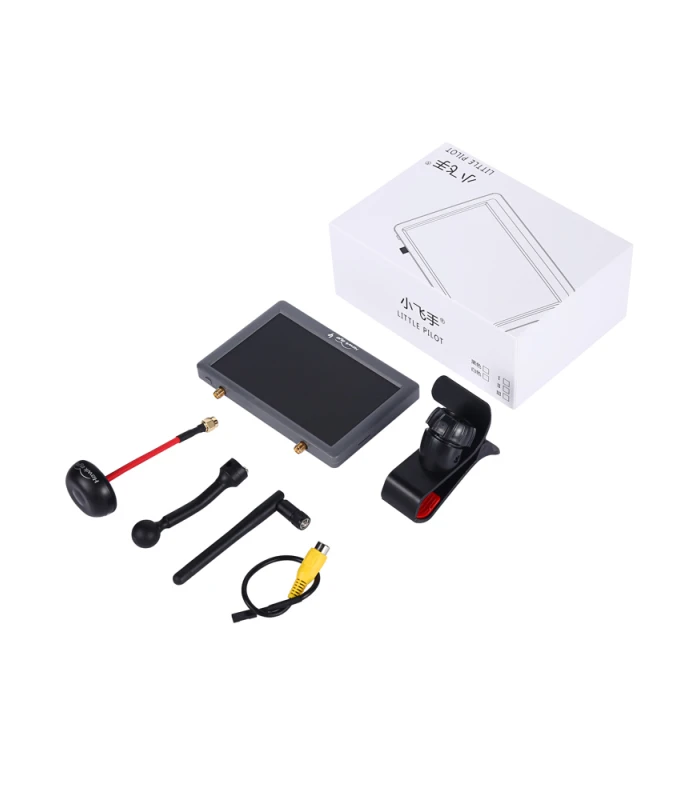

Included:

  • 1 x Little Pilot V3ย 5inch FPV Monitor with Dual RX
  • 1 xย Mounting Bracket
  • 1 x Linear Antenna
  • 1 x Clover Antenna
Downloads
Manual (pdf, 258KB)
