FrSky TW SR12 Dual 2.4GHz TW Protocol Receiver w/ Stabilizer

The FrSky TW SR12 is a 12 channel, dual 2.4GHz frequency receiver with SBUS/FBUS/S.Port and 12 PWM output channels.

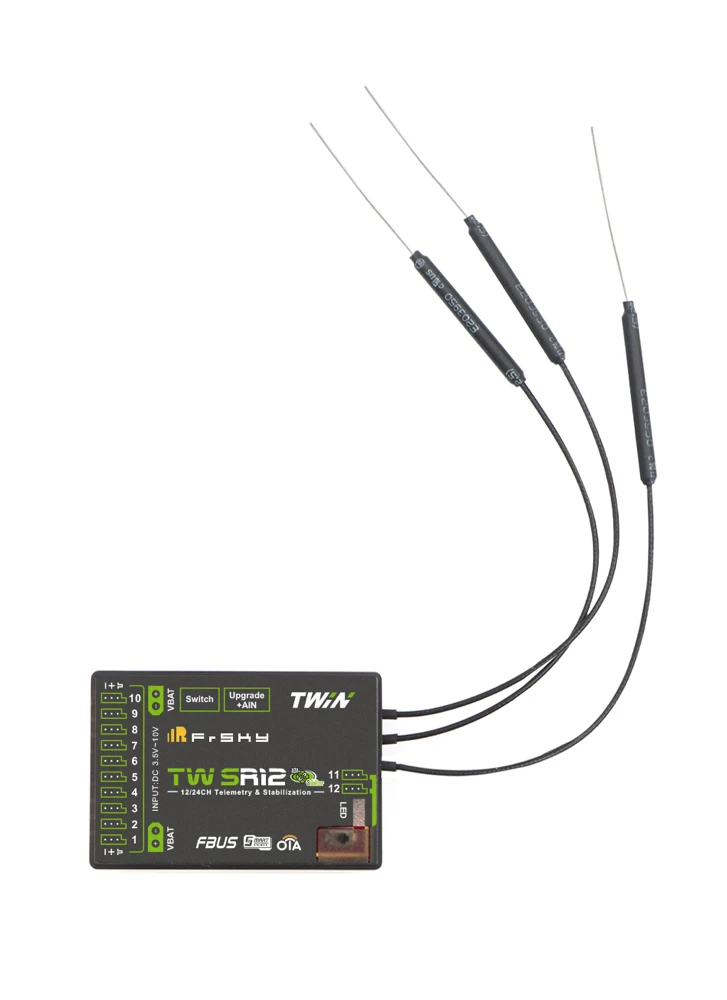

TWIN series TW SR12 receiver features a new stable TW protocol which benefits from simultaneously integrating dual active 2.4G frequency bands. The TW active-active protocol is different from the general active-standby redundancy solutions (where one receiver takes over signal control only when the other is in Failsafe mode). With the TW protocol, dual 2.4G frequency bands are active on the TW series receiver at the same time. This receiver is equipped with three 2.4G antennas and designed for RC users who want to benefit from resilience and long-range in their radio communications.

The configurable channel ports on TW SR12 receivers are a great feature. Each channel port can be assigned as PWM, SBUS, FBUS, or S.Port. By setting the port to use FBUS protocol in the ETHOS system, the signal control and telemetry can be connected to any device (XACT servos, ADV Sensors, etc.) that supports FBUS protocol through only one line to achieve bidirectional transmission. Allowing you to simplify the model build using fewer wires.

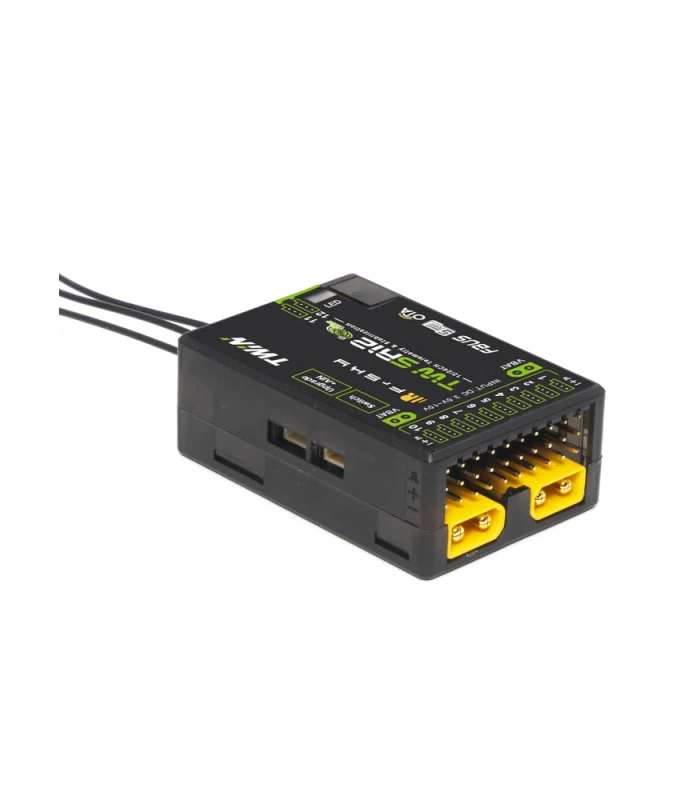

TW SR12 provides a socket that can be used to connect the switch panel to enable the built-in Power Switch function. The receiver use a set of standard XT30 plugs which also provides a safe and efficient way to provide power. By utilizing together with current overload wires on the channel ports, the connected device can be safeguarded.

ADV Stabilizer
The TW SR12 offers an ADV Stabilizer function which is an upgrade over the original classical gyroscope stabilization modes. The ADV Stabilizer offers an advanced mode that provides more programmable stabilized channels and flexibility.
The classical stabilization mode has been enhanced with 5 additional stabilization channels, providing pin mapping to each channel in the multiple flight modes like Stabilization, Auto-Level, Hover, and Knife-Edge with an airplane model.
In the advanced stabilization mode, all the output pins are configurable for stabilization and additional advanced features such as Stab file sharing, programmable parameters, and developer access, etc.
The advanced stabilizer feature incorporates high-precision telemetry sensors to monitor altitude, vertical speed, etc. This ADV feature is an additional benefit compared to using a regular S series stabilization receiver.

Features:

• Simultaneous Working Dual 2.4G TW Mode
• Built-in Advanced Stabilization Functions
• Built-in High-Precision Telemetry Sensor (Altitude, Vertical Speed, etc.)
• Basic Black-Box Data Record Function
• Built-in Power Switch Function | Match with Different External Switches (Optional)
• Long Control Range (Range varies based on the RF Power settings.)
• 12 Configurable Channel Ports
  – CP1: PWM / SBUS OUT / FBUS / S.Port / SBUS IN
  – CP2-12: PWM / SBUS OUT / FBUS / S.Port
• FBUS / S.Port
• SBUS Out Port (Supports 16CH / 24CH mode)
• SBUS In Port (Supports Signal Redundancy)
• Over-The-Air (OTA) FW update
