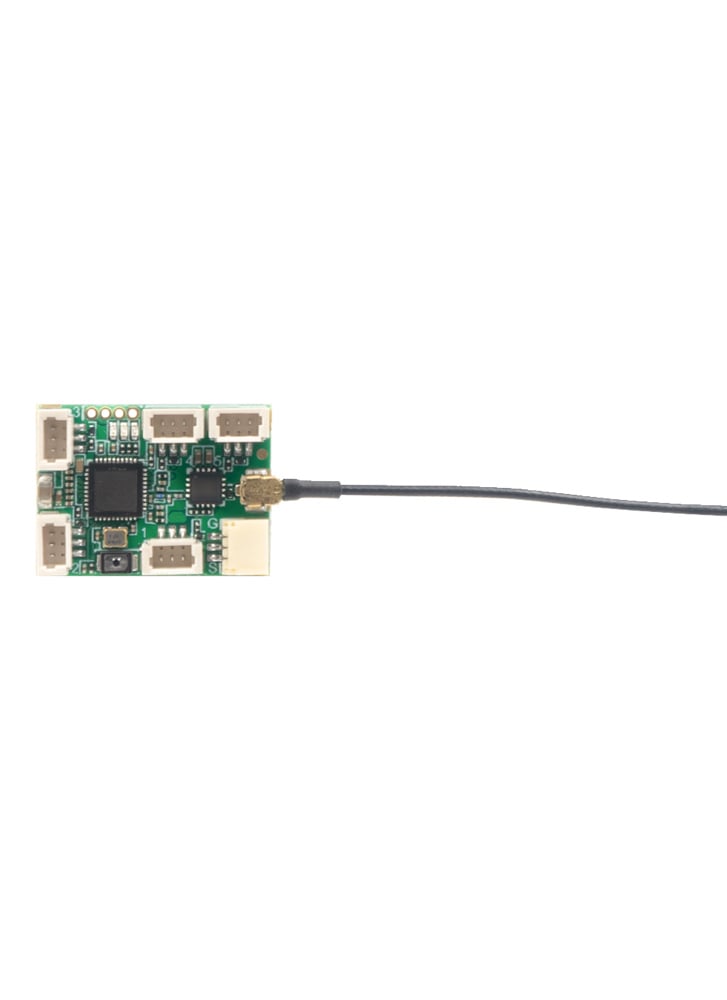

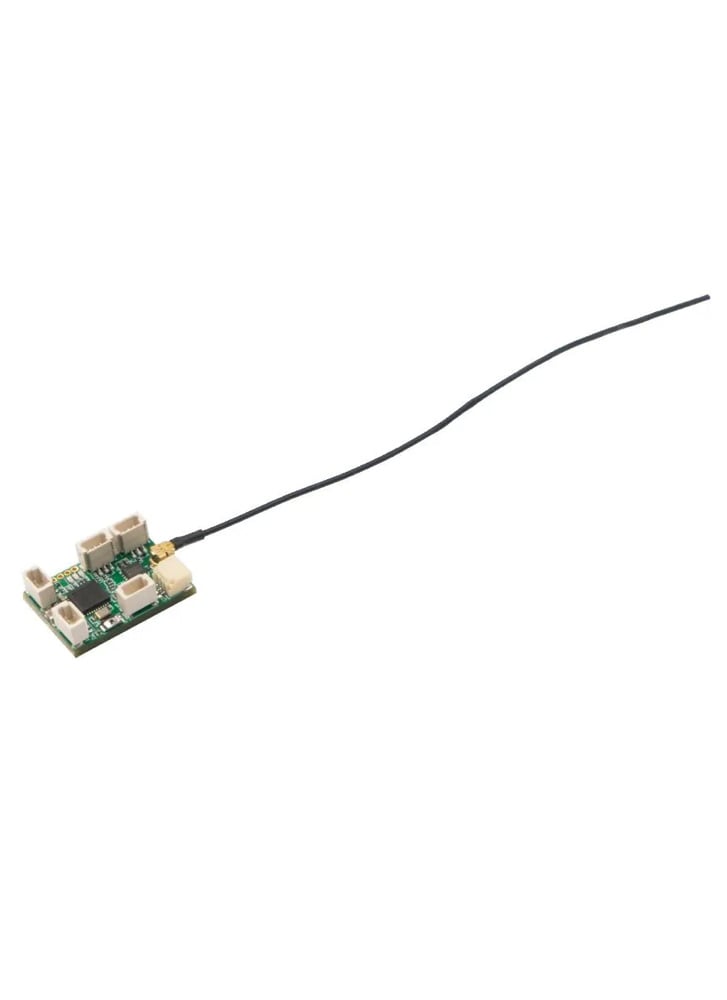

The Archer Plus SR6 Mini is a very compact, 6 channel receiver board targeted specifically for small planes and micro builds. The Mini-E version, is an all in one board that integrates dual 5A brushed ESC function. Both versions are gyro-stabilised receivers with a built-in 3-axis gyroscope and 3-axis accelerometer. They feature multiple flight modes: Auto-level, Stabilisation, Knife-Edge, etc. The stabilisation mode has been enhanced with 5 additional stabilisation channels, providing pin mapping to each channel in the multiple flight modes. You can also buy this receiver without built-in stabliser, the Archer Plus R6 Mini / Mini-E – HERE.
The receiver has 6 PWM signal output ports in total. By using the included servo connector adapter cable (includes 1mm to 1.25mm 3Pin conversion cable), they can flexibly meet different connectors of regular servos on the market offering multiple options for interface access.
Through the specific S.Port cable, the receivers can be easily connected to a transmitter with an S.Port for the firmware upgrade, or sensors for the telemetry. When the S.Port is set to FBUS mode through the ETHOS system, the setting features of all FBUS-capable devices in the link now can be directly configured through the ETHOS system using Lua script tools, and in FBUS mode, the receivers can output an amazing 24 signal channels in total.
The SR6 Mini receiver sits within the new Archer Plus Series of receivers. This Plus Series include some new features. Firstly an enhanced anti-RF-interference capability can offer a more solid and stable RF performance. These AP series receivers also with both ACCESS and ACCST D16 modes, where the RF protocol is smartly matched during the binding process on the radio. In ACCESS mode, these receivers not only feature OTA wireless firmware upgrades, increased range, and telemetry performance, they also support even more functions like configurable telemetry power and protocol switching ( S.Port / F.Port / FBUS ).
*Some features require the support of ACCESS and ETHOS.*
** 4in1 / Multiprotocol – supported only with firmware 1.3.3.29 and above **
