FrSky Archer Plus R6 Mini / R6 Mini-E Receiver

£21.90£29.99 Inc. VAT

A tiny 6 channel receiver board / ESC designed specifically for small planes and micro builds.

0 People watching this product now!
Description

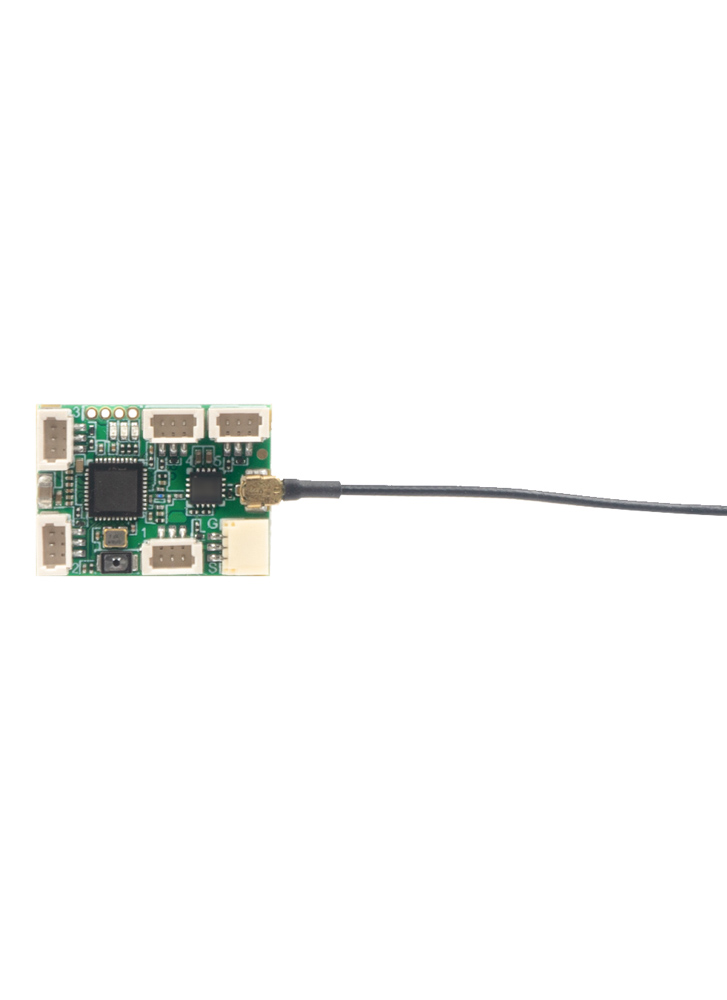

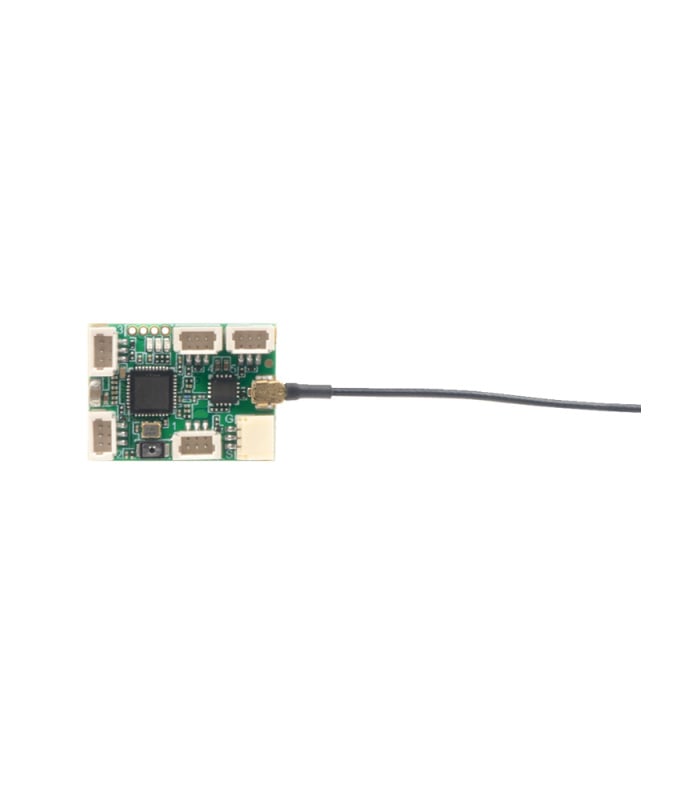

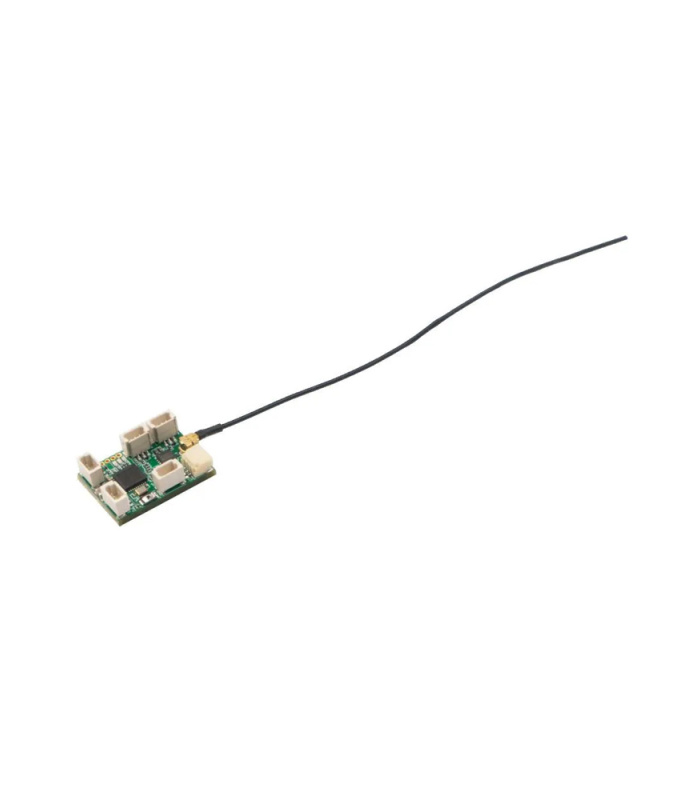

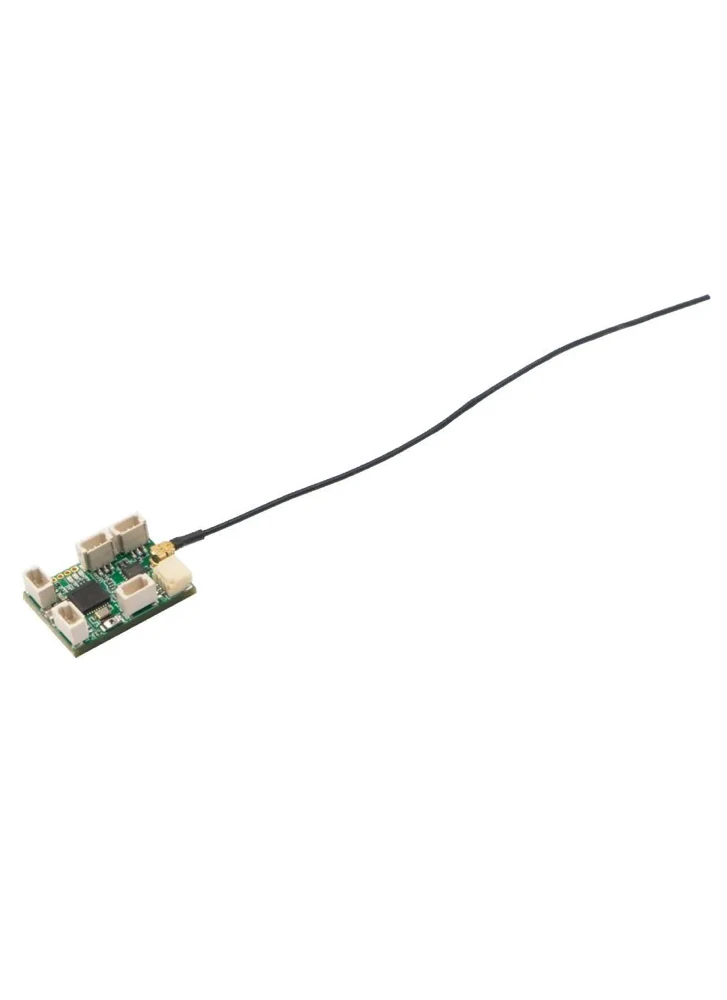

The Archer Plus R6 Mini is a very compact,ย 6 channel receiver board targeted specifically for small planes and micro builds. The Mini-E version, is an all in one board that integratesย dual 5A brushed ESC function. The receiver has 6 PWM signal output ports. By using the included servo connector adapter cable (includes 1mm to 1.25mm 3Pin conversion cable), they can flexibly meet different connectors of regular servos on the market offering multiple options for interface access.

Through the specific S.Port cable, the receivers can be easily connected to a transmitter with an S.Port for the firmware upgrade, or sensors for the telemetry. When the S.Port is set to FBUS mode through the ETHOS system, the setting features of all FBUS-capable devices in the link now can be directly configured through the ETHOS system using Lua script tools, and in FBUS mode, the receivers can output an amazing 24 signal channels in total.

The R6 Mini receiver sits within the newย Archer Plus Series of receivers. Thisย Plus Series include some new features. Firstly an enhanced anti-RF-interference capability can offer a more solid and stable RF performance. These AP series receivers also with both ACCESS and ACCST D16 modes, where the RF protocol is smartly matched during the binding process on the radio. In ACCESS mode, these receivers not only feature OTA wireless firmware upgrades, increased range, and telemetry performance, they also support even more functions like configurable telemetry power and protocol switching ( S.Port / F.Port / FBUS ).

You can also buy this receiver withย built-in gyroย stabliser, the Archer Plus SR6 Mini / Mini-E –ย HERE.

*Some features require the support of ACCESS and ETHOS.*

** 4in1 / Multiprotocol – supported only with firmware 1.3.3.29 and aboveย **

Specification

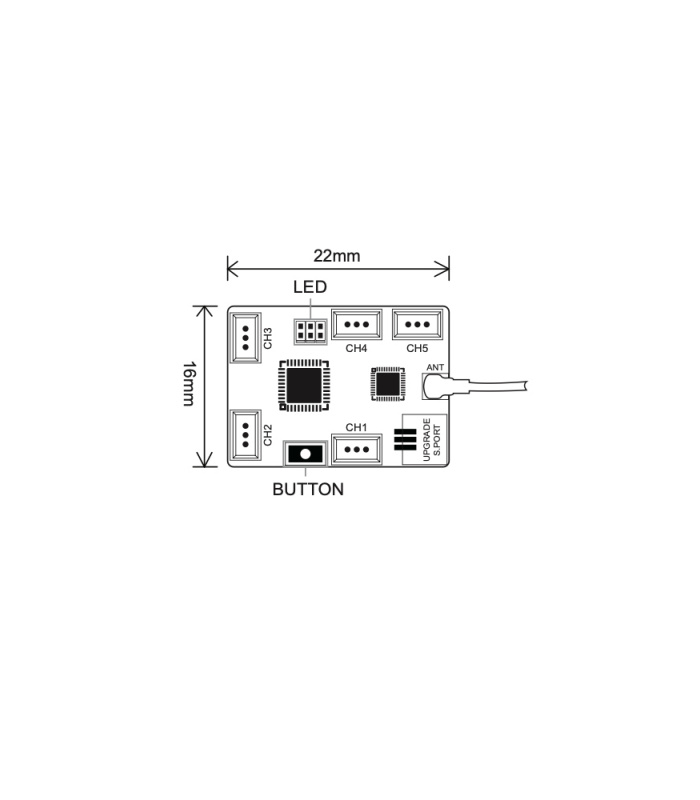

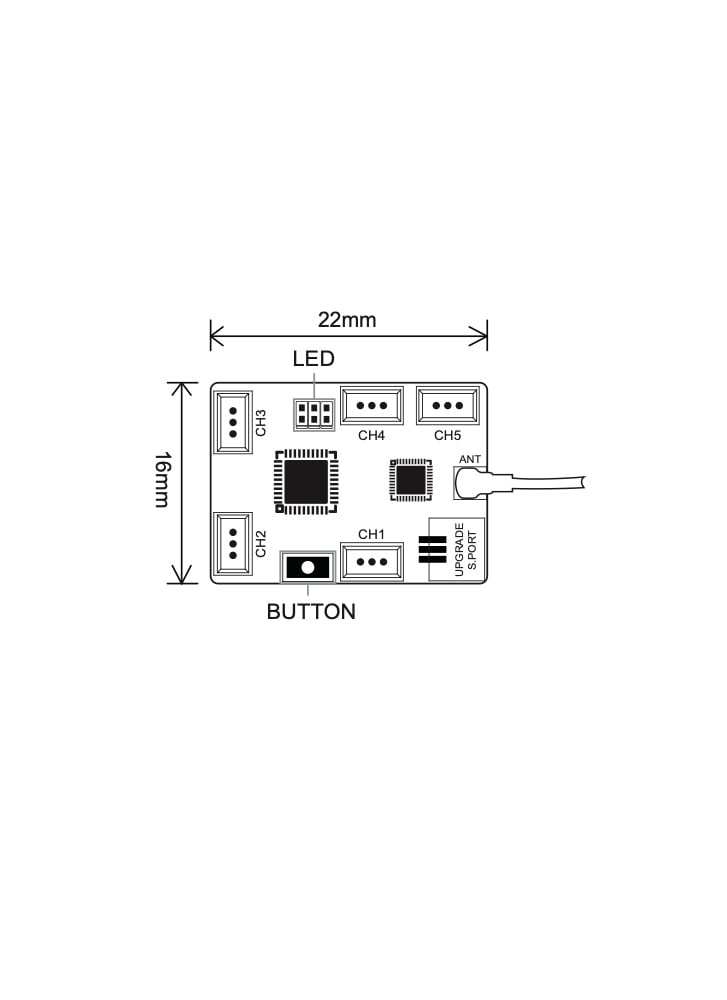

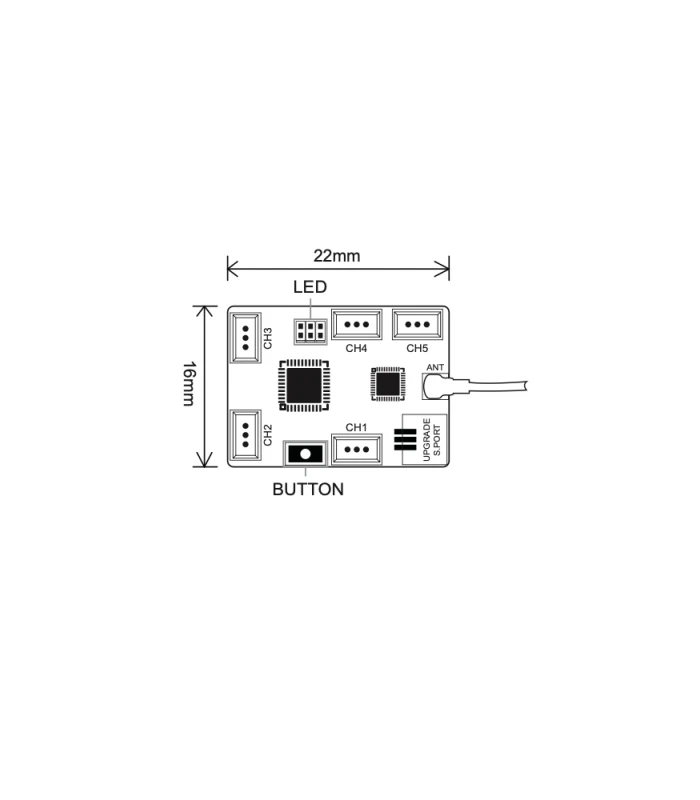

  • Dimension: 22ร—16ร—7mm (Lร—Wร—H)
  • Weight: 2.8g
  • Number of Channels: 6/24 Channels (6 PWM & 24 FBUS Channel Modes)
  • Operating Voltage Range: 3.0-8.4V (1S-2S LiPo)
    (Please ensure that the receiver works within the voltage range that the connected servo is capable of.๏ผ‰
  • Operating Current: 65mA@5V
  • Maximum Current: 5A 5A ESCร—2ย (R6 Mini-E Version)
  • Operating Range: ๏ผž2km (Full range with telemetry) (*Range may vary based on local conditions.)
  • Antenna Connector: IPEX1
  • Compatibility: FrSky 2.4G ACCESS / ACCST D16 Capable Transmitters
Downloads
Manual (pdf, 2528KB)
