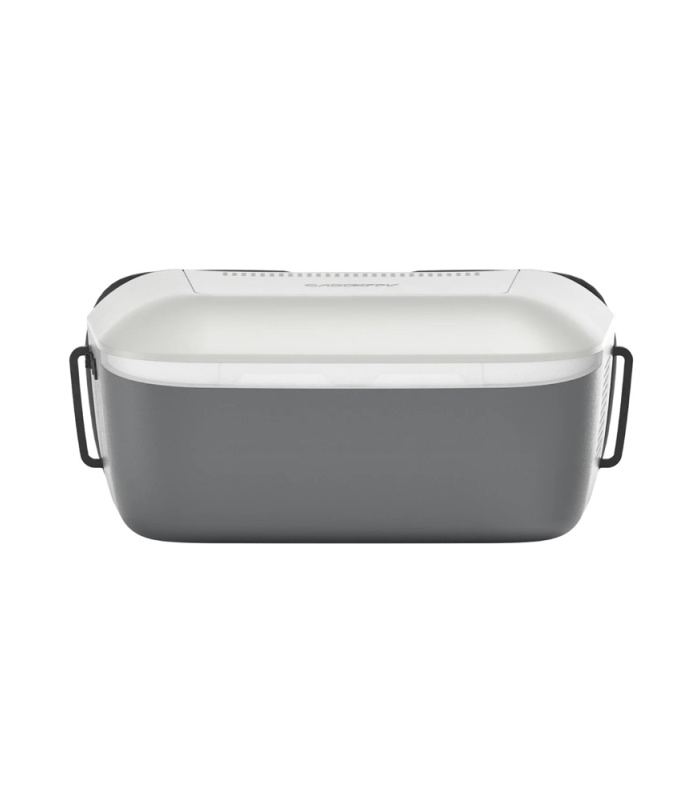

CADDXFPV Walksnail Ascent HD FPV Goggles
£149.00 Inc. VAT
Affordable box-style HD goggles designed exclusively for the Walksnail Ascent system.
In stock|Next shipping: 24/02/2026

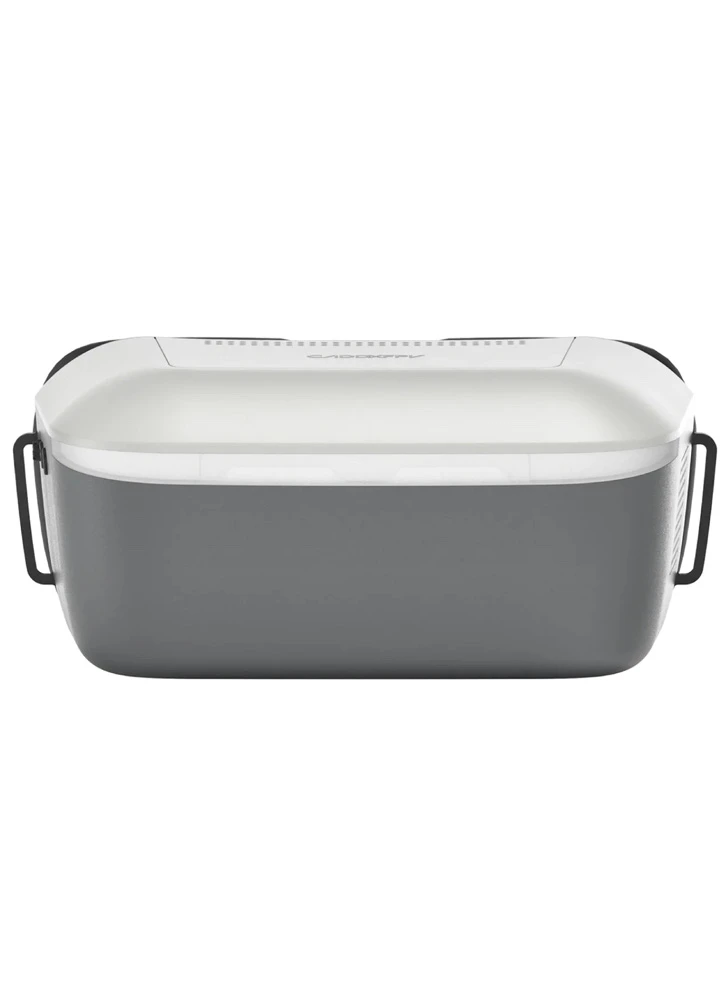

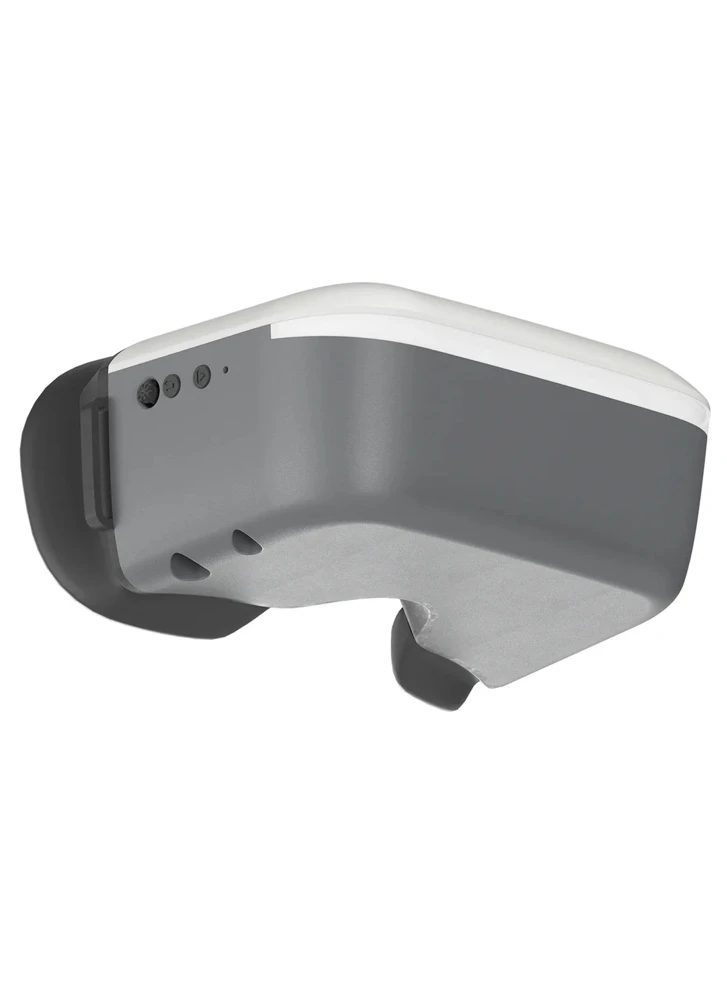

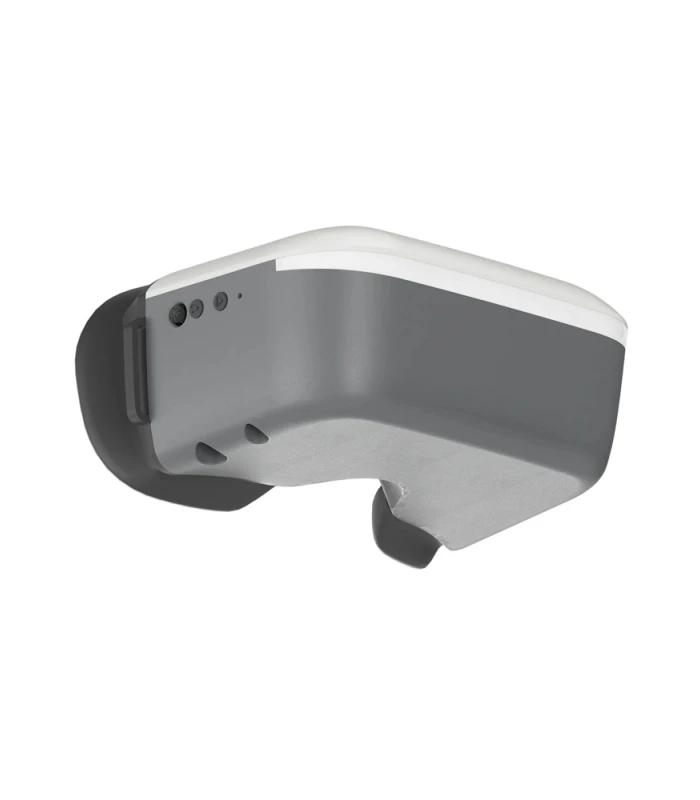

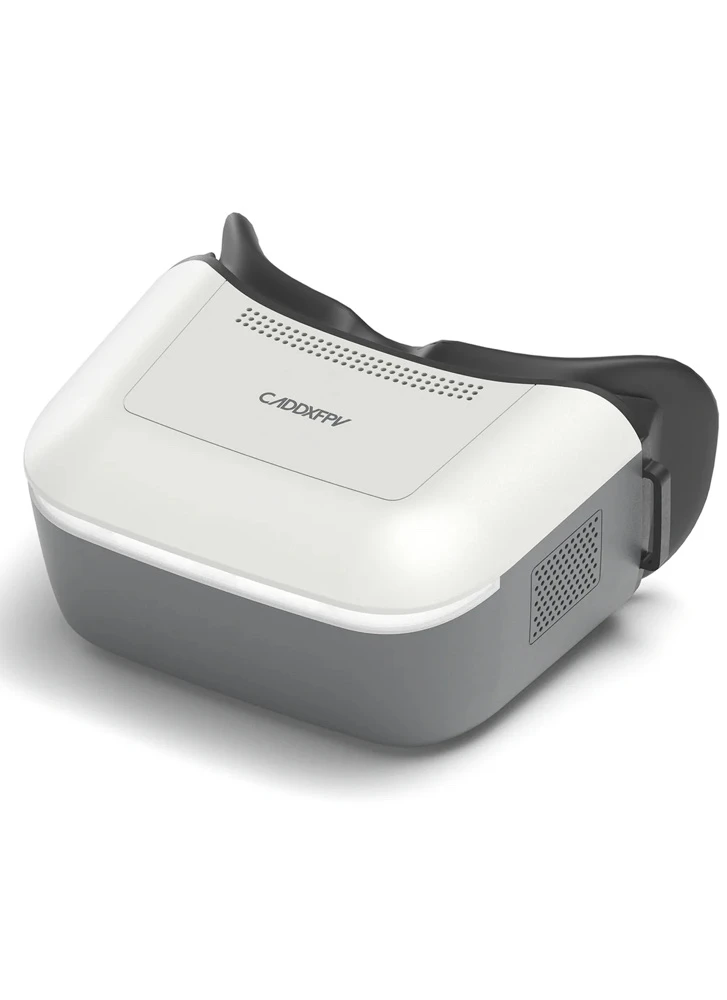

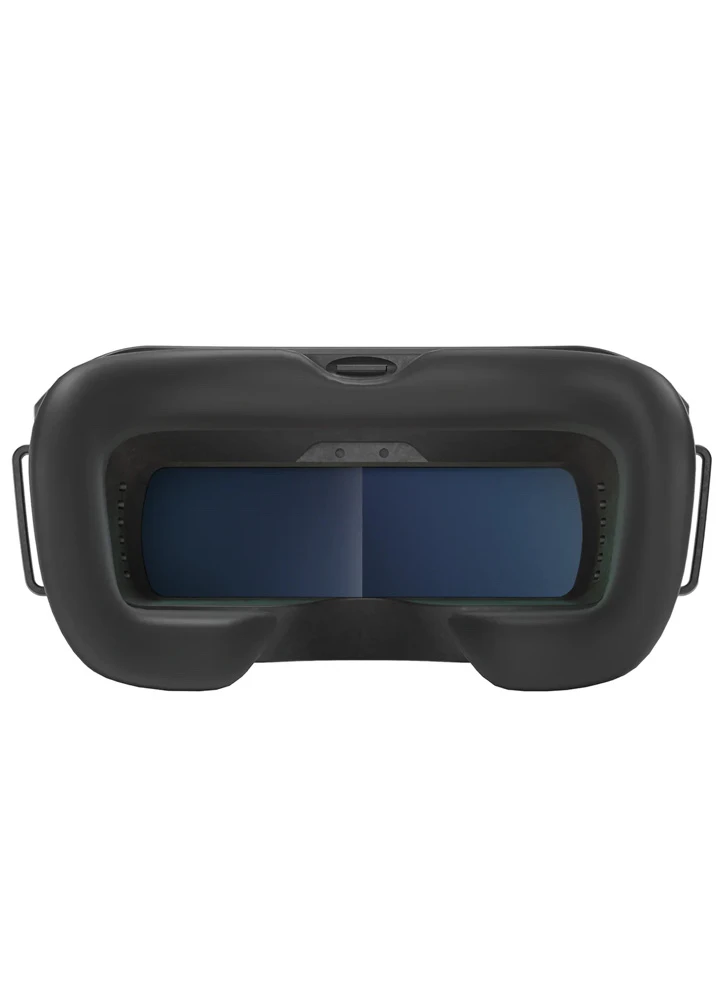

The CADDXFPV Walksnail Ascent HD FPV Goggles are compact box-style digital FPV goggles designed specifically for the Walksnail Ascent HD system. Developed for use with the CaddxFPV Protos platform, these goggles provide a simple and accessible entry into digital HD FPV flying.

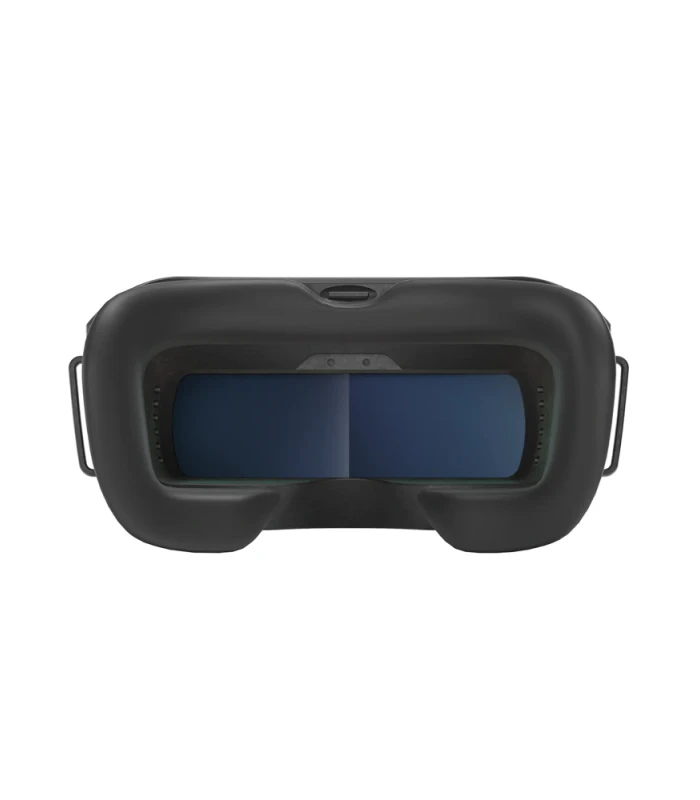

They feature a large 4.5-inch 1080p LCD display, supporting 1080p and 720p video at up to 60fps, delivering a clear and immersive FPV view. The Ascent digital transmission system offers low latency and stable performance, making the goggles suitable for indoor and outdoor flight.
Onboard DVR recording is supported via micro SD card, and the on-screen menu allows easy adjustment of resolution, bandwidth, transmission mode, and display settings. Built-in LHCP antennas and automatic channel selection help maintain a reliable video link with compatible Ascent air units.
Powered via a wide 2S–6S input range, the goggles can be run from standard LiPo batteries for convenient field use. The box-goggle design prioritises screen size and ease of use, making them well suited to beginners, training environments, or as a secondary HD goggle option.
Note: These goggles are not compatible with the Walksnail Avatar HD system.
Included:
- Model: WN02-FP006
- FCC ID: 2BHG9-WN02-FP006
- Video System: Walksnail Ascent HD (not Avatar compatible)
- Operating Frequency: 5.725–5.850 GHz
- Transmit Power (EIRP):
- FCC: <30 dBm
- CE: <14 dBm
- Display:
- Screen Size: 4.5 inch
- Screen Type: LCDResolution: 1920 × 1080
- Refresh Rate: 60 Hz
- Video Resolution:
- 1080p @ 60fps
- 720p @ 60fps
- Latency:
- Minimum: ~22 ms
- Average: ~32 ms
- Bitrate: Up to 50 Mbps
- Polarisation: LHCP
- Antenna: Built-in
- Channels: 8
- Transmission Range: >4 km (FCC mode, unobstructed)
- DVR: Yes (Micro SD card, up to 256GB supported)
- Input Voltage: 6V – 25.2V (2S–6S LiPo)
- Power Input: DC 5.5 × 2.1 mm / XT30 (via power cable)
- I/O Interfaces:
- Micro SD Card Slot
- DC Power Input
- Type-C (firmware updates)
- System: Walksnail Ascent HD System
- Weight: Approx. 125 g (goggles only)

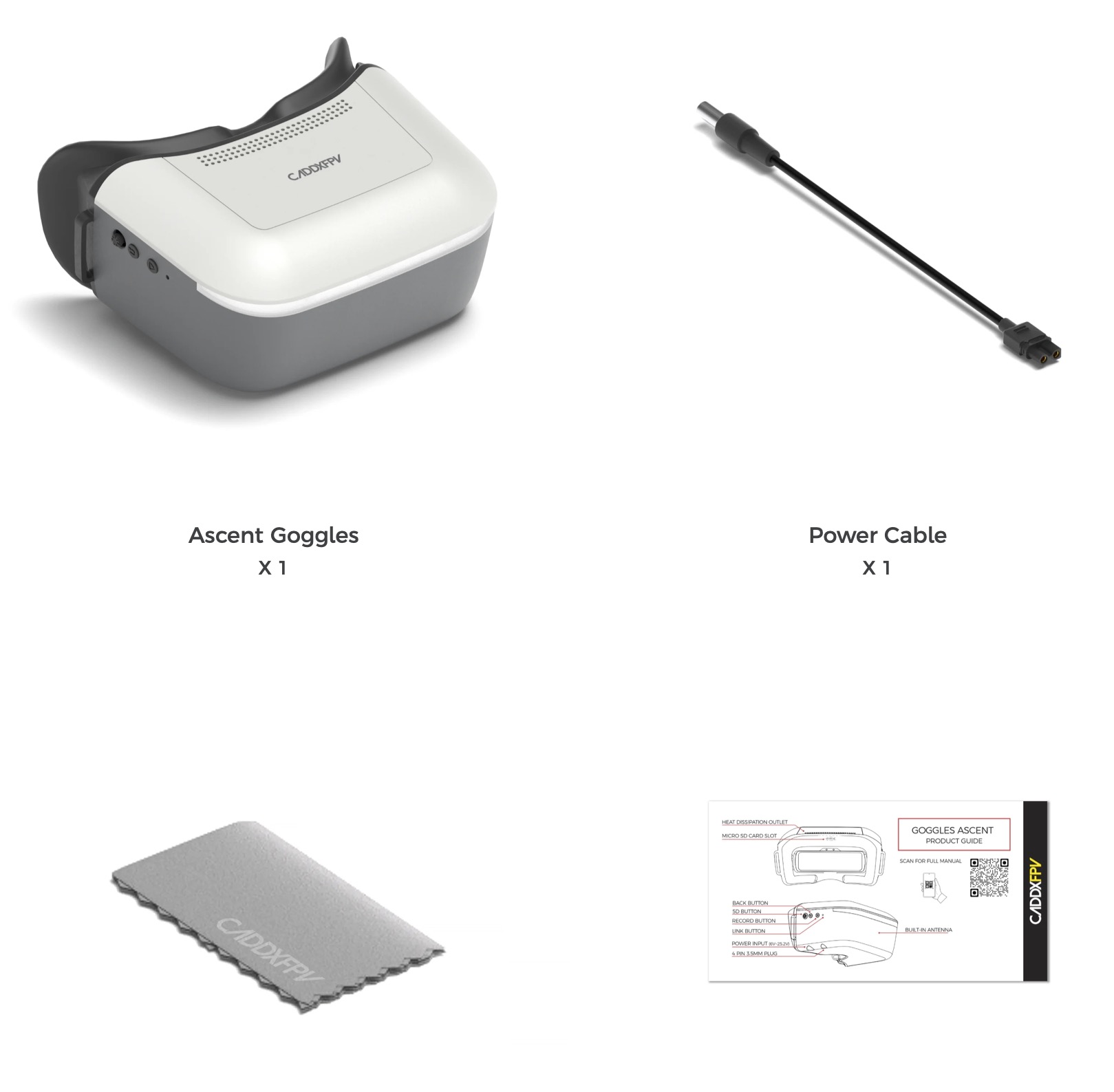

Included:
- 1× Walksnail Ascent Goggles
- 1× Headstrap & foam set
- 1× Power cable
