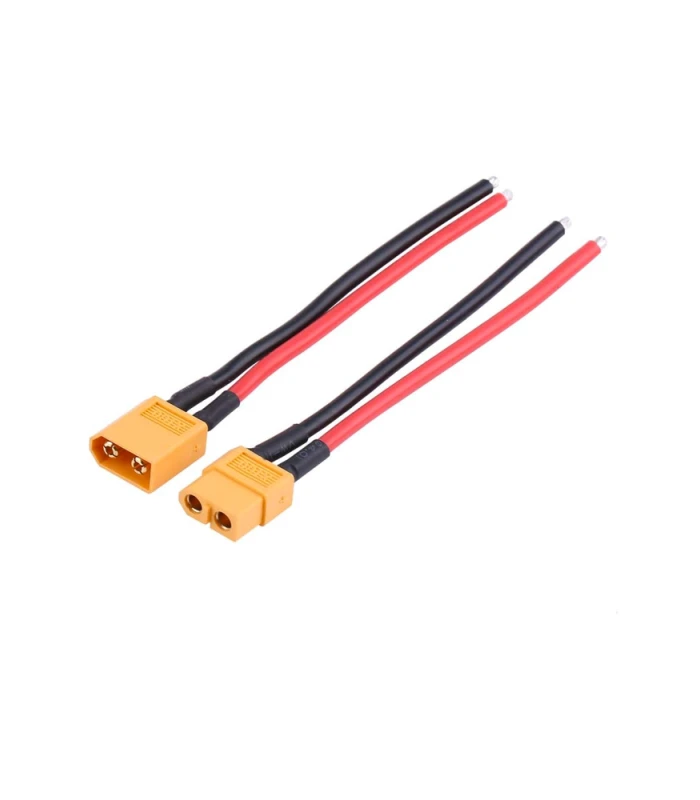

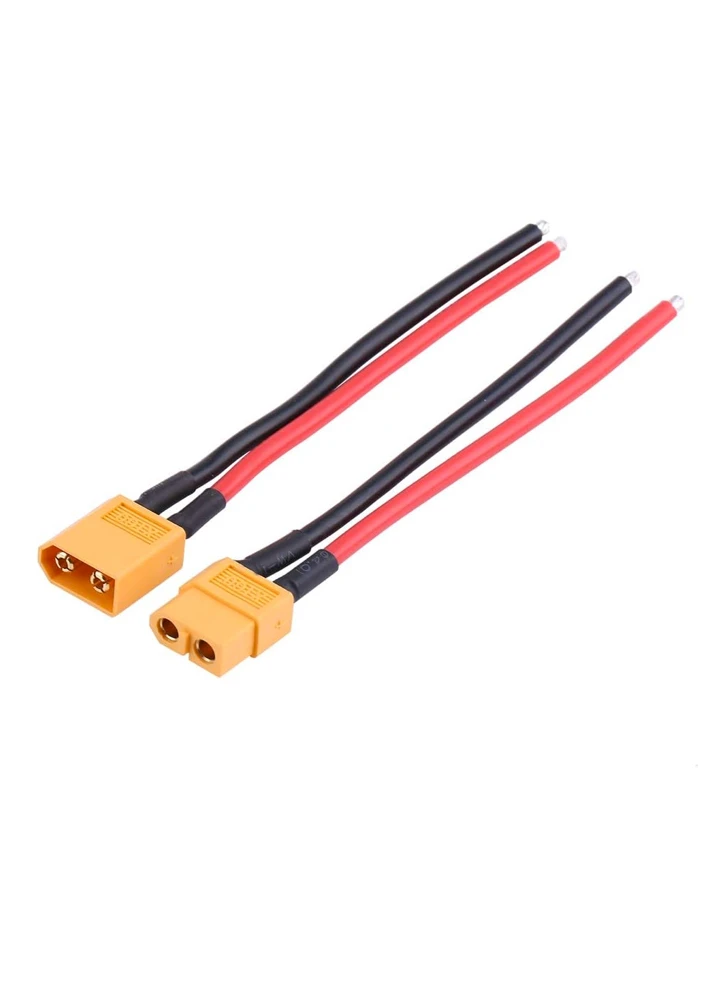

XT30, XT60, XT90 Male & Female 10CM Wired Pigtail Connectors

Connector
Type
Colour	Black Yellow Clear

Description

Save time soldering with these high quality pre-soldered & tinned XT series connectors supplied with 100mm of silicone wire. We sell XT30, XT60, XT60H, XT90 and XT90H versions in both the male and female variants. It’s common practice to use the female type for a LiPo battery connection as its shrouding protects against shorting. XT30 is rated at up to 30A, XT60 at up to 60A and XT90 at 90A, and probably some way beyond. All connectors are gold plated for a better contact surface and thus greater amp handling and lower resistance.

As well as the common yellow XT60, we now also sell a black XT60 version which really suits the carbon frames.

The XT-H connectors, are backwards compatible with original XT connectors, they just have a design change which is far more user-friendly for connection and disconnection with an improved integrated grip area.

Great advice on how to solder your connections.

Specification

Cable: XT30 16 AWG / XT60 14AWG / XT90 12AWG
Wire length: 10cm

Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

Choosing the right connector: There is a massive array of connectors on the market and they are not universally suitable for all multicopters. In basic terms, a connector is a device used to connect two or more electrical elements in order to allow current to flow from one to the other. In reality this could be achieved without a connector, so this correctly implies that there are other requirements. Technical requirements such as, current rating, resistance, and reliability should principally guide your choice; however personal preference based on ease of use/soldering, past experience and recommendations is usually the deciding factor. There are 2 main kinds of connectors, those that have the electrical contacts covered, or housed, and those that are exposed. Housed connectors include connectors like Deans and exposed are like bullets. While housed connectors are marginally heavier, they are safer as their shielding helps to prevent electrical shorts. Bare connectors can be made safer by applying heat shrink. Another advantage of housed connectors is that they typically prevent you mixing up the polarities and shorting the battery. Connector choice is most critical for high current applications, it’s best to err on the side of caution when it comes to current rating. Always remember that there is no problem with using a larger connector than is required, apart from added weight and cost. Generally speaking small JST connectors are used to connect auxiliaries (BECs, LEDs etc), while 3.5mm bullets are often employed to connect ESCs to Motors. Finally, Deans, EC3s, XT60s, HXT 3.5mm are generally used for mid current applications, while 5.5mm bullets, EC5s and XT90s for high current applications.
