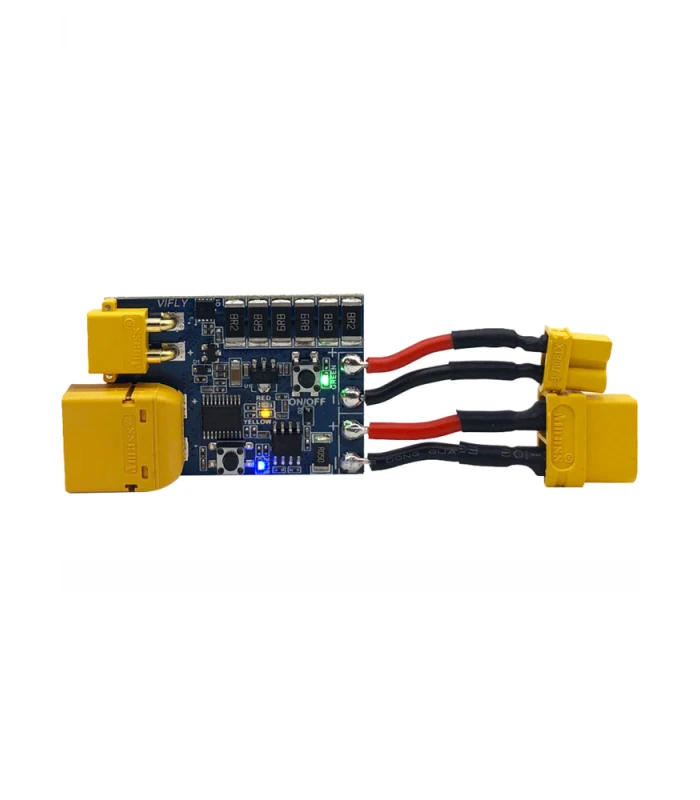

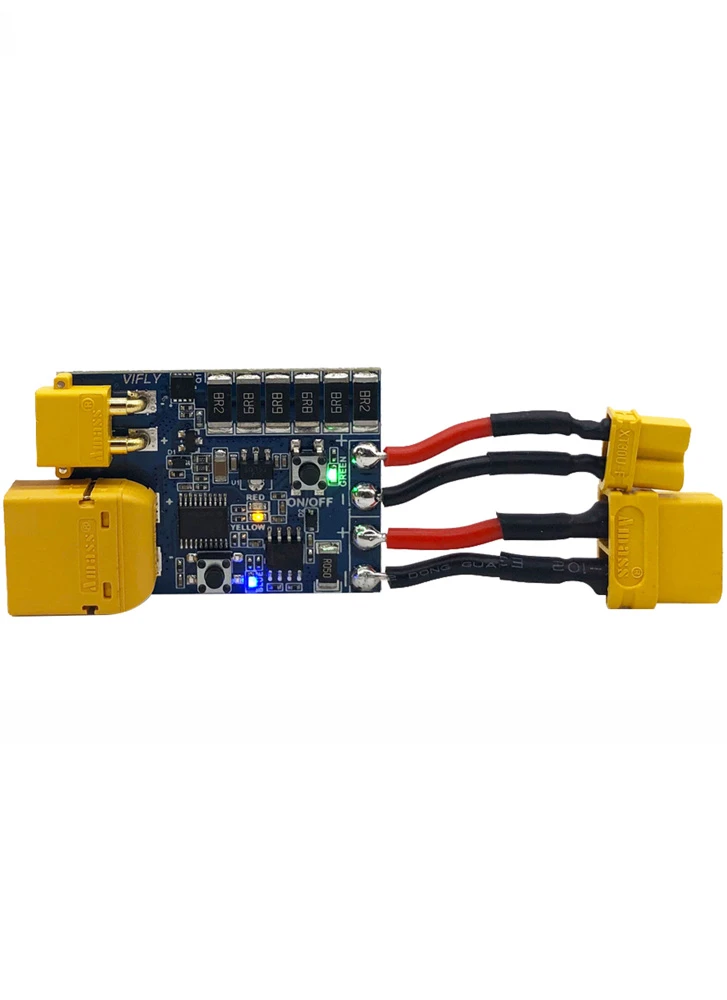

The ultimate Smoke Stopper from VILFY! The ShortSaver 2 is not quite as small as dedicated XT30 or XT60 only versions, but this one will replace both and gives more robust features! Version 2 adds a power on/off switch for easier receiver binding and a new button switch to adjust the short-circuit/over-current trip time.
Features
Completely cut off the current flow and prevent โmagic smokeโ
For other smoke stoppers like the automotive light-bulb or resettable fuse types, they just limit, not stop the current flow. The leakage current may still damage your components. VIFLY ShortSaver is a different smoke stopper that adopts an electronic fuse to completely cut off the current into your RC build if a short circuit or wiring mistake is detected.
Super-fast reaction/protection time
VIFLY ShortSaver will turn off the power to a device that draws in excess of the switchable 1A or 2A threshold within just 3ms!
It is far more effective than the old way of using light-bulb or resetting fuse. The shorter the protection time, the safer your build will be as something may break by the time the fuse trips.
Power ON/OFF Switch for Easier Receiver Binding
Receiver binding is often a fiddly job, that seems to require three hands as you have to hold a bind button while connecting a battery. Now the VIFLY ShortSaverย can make this job easier as it has a power button whichย allowsย you to connect your battery to your receiver first and then simply switch the power on while holding the bind button.
1 Amp and 2 Amp Threshold Selector
VIFLY ShortSaver has a 1 Amp or 2 Amp threshold selector for your different needs. For a small size build with more sensitive electronic components, you can select 1 Amp option, for large builds, use the 2 Amp option.
Amass XT60 and XT30 In-output Connectors
VIFLY ShortSaver includes both Amass XT30 and XT60 connectors making it ready to connect to drones big and small.
