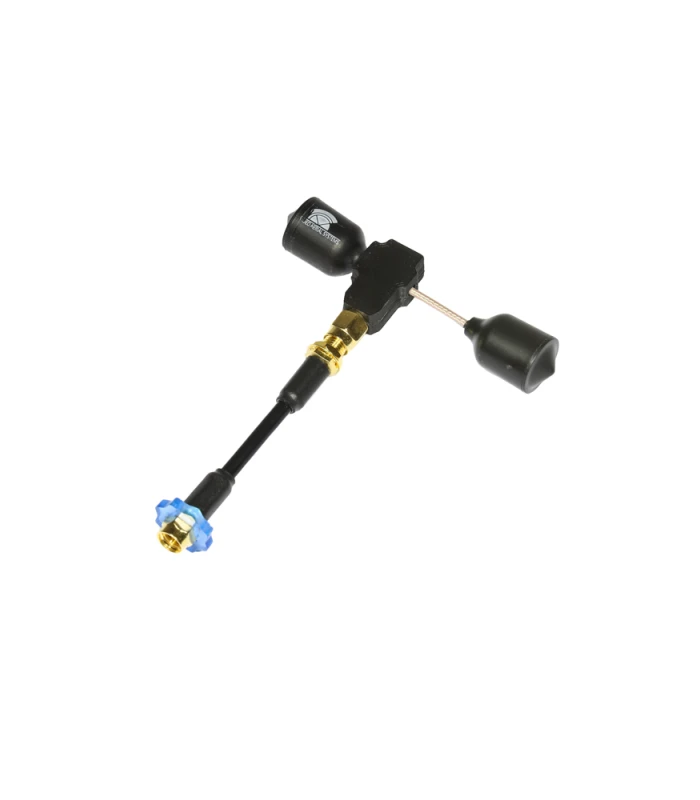

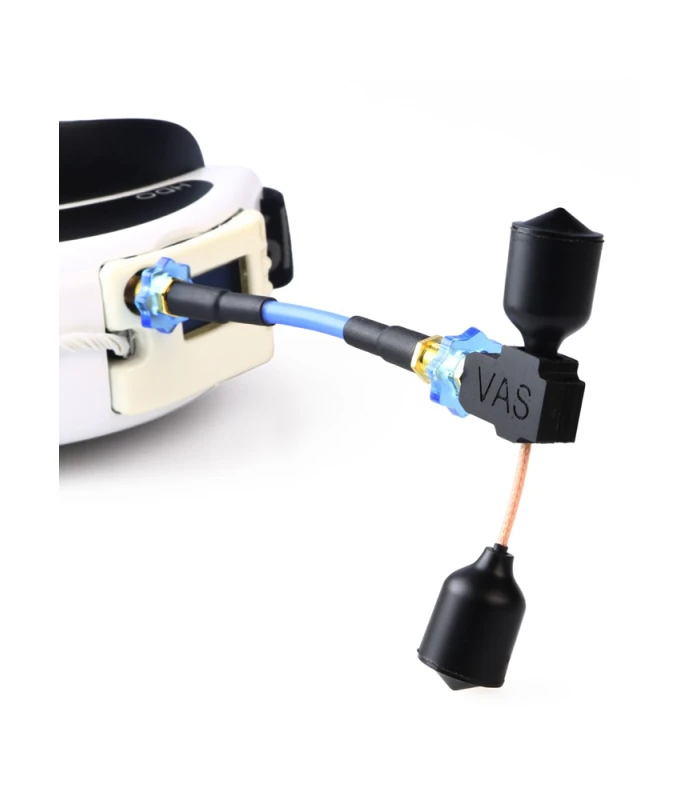

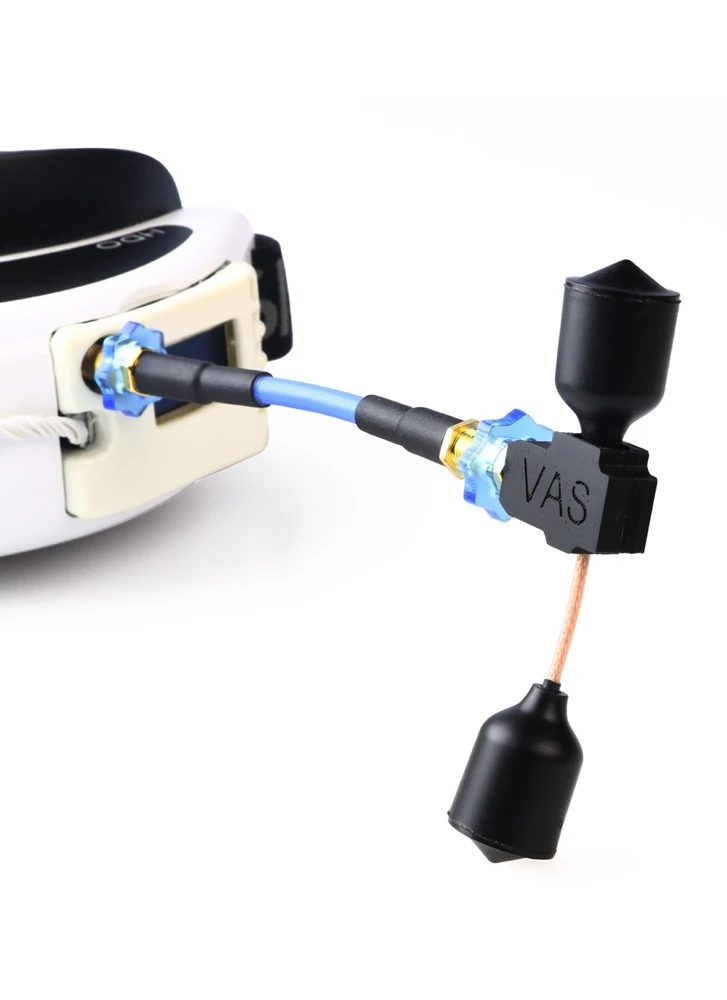

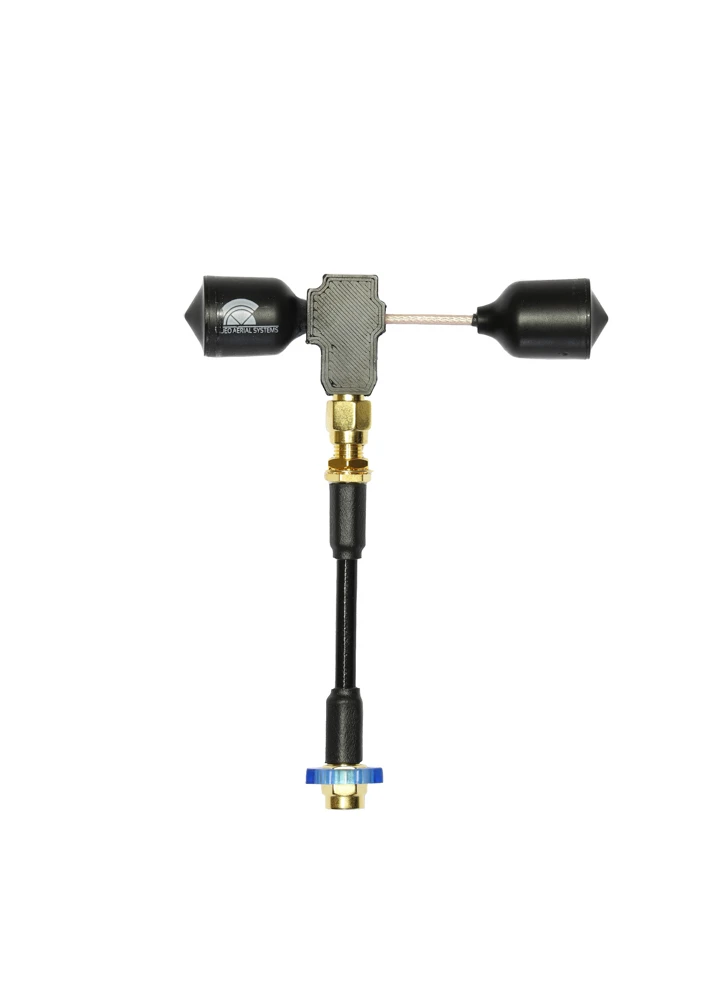

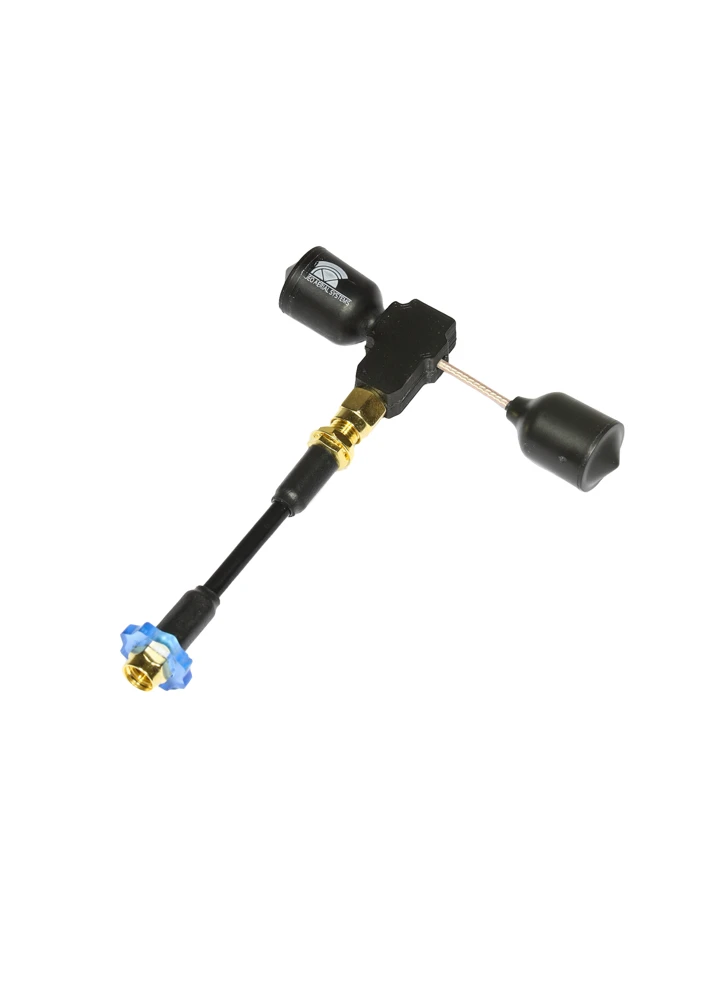

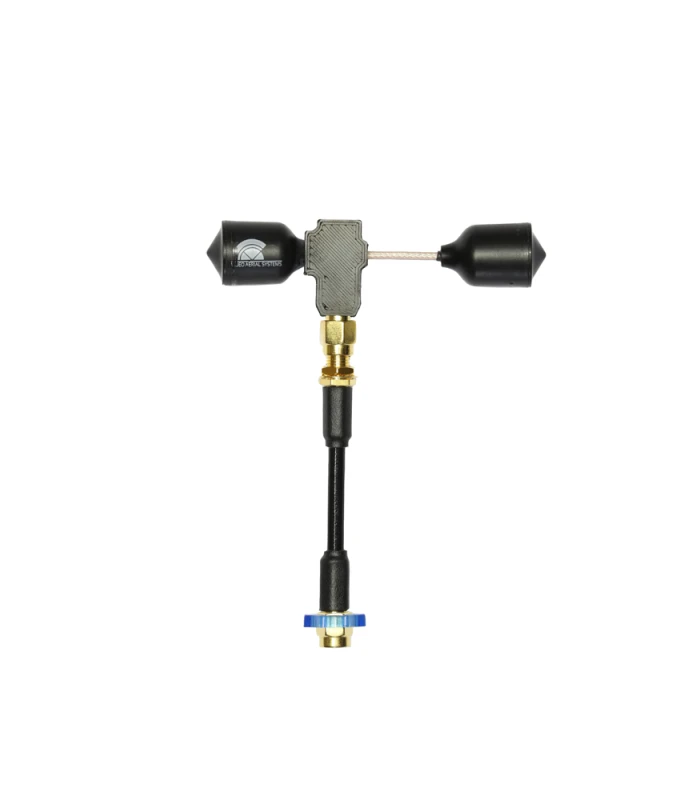

Long range and 360 degrees of coverage in one, the Sky Hammer is a true long range omni-directional antenna! Designed by IBCrazy, the Sky Hammer utilizes a pair of high performance Minion Pro antennas precisely phased and impedance matched to achieve 5.25dbic of gain and 360 degrees of coverage. The stacking and phasing takes the unused vertical coverage of a single antenna and pushes it outward along the horizon right where you need it. While typically considered to be a receiver antenna, the Sky Hammer can be mounted on a long range quad for exploring places where other antennas simply cannot reach. When using the Skyhammer on a VTX be sure to watch bank angles or you could point the null of the antenna directly at your receiver causing loss of signal.

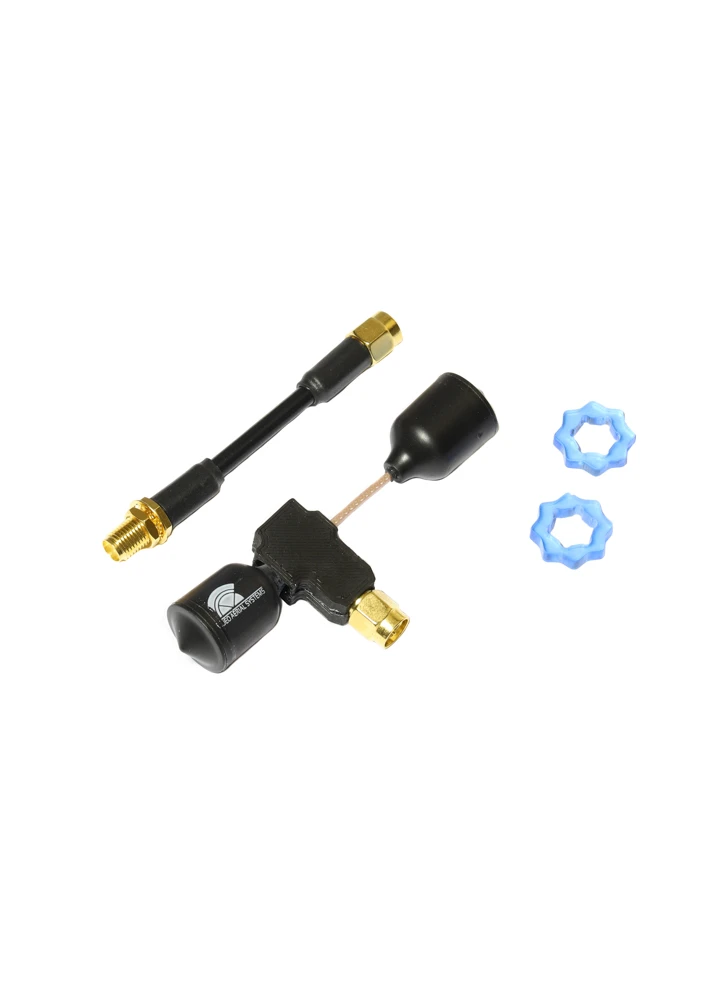

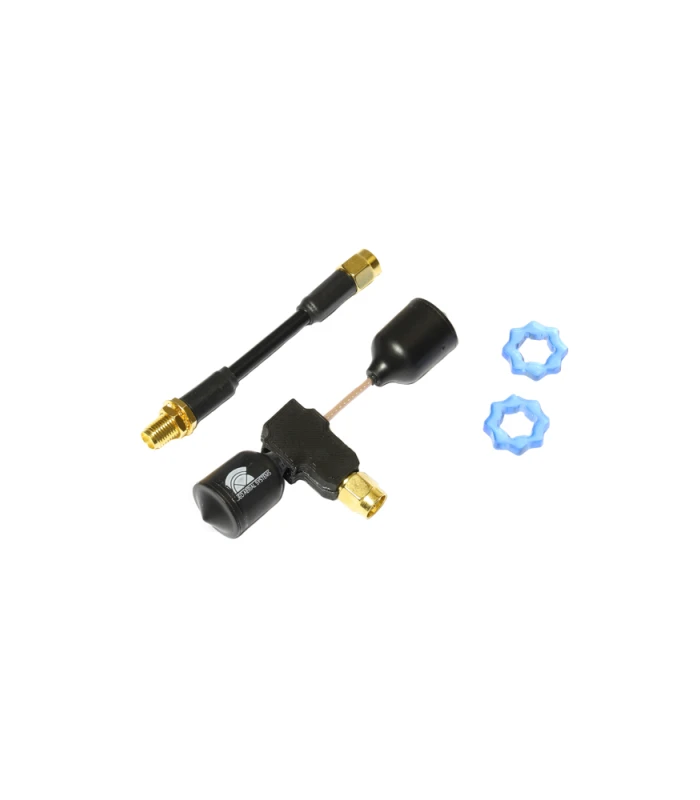

Options: The SkyHammer is available with both a straight SMA connection and a 90 Degree SMA connection. We sell both RHCP and LHCP versions. Please select as required.
Usage: Orientate the antenna with the elements placed vertically, this will give you a strong low altitude 360 degrees beam.
