Name: ToolkitRC Q6AC 1-6S AC 250W / DC 1000W Quad Smart Charger - Flying Tech
Brand: ToolkitRC
SKU: LIPO-Q6AC
Price: 169.90 GBP
Availability: OutOfStock

Description

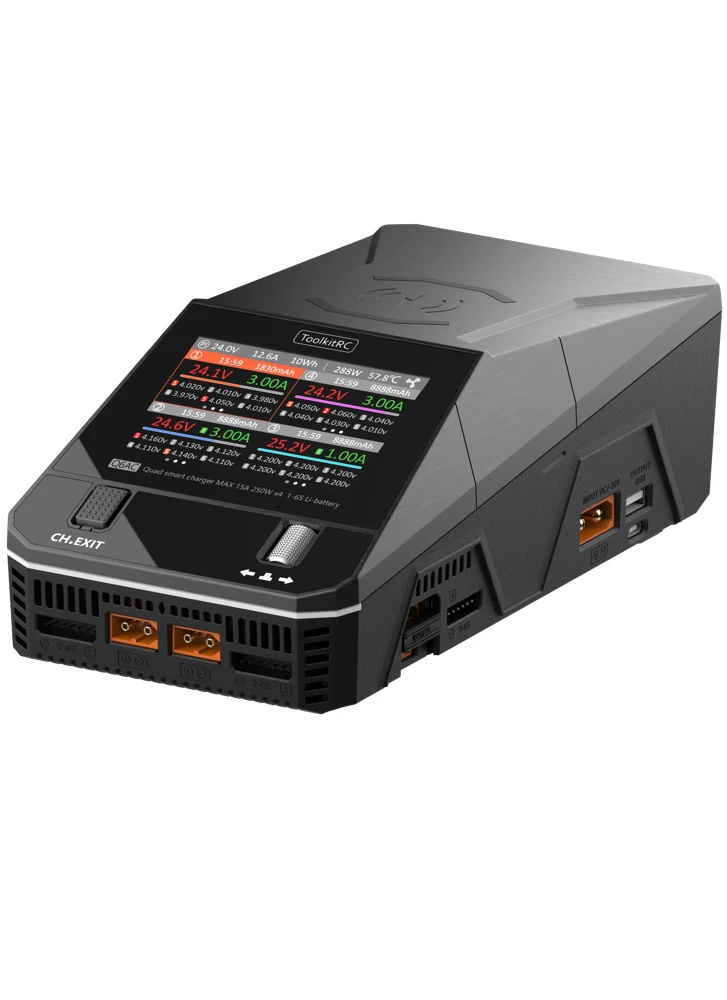

This is the ToolkitRC Q6AC Quad AC/DC Smart Charger. It’s compatible with a variety of battery types including LiPo, LiHV, LiFe, Li-ion, NiMH, and Pb. Packed with features, the Q6AC is a supreme multifunctional and a user friendly charger that can do it all! From charging big capacity batteries to wirelessly charging your phone and other personal electronics! With four independent charging ports, it offers the convenience of parallel charging without the associated limitations.

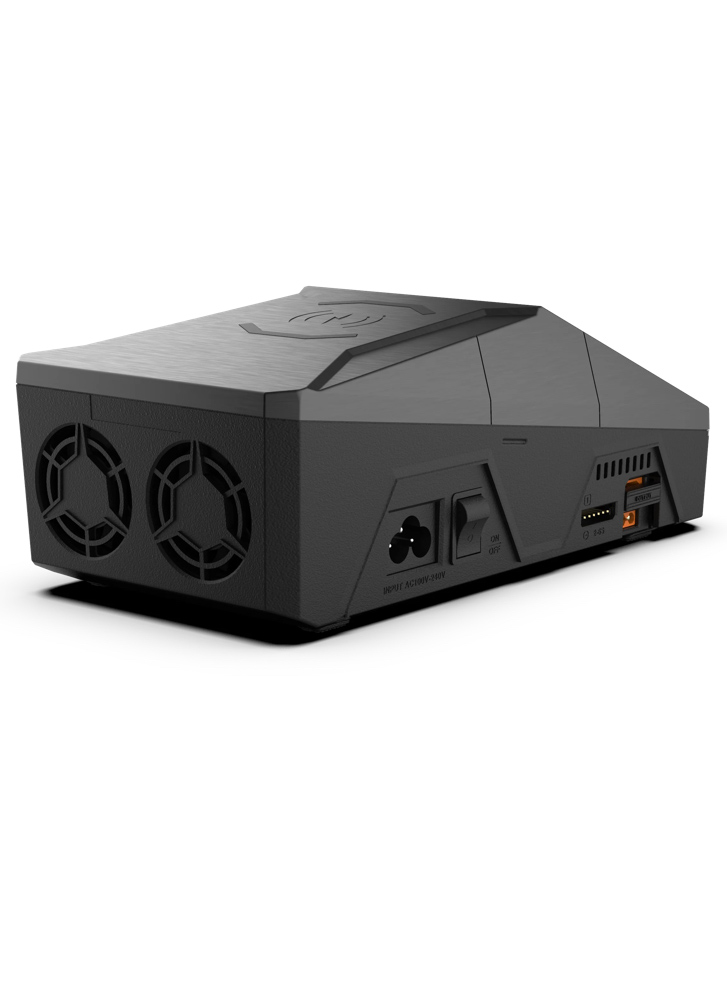

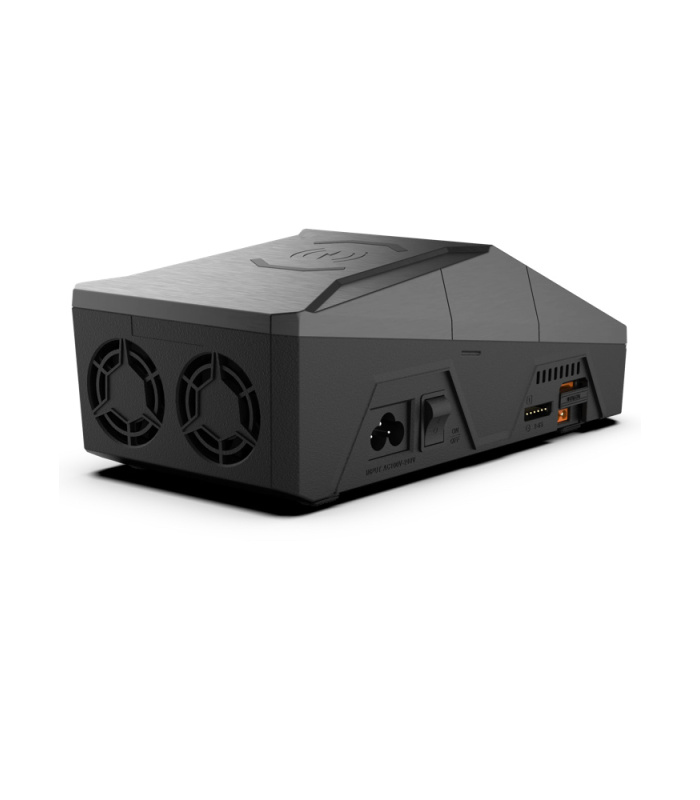

The charger is really versatile as it can be powered from both DC and AC power supplies. In DC mode the charger operates as four independent 250W channels with a combined total of up to 1000W output. In AC mode the charger operates in the similar way as either four 100W channels or two 200W channels, but with a maximum output of 400W. Charging rates can be really fast as it supports up to 15amps per channel. Furthermore, the battery connections are switchable to support both XT30 and XT60, so no extra adapters are needed. The Q6AC also serves as a bench power supply, which is a great addition.

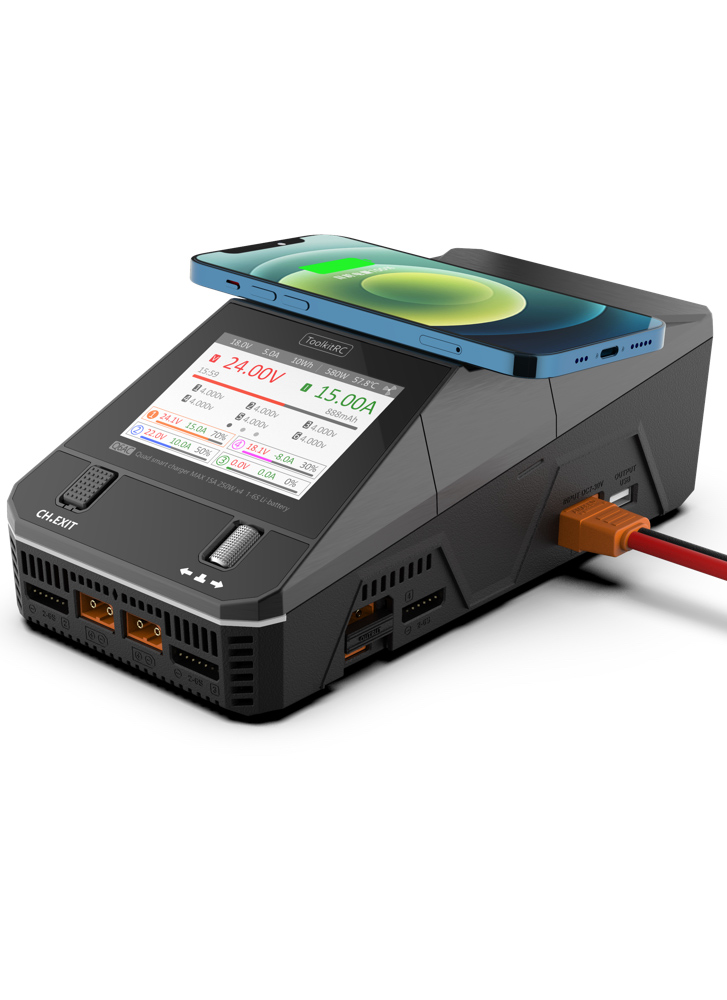

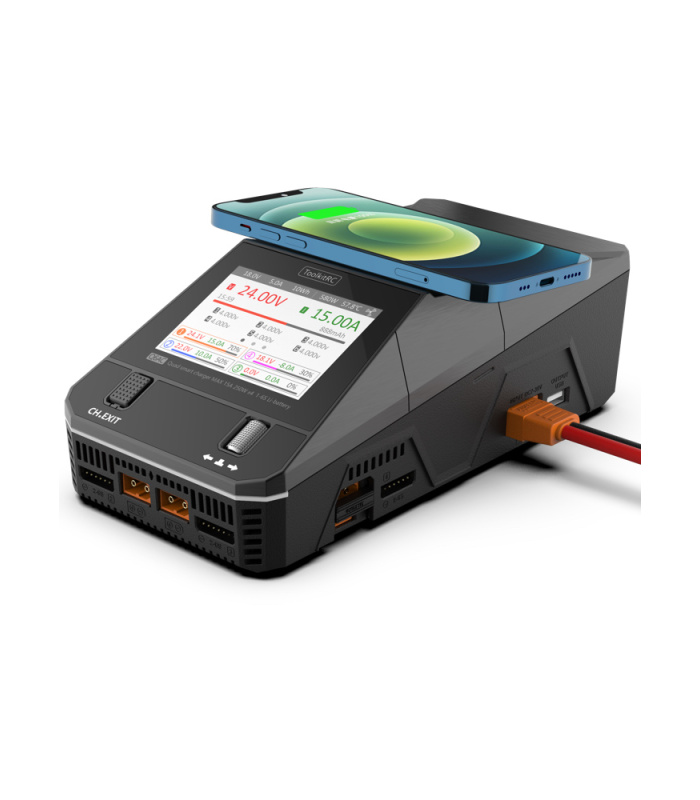

Another nice feature is the 15W wireless charger on the top, which adds the convenience of wirelessly charging supported smartphones. There’s also USB-C PD 65W and USB A 30W outputs for charging compatible devices and gadgets.

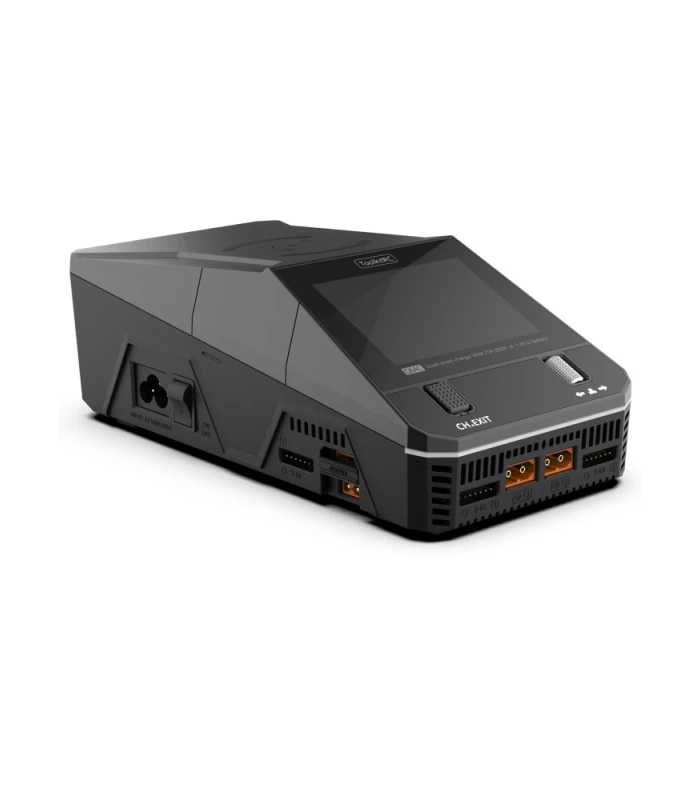

The charger is equipped with a large 3.5″ full colour IPS LCD screen, updated simplified interface, easy to navigate menu, automated fan speed, intuitive metal scroller with excellent tactile feel and a lightweight and compact design! All this makes the Q6AC and absolute do it all charger and a perfect addition to your charging station!

Features

AC/DC Dual Input Mode: AC 100-240V MAX 100W 5.0A Input Voltage / 250W @MAX 15A*4 DC IN Charging Power
Lipo LiHV LiFe Lion LTO@1-6S, NiMh @1-16S Pb @1-10S Battery Type
Discharge Power 250W @MAX 15A Recycle mode
USB Compatibility is USBA, USBC
4 Channel Independent Charging
Wireless Phone Charging

Specification

Plug: EU/US/UK/AU Plug
Input Voltage:
- AC 100-240V MAX 100W 5.0A
- DC 7.0-30.0V @MAX 50A
Battery Type:
- Lipo LiHV LiFe Lion LTO@1-6S
- NiMh @1-16S Pb @1-10S
Balance Current: 800mA @ 4.2V
Charging Power: 250W @MAX 15A *4
Discharge Power:
- 250W @MAX 15A Recycle mode
- 12W@3A Normal mode
USBA: 30W or Upgrade
USBC:
- MAX 65W@20.0V
- PD QC PPS AFC FCP SCP PE SFCP
Product Size: 220mmx113mmx82mm
Product Weight: 1120g
Packing Size: 260x220x120mm
Packaging Weight: 1600g
LCD: IPS 3.5 inch LCD 480×320 resolution

Included

1x ToolkitRC Q6AC DC 1-6S 250W Quad Smart Charger

Downloads

Manual

Download File

Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

LiPo Battery Charging Tips:

Always use a charger made to charge LiPo packs.
Double check that the settings for the lithium polymer charger are correct for the pack being charged. This includes the cell count, as well as the current settings. In general, most lithium polymer batteries should be charged to no more than 4.2 volts per cell or depleted to less than 3.0 volts per cell.
Ensure that charging leads are connected correctly. Reverse charging can lead to cell damage or a fire or explosion.
Always charge LiPo batteries on surfaces that won’t catch on fire such as cement, steel, ceramic or stone. Wooden tables and carpeted floors are not recommended charging surfaces.
Do not charge batteries near flammable products or liquids.
Never charge a LiPo battery while inside your model or other electronic device. If it catches fire it can lead to total destruction of the item it is being charged in.
LiPo batteries should be charged within a temperature range of 0C to 50C. Batteries charged outside this temperature range may experience leakage, heat generation or cell damage.
Never leave a charging lithium polymer battery pack unattended.
If unsure of the charge rating, never charge a lithium polymer battery pack at a rate over 1C (1 x the battery packs rated capacity).
Never charge a LiPo pack that has ballooned or swelled due to over / under charging or from a crash.
Never charge a lithium polymer battery pack that has been punctured or damaged in a crash.
Never, under any circumstances let the positive and negative battery leads touch each other. It can lead to cell ballooning, cell damage or fire or an explosion.
Have a fire extinguisher near the charging area or a large bucket of dry sand. Do not try to extinguish with water.
If you notice your LiPo battery pack is swelling, stop the charging process immediately, put the battery in a safe container and observe it for 15 minutes.
Always charge your Lipo battery packs in a Lipo charging safe bag.

LiPo Battery Handling & Storage Advice:

Keep LiPo battery packs out of reach of children.
Do not put battery packs in pockets or bags where they can short circuit.
Do not store or transport batteries where they can come into contact with sharp or metallic objects.
Do not store your LiPo pack in extreme temperatures below 0C or above 50C.
Always store your LiPo pack in a safe and non flammable container away from flammable objects. A LiPo Sack or metal / ceramic storage container is best.
The speed at which a LiPo battery ages during storage is based on both storage temperature and state of charge. For optimum battery life always store your LiPo’s partially charged at room temperature. This will maintain their performance levels over time and there’s no need to cycle them unless stored for periods longer than 3-6 months. .
Never store a RC LiPo in a hot car fully charged for an extended period of time, this will cause damage.
When storing batteries for extended periods, store at a half charged state.

Finally, always follow the manufacturer’s safety instructions and charging guidelines for lithium polymer battery packs. These are there for not only the longevity of the battery pack, but also your safety.
