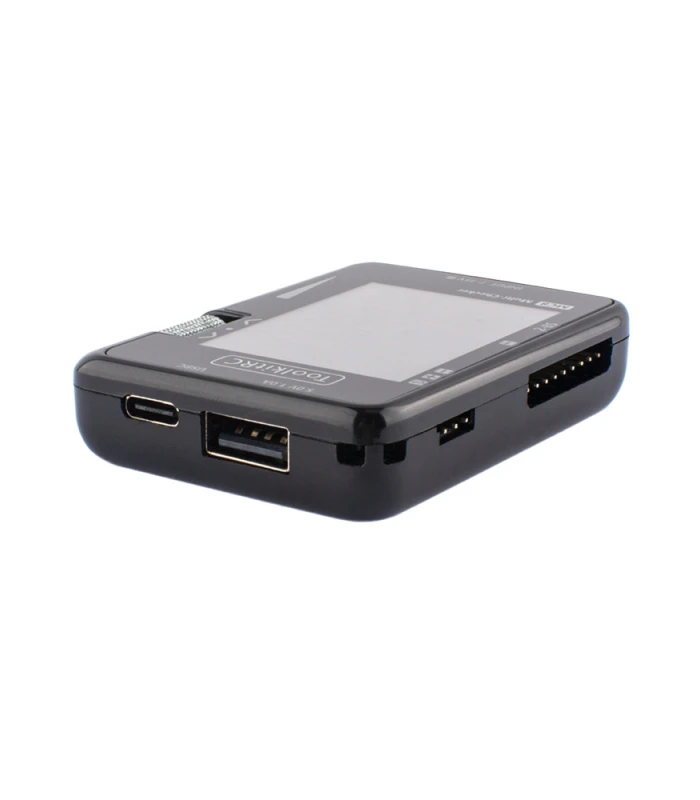

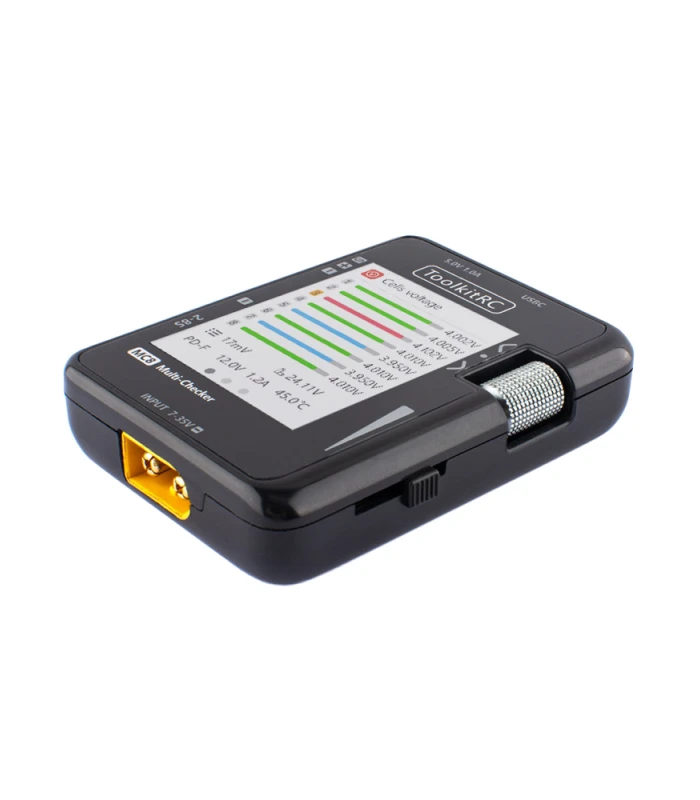

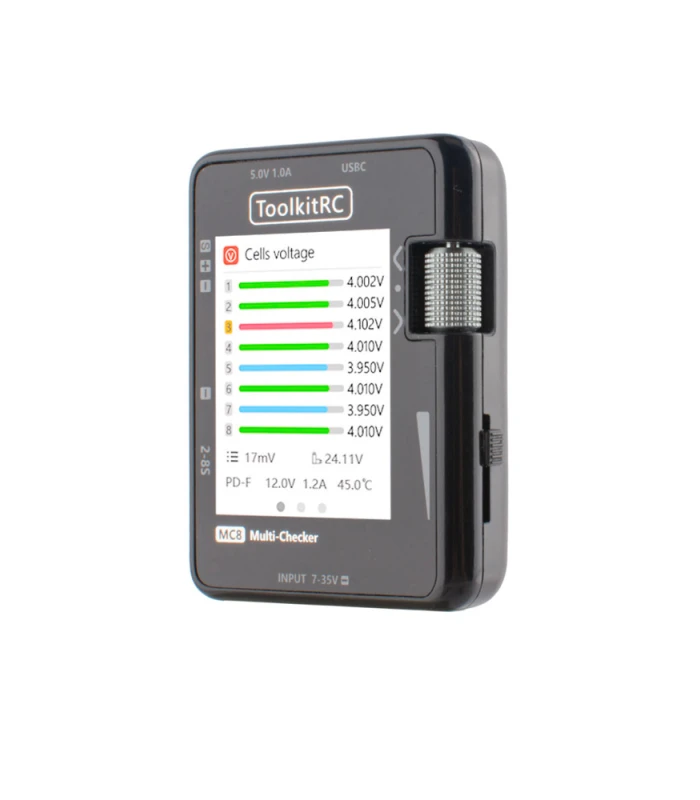

ToolkitRC MC8 Multi-Functional 2-8S Battery Checker

Name: ToolkitRC MC8 Multi-Functional 2-8S Battery Checker - Flying Tech
Brand: ToolkitRC
SKU: LIPO-TKITMC8
Price: 29.90 GBP
Availability: InStock

£29.90 Inc. VAT

The MC8 a multi purpose device. It’s a cell checker, RC signal tester and generator, also a USB power supply.

In stock

Add to compare

0 People watching this product now!

SKU: LIPO-TKITMC8 Categories: LiPo Battery Meters, RC Accessories, Charging Equipment, Travel Chargers, Power Supplies, USB Power Supply, Charging Accessories, Accessories, Measuring Equipment, Gifts Tags: Battery Tester, Cell Checker, LiPo, LiPo Tester, RC Signal Tester, Servo Tester, USB C, USB Power Supply

Description

The MC8 from Toolkit is a feature packed multi purpose cell checker with a big, bright, easy to read display. Not only can you check cell voltages and balance your battery packs, you can also monitor the PWM/PPM/SBUS output of radio receivers, generate PWM output to test servos and ESCS, and use your LiPos for USB device charging (up to 20W)!

Features

Large colour screen
Battery status display – cell voltage checker, supports 1S to 8S batteries
Receiver signal readout: PWM, PPM & SBUS gives you the value of each channel
PWM, PPM, SBUS signal generator output for driving servos, ESCs
High precision LiPo battery cell balancer 0.005V / 60mA
USB-C 20W fast charging for phones & tablets etc (supported protocols PD3.0, QC3.0, AFC, SCP, FCP etc)
USB-A 5V 1A output
Intuitive control

Specification

LCD: 2″ IPS 320×240
Dimensions: 68x50x15mm
Weight: 50g

Checker

Main Input port: XT60 7.0-35.0V
Balance input: 0.5V-5.0V Lixx 2-8S
Signal port input: <6.0V
Balance current: MAX 60mA @2-8S
Balance accuracy: <0.005V @ 4.2V
USB-A output: 5.0V@1.0A firmware upgrade
USB-C output: 5.0V-12.0V @MAX 20W
USB-C protocol: PD3.0 QC3.0 AFC SCP FCP

Measurer

PWM: 880-2200us @20-400Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us*16CH @20-100Hz

Output

PWM: 1000-2000us @20-1000Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us*16CH @20-100Hz

Included

1x Toolkit RC MC8 Multi-Functional 2-8S Battery Checker

Downloads

Manual (pdf, 1279KB)

Download

Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

A LiPo alarm / tester is a must have piece of equipment for any flight box. LiPo batteries require careful management to maximise their life; they can be charged up to 4.20V and discharged down to 3.0V per cell. Any lower or higher in voltage and the cell will almost certainly be irreversibly damaged (reduced capacity or total inability to accept a charge). Furthermore, a damaged cell may become unstable which can be very dangerous (increased fire risk). A LiPo alarm / voltage tester is therefore an essential piece of kit to monitor the status of your individual cells and avoid damaging them.

Most pilots who fly without a telemetry feed use a LiPo Alarm on board their craft to alert them as to when it’s time to land – it’s recommended to set your alarm to 3.6V to give you enough time to land safely.
