Name: Discontinued: TBS Unify Pro Nano 5G8 HV Video Transmitter 25 / 50 mW - Flying Tech
Brand: TBS
SKU: FPV-TX-TBS-UPNANO

Description

Product Discontinued – for an alternative please see TBS Unify Pro32 Nano 5.8G Video Transmitter u.FL

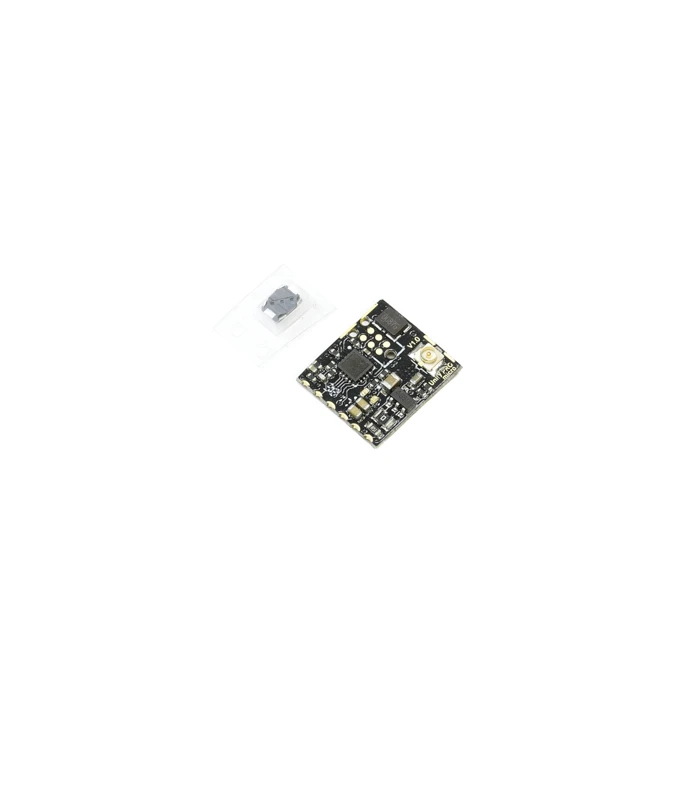

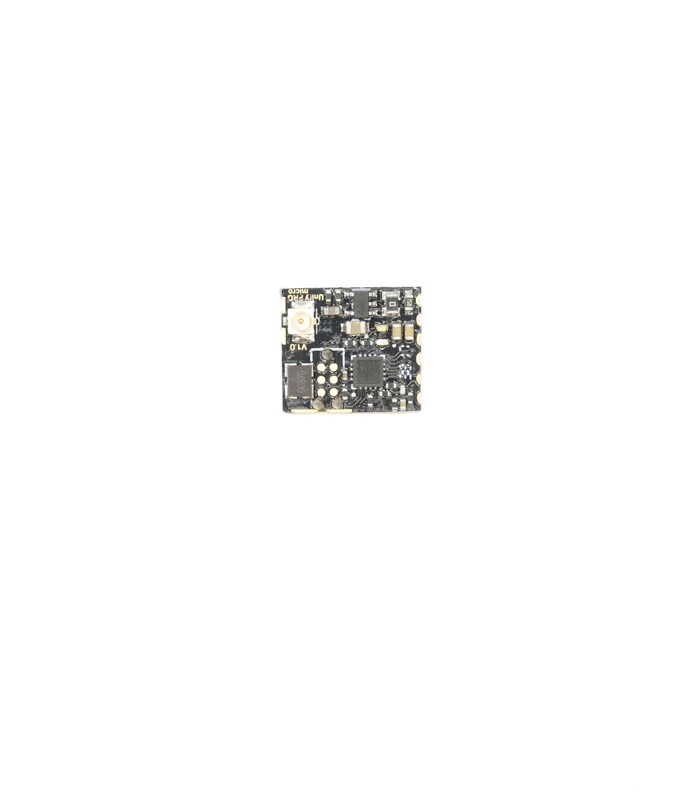

The world’s smallest FPV video transmitter with 25mW / 50mW power levels, Smart Audio and u.FL

SIZE MATTERS!

As builds become smaller and the innovation surrounding brushed and brushless micro quads accelerates, the need for a high-quality VTx increases. TBS has built the smallest VTx possible, focusing purely on size! Sporting the usual Unify Pro pedigree, a newly-revised u.FL connector and the industry-standard Smart Audio support. You will be blown away with the performance in terms of range, signal clarity and signal spacing.

TBS now sell a 20×20 mount to neatly stack the Crossfire Nano with the Unify Nano VTX – here.

The TBS Tiny Camera & Unify Pro Nano VTX Combo

Legal Notice: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.

Specification

Input Voltage: 4.5V – 5V
Power levels: 25mW / 50mW
Interface: SmartAudio and capacitive button (or solder external tactile button separately – included!)
Weight: 1.4g (incl. antenna)

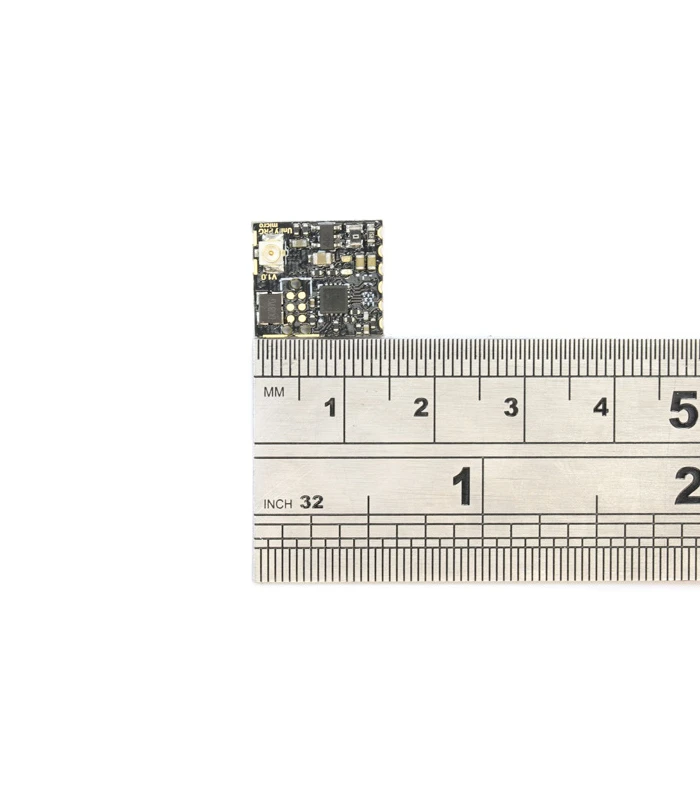

Size: 13.2mm x 14.6mm
Antenna connector: u.FL (upgraded)
Antenna length: 45.6mm (end to end)
TBS Tech: Smart Audio, Clean Switch

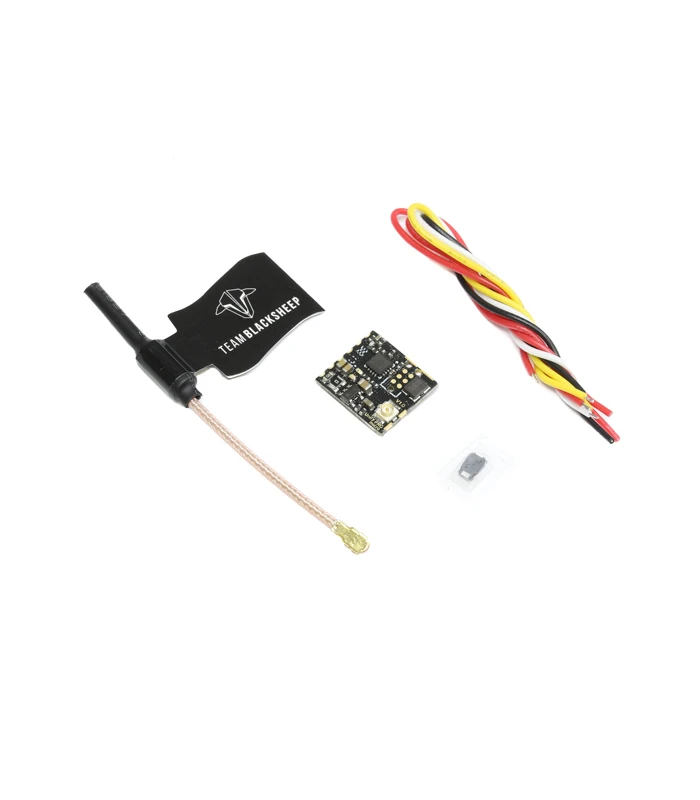

Included:

1x Unify Pro nano 5G8 VTX
1x button switch
1x TBS UNIFY PRO 5G8 Linear Antenna
6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)
