Name: TBS Source One V5 5inch Racing Drone Frame - Flying Tech
Brand: TBS
SKU: RD-FRAME-SONEV5
Price: 29.99 GBP
Availability: InStock

Description

The TBS Source One V5 frame replaces the Source One HD & Source One V3 frames.

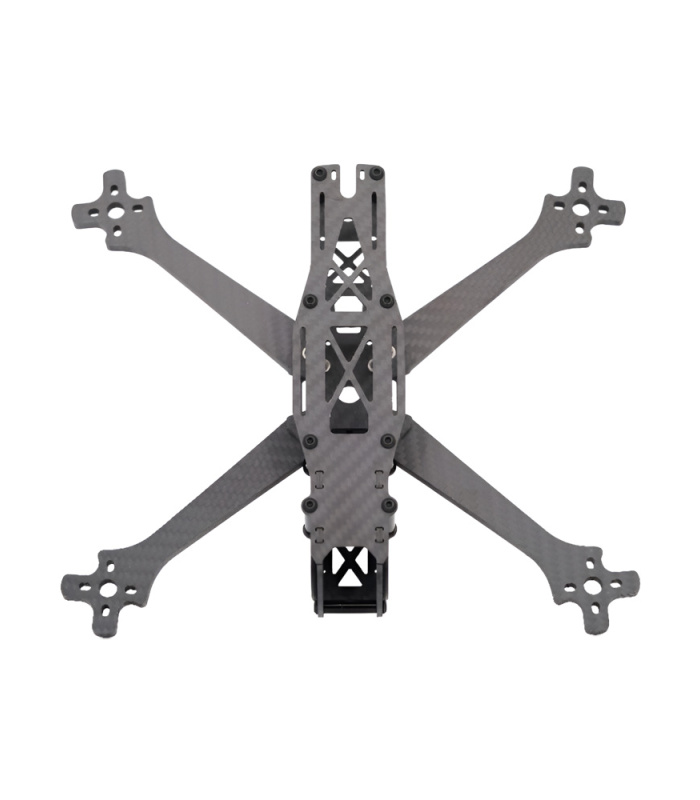

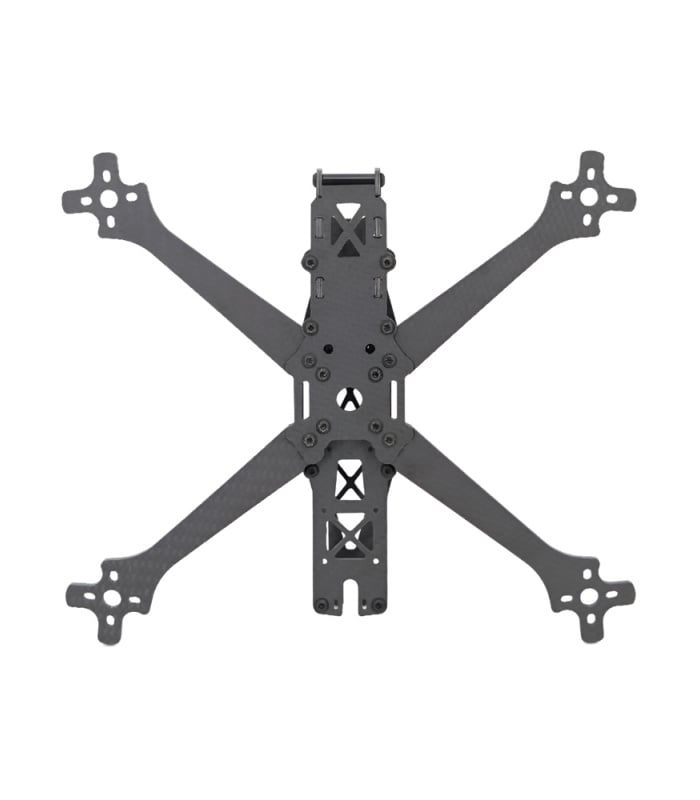

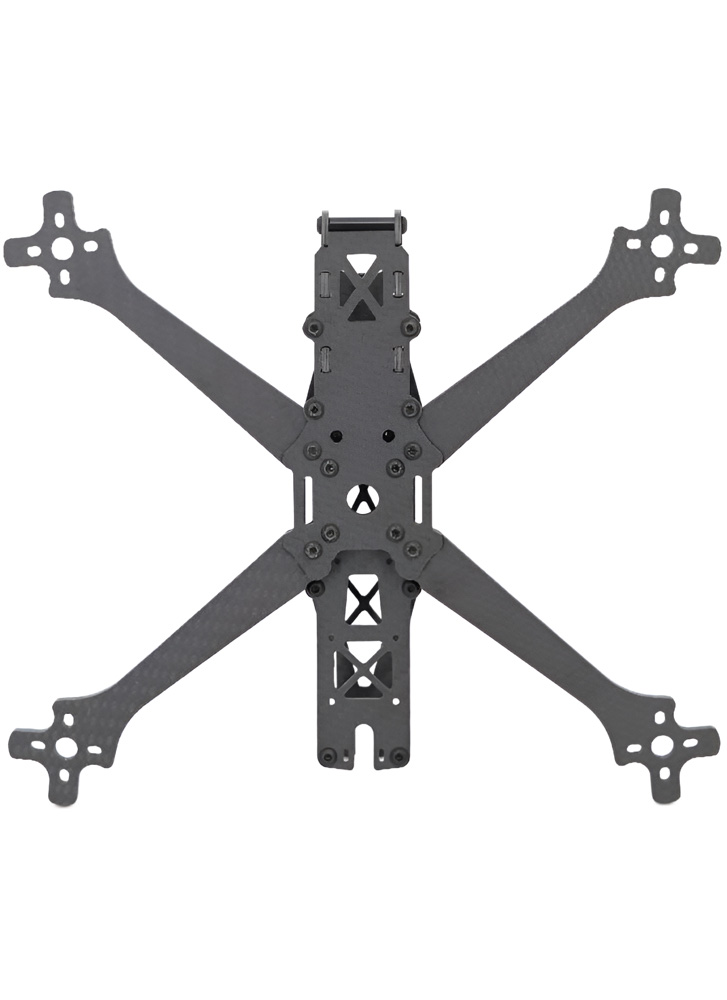

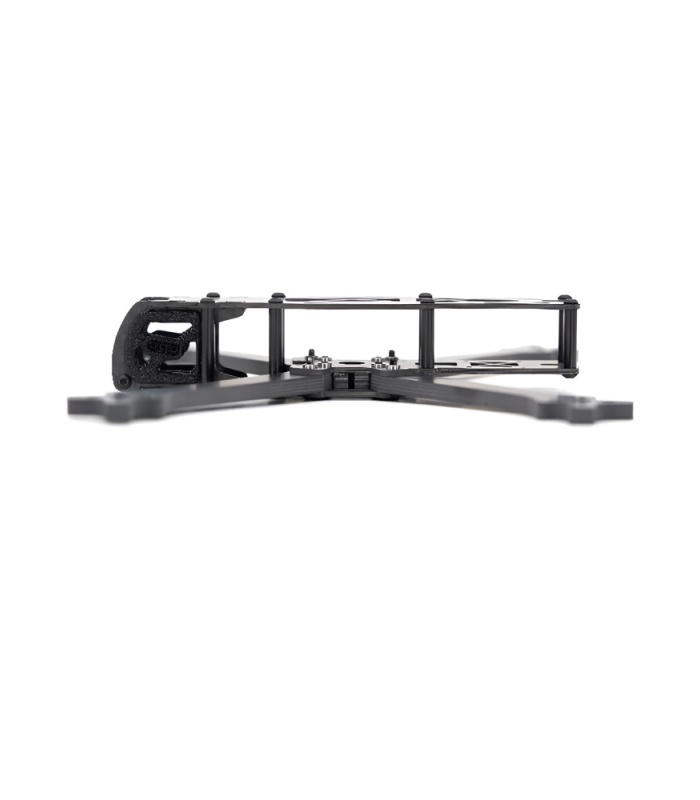

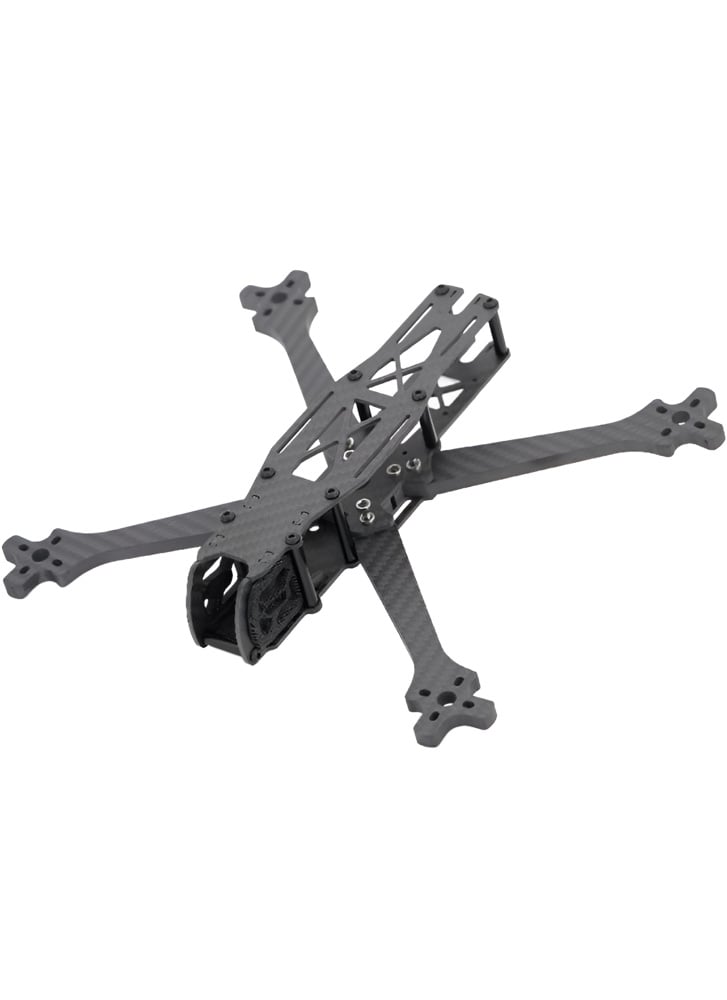

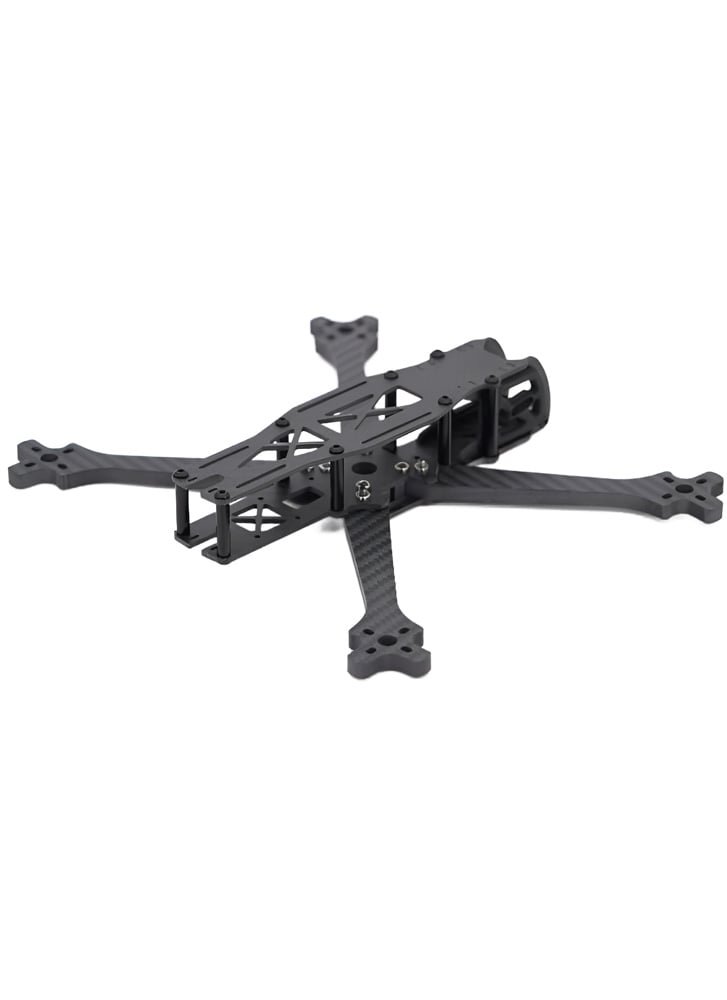

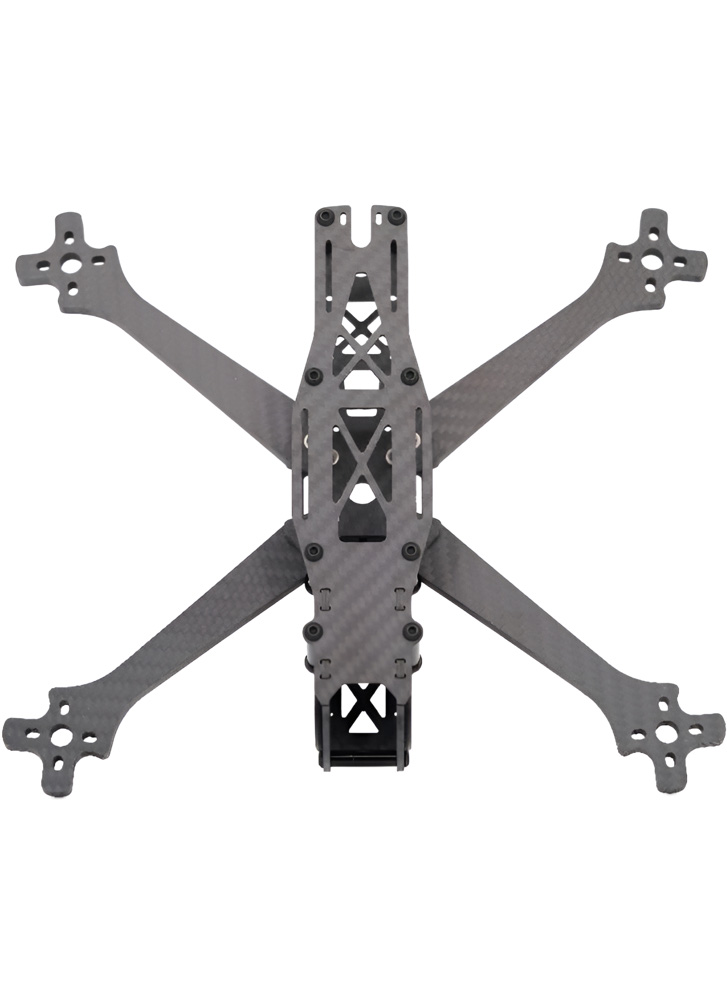

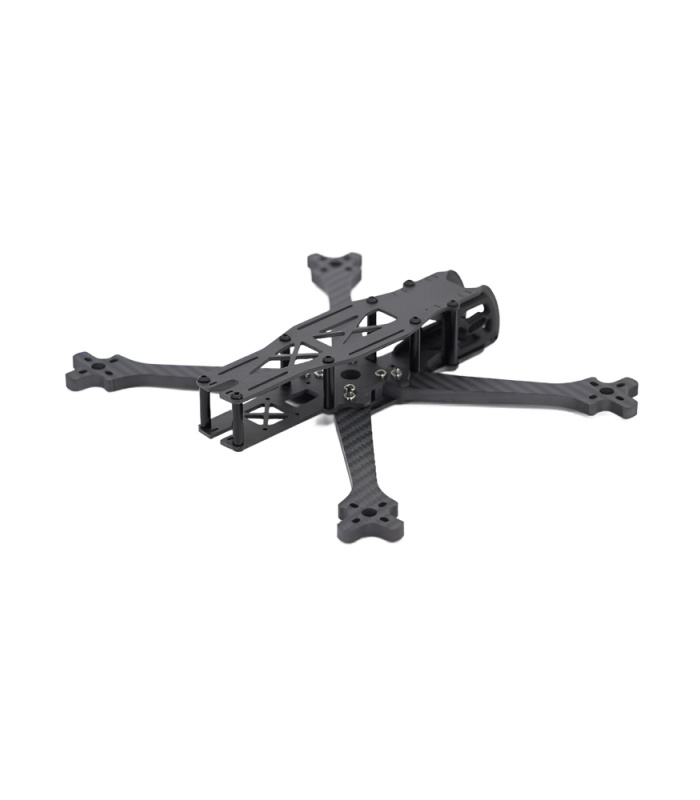

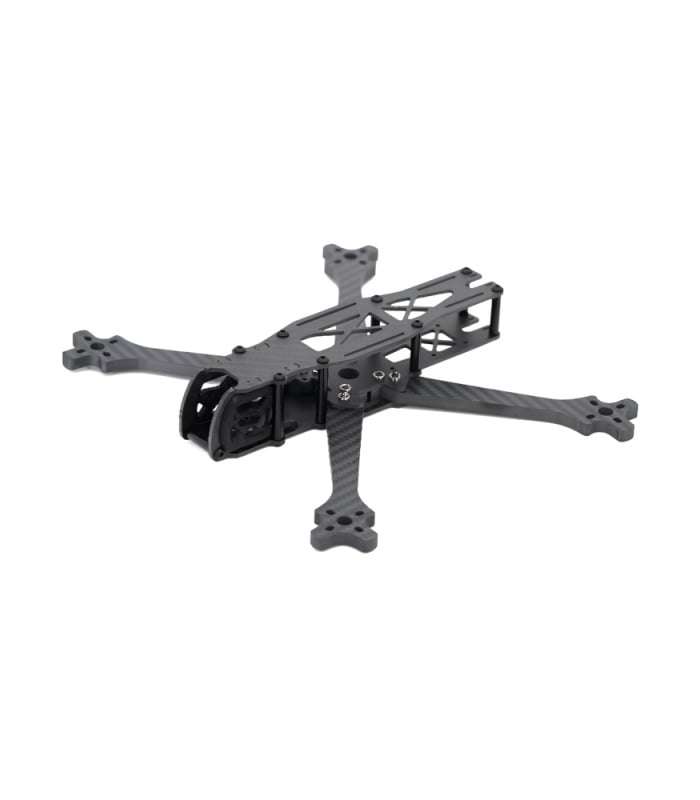

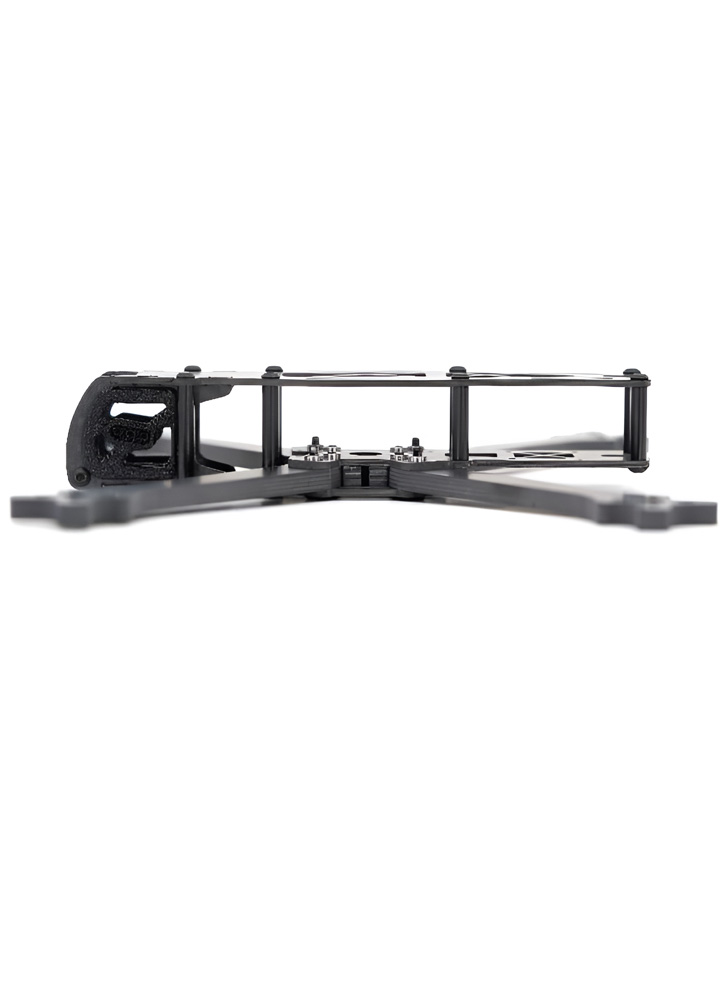

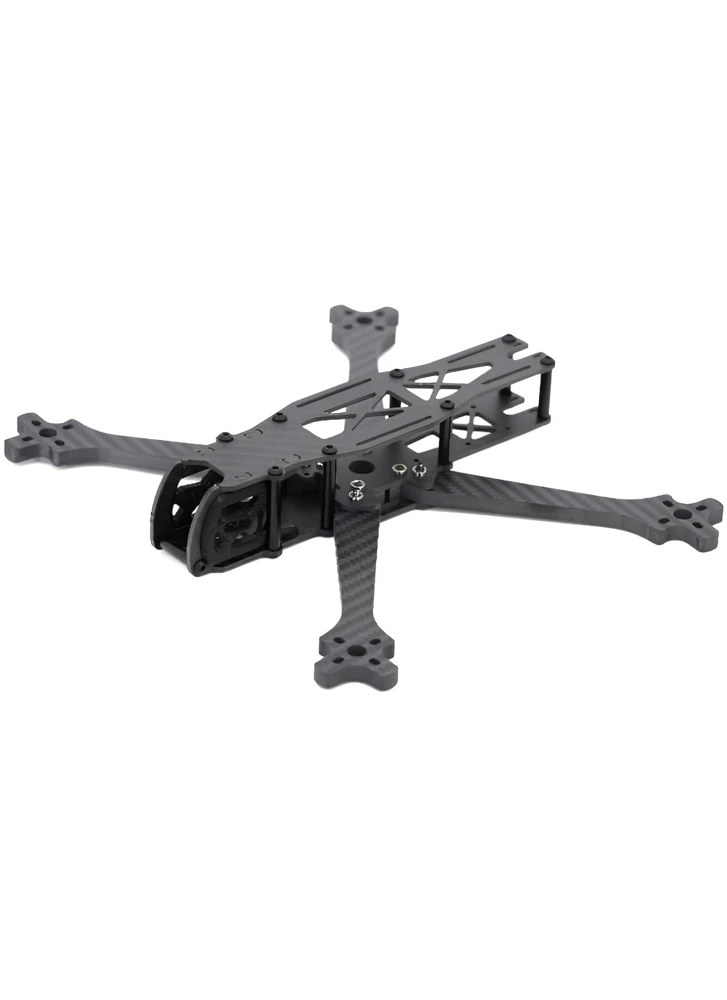

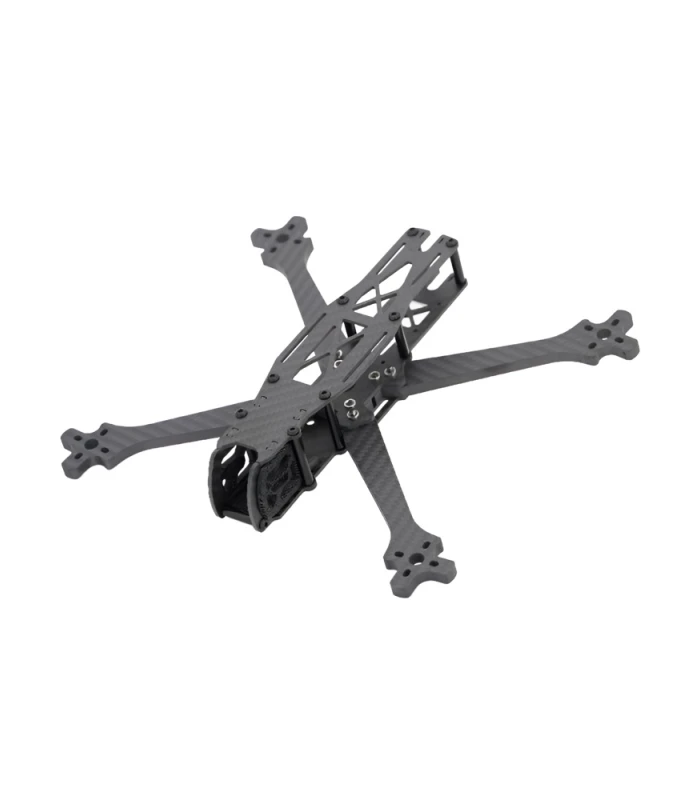

The SOURCE ONE is a wide-stance X configuration frame, popular for freestyle or free-range acrobatic flying. It is built to withstand harsh crashes and abuse. It fits and protects all the classic FPV components and is optimized for light weight. The SOURCE ONE is a perfect everyday workhorse for casual FPV flying and competitive freestyle.

ABOUT THE PROJECT

The SOURCE ONE project is a first of its kind collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers, and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them compete in an increasingly predatory marketplace.

The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation and wide availability of compatible parts and accessories, without violating other people’s intellectual property.

GET INVOLVED!

Project discussion: https://discordapp.com/invite/ZJGkHwF
Project files: https://github.com/tbs-trappy/source_one (Coming Soon)
Interactive Manual (work in progress)
3D Printed files on Thingiverse: https://www.thingiverse.com/tag:sourceone (Coming Soon)
3D Printed Parts (STL) also avaialble on github! (Coming Soon)

Specification

Wheelbase 5″: 226
Top Plate: 2mm
Middle Plate: 2mm
Bottom Plate: 2.5mm
Arms Spacer: 6mm

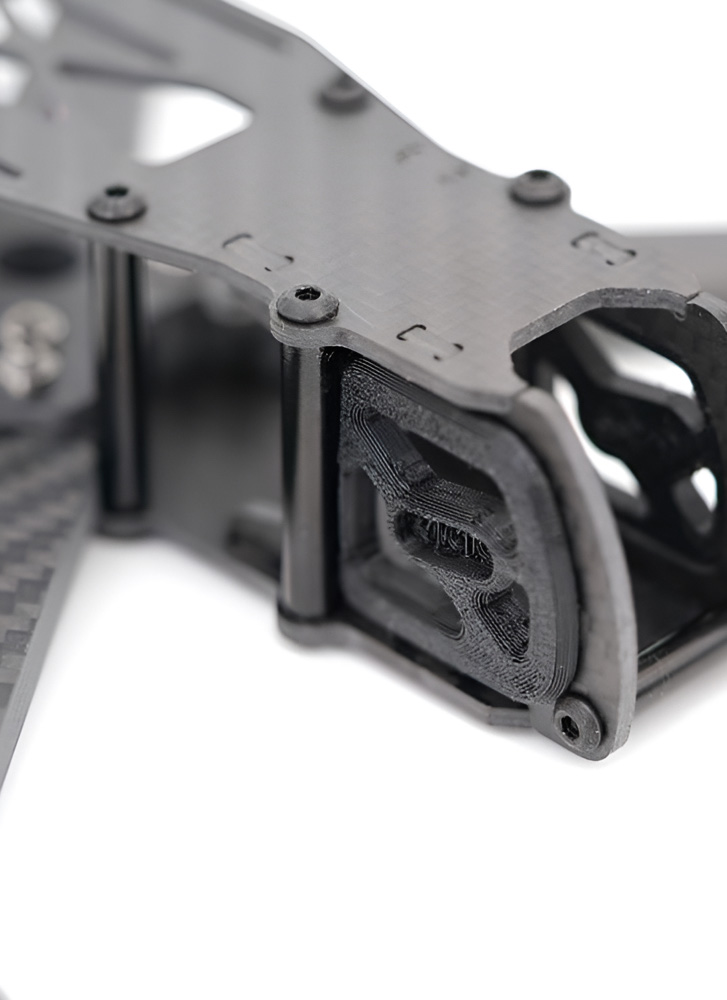

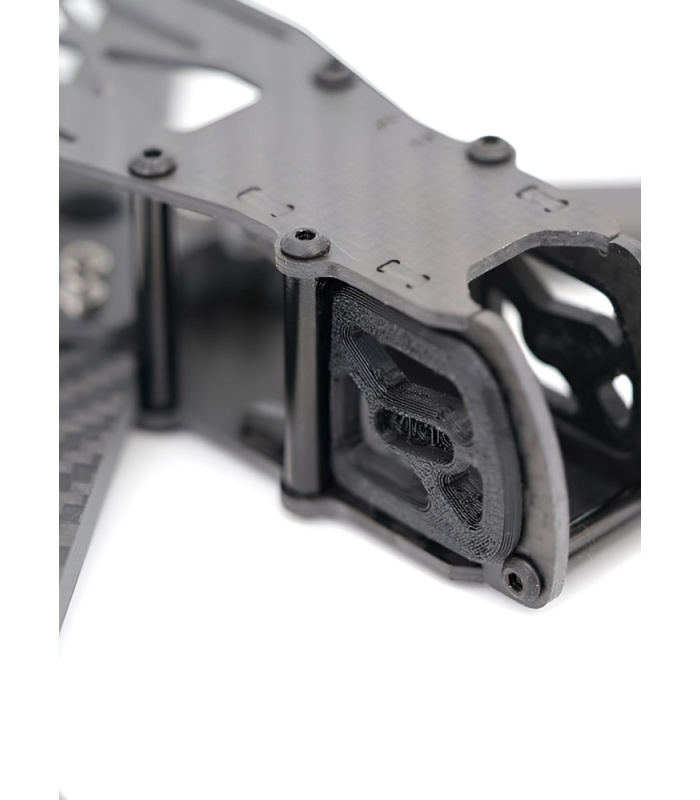

Camera plate: 2mm
Standoff height: 30 and 22mm
Arm thickness 5″: 6mm
Stack Mounting: 30.5 × 30.5mm & 20 x 20
Weight 5″: *123.5g

HARDWARE:

16X M3x10 allen screw
4X M3x12 allen screw
4X M3x14 allen screw
4X OD 5mm M3 30mm standoff
4X OD 5mm M3 22mm standoff
8x M3 press insert nut

PACKAGE CONTAINS:

1x Frame (Top, Middle and Bottom. Brace and 2x Camera plate, 4x Arms, 1x arms spacer)
1x Screw & Standoff set
