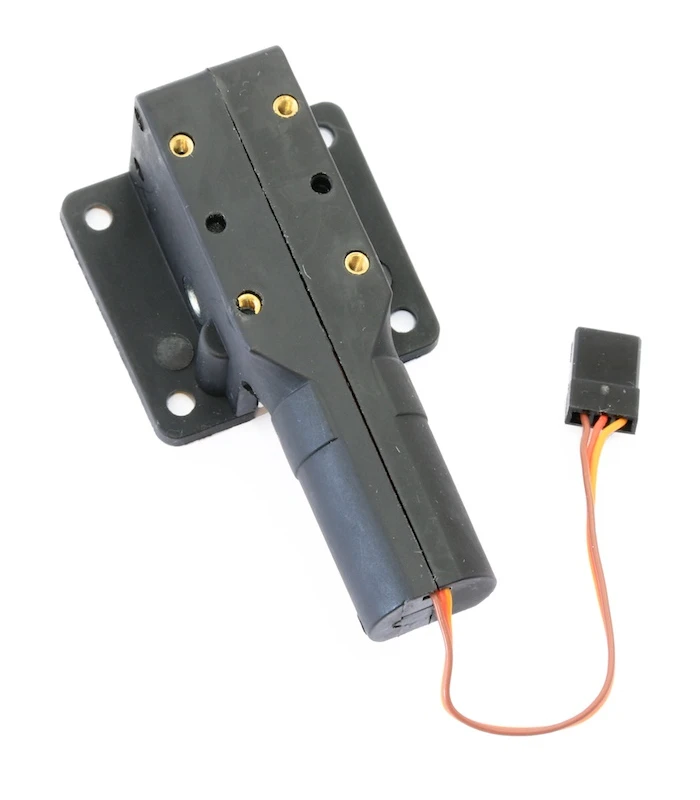

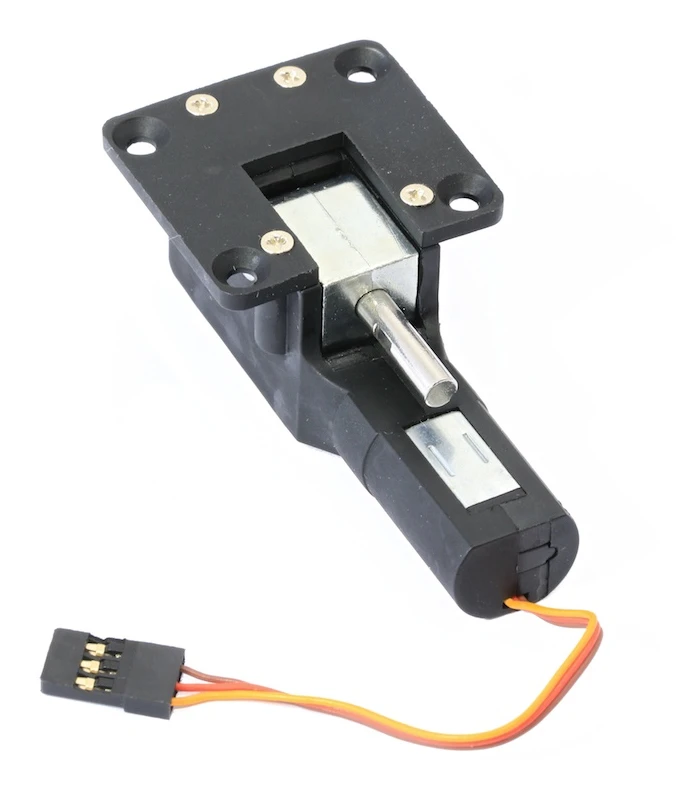

Servoless 90 Degree Retract with Metal Trunnion – 33mm x 35mm Mount

Name: Servoless 90 Degree Retract with Metal Trunnion - 33mm x 35mm Mount - Flying Tech
SKU: RC-RETRACT-3335
Price: 18.00 GBP
Availability: InStock

£18.00 Inc. VAT

This servoless retract could be used to create a custom landing gear.

In stock

Add to compare

0 People watching this product now!

SKU: RC-RETRACT-3335 Categories: Landing Gears, Parts, Planes & Wings, Plane Parts & Accessories, Retracts & Landing Gears Tags: Landing Gear, Retract

Description

90 Degree Servoless Retract with Metal Trunnion and Pre-installed 4mm Pin.

Features:

Reliable mechanism with metal gearing and a high torque motor
Robust mounting bracket
Built-in over-current and jamming protection with auto-cutoff
Pre-installed 4mm mounting pin (removable – secured with a grub screw)

A pair of servoless retracts can be used to make an inexpensive DIY retractable landing gear for a multirotor. There are many tutorials online but in essence in addition to the retracts you just need a Y cable to connect the retracts in parallel, a carbon fibre tube landing gear to modify and a spare RC channel controlled via a 2-position switch. A retractable landing gear not only looks super cool, its a huge advantage for photography and filming as the retracted gear will not block the view of the camera, making smooth shooting in all direction possible.

We also sell a similar retract with a 75 degree range of movement - here.

Specification

Working voltage: 4.5-5.5V
Movement: 90°
Mount Plate Dimensions: 33mm x 35mm
Mount Plate Hole Spacing: 24mm x 28mm (M3)
Top Screw Hole Spacing: 12mm x 20mm (M2)
Depth: 26mm
Length: 61mm
Pin: 4mm
Weight: 46g

Includes: 1x Servoless Retract
