Sequre M10-122/M10-182/M10-252Q GPS Glonass / Q5883 Compass Module
Price range: £16.90 through £21.99 Inc. VAT
Fast-lock M10 GNSS GPS modules with optional compass, delivering reliable positioning and navigation for FPV drones and fixed-wing builds.
Enhance your Betaflight quadcopter or INAV fixed-wing setup with the latest SEQURE M10 series GPS modules, delivering fast satellite lock, stable positioning, and integrated compass support for advanced navigation features like GPS Rescue, Return to Home, and position hold. Real-time GPS data can also be displayed in your OSD, including coordinates, home direction, and distance.

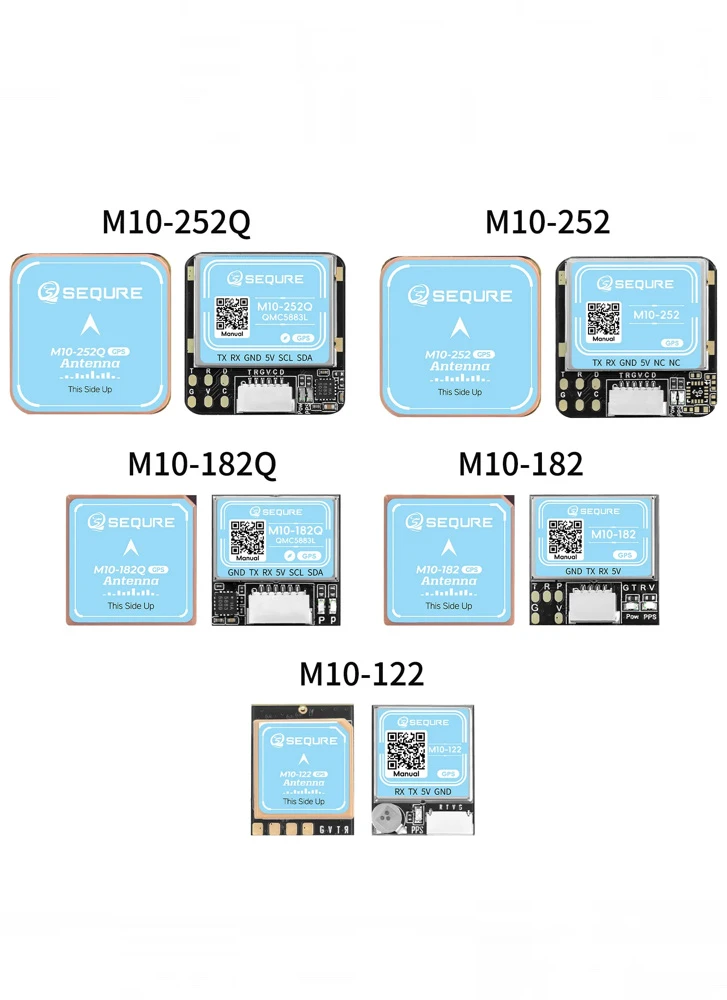

The updated M10 series (M10-122, M10-182Q, M10-252Q) builds on the previous generation with improved sensitivity and faster acquisition using the latest M10 GNSS platform. All models support multiple satellite systems including GPS, GLONASS, BeiDou, and Galileo for reliable performance in a wide range of environments.
Each model is named after its ceramic antenna size, with larger antennas providing faster and more stable signal acquisition. The “Q” variants include the compass, enabling heading and navigation functions.
- The M10-122 is compact and lightweight, ideal for smaller builds where space and weight are critical.
- The M10-182Q offers a balanced option for freestyle and mid-size long-range setups..
- The M10-252Q features a larger antenna for the best signal performance and includes an onboard QMC5883 (Q5883) compass, making it well suited to INAV and navigation-focused builds.
All modules support plug-in connections, with selected models (M10-182Q and M10-252Q) also offering solder pads for flexible installation. For best performance, mount the GPS module clear of interference sources such as VTX antennas and high-current wiring.
| Model | M10-252Q | M10-252 | M10-182Q | M10-182 | M10-122 |
| Chip | M10050 | M10050 | M10050 | M10050 | M10050 |
| Working System | GPS+BDS+GALILEO | GPS+BDS+GALILEO | GPS+BDS+GALILEO | GPS+BDS+GALILEO | GPS+BDS+GALILEO |
| Auxiliary System | SBAS, QZSS | SBAS, QZSS | SBAS, QZSS | SBAS, QZSS | SBAS, QZSS |
| Working Voltage | 3.3V-5V | 3.3V-5V | 3.3V-5V | 3.3V-5V | 3.3V-5V |

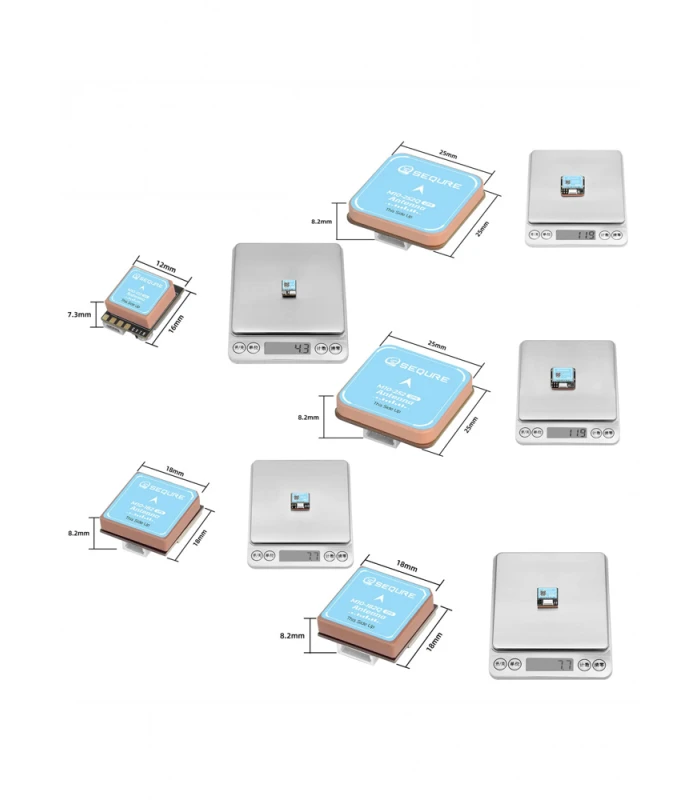

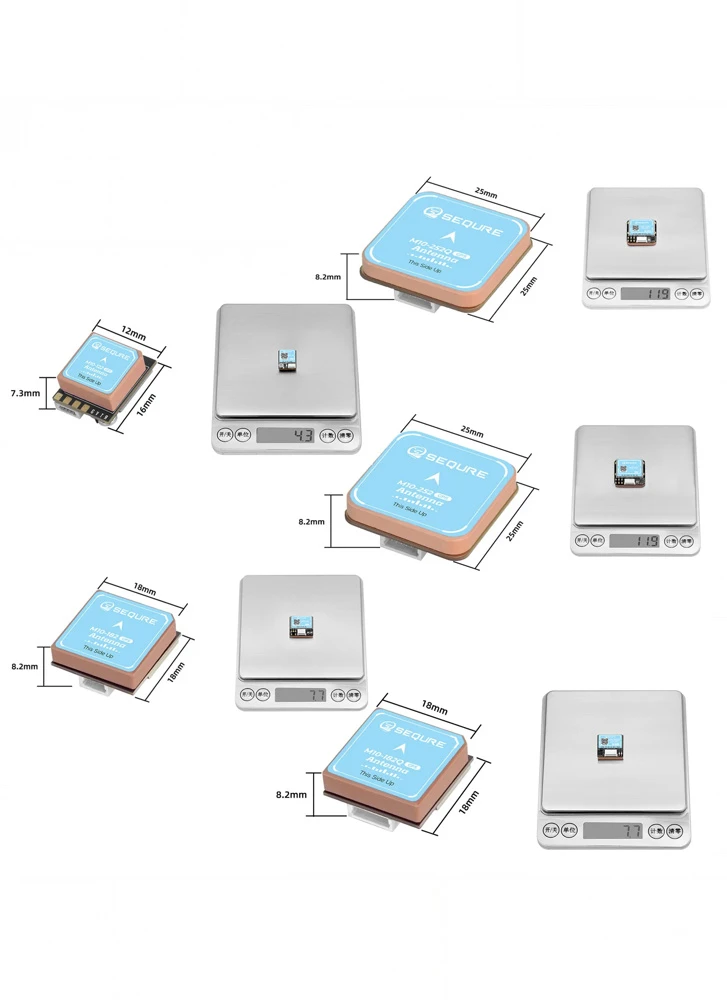

| Size | 25*25*8.2mm | 25*25*8.2mm | 18*18*8.2mm | 18*18*8.2mm | 16*12*7.3mm |
| Weight | 12g | 12g | 8g | 8g | 4.3g |
| Interface | PCB pad、 sh1.0 6pin straight socket |
PCB pad、 sh1.0 6pin straight socket |
sh1.0 6pin straight socket | PCB pad、 Sh1.0 4pin straight socket |
PCB pad、 Sh0.8 4pin straight socket |
| Antenna | Ceramic antenna | Ceramic antenna | Ceramic antenna | Ceramic antenna | Ceramic antenna |
| Receive Channel | 72 search channels | 72 search channels | 72 search channels | 72 search channels | 72 search channels |
| Baud Rate | 115200 | 115200 | 115200 | 115200 | 4800-921600， default 115200 |
| Output Protocol | NMEA、UBLOX dual agreement |
NMEA、UBLOX dual agreement |
NMEA、UBLOX dual agreement |
NMEA、UBLOX dual agreement |
NMEA、 UBLOX dual agreement |
| Compass | QMC5883L | / | QMC5883L | / | / |
| Output Frequency | 1Hz-10Hz, default 10Hz | 1Hz-10Hz, default 10Hz | 1Hz-10Hz, default 10Hz | 1Hz-10Hz, default 10Hz | 1Hz-18Hz, default 10Hz |
| Speed Accuracy | 0.05m/s | 0.05m/s | 0.05m/s | 0.05m/s | 0.05m/s |
| Horizontal Positioning Accuracy |
2D ACC1.5m（open air） | 2D ACC1.5m（open air） | 2D ACC1.5m（open air） | 2D ACC1.5m（open air） | 2D ACC1.5m（open air） |
| Receive Sensitivity | Trace-162dBm、 Capture-160dBm |
Trace-162dBm、 Capture-160dBm |
Trace-162dBm、 Capture-160dBm |
Trace-162dBm、 Capture-160dBm |
Trace-162dBm、 Capture-160dBm |
| Working Temperature | -40℃ ～ +85℃ | -40℃ ～ +85℃ | -40℃ ～ +85℃ | -40℃ ～ +85℃ | -40℃ ～ +85℃ |
| Storage Temperature | -40℃ ～ +105℃ | -40℃ ～ +105℃ | -40℃ ～ +105℃ | -40℃ ～ +105℃ | -40℃ ～ +105℃ |
Included:
- GPS module (select version)×1
- Cable×1
