Sequre 65W SQ-001 Mini Soldering Iron

£38.95 – £59.90 Inc. VAT

The Sequre SQ-001 soldering iron is very similar to the popular TS100, but at a more wallet friendly price.

Version

Colour

Clear

Frequently Bought Together

Soldering Iron Anti static Grounding Wire Clamp for TS100 TS80 / SQ-001 / S20 / S60 (1.5 Metre)

Anti-static grounding clip for digital soldering irons like the TS100 / SQ-001.

Add for £4.99 Inc. VAT

Add to compare

0 People watching this product now!

SKU: N/A Categories: Soldering Equipment, Accessories Tags: Soldering, Soldering Iron, Tool

Description

The Sequre SQ-001 soldering iron is very similar to the original TS100 smart iron with all the same features, but at a more wallet friendly price.

With its 65W power rating it heats up in seconds and can be used to solder heavy gauge cable with ease. It also boasts very accurate temperature control thanks to dual temperature sensors and a STM32 microcontroller. The temperature is displayed on a clear OLED screen and it can be adjusted quickly from 100 °C to 400 °C by pressing the buttons on the handle. Its built-in motion sensor also allows the iron to automatically change between stand-by mode and operating temperature by sensing when the iron is picked up – a useful feature that saves power and oxidation of the tip whilst you aren’t using it. Our favourite feature of this iron is its brilliant portability. It’s very compact and can be powered from a 3-6S LiPo battery meaning you can take it to a race day and make repairs without a needing a mains power supply.

Features

Built-in accelerometer with STM32 processor will put it to sleep when put down and wake upon picking it up.
Digital temperature readout
Temperature control is set on the handle for easy temperature adjustments
Anti-static insulated structure ensures safety during use
Supports custom programmable development (open source firmware)
Multiple soldering head types are available
Can be powered via a 3-6s LiPo battery for mobile use

Power Supply: To power up the iron you should use a 12 V to 24 V power supply or a 3-6S LiPo.

Different power supplies will get different results when it comes to heat up time:

12 V (17 W): 40 seconds
16 V (30 W): 20 seconds
19 V (40 W): 15 seconds
24 V (65 W): 11 seconds

We sell two product bundles:

Option 1: Included with the iron is the TS-BC2 tip, an XT60 cable and bakelite stand. Other tips are available for the iron here and it’s compatible with tips used by the popular TS100 Iron also.

Option 2: This is the full combo kit that includes the SQ-001 soldering iron and same accessories as option 1, along with 3 extra spare tips (TS-B2,TS-BC2,TS-D24,TS-I), some solder, desoldering wick and carry case.

Specification

Power – 65W
Temperature stability – ±2%
Soldering tip resistance to GND – <2Ω
Temperature Range – 100℃ – 400℃(max)
Max operation ambient temperature – 40°C
OLED screen
Micro USB port
DC5525 port
Compliant with EU certification: CE FCC

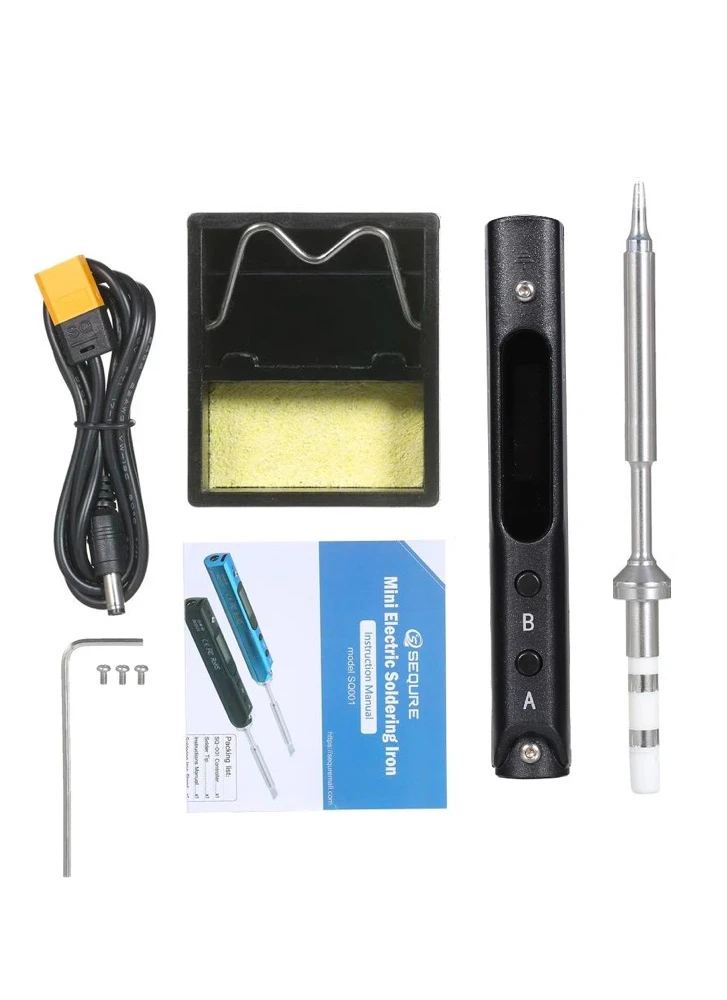

Included:

1 x SQ-001 Iron – Black
1 x Solder Tip (TS-BC2）
1 x Safety Instructions
1 x Hex Key
1 x DC5525 XT60 Power Cable
1 x Mini-bakelite Stand Holder
1 x User Manual
