Runcam Link Phoenix HD FPV Camera Kit for DJI HD FPV

£134.99 Inc. VAT

This Air Unit Kit combines RunCam’s Phoenix HD Camera with the Link VTX for DJI FPV.

Only 2 left in stock

0 People watching this product now!
SKU: HD-FPV-LINKPHO Categories: , , , Tags: , , , ,
Description

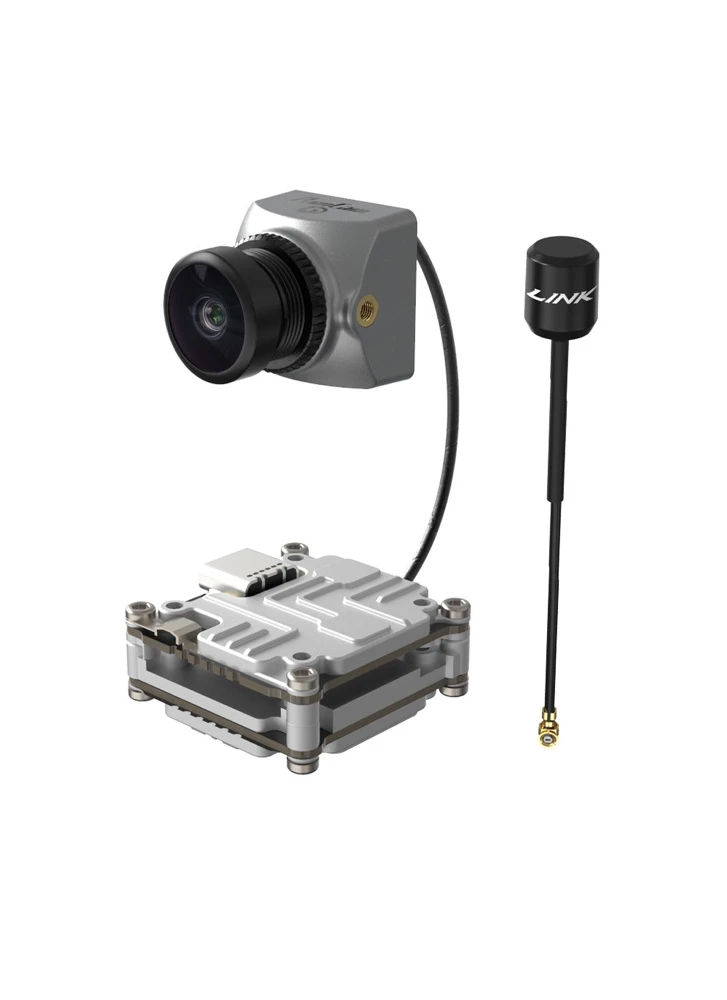

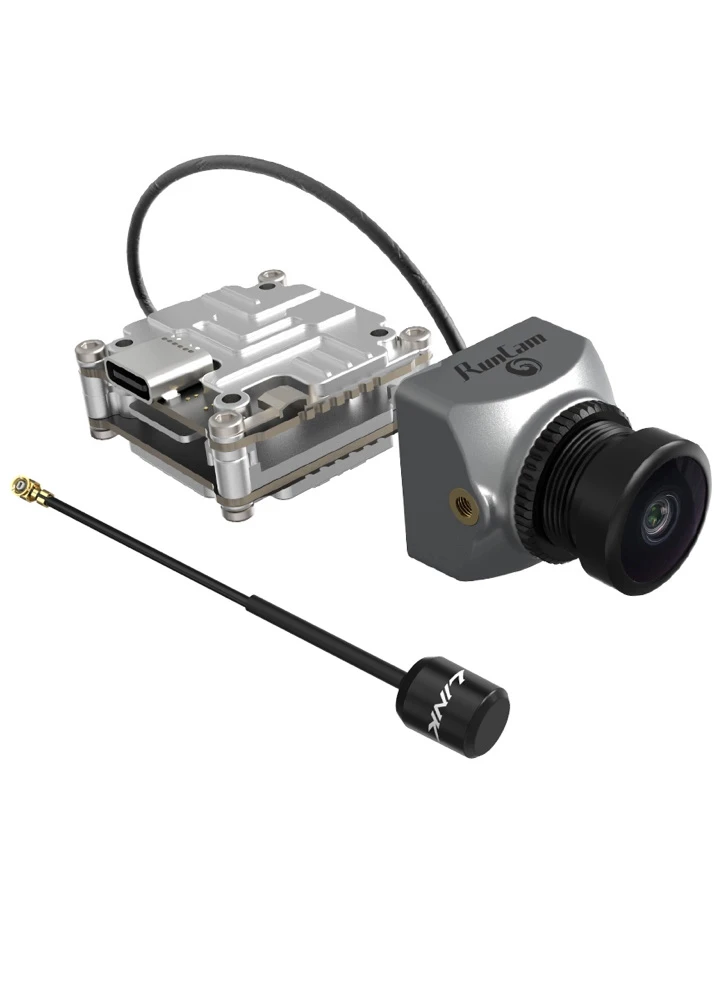

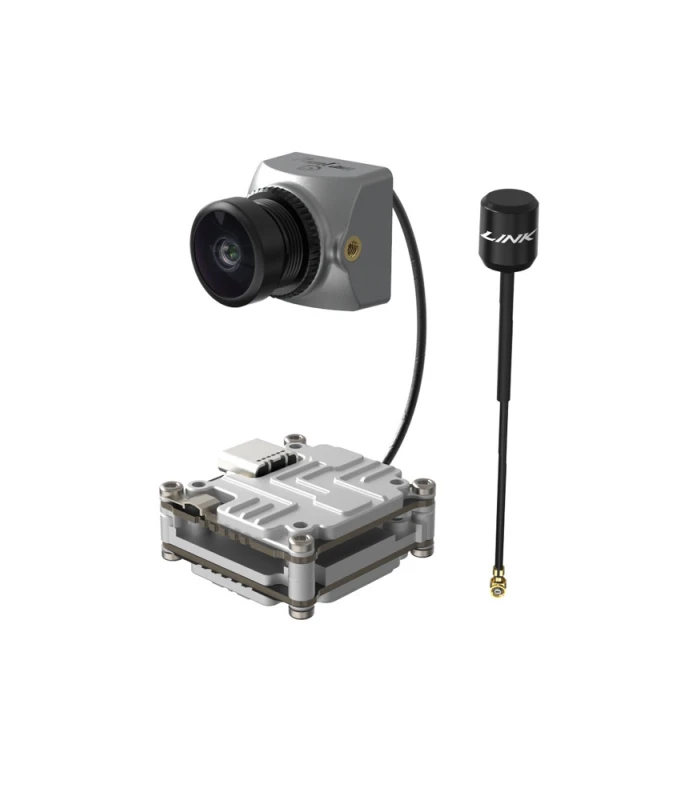

The new HD system from Runcam combines a digital HD transceiver, the Link Digital Air Unit, and theย RunCam Phoenix HD Camera. The RunCam Link provides you a 1280×720 60fps video feed to see clearly and boasts great low-light performance thanks to its 1/2″ high-sensitivity sensor.

Aboutย Runcam Link Digital FPV Air Unit

The Runcam Link Digital FPV Air Unit is an advanced video transmission module that supports a 5.8 GHz digital video signal and 1280 x 720 60fps image transmission, with a transmission range of up to 4 km and a minimum end-to-end latency within 32 ms*. The air unit can be mounted on a racing drone and used with DJI FPV Goggles or a remote controller to transmit video, control signals, and flight controller information wirelessly.

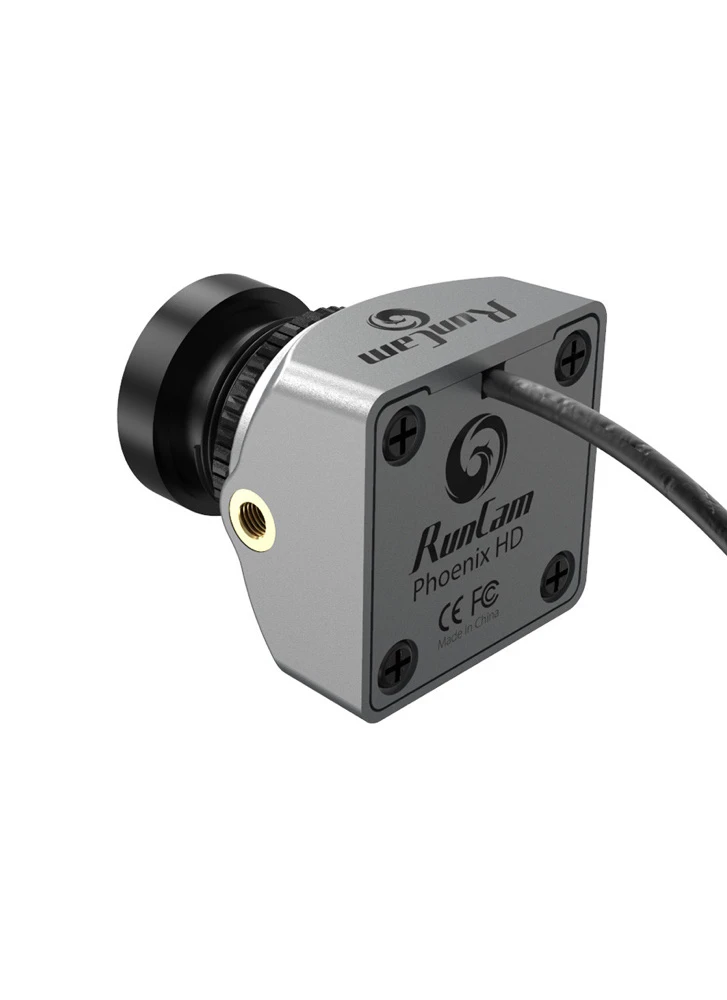

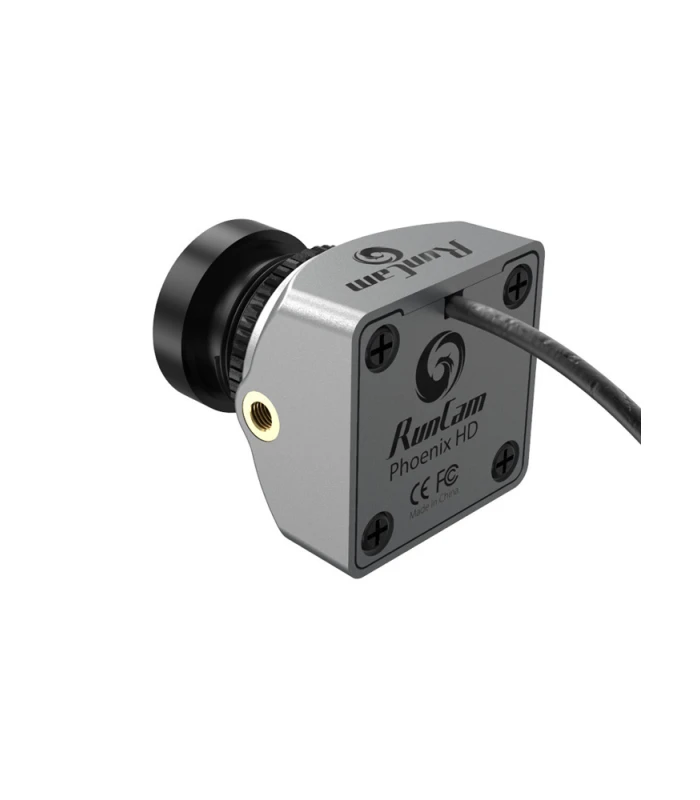

About RunCam Phoenix HD Camera

The RunCamย Phoenix HD Camera uses an 1/2 inch sensor and has extremely good night sensitivity courtesy of its 10650 mV/Lux sensor. The Phoenix HD camera outputs at 1280×720 / 60 FPSย and has latency as low as 32ms.ย The Camera is micro size (19mm x 19mm).

RunCam Link Phoenix HD Kit ARunCam Link Phoenix HD Kit B

Specification

RunCam LINK Phoenix HD Kit

  • Weight:ย Air Unit (camera included): 27 g
  • Weight: Air Unit (alone): 19.5
  • Dimensions :
    • Air Unit: 29ร—29ร—13 mm
    • Camera:L19mm*W19mm*H23.5mm
    • Coaxial Cable: 120 mm
  • Operating Frequency:ย 5.725-5.850 GHz
  • Transmitter Power (EIRP) :
    • FCC/SRRC: <30 dBm;
    • CE: <14 dBm
  • Min. Latency (end-to-end):ย 1280 x 720 60fps: 32 ms
  • Max. Transmission Distance:ย FCC/SRRC: 4 km; CE: 0.7 km;
  • I/O Interface:ย Type-C, IPEX, 3-in-1 port,
  • Supported Flight Control System:ย BetaFlight
  • Operating Temperature Range:ย 0ยฐ to 40ยฐ C (32ยฐ to 104ยฐ F)
  • Power:ย 7.4-26.4V@ 4-9W

RunCam Phoenix HD Camera

  • Image Sensor:ย 1/2โ€
  • Resolution:ย 1280*720@60fps
  • LENS:ย FOV D:157ยฐ H:133ยฐ V:72ยฐ
  • Shutter:ย Rolling Shutter
  • Coaxial Cable:ย 120 mm
  • Dimensions:ย L19mm*W19mm*H23.5mm
  • Weight:ย 7.5g

Included:

  • RunCamย Phoenix HD Camera
  • DJI Link Air Unit
  • Antenna + Cable
Downloads
Manual (pdf, 809KB)
