Name: RadioMaster ExpressLRS USB UART Flasher V2 - Flying Tech
Brand: RadioMaster
SKU: ELRS-RM-USBTLV2
Price: 12.00 GBP
Availability: InStock
Rating: 5.00 (1 reviews)

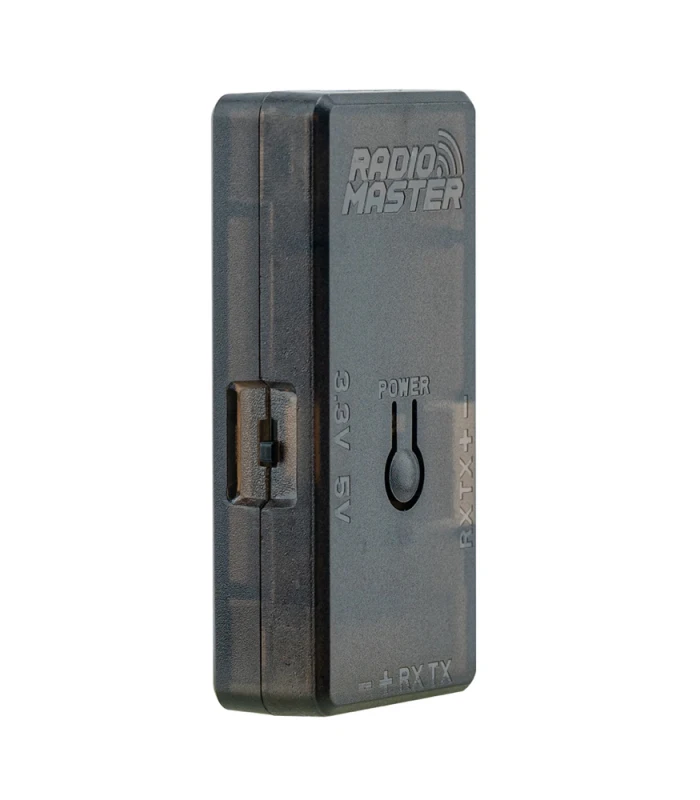

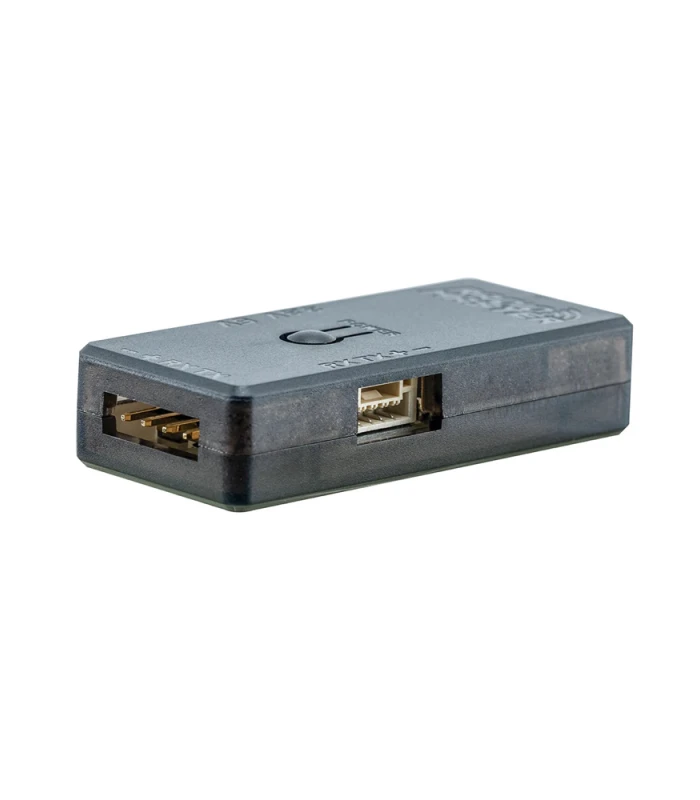

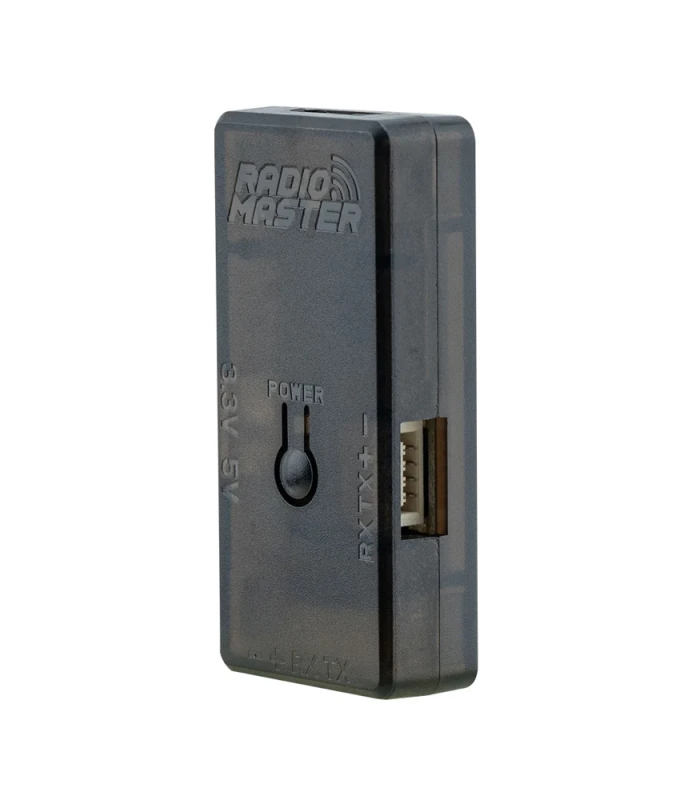

RadioMaster ExpressLRS USB UART Flasher V2

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

£12.00 Inc. VAT

This USB dongle provides a dependable solution for flashing or recovering receivers with a bad flash.

In stock

0 People watching this product now!

Description

Upgrade your ELRS firmware with ease using our simple and effective tool. The new V2 version features a USB-C interface, enabling you to connect the tool to your PC via cable. The new power button allows effortless power cycling with a single press, eliminating the need to struggle with cables while holding down buttons. Our streamlined design makes preparing your receiver for a firmware update faster, easier, and more efficient than ever!

When it comes to updating your ELRS receivers, you’re faced with two options: Wi-Fi or Serial Port. While Wi-Fi upgrading may seem convenient, it can be unreliable due to network instability. This can result in a bad flash, requiring recovery with a UART tool. That’s where the V2 ExpressLRS USB UART Flasher comes in, offering a reliable and easy solution for your firmware upgrade needs.

With the RadioMaster V2 ExpressLRS USB UART Flasher, your wireless connection won’t be a concern. This dongle is specifically designed for ELRS receiver serial port upgrades, providing a reliable and easy solution for flashing or recovering receivers with a bad flash.

Our USB flashing tool is a versatile solution, not limited to ELRS serial port upgrades. It comes with a range of connection options, allowing easy connection to our entire range of receivers. By switching between 3.3v and 5v, it can also be used for other devices requiring a UART interface. This versatility makes it a valuable addition to your toolkit, catering to all your firmware upgrade needs.

Features

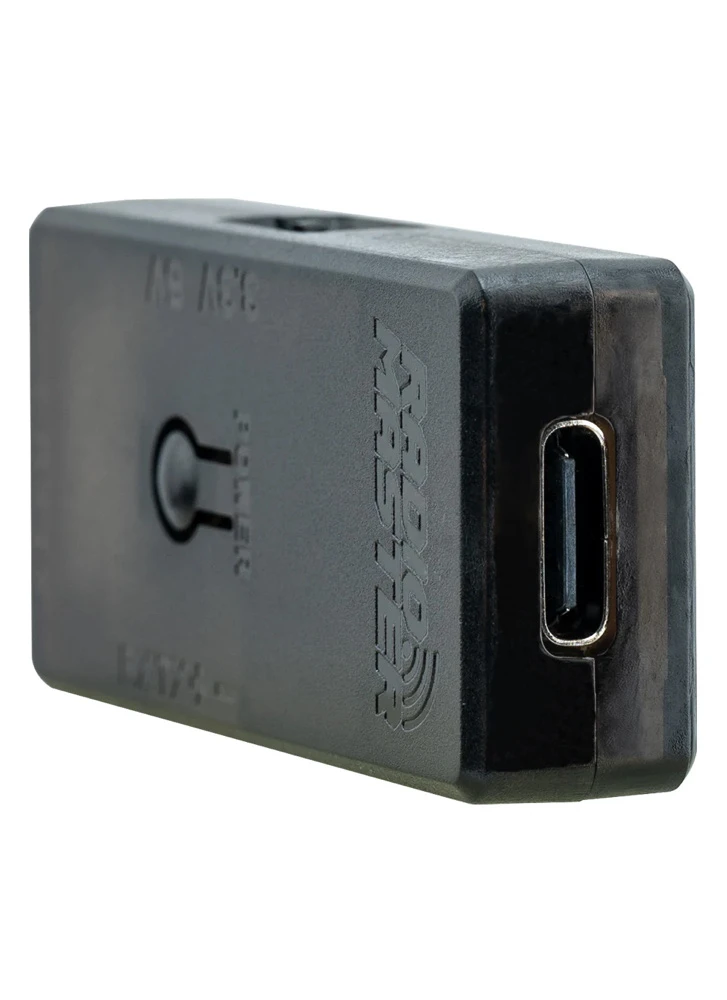

Upgraded USB-C interface
Power button for easy ON/OFF power cycling
Reverse polarity protection
Over-voltage protection
Switchable power supply between 3.3V and 5V
Standard 2.54mm pins
RM-CRSF JST-GH port for simple plug-n-play connection with RadioMaster ER series receivers
Pin sockets included
Dupont cables for convenient testing

Compatible Receivers

Using 2.54mm pin output and spring-loaded pin adapter or Test hook adapters:

All RP SERIES ELRS RECEIVERS

Using regular 2.54mm pin output (Servo plugs):

Please note: The second channel is repurposed as a serial TX, connected to the RX port of the serial port tool. The third channel is repurposed as RX, connected to the TX port of the serial port tool.

Firmware upgraded by RM-CRSF interface output:

Please note: The above receivers can be connected to the receiver’s CRSF port by using a 4-wire CRSF cable.

How to upgrade firmware

Connect the Serial Port Cable with the receiver
Connect to the computer with a USB extension cable, press the receiver’s BOOT button, then press the POWER button on the serial tool
Follow the ELRS upgrade tool’s instructions to complete the upgrade

Download

Specification

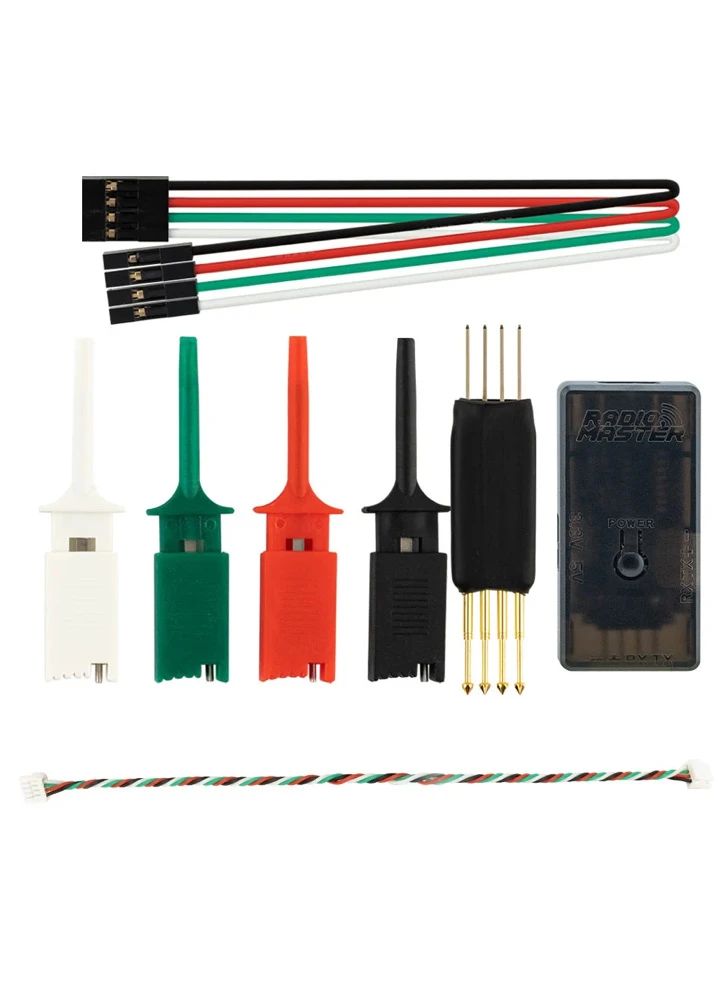

Included

1 x RadioMaster ExpressLRS USB UART Flasher V2
1 x Pogo Probe
1x CRSF Wire
1 x 2.54mm Serial Port Cable – Type B
1 x Serial Port Test Hook – White
1 x Serial Port Test Hook – Green
1 x Serial Port Test Hook – Red
1 x Serial Port Test Hook – Black
1 x User Card
