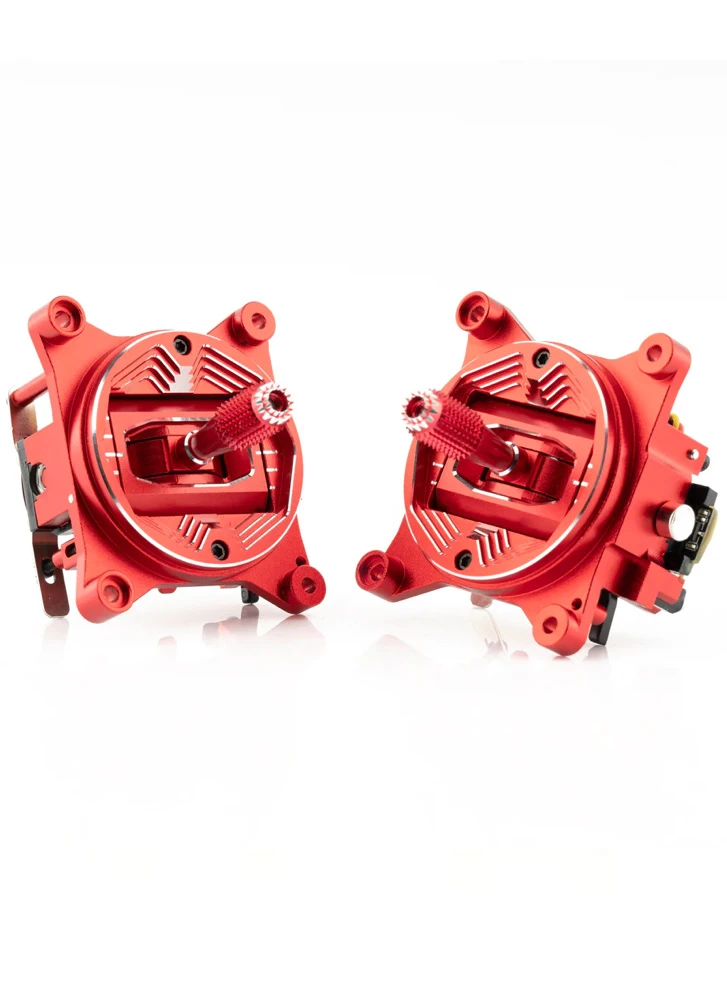

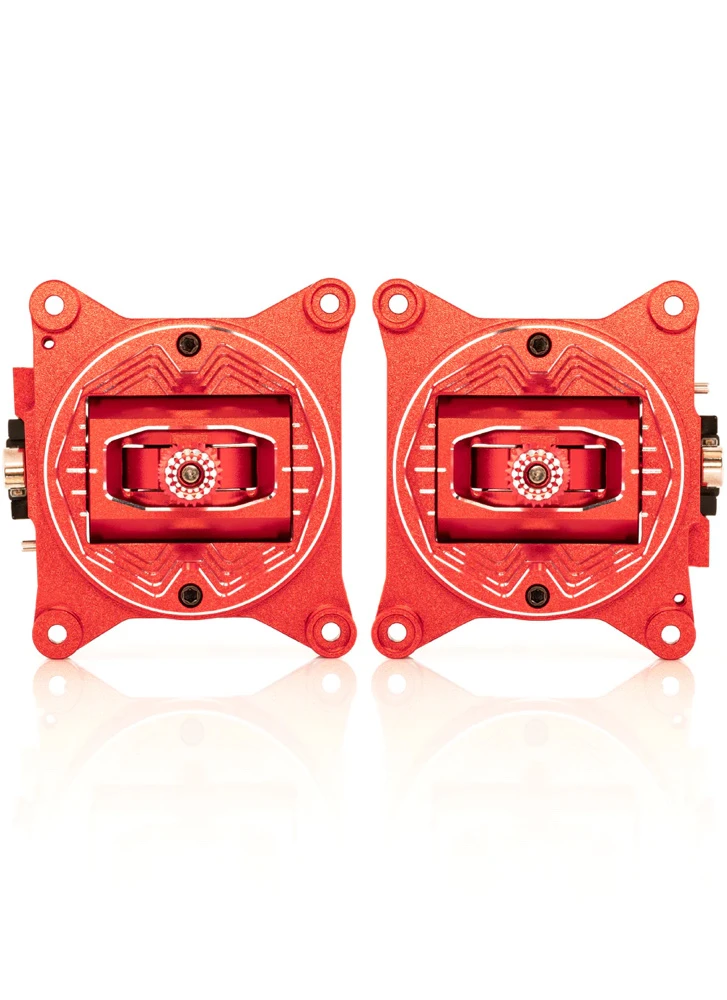

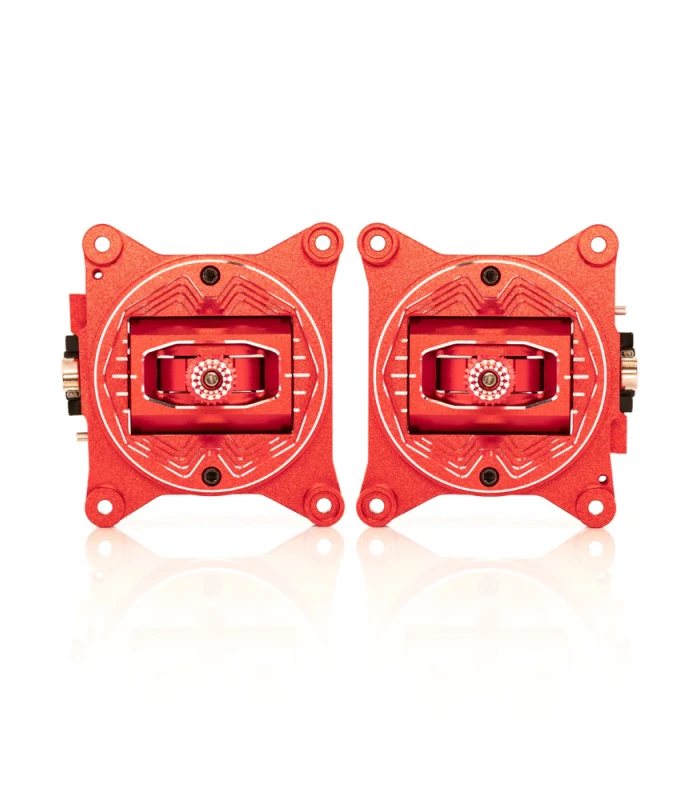

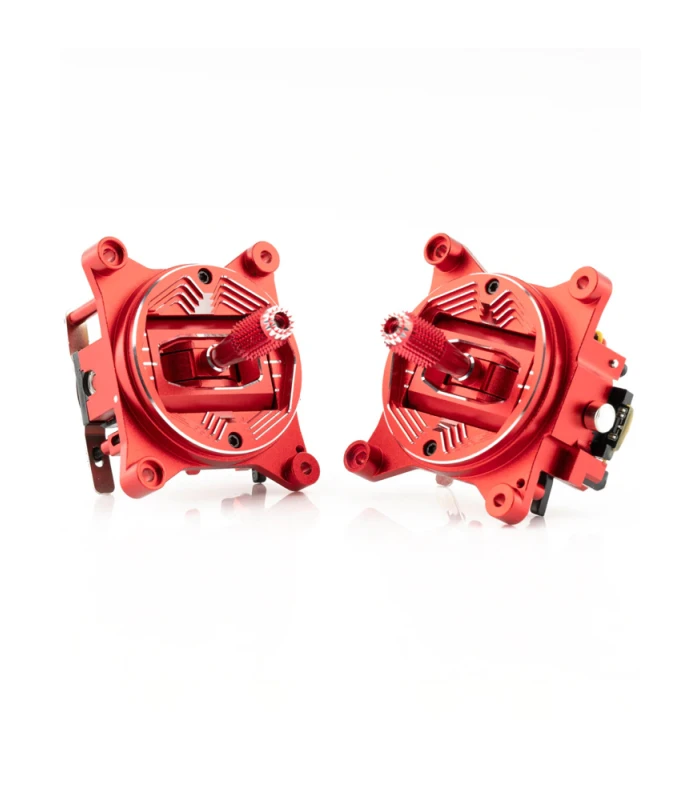

Radiomaster AG01 Mini CNC Metal Hall Gimbal Set Colours

£109.90 Inc. VAT

Add quality and colour to your Zorro / TX12 radio with the AG01 Mini upgrade gimbal set.

Colour

Clear

Add to compare

0 People watching this product now!

SKU: N/A Categories: Radio Upgrades and Customisation, Radio Control, Radio Spares, Radiomaster, TX12 Series, Zorro Series, RC Accessories Tags: Gimbal, Hall Sensor, Upgrade, Upgrade Part

Description

Bring some extra vitality to your flight with the AG01 MINI CNC Hall Gimbals Sets in new colours! With the new color version, you’ll stand out in style while enjoying the power and precision of the AG01 Mini Gimbals.

Get ready for your TX12 MKII & Zorro Radio with the new colors AG01 Mini Gimbal!

Features

Made with CNC processed aviation grade aluminum.
Sticky360 Mini Gimbal Sticks as standard.
Non contact hall sensors for accurate control inputs and precise centering.
Quad precision bearings for unparalleled stick feel.
Adjustable vertical travel angle (Min. 38°, Max. 54°).
Custom designed for RadioMaster Zorro & TX12.

Installation for Zorro & TX12

The AG01 Mini gimbals are shipped as self-centering by default and compatible with the Zorro and TX12 Radios.

FOR ZORRO

The Zorro radio is configured as Mode 1 or Mode 2 by the screws mounted in the rear case of the radio. Both gimbals should be installed in self-centering configuration (as default out of the box) in the Zorro radio. Once the radio is re-assembled the screws in the rear case of the Zorro will set the throttle gimbal.

FOR TX12

One gimbal must be set as throttle and one as self-centering before installation in the radio.
1. Use the included screw (see parts bag) to hold down the centering lever and set the gimbal as a throttle gimbal.
2. Adjust the throttle tension bar until the desired tension is achieved.

Specification

Colors: Red, Gold, Blue
Sensor type: Hall Sensor
Working voltage: DC 3.3V
Linearity: Real-time (No delay)
Adjustable vertical travel range: 38°—54°
Self-centering adjustment: Yes
Easy mode adjustment
Adjustable tension: Yes
Quad bearing: Yes
Temperature range: -20°C-85°C
Size: 49*42*48mm
Weight: 42g(±0.3g)
