Pixhawk LCD Display Screen

Name: Pixhawk LCD Display Screen - Flying Tech
SKU: FC-PX-LCDOSD
Price: 12.50 GBP
Availability: InStock

£12.50 Inc. VAT

A mini display for the Pixhawk FC – it can be used to show status info – flight mode, battery voltage, GPS lock & error codes.

In stock

Add to compare

0 People watching this product now!

SKU: FC-PX-LCDOSD Categories: Pixhawk & APM Accessories, Electronics, Flight Controller Accessories, On Screen Display (OSD) Modules Tags: I2C, OSD, Pixhawk, Screen

Description

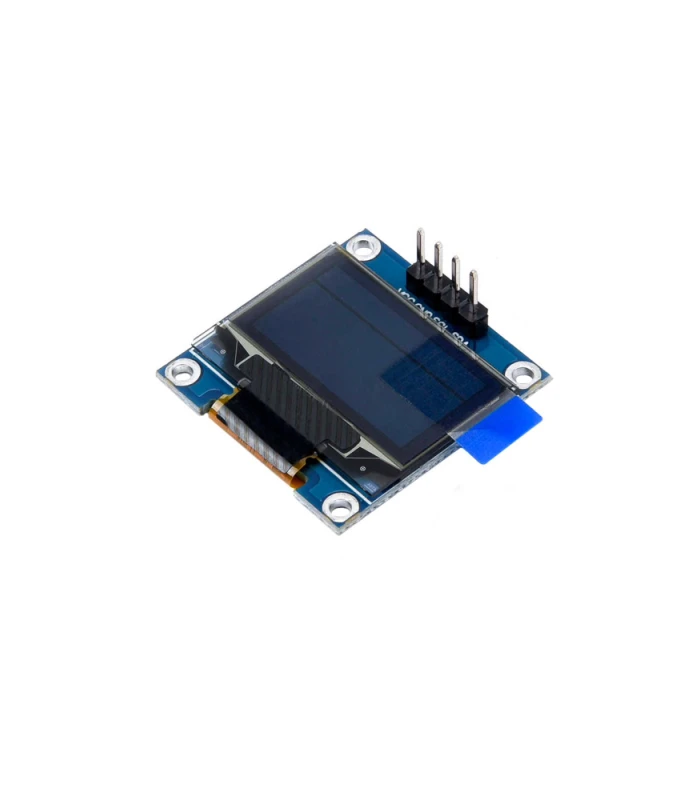

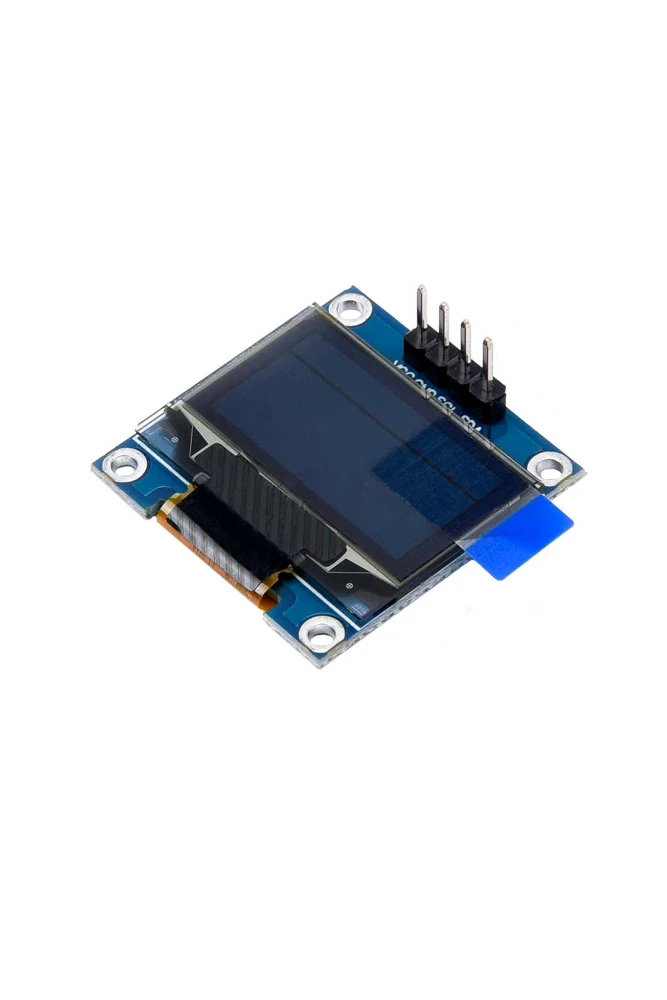

Forget needing to memorise LED status sequences and buzzer tones with this handy OLED display for the Pixhawk FC. It’s a small OLED display that can be used to display key information such as the selected flight mode, battery voltage, GPS info and error codes. It will make any setup immediately more user friendly.

How to install:

Support for the onboard display is included in Copter-3.5 (and higher).

Connect the display to the autopilot’s I2C port as shown in the image above. If the I2C port is full, you can use an I2C Splitter here.

Using Mission Planner or equivalent ground station go to the parameter list and set NTF_DISPLAY_TYPE to 1

The following information will be displayed on the screen:

Arming failure messages
Flight mode
Battery voltage
GPS Lock and satellite count
Pre-arm passed/failed
EKF status

More Info Wiki

Specification

Included:

1x OSD OLED display
4P I2C interface Conenction Wire
