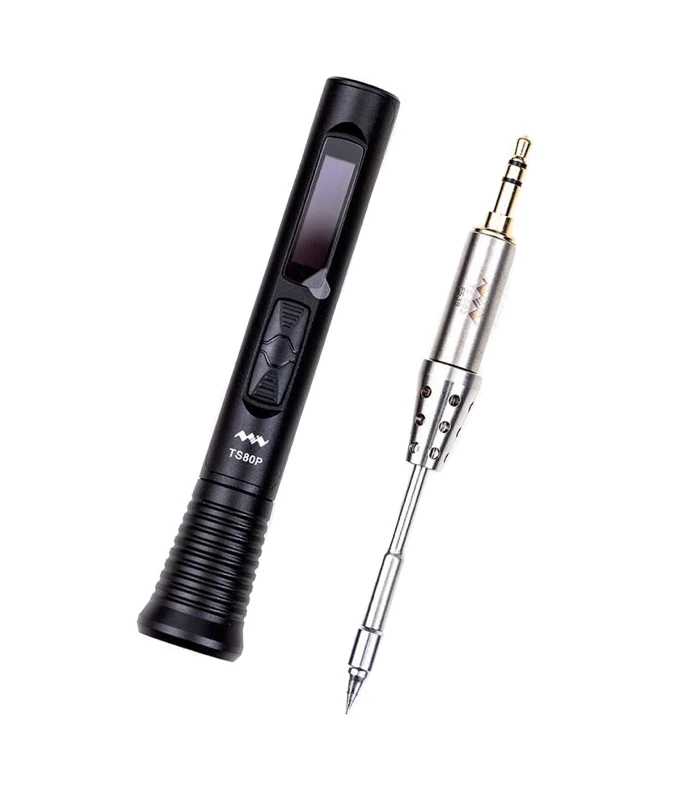

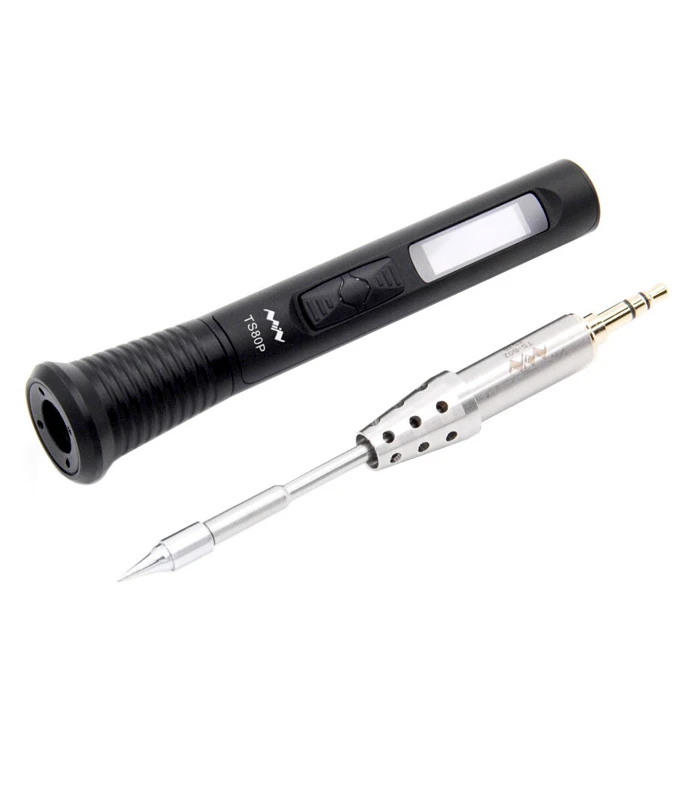

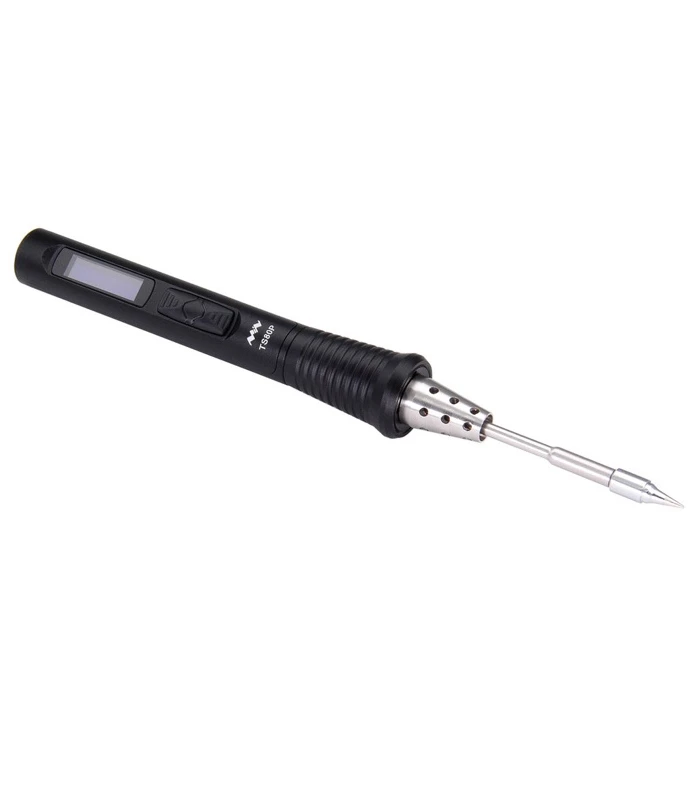

The TS80P is the upgraded version of TS80 Smart Soldering Iron. The key improvement is the increased power output; it’sย up from 18W to 30W. This extra power makes it more capable of soldering bigger power plugs and higher gauge cable. Also now itย only takes 11 seconds to reachย 350ยฐC, compared to the 18 seconds from the TS80. As before, the soldering iron is powered by a USB Type-C input, which can be provided by charging plugs, power banks and mobile power supplies that comply with PD2.0 (12V 2.5A)/QC3.0 (9V 2A) standard.
The other main change is the brand newย tip fastener, which provides a betterย holding experience and an easy push-to-loosen action for changing the tips quickly and safely.
Despite the relatively low power of the TS80P, 30W vs. 65W for the TS100, theย soldering iron is very capable and performs for most applications just as well as the TS100. Through pure cooper heat conduction and an internal thermal ceramic heating core, it has excellent heat transfer to its tip soย a little heat goes a long way. We’ve used it to solder racing drone PDBs, XT60s and 14AWG wire without issue; just make sure you have enough solder on the tip to transfer the heat.
The TS80P iron has a great feel of quality about it, the body of the iron is made of anodised aluminium rather than plastic.ย It also benefits from an ergonomic grip that helps with soldering precision.
As with the TS80 iron, the TS80P has a STM32 microcontroller andย utilises open source firmware, which can be upgraded and customised to suit your preferences by connecting it with a PC; you can do all sorts of clever things like creatingย your own temperatures curves. Other features that have remained the same are the OLED display, which lets you control the iron and see things like temperature status. Its built-in motion sensor also allows the iron to quickly change between stand-by mode and operating temperature, and also automatic power-off mode.
This is the TS80P More Package so it comes with extras including a super soft silicone USB-C wire, a ground wire and a Quickcharge 3.0 USBย power plug adapter (note it has a EU plug fitting). We sell a carry case for the TS80P separatelyย here.
FEATURES:
OLED screen, full body CNC aluminiumย alloy casing
Digital temperature readout
USB Type-C 0/QC3.0 standard input
Power increased from 18W to 30W max
Only 8s to heat from room temperature to 300โ
Brand new easy-push tip fastener, one push to loosen tips
Builtin smart chip for Port Protection
Share same tips with TS80
Built-in accelerometer with STM32 processor will put it to sleep when put down and wake upon picking it up
Supports custom programmable development (open source firmware)
Please note that TS100 Tips are not compatible with the TS80.
Compatible USB-C 45W Mainsย Power Supply with UK Plugย – HERE
Specification
Temperature Range: 100โ- 400โ(Max)
Input: 9V/2A (QC 3.0)/ 12V 2.5A๏ผPD2.0๏ผ
Power: 30W Max
Fastest heating time (from room temperature to 300โ): 8s
Data/Power Interface: USB Type-C
Temperature stability: ยฑ3%
Display: OLED
Length: controller: 96mm; tip: 100mm(60+40mm)
Weight: 38g (power adaptor not included); Tip: 14g (B02 tip)
Certifications: CE, FCC

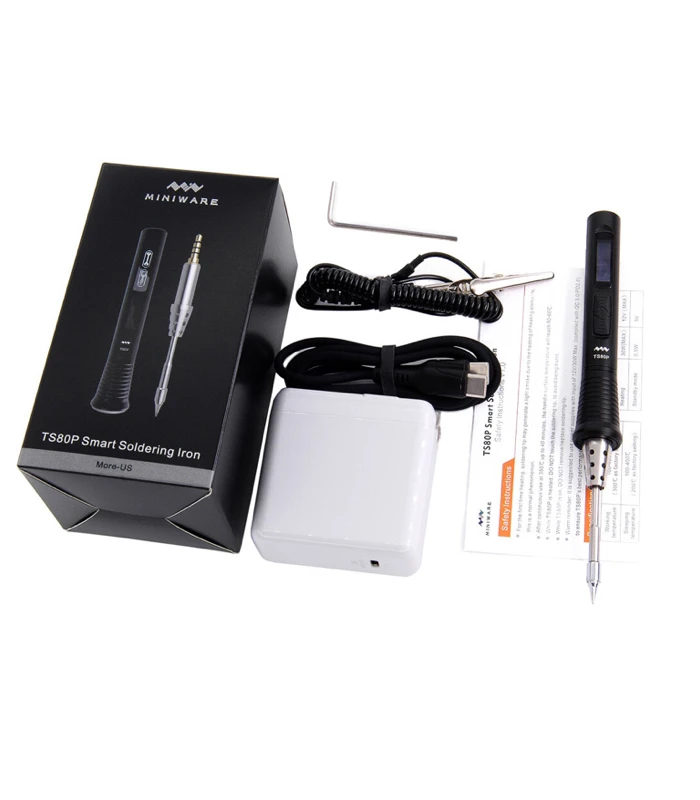

Included:
1 x Mini TS80P Soldering Iron
1 x TS-B02 Soldering Iron Tip
1 x Type-C Cable
1 x Power Plug to USB Adapter (EUย Plug)
1 x Safety Ground Wire
1 x English User Manual
1 xย Allen Key
