Mini Digital Video Recorder DVR for FPV Racing Drones
£24.90 Inc. VAT
A compact, self powered DVR unit with AV input and output.
In stock|Next shipping: 18/05/2026
The perfect accessory for your FPV system. This Mini DVR (Digital Video Recorder) allows you to easily record everything you see and hear from your FPV model’s camera directly to an SD card.
This device features and A/V input and output allowing you to connect it in-line with your FPV system. The input source will be recorded directly to the SD card (not included), while the A/V output will carry the signal on to your TV, monitor or FPV goggles. Thanks to the integrated playback feature you can preview your flights right on the flight field. This is particularly helpful if you’ve lost your model, as playing back the DVR footage might help you to locate it.
The DVR can be used standalone, as it doesn’t require an external power supply. The built-in 400mAh battery offers a runtime of around 2 hours and can be conveniently charged using any micro USB cable.
Please note the device has a 20min max recording time for each clip.
Features:
- Compact design, lightweight
- A/V input and output
- High resolution recording (1280×720)
- Support Playback and AV signal output (Built-in Video encoder)
- Support Up to 32GB TF card (class 10 recommend)
- Aluminium metal shell
- Low power consumption, working current 200mA
- Built-in 3.7V/400mAh Li-ion polymer Battery, recharge via USB
- 4 level battery power indicator
- System startup time: 3 seconds
- Video input format: NTSC/PAL
- Video compression format: MJPEG
- Record file resolution: VGA (640 * 480) / D1 (720 * 480) / HD (1280 * 720) selectable
- Record file format: AVI
- Recording sound: ON/OFF selectable
- Cycle recording time: 10min/20min/30min
- Frame rate: 30 Frames
- Memory card: TF card, support up to 32GB (C10 recommended)
- Menu language: 11 language choices
- Optical frequency: 50Hz/60Hz can be selected
- Video playback: CVBS output (connected to the monitor)
- Audio input interface: 3.5mm AV jack
- Audio output interface: 3.5mm AV jack
- Charging interface: micro USB interface
- Charging voltage: 5V DC
- Charging current: 500mA Max
- Battery (non-removable): Built-in 3.7V/400 mAh lithium ion polymer battery
- Battery life: Each working load is 1.5 to 2 hours of working time.
- Operating temperature: -10~60°C
- Operating humidity: 85% RH
- Dimension: 53x33x9mm
- Weight: 24.5g

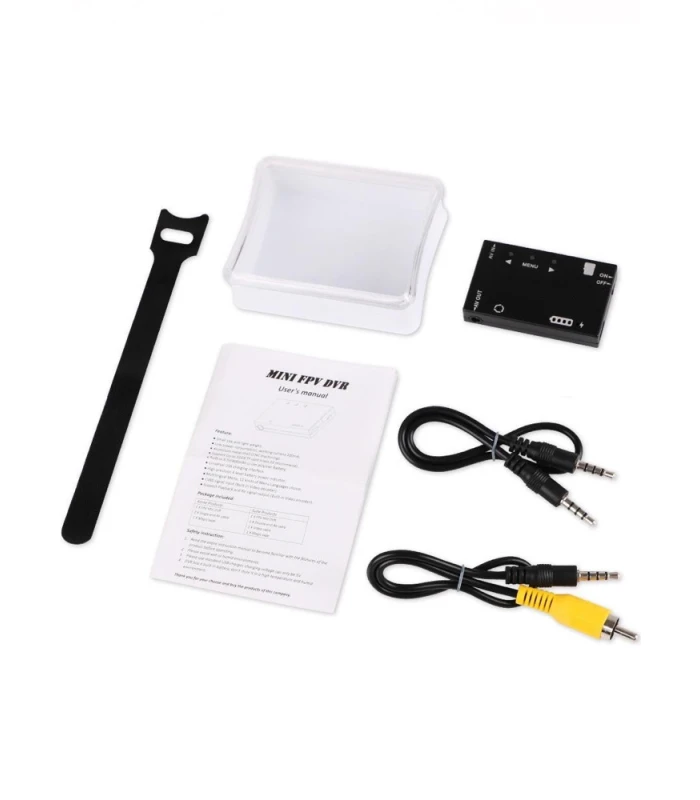

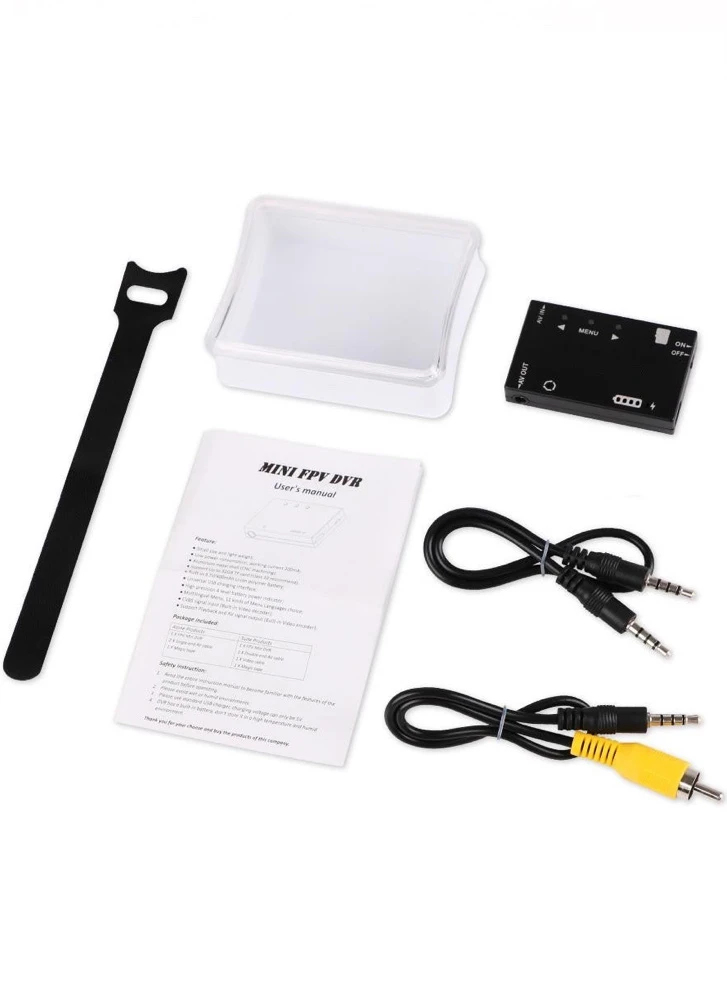

Included:
- 1x Mini DVR
- 2x AV Cable
- Velcro Strap
