Matek M10-L4-3100 GPS, Compass, Barometer

£88.60 Inc. VAT

A GPS, Compass & Barometer module from Matek. It supports CAN/DroneCAN and UART/MSP interfaces.

Only 2 left in stock

0 People watching this product now!

Description

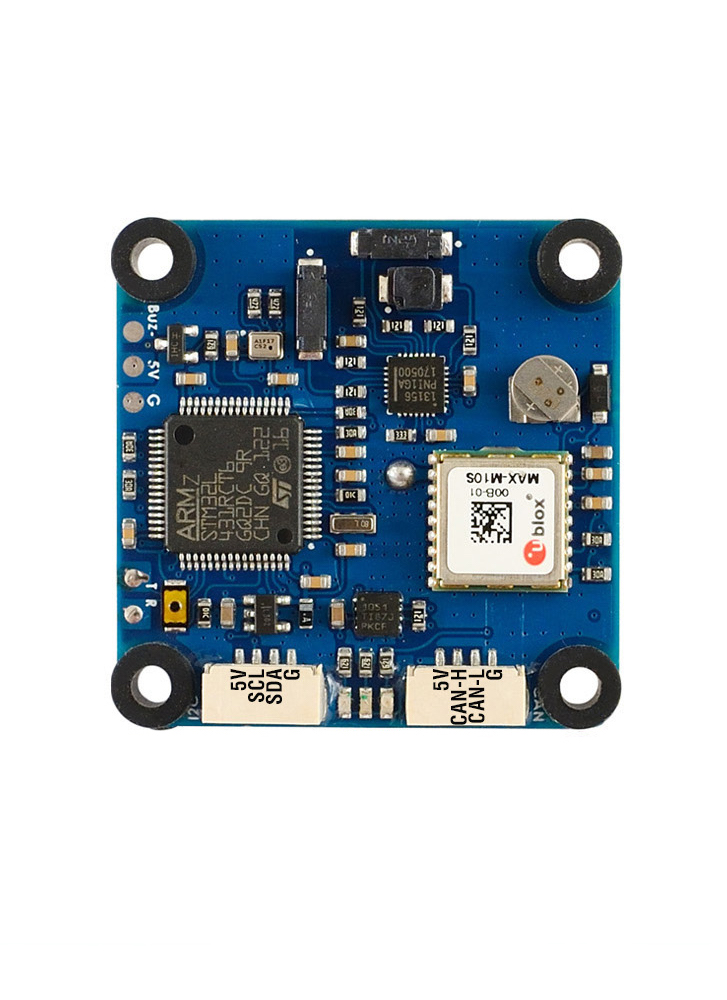

The Matek M10-L4-3100 GNSS module has onboard u-blox MAX-M10S GPS, PNI RM3100 Compass and SPL06-001 Barometer.

MAX-M10S is a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.

Matek’s M10-L4-3100 incorporates a PNI RM3100 compass offering high resolution, low power consumption and wide dynamic range.

It is designed specifically around ArduPilot based on ArudPilots’ AP_Periph firmware. It has CAN/DroneCAN and UART/MSP interfaces. It also features an I2C expansion bus for connecting additional peripherals, such as airspeed sensors.

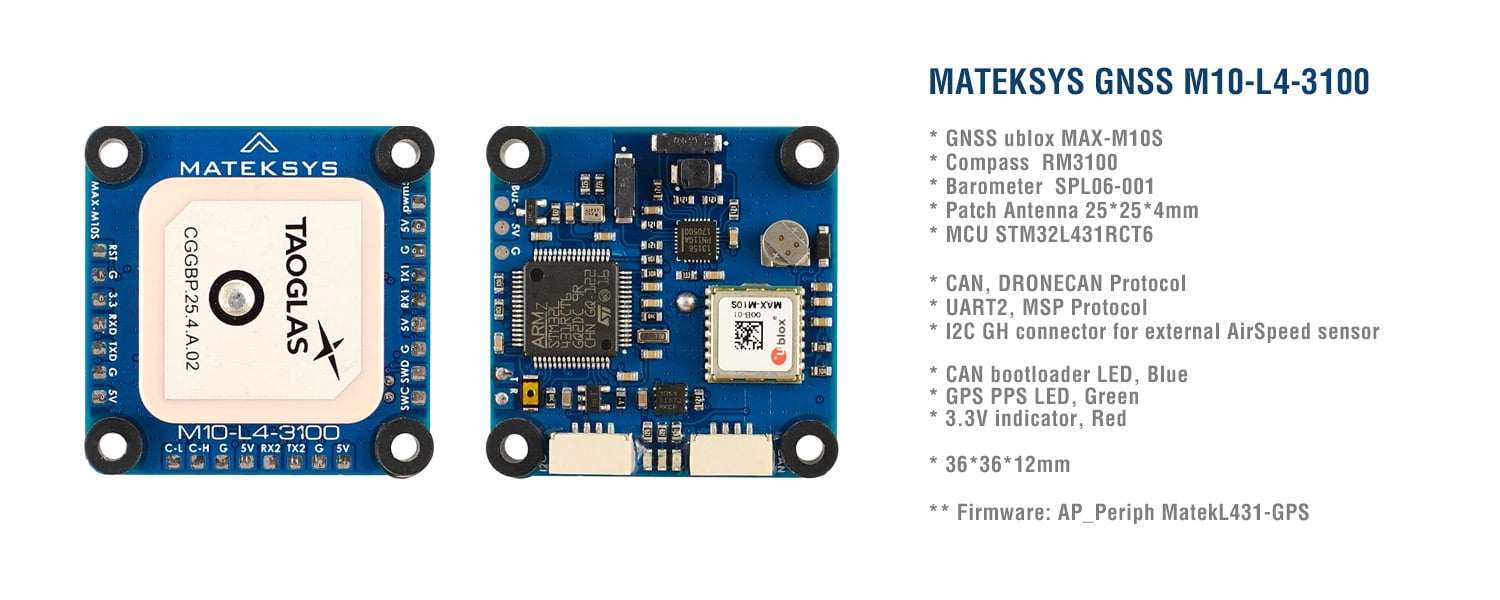

Specification

Firmware: ArduPilot AP_Periph: MatekL431-Periph
GNSS u-blox MAX-M10S (GPS, GLONASS, Galileo, and BeiDou)
Magnetic Compass RM3100
Barometer SPL06-001

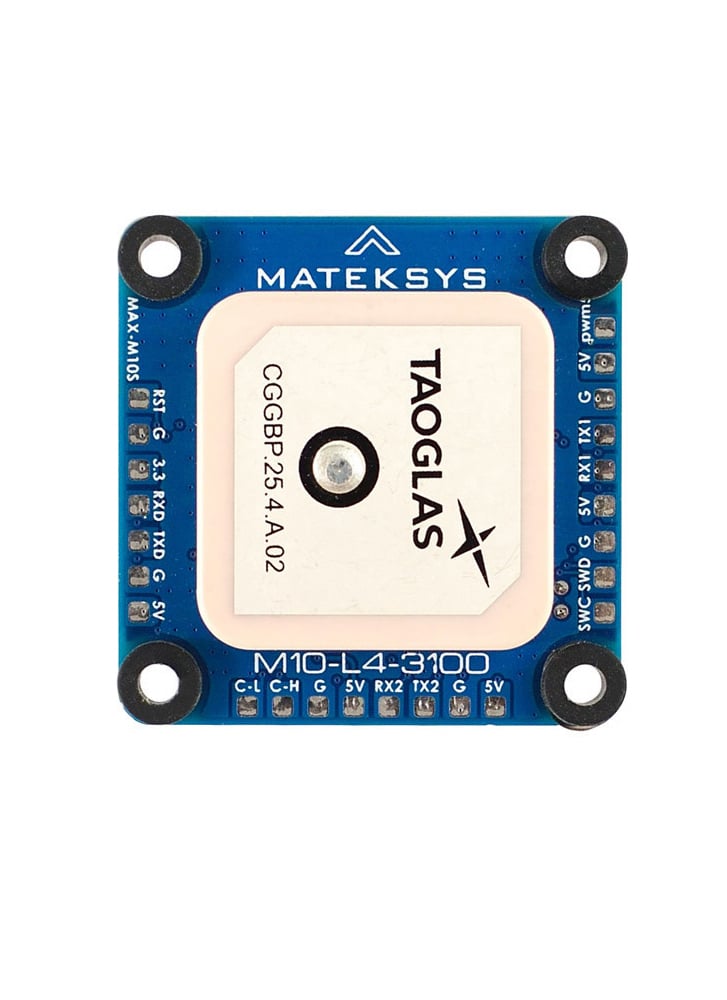

Patch GNSS Antenna 25*25*4mm
MCU STM32L431RCT6
UART3, onboard MAX-M10S
UART2(TX2 RX2), MSP Protocol
CAN, DroneCAN Protocol
I2C JST-GH connector for external AirSpeed sensor
LED Indicators:
- CAN Bootloader LED – Blue
  - Slow blinking, working
  - Fast blinking, Booting
- GNSS PPS LED, Green
  - Blinking(1Hz) when GNSS has 3D fixed
  - Solid on after powering on
  - 3.3V LED, Red

Input voltage range: 4.5~5.3V (5V pad/pin)
Power consumption: 60mA
Operating Temperatures: -20~80 °C
36mm*36mm*12mm
16g
