Lemon Rx Microbrick DSMX / DSM2 Compatible Receiver with 2.54MM Header Pins (LM0070H)

£37.90 Inc. VAT

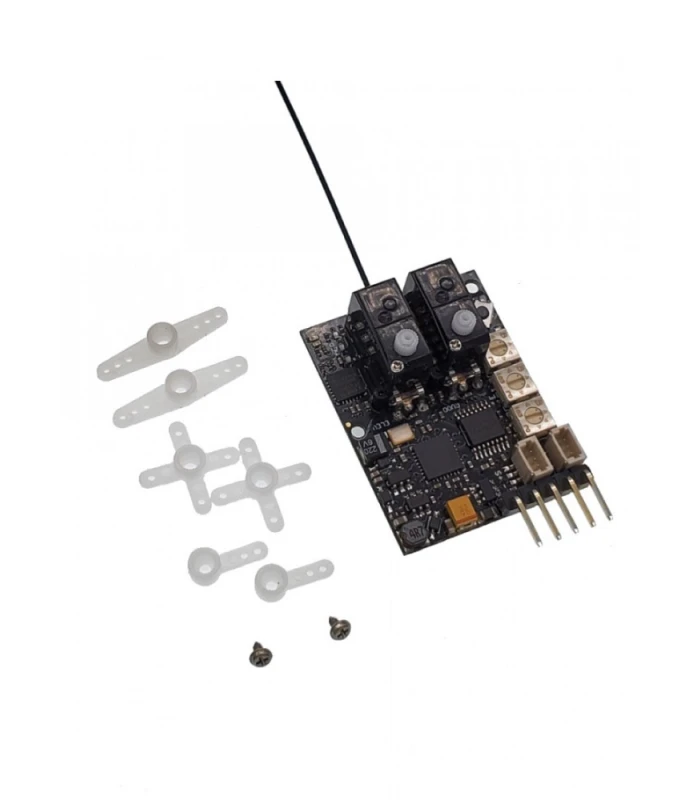

This all-in-one Microbrick receiver board with servos & brushed ESC is targeted specifically for small planes.

Only 2 left in stock

0 People watching this product now!
Description

The Lemon Microbrick combines a full-range DSMXTM/DSM2TM compatible receiver with two onboard ultramicro servos and a 5A brushed speed controller in a package that weighs under 7g. It has connectors for two external servos and can also support a separate brushless ESC. Finally, it provides optional three-axis stabilisation. It is an ideal solution for models up to about 250g, including many light weight UMX type planes.ย Itย can run off a 1s or 2s LiPo, recommendedย 150-220mAh size cells.

The Microbrick can be used with almost any DSMXTM/DSM2TM compatible transmitter.

The Microbrick has five available flight channels in standard Spektrum order (1-4, 6), plus two internal control channels:

Channel 1:ย Throttle: Onboard 5A brushed throttleย andย external signal for a brushless ESC
Channel 2:ย Aileronย (or Right Aileron in dual servo aileron setups; optionally the onboard Rudder servo for 3 channels where Aileron stick is used for the Rudder)
Channel 3:ย Elevatorย onboard servo
Channel 4:ย Rudderย onboard servo
Channel 5: On/Off control of stabiliser (internal to the receiver)
Channel 6:ย Aux1ย (or Left Aileron in dual servo aileron setups)
Channel 8: Master gain control of stabiliser sensitivity (internal to the receiver)

Feature

  • DSMP protocol (fully compatible with DSMX / DSM2)
  • Integrated 5A brushed motor driver
  • Optional external brushless ESC connection
  • Gyro stabilizstion on/off via gear channel
  • Delta, fixed wing and V-tail mixing
  • Legacy mode for single control stick operates both elevator and rudder channel
  • Dual aileron for fixed wing
  • Remote gain control on AUX3 (for transmitter with 8-channel or up)
  • Servo swap feature (rudder and elevator servo position exchangeable for flexible installation)
  • Intended for 1S LiPo application. 2S LiPo (8.4V) operational with dual on-board servo. (Note that the external servo over JST 1.0mm connection may not be able to work at 8.4V)
  • Exceptional holding torque with approximately 0.10kg*10mm with 4.2V and 0.13kg * 10mm with 8.2V.

Versions (the difference is the choice ofย power / motorย connetor):

  • LM0070H –ย 2.54MM Header Pins
  • LM0070M1 –ย Molex 1.25 Connector

Note:ย This is not a Spektrum product, nor is it a copy of any Spektrum product.ย Lemon RX develops its own technology to produce receivers which are fullyย DSM2 / DSMX compatible.ย Spketrum, DSMX and DSM2 are the registered trademark of Horizon Hobby, Inc.

Specification
  • Dimension: 26.5mm x 34.5mm
Downloads
Reference Guide (pdf, 1240KB)
Manual (pdf, 2032KB)
