Jumper R1 V2 Receiver with S.bus – D16 FrSky Compatible

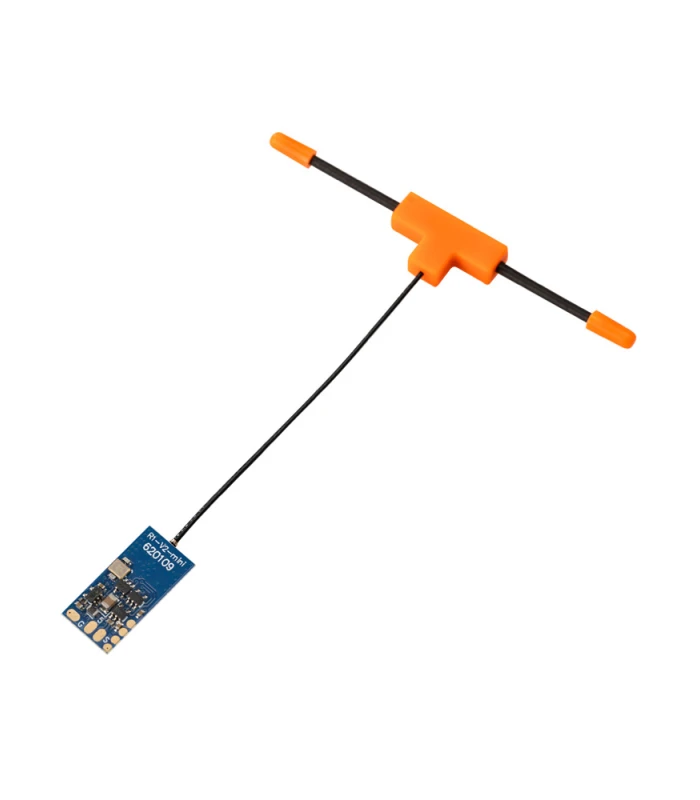

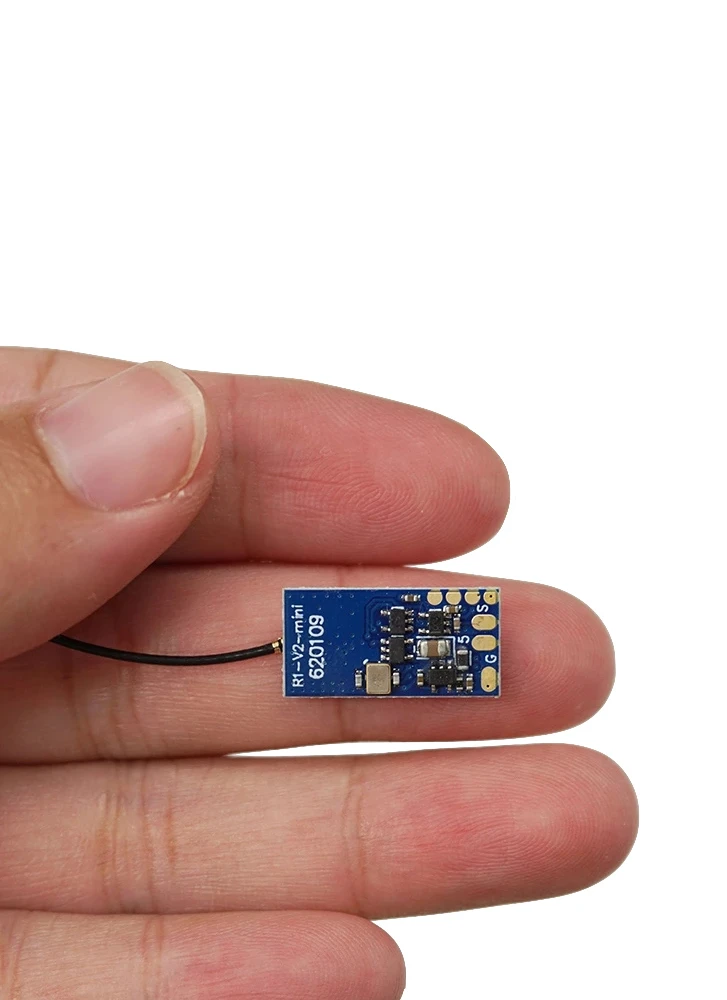

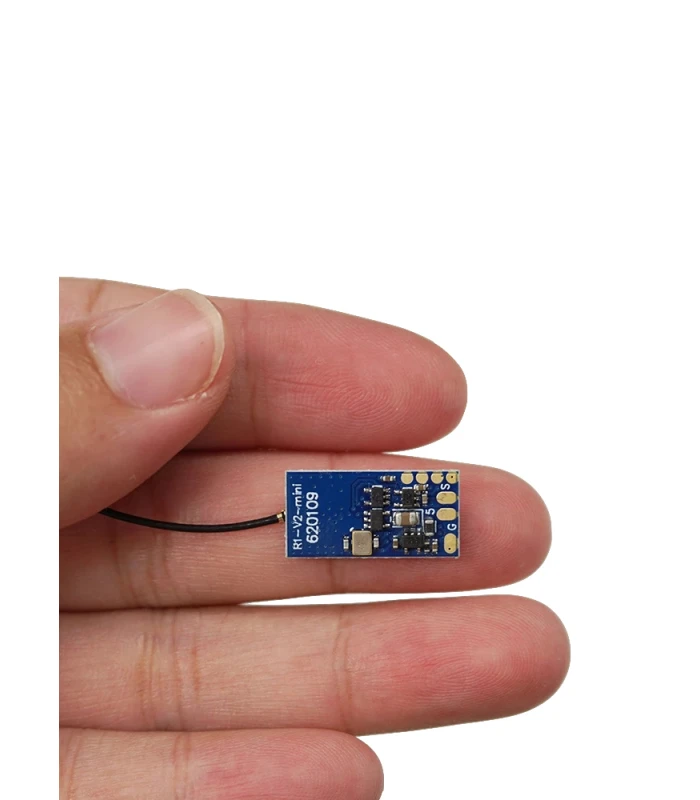

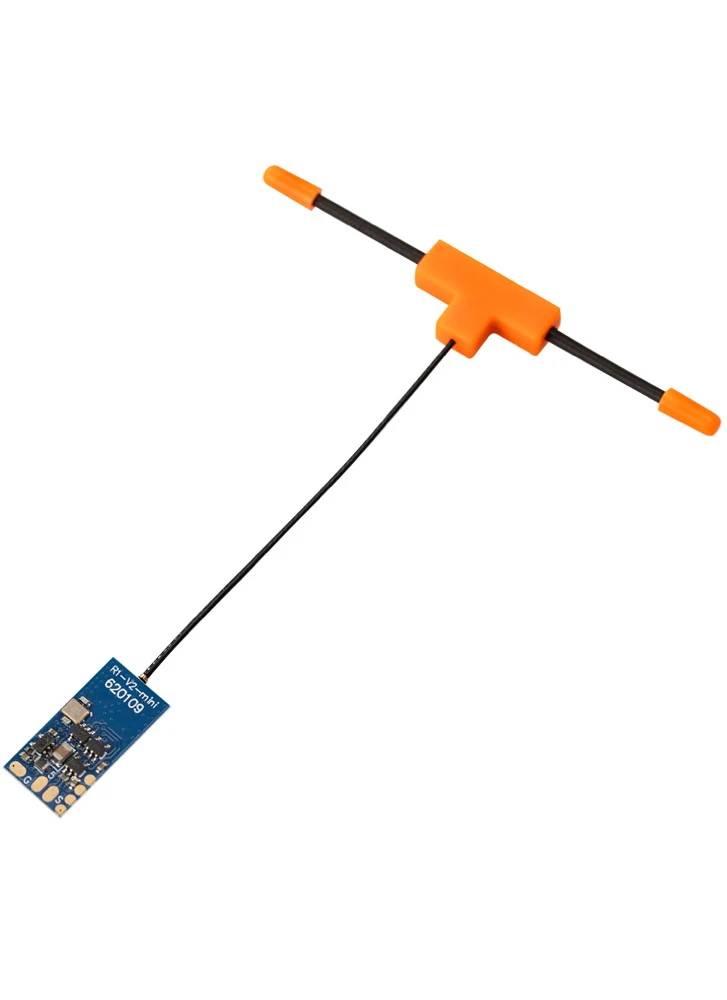

This is the V2 edition of the Jumper R1 D16 Receiver. It is significantly smaller and comes with an upgraded T style antenna.

The Jumper R1 is a full range D16 FrSky (ACCST) compatible receiver with support for FrSky International Firmware (not EU LBT). The receiver has similar features to the FrSky R-XSR Rx, but at a more affordable price point. It’s ideal for mini-drones or models requiring an S.bus connection. It also features integrated redundancy and support for telemetry.

Binding method:

• Press and hold the receiver’s bind button, turn on the power, the receiver will now enter binding mode. The red and green LED is solid.
• Turn on the remote control and begin the bind procedure according to your radio. The red light will flash after a succesful bind. Power cycle the Rx, constant green light indicates radio link.

Note: When the receiver loses the signal, the green light is off and the red light is flashing slowly.

Firmware Updates

The firmware should be updated via the Smart Port. You can use Frsky XSR firmware on this module if you wish, but only proceed if you know what you are doing as loading the incorrect firmware can brick the device.
