Holybro X500 V2 Quadcopter Frame Kit

£134.90£247.90 Inc. VAT

The X500 V2 is a great starting place for a first build. Equally it suits students and commercial R&D projects.

0 People watching this product now!
Description

X500 V2 banner Web

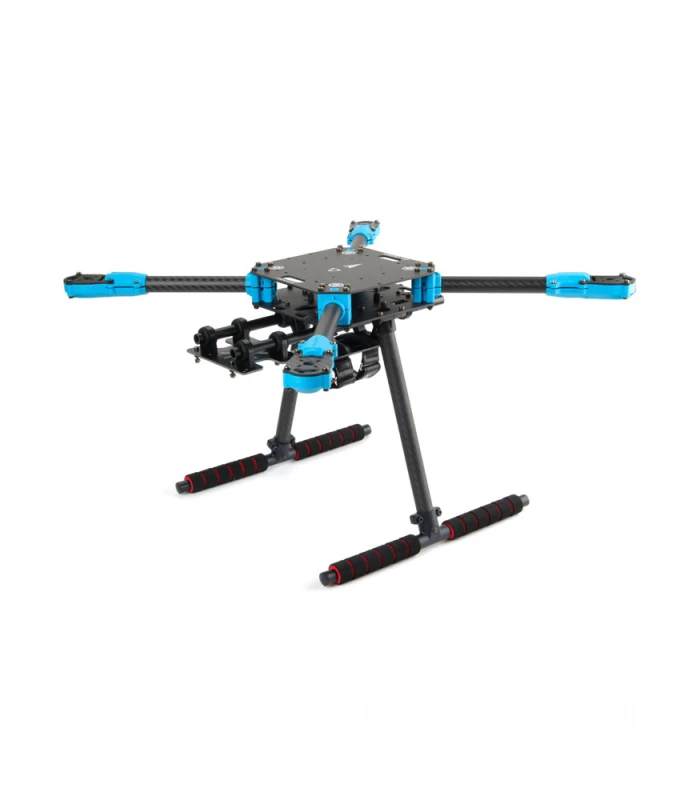

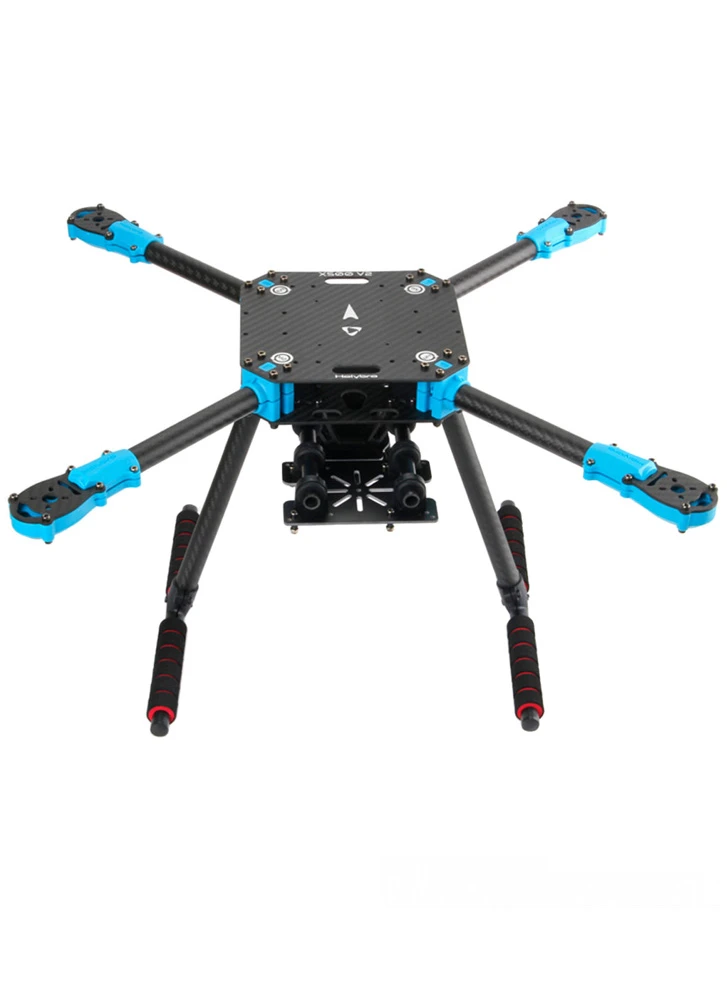

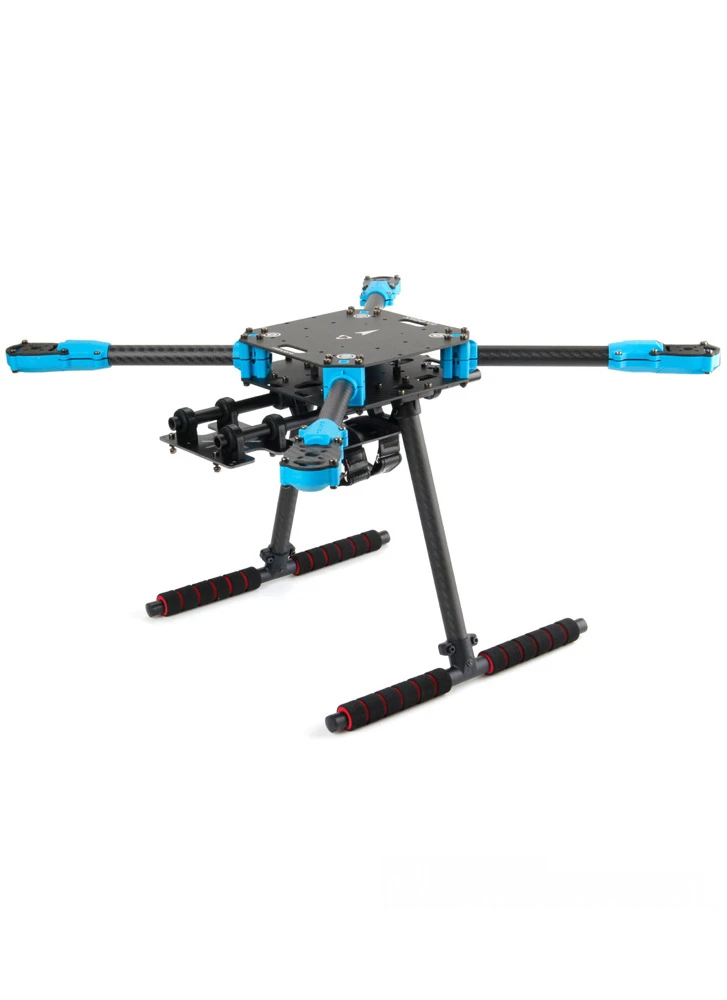

The X500 V2ย is an affordable, lightweight, and robust carbon fibreย professional drone kit that is easy to assemble. It is compatible with various flight controllers such as the Holybro Pixhawk series, Durandal, Pix32 V5, etc.ย This is the V2 edition of the Holybroโ€™s X500 frame and it has numerous improvements compared to the previous model.

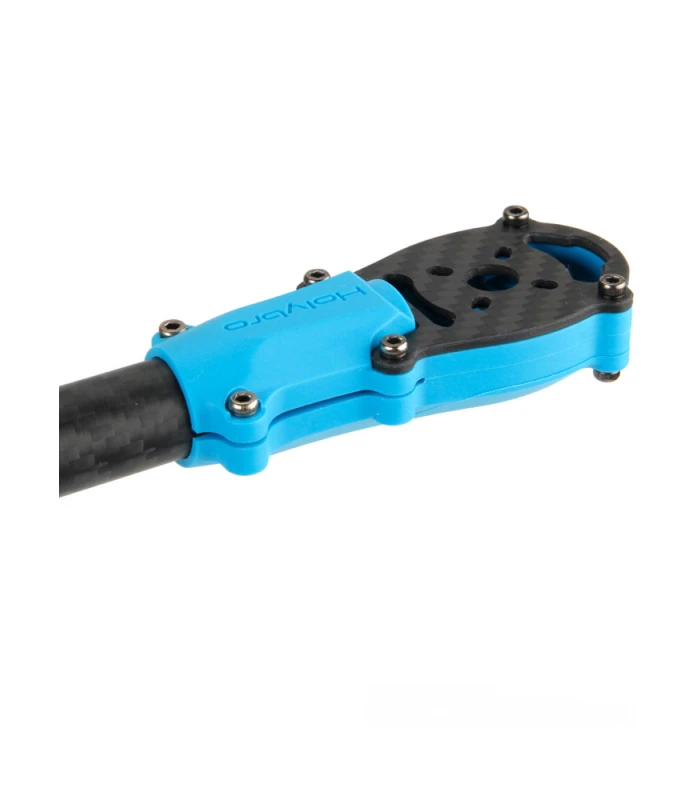

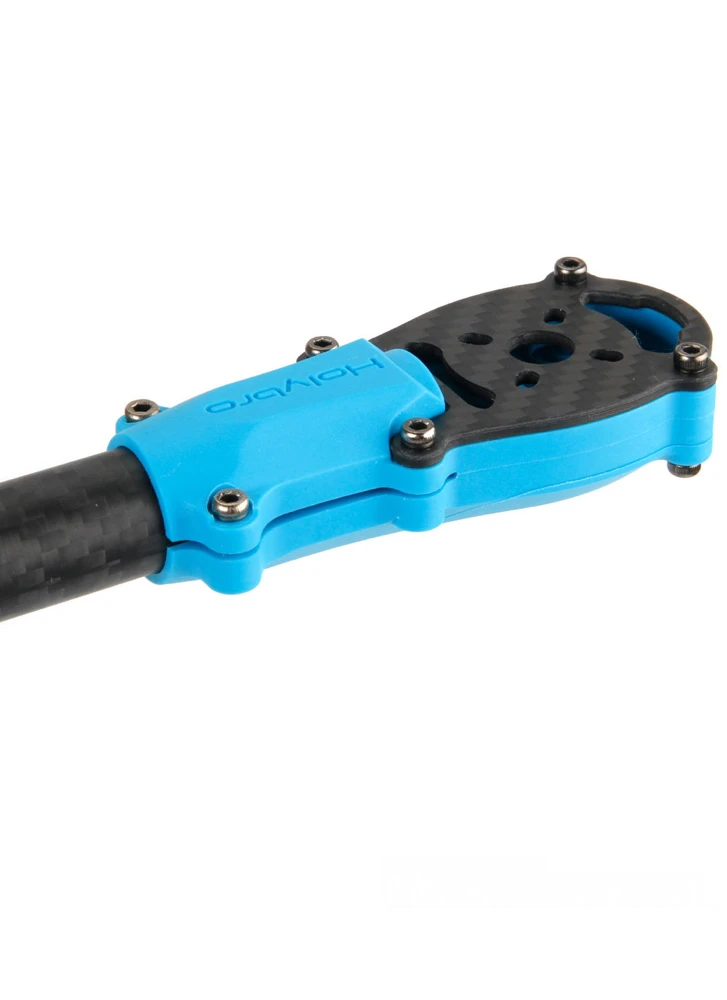

The X500 V2 Frame Kitย is made with full carbon fiber twill, with carbon fiber tube arms supported by the newly designed fibre reinforced nylon connectors. These fixings have convenient notches on both motor and body sides, providing a much easier & more straightforward installation. The landing gear consists of 16mm & 10mm diameter carbon fibre tubes with connectors that has been thickened and strengthened. The spacing between top and bottom carbon fiber plates has been increased to provide easier access. The platform board now has mounting holes for GPS & popular companion computers such as the Raspberry Pi 4 & Jetson Nano. The adjustable battery mounting board has been enlarged to support bigger batteries for a longer flight time. The rail mounting system is ready to take a whole host of camera mounts and gimbals for various applications. There is an optional mount for various depth cameras such as the Intel RealSense series & Structure Core Depth Cameras (purchase separately). All tools for installation are provided in box.

The frame lends itself to being a fantastic development platform for student projects, engineers doing R&D, hobbyists wishing to build their first drone, or aerial photographers looking for an alternative to DJI – allowing them to build a custom platform to suit their specific requirements.

The X500 V2 Quadcopter is availableย as either the frame kit on its own or as the ARTFย set whichย includes the X500 V2 Frame Kitย with motors, ESCs, power distribution boards and propellers preinstalledย – please selectย as required. We also now sell theย Holybro X500 V2 Quadcopter PX4 Development Kit which includes FC, GPS and Telemetry radio kit.

Almost Ready-to-Fly (ARF) Kitย Features:

  • New design and minimal assembly time
  • Carbon fibreย frame with fiber-reinforced nylon connectors providing easy & straightforward installation
  • Pre-installed motors & ESCs with simple XT30 power plugs for PDB
  • Power distribution board (PDB) with XT60 & XT30 plugs – no soldering needed
  • Mount for companion computer such as Raspberry Pi & Nvidia Jetson Nano
  • Optional depth camera mount for Intel RealSense & Structure Core

3D Prints:

Holybro_X500_V2_3D Print

X500 V2 sizeX500 V2 with CamerasOptional mount for various depth cameras such as the Intel RealSense series & Structure Core Depth Cameras (purchase separately)

Specification
  • Body – Full Carbon Fiber Top & Bottom plate (144 x 144mm, 2mm thick)
  • Arm – High strength & ultra-lightweight 16mm carbon fiber tubes withย newly designed fiber reinforced nylon connectors
  • Landing gear –ย 16mm & 10mm diameter carbon fiber tubes with strengthened & improved plastic tee connectors.
  • Platform board – With mounting holes for GPS & popular companion computer such as the Raspberry Pi 4 & Jetson Nano

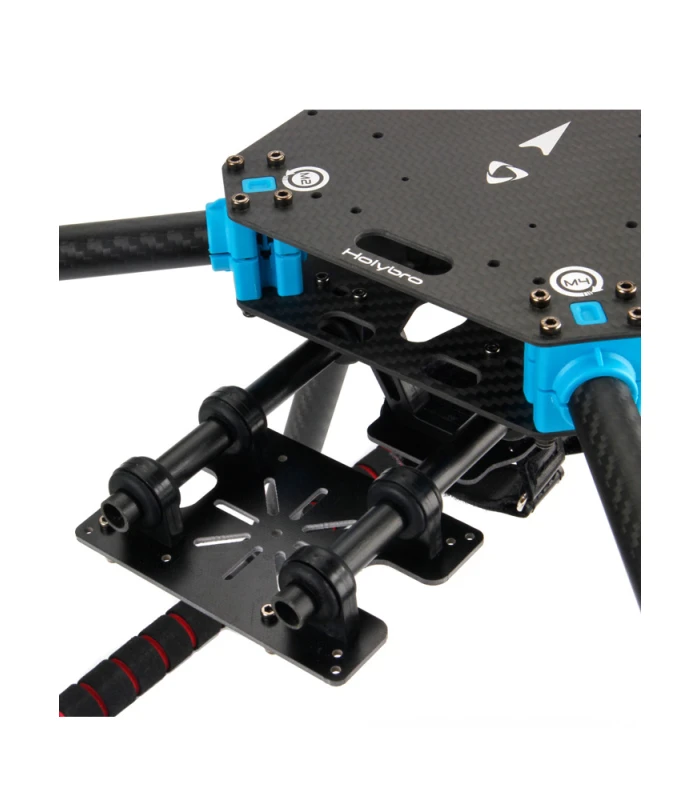

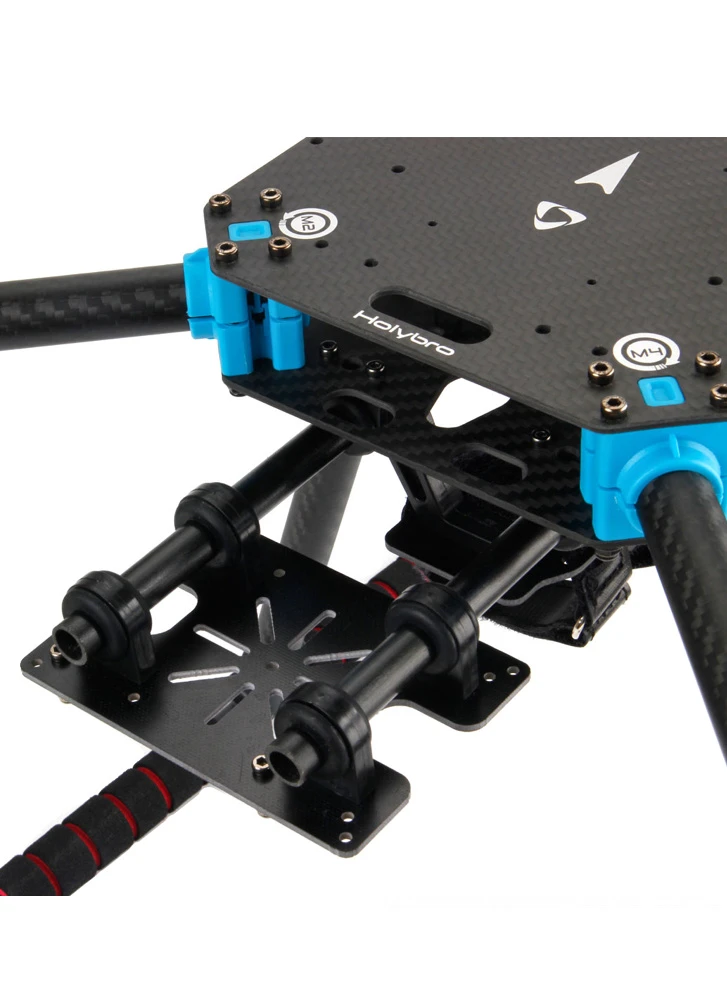

  • Dual 10mm ร˜ rod x 250 mm long rail mounting system
  • Battery mount with two Battery Straps
  • Hand tools for installation

Mechanical Specification:

  • Wheelbase: 500mm
  • Motor mount pattern: 16x16mm
  • Frame Body: 144x144mm, 2mm thick
  • Landing gear height: 215mm
  • Space between top and bottom plates: 28mm
  • Weight: 610g

X500 V2 ARF Kit (SKU30125):

  • X500 V2 Frame Kit
  • With Preinstalled Items:
    • Motors – Holybro 2216 KV880 Motor (4 pcs)
    • ESCs – BLHeli S ESC 20A (4 pcs)
    • 1045 Propellers (6 pcs)
    • Power Distribution Board โ€“ XT60 plug for battery & XT30 plug for ESCs & peripherals
Downloads
Manual (pdf, 1198KB)
