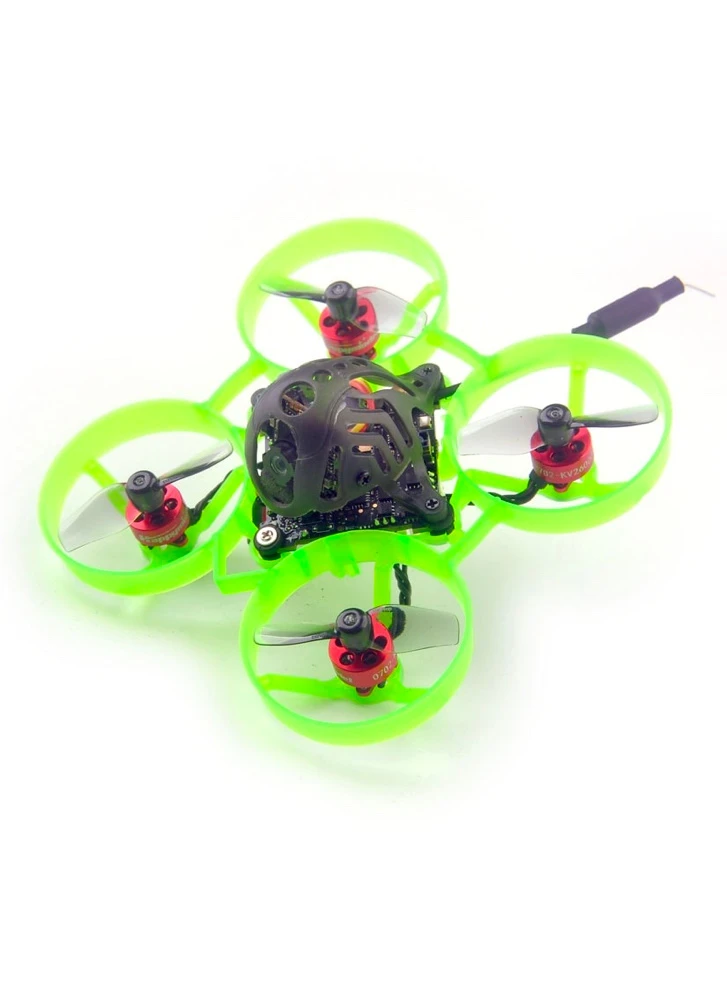

Happymodel Mobula6 ELRS Brushless Whoop (2.4Ghz/868Mhz)

£83.50 Inc. VAT

This is the ExpressLRS version of HappyModel’s popular Mobula6 Tiny Whoop.

Version

Clear

Add to compare

0 People watching this product now!

SKU: N/A Categories: Almost Ready To Fly (ARF), Pre-built Drones & Kits Tags: 1S, Brushless, ELRS, FPV, Whoop

Description

This is the ExpressLRS version of HappyModel’s popular Mobula6 Tiny Whoop. ExpressLRS is an open source RC system that has the characteristics of low latency and a high packet rate. Its link quality is very reliable and provides excellent range, think TBS Crossfire, but a more budget version. There are two versions of the Mobula6 ELRS. One option is fit with a 868Mhz ExpressLRS Serial-based receiver and the other a 2.4GHz ExpressLRS SPI receiver (868Mhz generally has better signal penetration / 2.4ghz has lower latency and a smaller antenna, but ultimately both are incredibly fast and will exceed the FPV range). For both options you will need a radio that supports ExpressLRS, this probably means buying a module as most radios including radios like the RadioMaster TX16S don’t support this protocol as standard.

In addition to the change of receiver, this version of the Mobula 6 is fit with HappyModel’s new 0702 26000KV brushless motor, which is one of the lightest 1S motors on the market. This new motor is also matched with a different prop, a HQProp 31mm Bi-blade.

We think this new version of the Mobula6 is going to be really popular. Previously range has always been an issue with Tiny Whoops, so now thanks to the ExpressLRS receiver you can enjoy this Mobula 6 without having to worry about the failsafe kicking in.

Features

AIO Flight controller with ELRS Receiver and 5.8G VTX
Super light 1S 65mm Brushless whoop, only 18.7g
Equipment with the lightest brushless motors-SE0702 only 1.46gram
Runcam Nano3, the lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible for 1S Lipo/LIHV
Includes batteries and charger

Receiver options:

2.4GHz ExpressLRS SPI receiver
868MHz ExpressLRS Serial-based receiver

Version	2.4GHz ELRS	915MHz ELRS	868MHz ELRS
Color	Green	Blue	Blue
Flight controller	ELRS F4 2G4	CrazyF4 ELRS	CrazyF4 ELRS
Firmware target	CRAZYBEEF4SX1280	CRAZYBEEF4DX	CRAZYBEEF4DX
Built-in ExpressLRS receiver	SPI 2.4GHz	Serial-base 915MHz	Serial-base 868MHz
Built-in Dshot ESC	5A	5A	5A
Receiver antenna plug	SMD ceramic antenna	IPEX MHF3	IPEX MHF3
Onboard VTX power	25mw~200mw	25mw~200mw	25mw~200mw
Brushless Motor	0702 KV26000	0702 KV26000	0702 KV26000
Propeller	HQPROP 31mm Bi-blade	HQPROP 31mm Bi-blade	HQPROP 31mm Bi-blade
Battery	1s 300mah Lipo battery	1s 300mah Lipo battery	1s 300mah Lipo battery

Specification

Motor:
Model: SE0702 KV26000
Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ9.5mm*14mm
Weight(g):1.46g
No.of Cells(Lipo):1S only

Propellers:
HQprop31mmx2
Center Thickness:5mm
Prop Disk Diameter:31mm
Center Hole Inner diameter:1.0mm
Weight:0.2g

Flight Controller:
ELRS F4 2G4 flight controller built-in SPI expresslrs 2.4G receiver
CrazyF4 ELRS flight controller built-in 915MHz expresslrs receiver
CrazyF4 ELRS flight controller built-in 868MHz expresslrs receiver
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in ExpressLRS 2.4G/915MHz/868MHz receiver
Built-in 5V 1A BEC
Built-in voltage detection

Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV

Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT600

Onboard SPI ExpressLRS 2.4GHz Receiver
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Could bind with Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module ExpressLRS version 1.0.0 or 1.0.1 both compatible

Onboard Serial-based ELRS Receiver
Operation current: ~100Ma
Rx To FC protocol: CSRF
RF Frequency optional: 915mhz or 868mhz(EU)
Antenna connector: IPEX4
Telemetry output Power: <17dBm
Firmware target: Happymodel_RX_ES915RX
Receiver protocol: CRSF
Could bind with Happymodel ES915TX , Frsky R9M and DIY ELRS TX module(need to flash the same version ELRS firmware)
Firmware flash via Betaflight pass-through

Onboard 5.8g VTX
Output power: 25mw~200mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready

Runcam Nano3
Model: RunCam Nano 3
Image Sensor: 1/3″ CMOS
Horizontal Resolution: 800TVL
Lens: 2.1mm(M8) FOV 160°
Signal System: PAL/NTSC Non Switchable
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm

Lipo Battery
Capacity:300mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Size: 57mmx12mmx7mm
Weight: 8g
Connector: PH2.0

Included

1x Mobula6 1S FPV Racing Drone
4x 1S 300mAh 30C Lipo Battery
1x 1S Lipo/LIHV USB Charger
1x Propeller disassemble Tool
