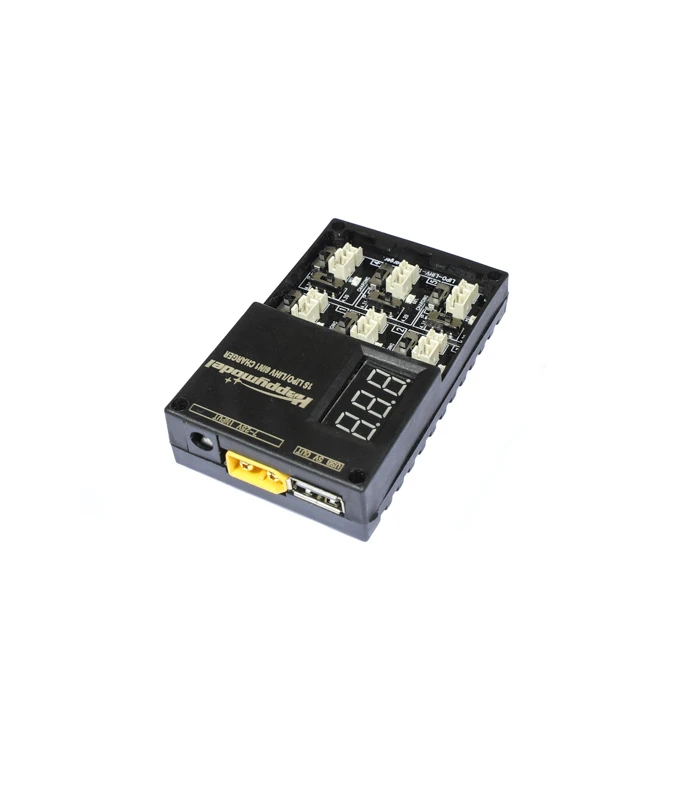

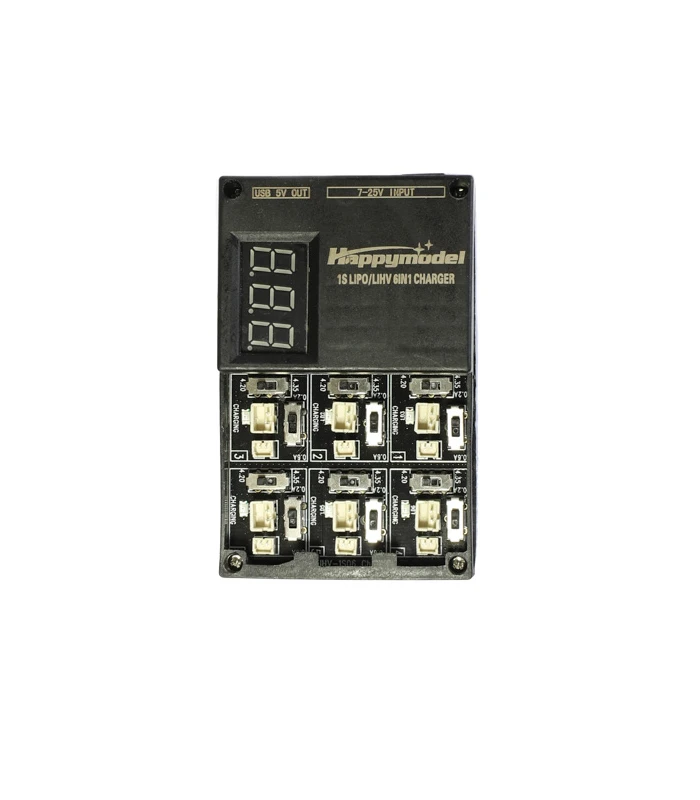

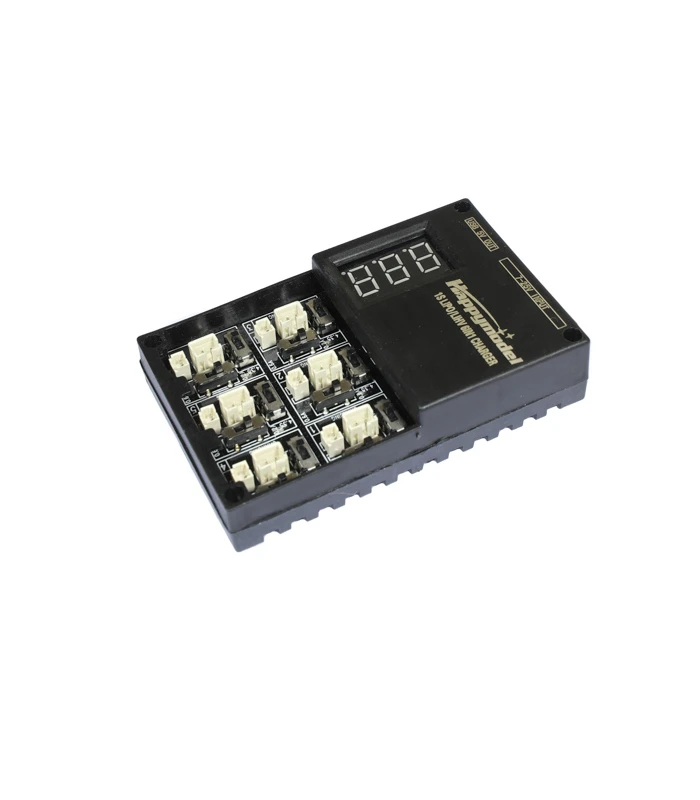

This 6-port charger is perfect for chargingย 1S and 1S HVย batteries.ย It is compatible with Lipo and LiHV chemistries and has two connectors on each port to fit either 1.25mm Picoblade or PH 2.0 batteries. The charge rate is selectable for each channel between 200mA and 600mW. It requires a power supply, you can either use a 2-5S XT60 battery or 2Amp DC mains power plug. Finally, there’s a handy display, which shows the voltage of each channel and a USB 5V output.
Note: Ports are numbered 1-6 – do not put more than one battery on a single port. For example, do not insert one battery on the Picoblade 1.25 plug and another on the same port with the PH 2.0 plug.
Features:
Supports Picoblade 1.25, PH 2.0mm battery
Supports LiHV 4.35v battery
Charges 6 batteries at the same time
The display showsย eachย channel input and output voltage in order.
Charge at either 200mA or 600mA according to the setting of a switch that can be set independently for each port

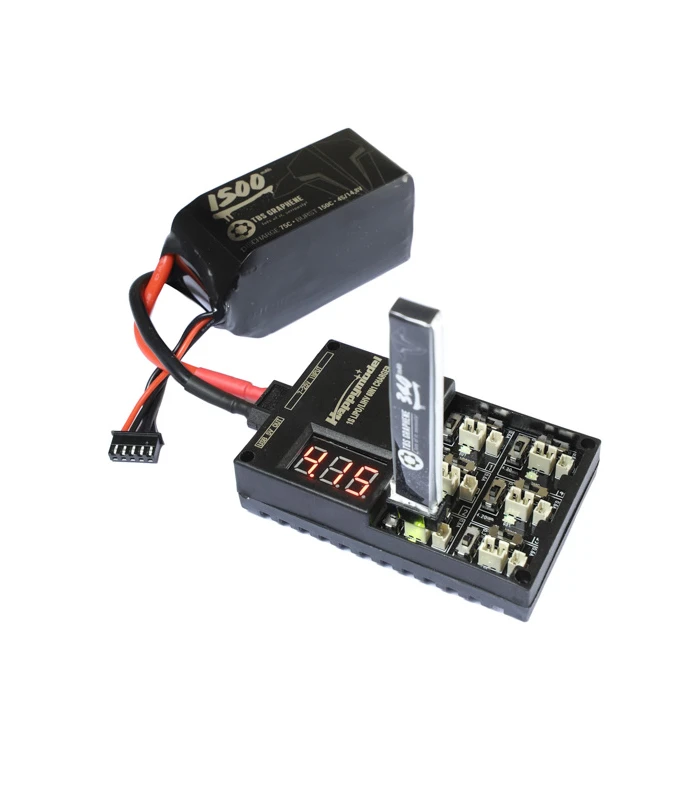

2-5S (7.4V-22.2V) asย a powerย supply or use adapters with at least 2A output
Barrel connector is 5.5mm x 2.1mm center pin positive
DO NOT use the 4.35V charge mode for a normal 1S LiPo. Doing so will overcharge the battery and pose a fire risk. Only charge 1S LiHV batteries to 4.35V.
Specification
Input: DC 7V-22V
Output switchable: Fixed at 200~600 milliamps
Cutoff voltage switchable:
4.20v cell charging cutoff (+- 0.5% margin of error) for 1S Lipo Battery
4.35v cell charging cutoff (+- 0.5% margin of error) for 1S 3.8V LIHV Battery
Weight: 41g
Dimensions: 82x51x22mm
Included:
1x Happymodel 6-way Charger
Q&A
Questions and answers of the customers
There are no questions yet. Be the first to ask a question about this product.
Advice
Lithium Polymer (LiPo) Battery Safety Guidelines
PLEASE READ AND KEEP FOR REFERENCE
Lithium Polymer (LiPo) batteries can be extremely dangerous if not handled correctly. A lithium fire can reach extremely high temperatures, is unpredictable and difficult to extinguish.
A standard four-cell 1500mAh LiPo battery at full charge stores a massive 25Wh (watt hours) of energy!
Please take these risks seriously. We advise following the guidelines below to safely use and maintain your LiPo batteries.
Disclaimer
This information sheet is provided to help our customers understand LiPo battery safety. However, you use this information at your own risk. Following good practices will also help to ensure the longevity of your battery packs.
By purchasing LiPo batteries or charging equipment from our store, you accept all risks related to their use. If you disagree, please contact us immediately to arrange a return before using the product.
1. Charging Safety
Use a proper charger: Always charge LiPo batteries with a LiPo-compatible charger.
Set the correct parameters: Charge at the recommended voltage and current settings specified by the manufacturer. Many fires occur due to incorrect charge settings. In most cases, the safest charge rate is 1C.
Double-check connections: Ensure that charging leads are connected correctly. Reverse charging can lead to cell damage or a fire.
Charge in a safe environment: Charge batteries on a non-flammable surface, in a fireproof container, and away from flammable materials.
Monitor while charging: Never leave charging batteries unattended. Stop charging immediately if the battery becomes hot or swollen.
Avoid overcharging: Never exceed 4.2V per cell (4.35V for LiHV Lithium-ion Polymer High-Voltage batteries).
2. Storage Safety
Storage voltage: For long-term storage, maintain a โstorage chargeโ voltage of 3.7V to 3.85V per cell.
Store in a cool, dry place: Always store your LiPo pack in a safe and non-flammable container away from flammable objects. A LiPo sack or metal/ceramic storage container is best. Avoid direct sunlight or high temperatures (above 60ยฐC/140ยฐF). The ideal storage temperature is 10ยฐC to 25ยฐC (50ยฐF to 77ยฐF).
Avoid full discharge: Never store batteries at full charge or with a low voltage (below 3.3V per cell).
3. Handling and Usage
Inspect regularly: Check batteries for any damage, swelling, or leaks before use.
Avoid physical damage: Protect batteries from impacts, punctures, and exposure to moisture or water.
Never short-circuit: Avoid contact between battery terminals. Do not store or transport batteries where they can come into contact with sharp or conductive materials (e.g., metal objects).
Use within limits: Stay within the manufacturerโs recommended discharge rate and capacity ratings for safe operation.
Monitor during use: Use voltage alarms or onboard monitoring to prevent over-discharging (below 3.3V per cell).
Crashes: If a battery is damaged in a crash or shows changes in appearance (including swelling or gassing), move it to a safe place to observe, and discard it. Never attempt to charge a battery with physical damage, regardless of how minor the damage may seem.
4. Disposal
Lifespan: Rechargeable LiPo batteries do not last forever. Batteries that have lost 20% of their initial capacity should be removed from service and disposed of.
Dispose properly: Never throw LiPo batteries in the general waste. Dispose of them at certified recycling centres.
Prepare for disposal: Fully discharge batteries before disposal and tape the terminals to prevent short circuits.
5. In Case of Fire
Fire containment: If a LiPo battery catches fire, use a Class D fire extinguisher or sand to smother the fire. Avoid inhaling fumes and vacate the area immediately.
