Discontinued: FrSky Taranis X-Lite Pro 2.4GHz ACCESS Radio Transmitter – Blue

Product Discontinued – for an alternative please see FrSky Twin X Lite

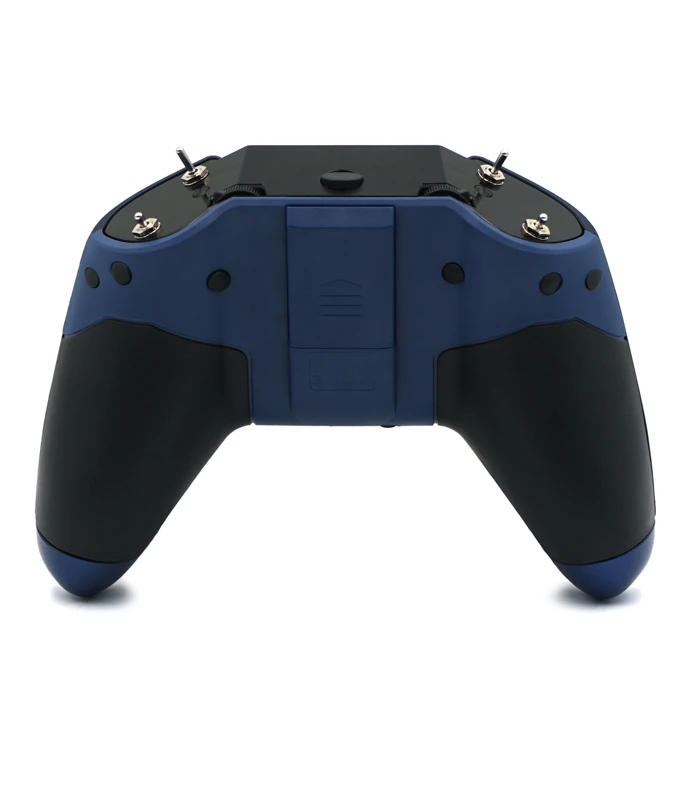

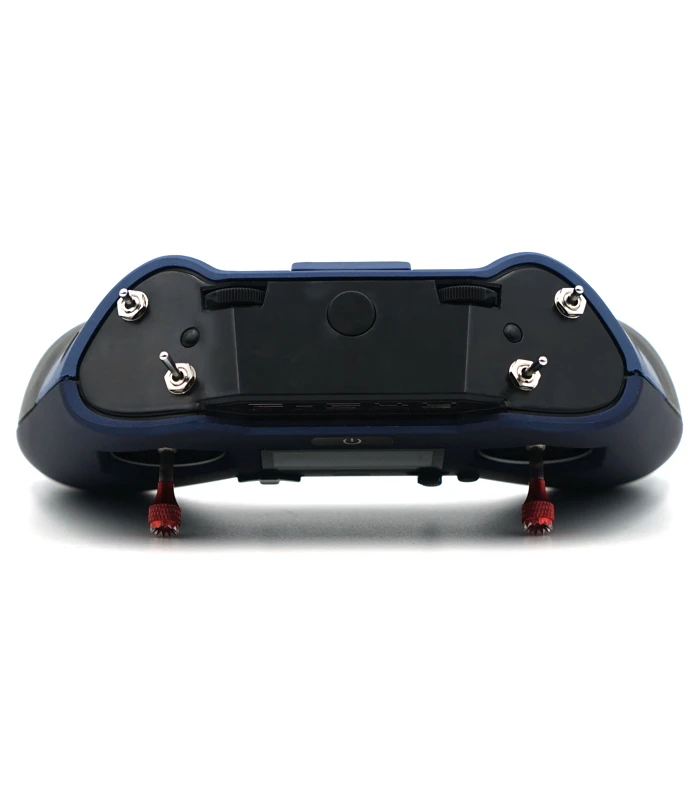

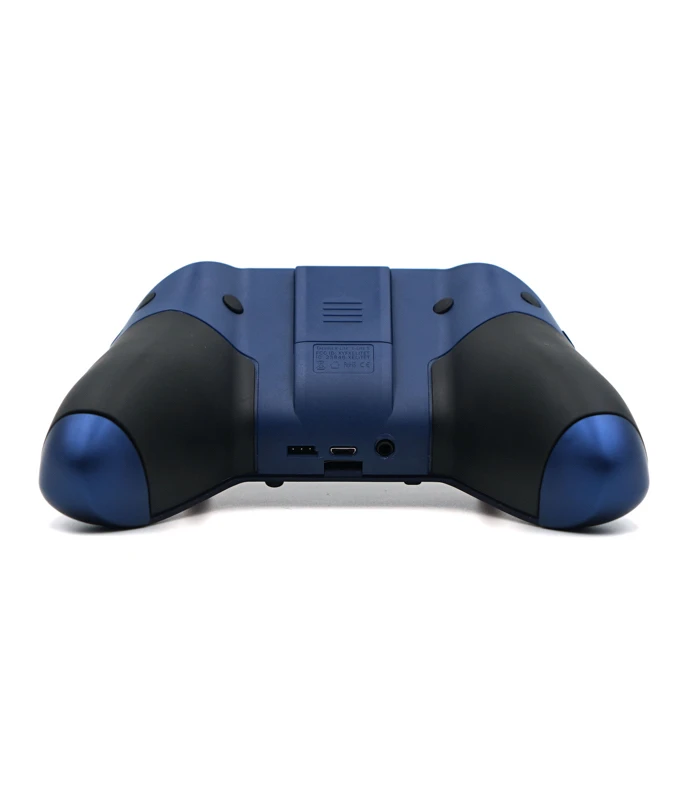

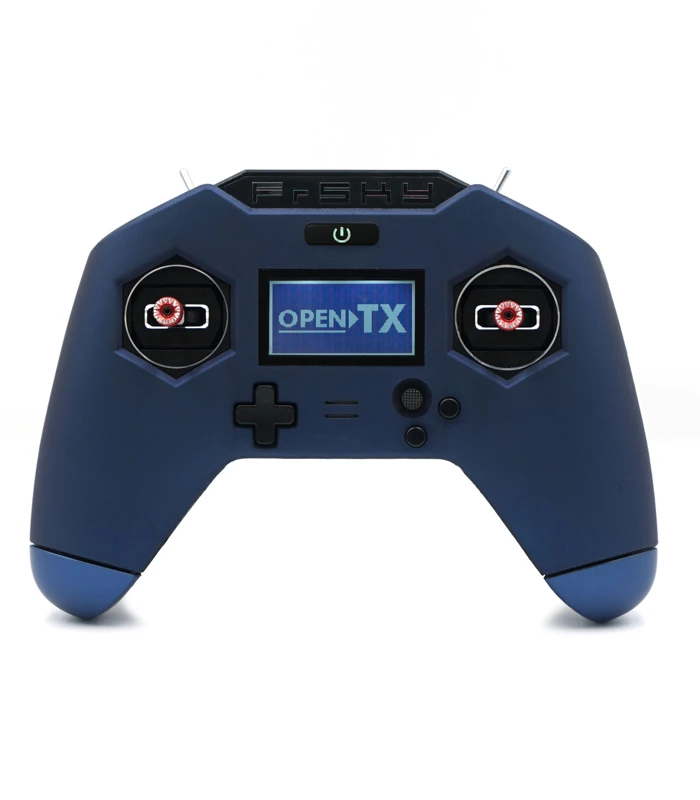

This is the FrSky X-Lite Pro 2.4GHz Radio Controller. A gaming style remote controller designed for RC drones and aircraft.

With the growing acclaim of the new compact X-Lite form factor, FrSky is introducing this upgraded version. The X-Lite Pro combines all the benefits of the X-Lite design with the features of traditional full-sized radios, along with the extra benefit of the newly developed ACCESS (Advanced Communication Control, Elevated Spread Spectrum) protocol. Amongst lots of new features, ACCESS transmission protocol provides even lower latency and enhanced reception performance.

New for the PRO version is a high-quality, all-metal CNC hall sensor gimbal, an additional 2 momentary buttons and battery charging system (via micro USB port). There’s also an integrated 6-axis sensor unit, which allows pilots to use the radio as a motion-sensing controller to control the inputs of a model during flight or use it to point a camera in the desired direction. You also can now check for RF noise as the X-Lite Pro comes with a power meter and spectrum analysis function. Finally, the new PARA wireless trainer function provides a high-speed low latency training system that is compatible with the FrSky Free Link App and AirLink S.

The X-Lite Pro still keeps old features such as full haptic feedback and voice alerts, as well as telemetry, microSD card slot and comes with 24 channels for great model setup. Get your new, improved X-Lite Pro transmitter that combines the functionality and reliability of FrSky Transmitters with a compact game-style controller.

Features

• Ergonomic and compact design
• MC12 Lite all-metal CNC digital hall sensor gimbal
• Upgraded RF module with installed ACCESS protocol
  • More sensitive and lower latency (down to 12ms)
  • High-speed digital interface of internal and external modules (Baud rate: 450K)
  • Longer range with 40% enhanced performance
  • Accurate SWR indicator
  • Supports power meter function
    Input Signal Measurement Range (Frequency: 900MHz & 2.4GHz, Precision: within 1db)
    ✧ Without attenuator: -50dbm ~ -10dbm
    ✧ With added 40db attenuator: -10dbm ~ 30dbm (Optional Accessory)
  • Supports spectrum analyzer function
• New PARA wireless training system
  • High-speed training system with a lower latency
  • Compatible with FrSky Free Link App and AirLink S via mobile devices
• Supports wired training function
• High-efficiency quick-charge system
  • Supports 2S Li-Battery balancing charge
• Supports motion sensing control
  • Integrated with 6-axis sensor unit
• Haptic vibration alerts and voice speech outputs

The X-Lite Pro operates on ACCESS protocol only. You will need to update your ACCST receivers to ACCESS firmware in order to use them with X-Lite Pro.

What is ACCESS Protocol?

Advanced Communication Control Elevated Spread Spectrum

ACCESS is FrSky’s most advanced protocol to date. Building on the acclaimed ACCST protocol, ACCESS offers visionary features like Smart Share™, Smart Match™, and Trio Control ™. Once a receiver is registered to a radio, it can be re-bound at any time without accessing your receivers F/S button. Sharing models has never been easier, and updating has also been simplified, you no longer need to physically connect your receivers for updating. In addition, new tools like a Spectrum Analyzer and also now supports up to 24 channels with increased transmission rate, lower latency and the elevated performance.

• Supports 24 full-range channels
• Increased baud rate and lower latency
• Wireless binding, updates, and configuration
• Automatic binding (Smart Match)
• Channel remapping
• Manageable telemetry (Trio ControlTM)
• Allows radio to act as a Spectrum Analyzer
• Allows radio to act as a Power Meter
• Advanced Encryption Algorithm

Required:
2x 18500 / 18650 Li-ion Battery
