FrSky R-XSR 2.4GHz 16CH Micro Receiver with SBUS & CPPM

£23.50 Inc. VAT

The R-XSR is the smallest full telemetry ACCST SBUS receiver from FrSky – a popular choice for racing drones.

Only 8 left in stock

Firmware Flashing Service

If you would like the receiver flashing with a different firmware to factory stock (EU LBT V2) then we can do this for an additional fee. Please note this service adds a 1 day lead-time.

(+£1.99)
(+£1.99)
(+£1.99)
0 People watching this product now!
SKU: RX-FRSKY-RXSR Categories: , Tags: , , , , , , , , , ,
Description

This is the smallest full telemetry ACCST SBUS receiver from FrSky. FrSky R-XSR 2.4GHz 16CH ACCST Micro Receiver w/ S-Bus & CPPM.

FrSky ultra mini receiver R-XSR is the evolution of FrSky full range XSR receiver.ย The R-XSR is a standalone receiver with all the functions of XSR, in addition, itโ€™s almost 1/3 size and 1/3 weight of XSR receiver. Moreover, it brings a brand new redundancy function which allows you to connect with it a separate slave Rx which will be used in the event of the master Rx losing signal. Finally, unlike the XSR, which uses direct soldered antennas, the R-XSR uses IPEX connectors that make it more convenient for you to replace antennas.

Please Note:ย There are two versions of the D16 EU LBT Firmware –ย 1.9 (this is the old version and most common)ย and 2.Xย (this is the latest versionย and commonlyย used by ACCESS radios set to D16 Mode). For binding to work, the firmware version on the receiver and transmitter module needs to match. Tip: Find out what version is running on your radio, this is done by going to the “Module / RX Version Page“. On a QX 7 / X9D radio this is done by holding Menu button to go into the Radio Setup Menu, press page button until โ€œVersionโ€ menu shows, scroll to โ€˜Modules / RX Versionโ€ and press enter. FrSky now ship the R-XSR with version 2.X.X installed, if you need 1.9 we also sell this but charge a little more as we have to re-flash the receiver. You can also do this yourself using our 1.9 download.

Features:

  • Ultra mini size and light weight
  • Support telemetry and Smart Port enabled
  • Full range
  • Switchable SBUS/ CPPM signal output
  • Supports redundancy function
  • IPEX connector, replaceable antennas

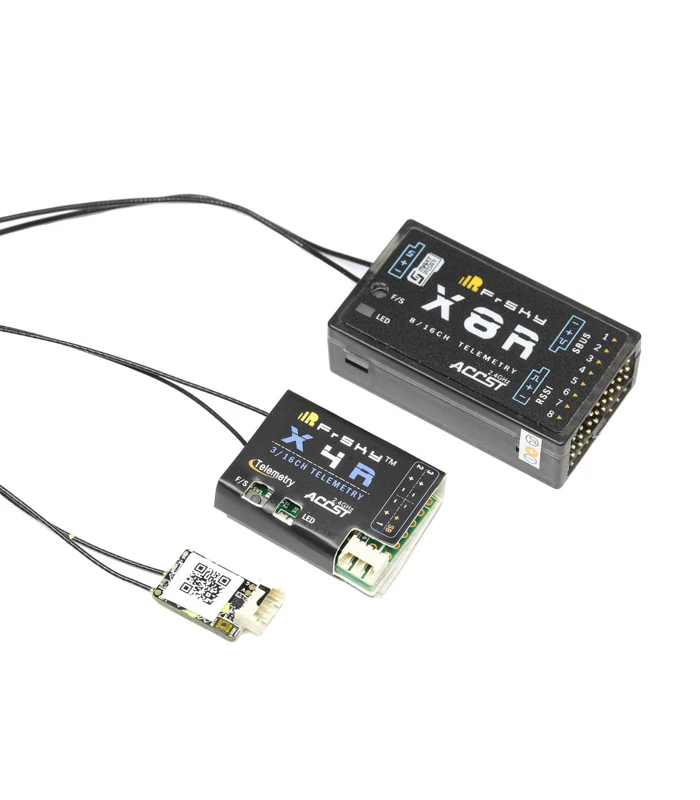

FrSky XSR Rx Familyย Comparison Table:


Specification
  • Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
  • Operating Voltage Range: 3.5V~10V
  • Operating Current: 70mA@5V
  • Firmware Upgradable
  • Compatibility: FrSky X Series modules and radios in D16 mode (EU LBT firmware)

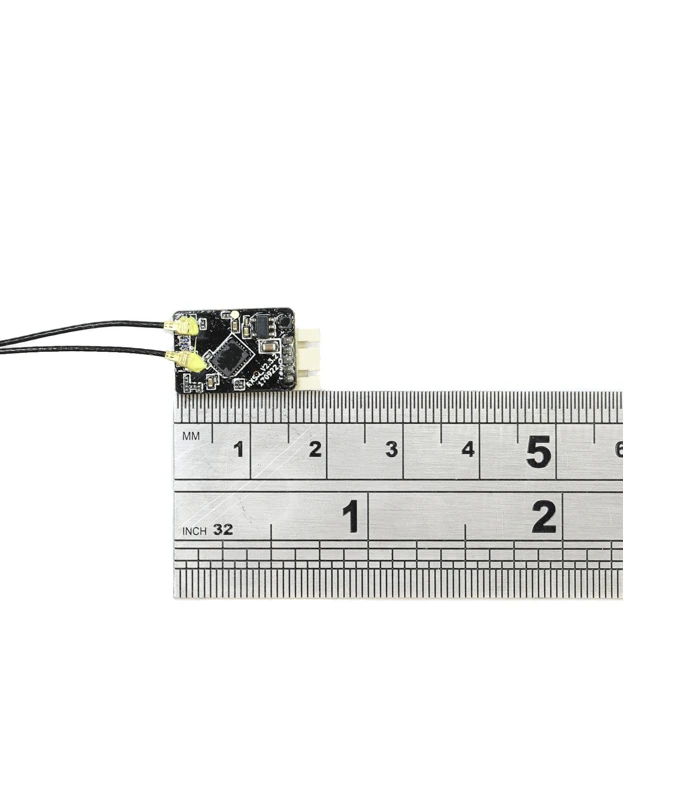

  • Dimension: 16x11x5.4mm (LxWxH)
  • Weight: 1.5g

Inclueded:

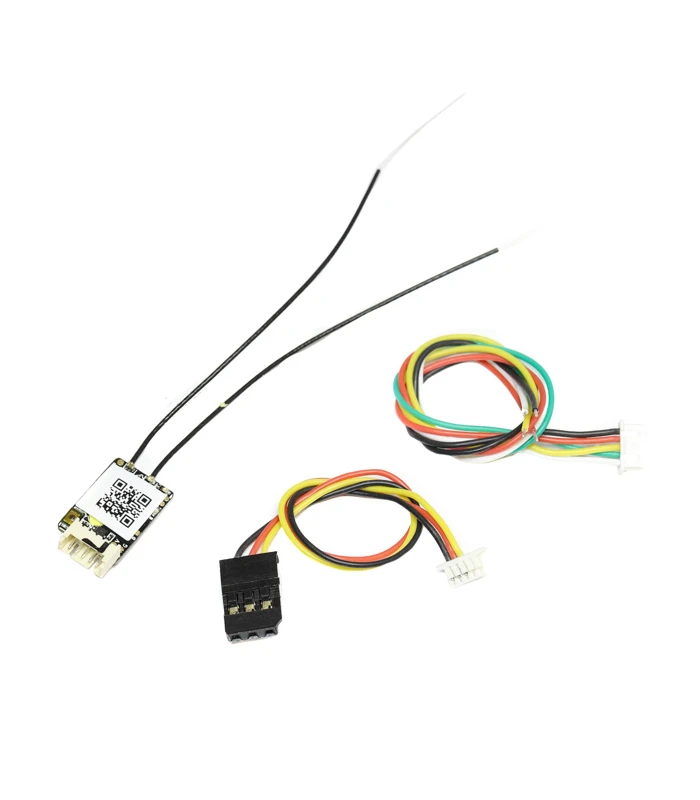

  • 1xย FrSky R-XSR 2.4GHz 16CH ACCST Receiver
Downloads
Manual (pdf, 3373KB)
1.9 Firmware (zip, 514KB)
