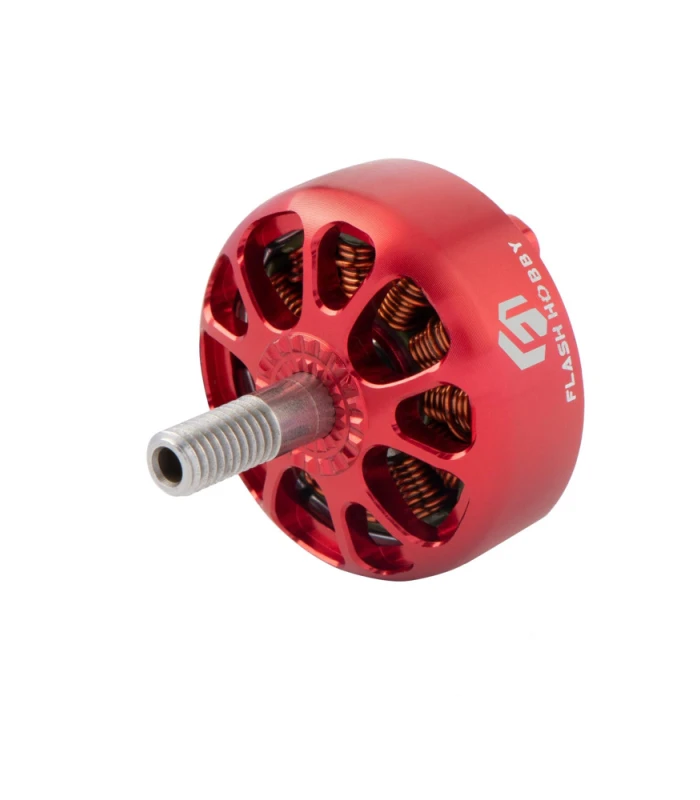

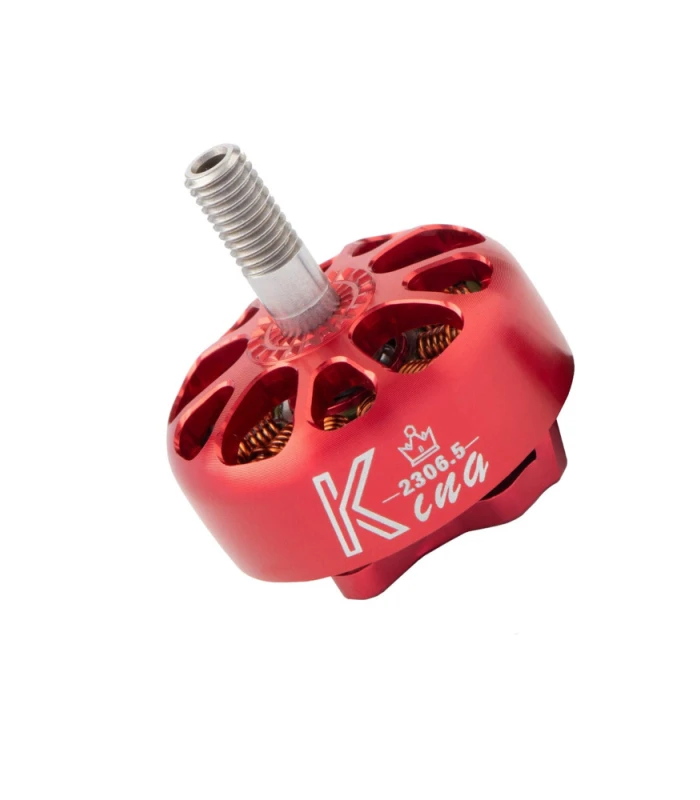

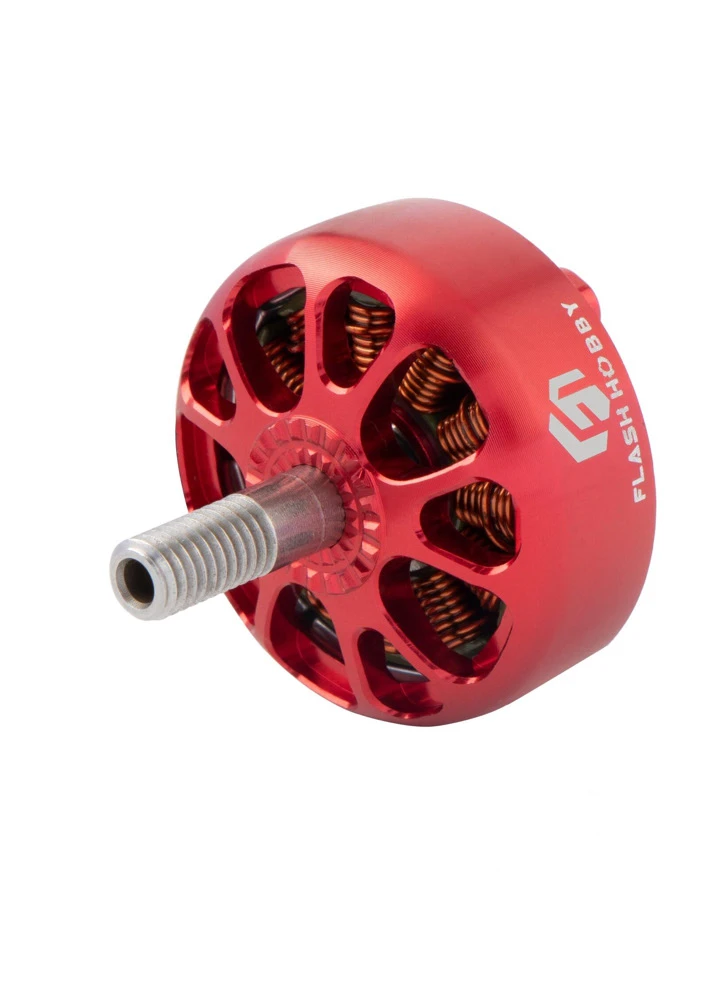

FlashHobby King K2306.5 Brushless Motor (1900KV, 2300KV, 2550KV)

£13.70 Inc. VAT

A wallet friendly motor that is ideal for first builds and freestyle quads. Available in 1900KV, 2300KV or 2550KV options.

Motor KV	Clear

0 People watching this product now!

Description

Give your quad maximum power with the FlashHobby King K2306.5 motor! Some might call them a budget motor, in our book no bad thing, especially as the quality is good for the money. It’s a motor series that is ideal for freestyle builds and those learning; save those expensive top quality motors for those builds you are more precision about.

Available in 1900KV, 2300KV, or 2550KV options. 2306.5 1900 is suitable for 6S power and the other motors in the series are best for 3-4S drones.

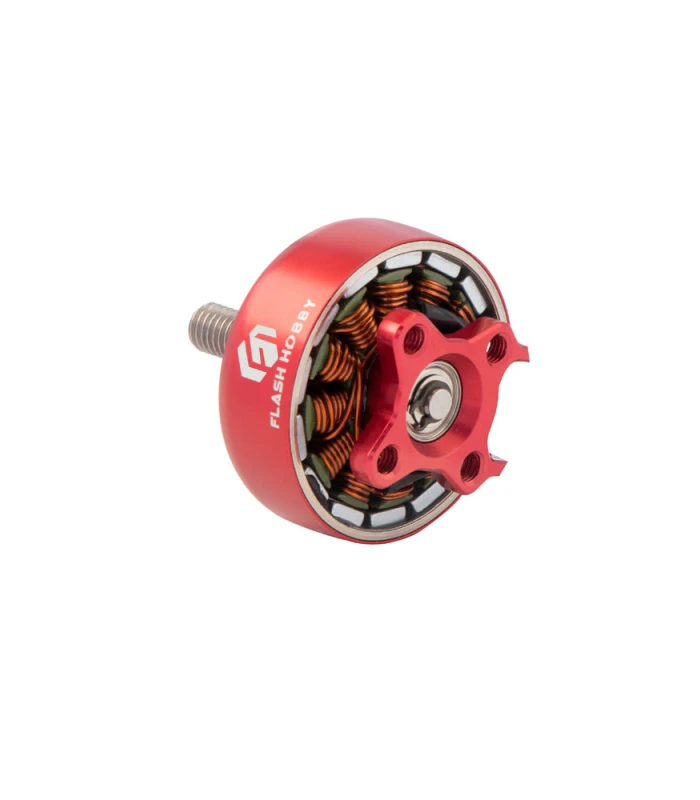

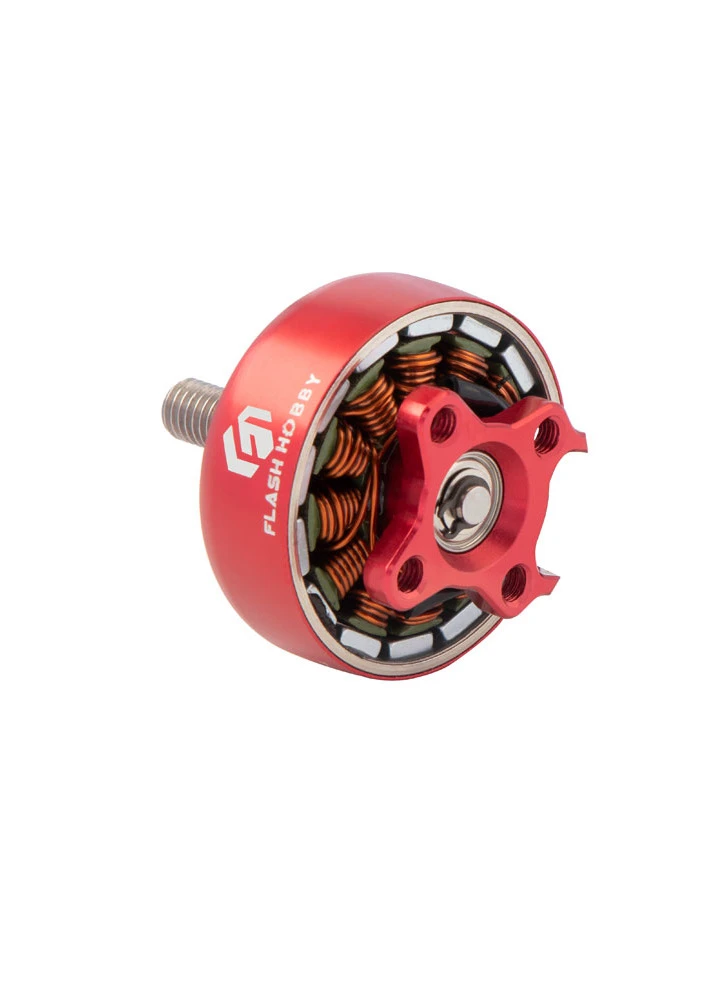

The motor has 5mm threaded prop shaft and it uses the standard M3 16mmx16mm mounting pattern, making it compatible with most quad frames on market.

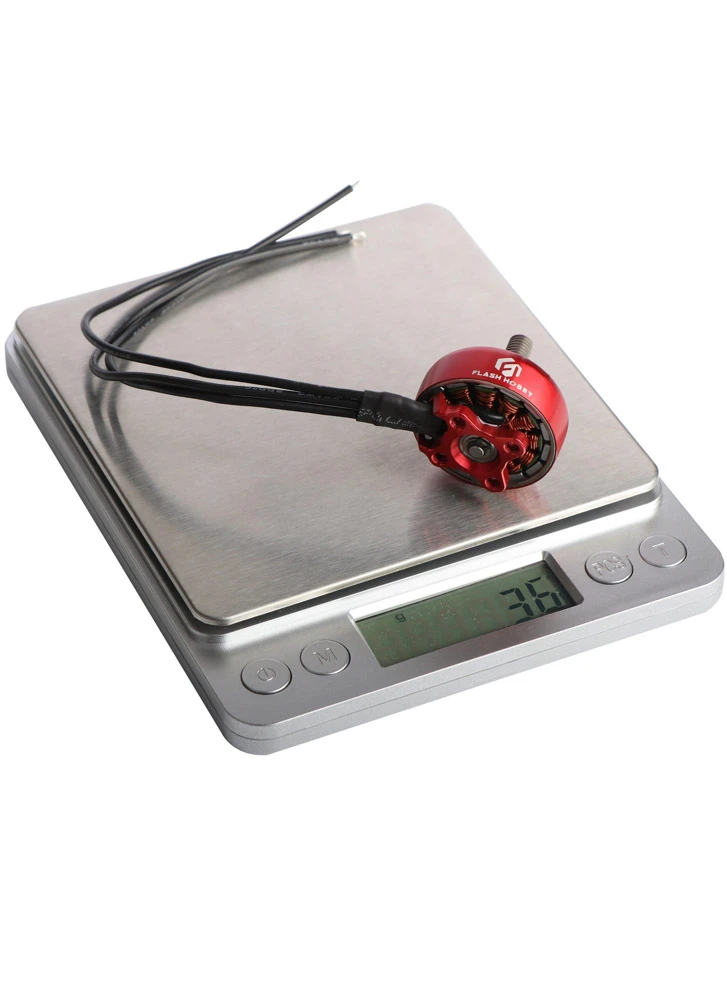

Weight: 36g (including the cables)

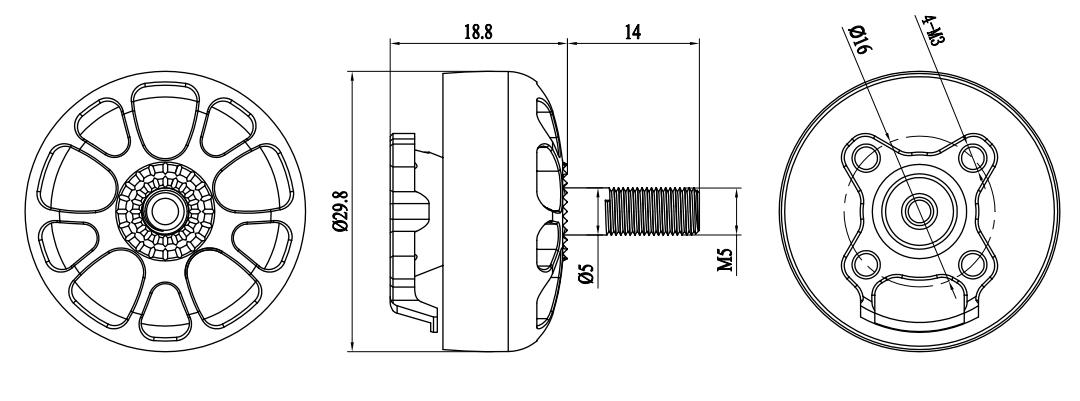

Motor Size:29.8 x 18.8mm
Stator Diameter: 23mm
Stator Height: 6mm
Shaft Diameter: 3mm
Mounting Screw Pattern: 16x16mm(M3*4)
Configuration: 12N14P
Motor Cable: 20#AWG 150mm
NSK Bearing
6082 Aluminium bell
KV Value: 1900KV, 2300KV, 2550KV
Recommend: 5~6 inch prop application

ltem NO.	Volts(V)	Prop	Throttle(%)	Current(A)	Power(W)	Thrust (g)	Efficiency (g/W)	Operating temperature(℃)
K2306.5 1900kv	GF5040 2R	50%	24.27	7.43	180.3	521	2.89	58.1℃
		60%	24.54	11.35	278.5	748	2.69
		70%	24.51	14.59	357.6	962	2.69
		80%	24	18.67	448.1	1245	2.78
		90%	23.83	24.01	572.2	1460	2.55
		100%	24.16	23.74	573.6	1447	2.52
K2306.5 1900kv	GF5047 3R	50%	25.17	9.26	233.1	591	2.54	78.1℃
		60%	25.74	14.05	361.6	842	2.33
		70%	24.24	16.78	406.7	1087	2.67
		80%	24.24	24.95	604.8	1339	2.21
		90%	24.24	33.2	804.8	1532	1.90
		100%	24.41	32.25	787.2	1493	1.90
K2306.5 1900kv	GF5143 3R	50%	25.19	8.51	214.4	571	2.66	76℃
		60%	25.55	13.31	340.1	822	2.42
		70%	24.68	16.17	399.1	1067	2.67
		80%	24.13	23.33	563.0	1338	2.38
		90%	24.19	30.9	747.5	1544	2.07
		100%	24.32	30.29	736.7	1512	2.05
K2306.5 1900kv	GF6040 3R	50%	23.7	8.45	200.3	641	3.20	76.8℃
		60%	24.76	13.18	326.3	928	2.84
		70%	24.98	16.3	407.2	1210	2.97
		80%	23.64	22.99	543.5	1484	2.73
		90%	23.84	30.16	719.0	1645	2.29
		100%	23.89	29.55	705.9	1617	2.29
K2306.5 2300kv	GF5040 2R	50%	16.42	4.39	72.1	390	5.41	46.6℃
		60%	16.28	7.03	114.4	537	4.69
		70%	16.17	11.42	184.7	707	3.83
		80%	15.84	15.56	246.5	860	3.49
		90%	16.2	20.36	329.8	1008	3.06
		100%	15.79	20.43	322.6	1009	3.13
K2306.5 2300kv	GF5143 3R	50%	16.42	4.99	81.9	415	5.06	50℃
		60%	16.23	8.51	138.1	582	4.21
		70%	16.06	13.51	217.0	769	3.54
		80%	15.95	19.28	307.5	954	3.10
		90%	15.57	24.95	388.5	1106	2.85
		100%	15.98	24.68	394.4	1096	2.78
K2306.5 2300kv	GF6045 3R	50%	16.06	6.42	103.1	549	5.32	58.3℃
		60%	16.33	11.62	189.8	740	3.90
		70%	16.28	17.25	280.8	937	3.34
		80%	15.25	24.28	370.3	1131	3.05
		90%	16.03	31.1	498.5	1280	2.57
		100%	15.9	30.49	484.8	1255	2.59
K2306.5 2300kv	GF5040 2R	50%	20.57	7.03	144.6	537	3.71	58.8℃
		60%	21.17	11.69	247.5	757	3.06
		70%	20.17	15.97	322.1	947	2.94
		80%	20.08	21.91	440.0	1195	2.72
		90%	19.7	28.13	554.2	1385	2.50
		100%	19.87	27.86	553.6	1368	2.47
K2306.5 2300kv	GF5047 3R	50%	20.27	9.19	186.3	604	3.24	76.1℃
		60%	20.63	15	309.5	844	2.73
		70%	21.17	20.02	423.8	1054	2.49
		80%	20.68	28.53	590.0	1262	2.14
		90%	20.22	36.84	744.9	1433	1.92
		100%	20	35.97	719.4	1402	1.95
K2306.5 2300kv	GF5143 3R	50%	20.74	8.85	183.5	595	3.24	71.1℃
		60%	20.93	14.59	305.4	844	2.76
		70%	20.41	18.8	383.7	1061	2.77
		80%	20.6	27.05	557.2	1295	2.32
		90%	19.79	34.75	687.7	1476	2.15
		100%	19.95	34.28	683.9	1454	2.13
K2306.5 2300kv	GF6040 3R	50%	20.49	9.12	186.9	681	3.64	77.5℃
		60%	20.74	14.8	307.0	962	3.13
		70%	20.38	19.41	395.6	1209	3.06
		80%	20.63	27.52	567.7	1460	2.57
		90%	19.89	34.82	692.6	1602	2.31
		100%	20.33	34.21	695.5	1577	2.27
K2306.5 2550kv	GF5040 2R	50%	16.17	5.95	96.2	464	4.82	48.2℃
		60%	16.33	10.2	166.6	635	3.81
		70%	16.31	15.43	251.7	816	3.24
		80%	16.12	20.7	333.7	995	2.98
		90%	15.93	26.64	424.4	1159	2.73
		100%	16.12	26.64	429.4	1155	2.69
K2306.5 2550kv	GF5047 3R	50%	16.14	7.57	122.2	521	4.26	57.9℃
		60%	16.74	13.24	221.6	710	3.20
		70%	16.42	19.95	327.6	908	2.77
		80%	16.31	27.11	442.2	1087	2.46
		90%	15.44	34.55	533.5	1232	2.31
		100%	15.98	34.41	549.9	1223	2.22
K2306.5 2550kv	GF5143 3R	50%	16.06	6.76	108.6	495	4.56	53.2℃
		60%	16.25	12.09	196.5	689	3.51
		70%	16.55	18.47	305.7	898	2.94
		80%	16.63	25.02	416.1	1074	2.58
		90%	15.38	32.25	496.0	1241	2.50
		100%	15.87	32.18	510.7	1235	2.42
K2306.5 2550kv	GF6040 3R	50%	16.14	7.3	117.8	575	4.88	58.9℃
		60%	16.31	12.57	205.0	784	3.82
		70%	16.2	19.28	312.3	1028	3.29
		80%	16.47	25.83	425.4	1234	2.90
		90%	15.52	33.06	513.1	1415	2.76
		100%	16.17	32.86	531.3	1406	2.65
A2306.5 2550kv	GF6045 3R	50%	16.23	9.19	149.2	640	4.29	66℃
		60%	16.23	15.09	244.9	840	3.43
		70%	15.57	22.99	358.0	1070	2.99
		80%	16.12	31.44	506.8	1265	2.50
		90%	16.99	39.68	674.2	1414	2.10
		100%	16.31	39.14	638.4	1392	2.18

Specification

K2306.5 1900kV:

Max pull: 1617g (6S/GF6040 3R）
Volts: DC16~25.0 V/Li-Po(4-6S)
No Load Current/Maximum Load Curren: 1.01A/23.89A
No Load Speed(RPM: 0~1900PRM/1v
Maximum Power: 705.9W

K2306.5 2300kV:

Max pull:c1577g (4S/GF6040 3R）
Volts: DC12~24V/Li-Po (3-4S）
No Load Current/Maximum Load Curren: 1.79A/34.21A
No Load Speed(RPM): 0~2300PRM/1v
Maximum Power: 695.5W

K2306.5-2550KV

Max pull: 1406g (4S/GF60403R ）
Volts: DC12~16.8 V/ Li-Po(3-4S）
No Load Current/Maximum Load Curren: 1.65A/32.86A
No Load Speed(RPM): 0~2550PRM/1v
Maximum Power: 531.3W
