DYS BX1306 Brushless Motor CW/CCW Set

£20.00 Inc. VAT

BX-series brushless motors have been designed specifically for mini quads. Pick between 2300KV and 3100KV models.

Motor KV	Clear

Compare

0 People watching this product now!

SKU: N/A Categories: Mini Quad Motors (11XX-28XX), Motors, Brushless Motors Tags: 180, 3S, Brushless Motor, Mini Quad, Motor, Racing Drone

Description

The DYS BX-series brushless motors have been designed specifically for mini quads. All of the BX-series motors feature an integrated one-piece CNC motor housing and prop shaft design. This does away with the need for a separate prop adapter; the result being a lighter, stronger and more compact motor. While they are small, they pack in a lot of performance. For example, the BX1306 only weighs 12g but it can produce up to 350g of thrust (3100KV Version). The BX motors also deliver on price, they come packaged as a set of 2 motors, one CW rotation and one CCW rotation with matching prop nuts. Also included with the set is 2mm bullet connectors and matching mounting hardware.

The BX1306 2300KV is suitable for mini quads around the 180 – 250 size. It’s rated at 2-3S and matched well with a 5-6 inch props.

The BX1306 3100KV is ideal for small 180~220mm multirotors and 4~5 inch props.

Motor Dimensions

Specification

Rpm/V: 2300kv
Voltage: 2S~3S (7.4v to 11.1v)
Watts: 63.3W
Max Current: 5.7A
ESC: 6amp to 10amp
Suggested Prop: 5030 / 6020
Shaft: 2mm main shaft and 5mm prop shaft
Motor Mount Holes: M2 x 12mm
Dimensions: 18 × 15mm
Weight: 12g
Colour: Black

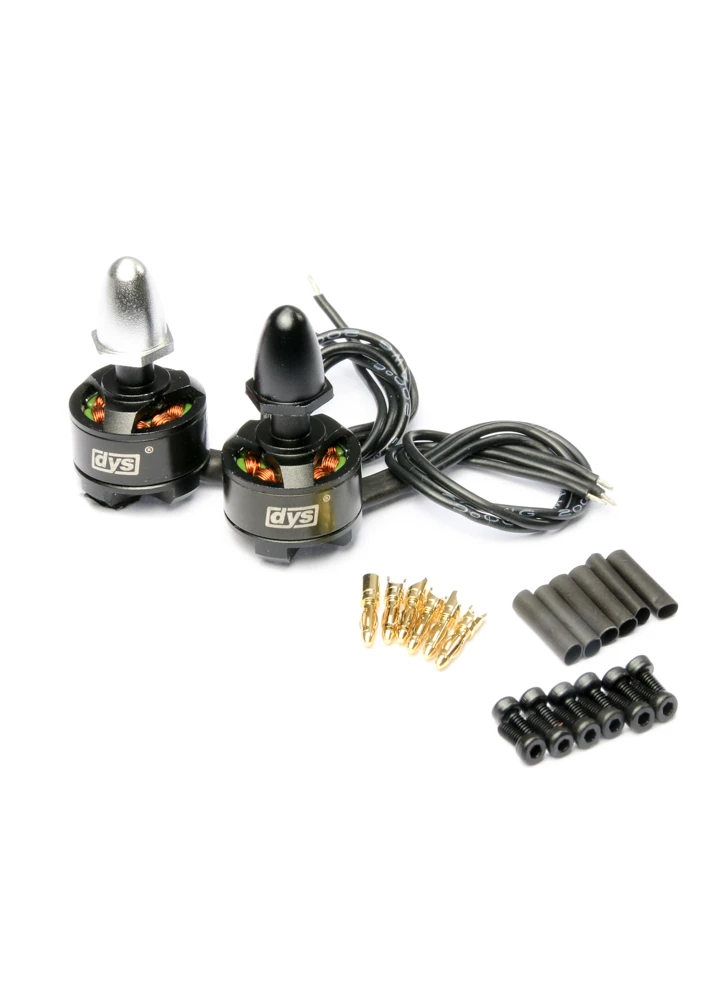

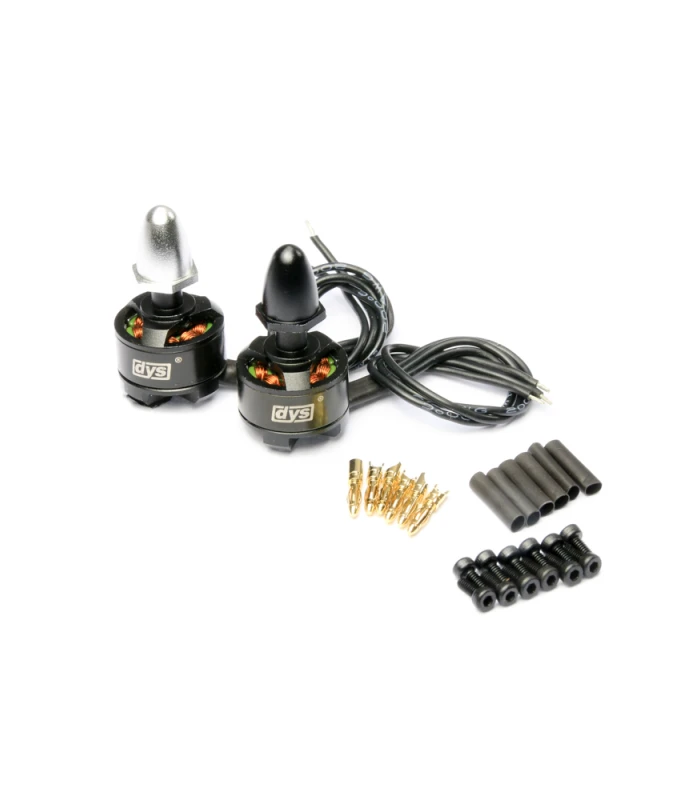

Included:

2 BX1306 1 CW /1 CCW
2 Prop nuts
Bullet conectors 2mm
Mounting hardware

Downloads

2300KV Data Sheet (png, 128KB)

Download

Dimensions (jpg, 54KB)

Download

3100KV Data Sheet (jpg, 50KB)

Download
