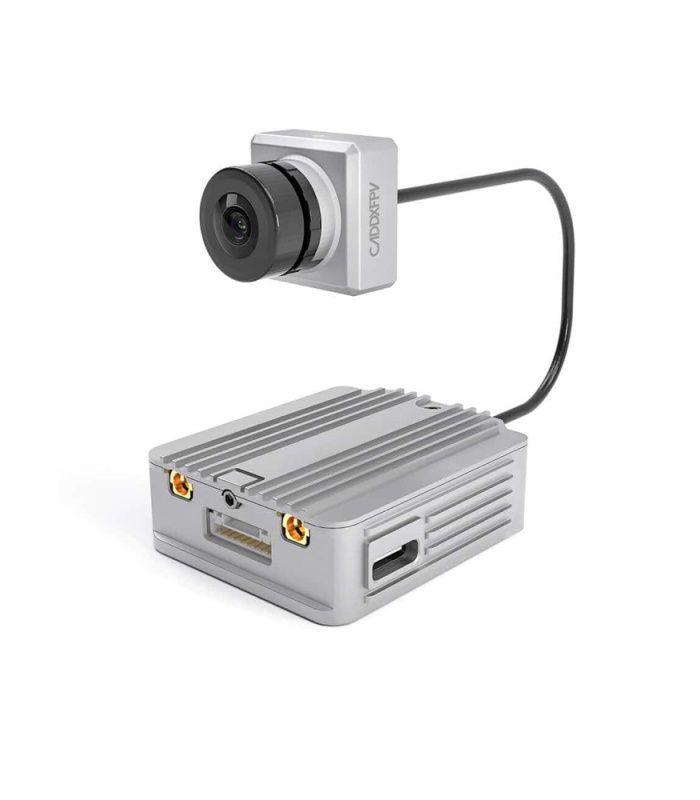

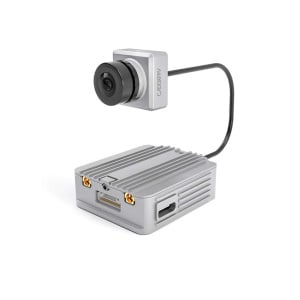

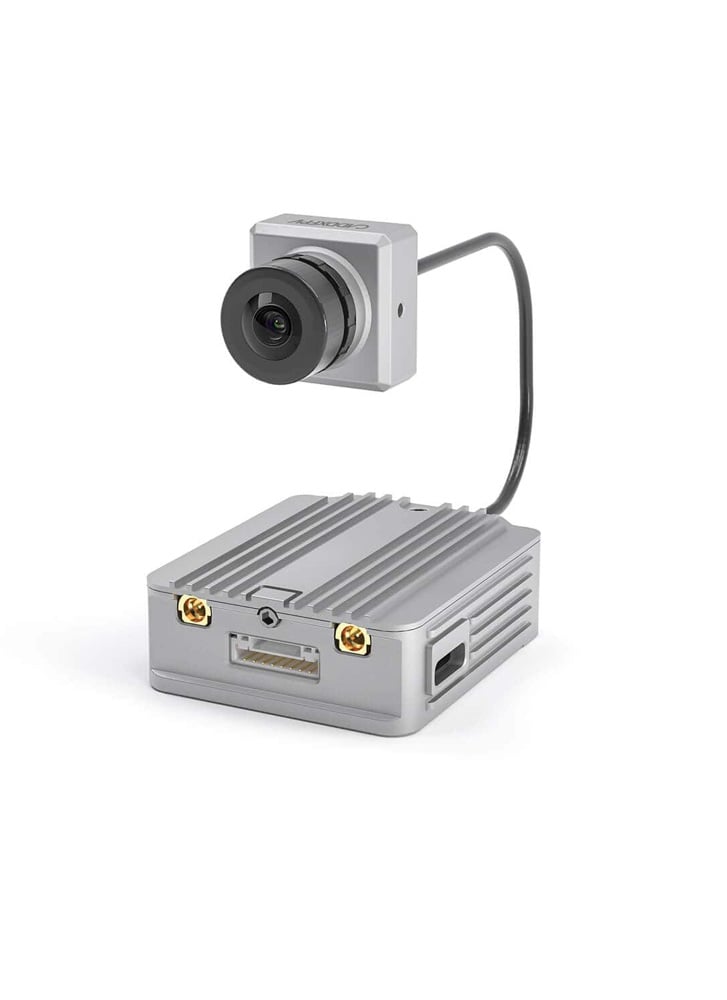

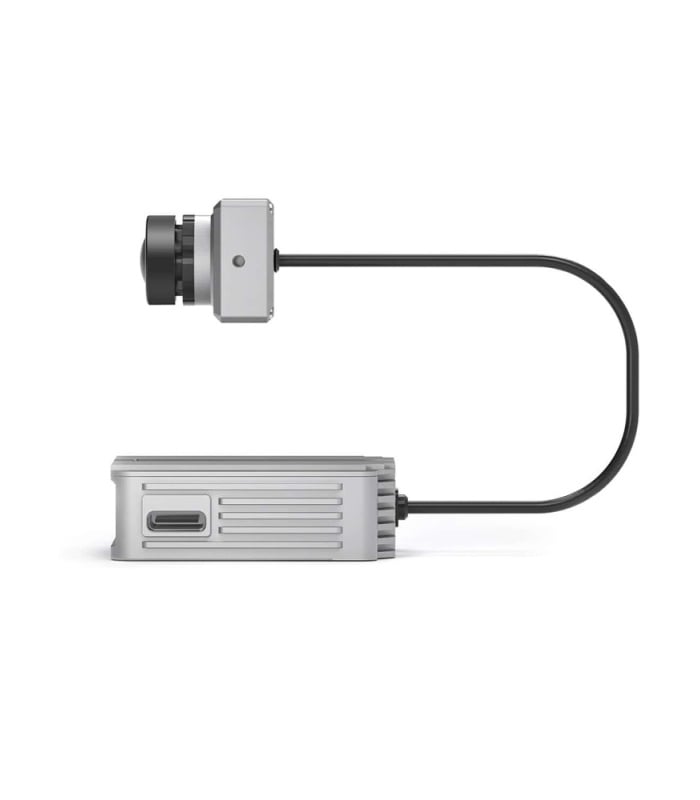

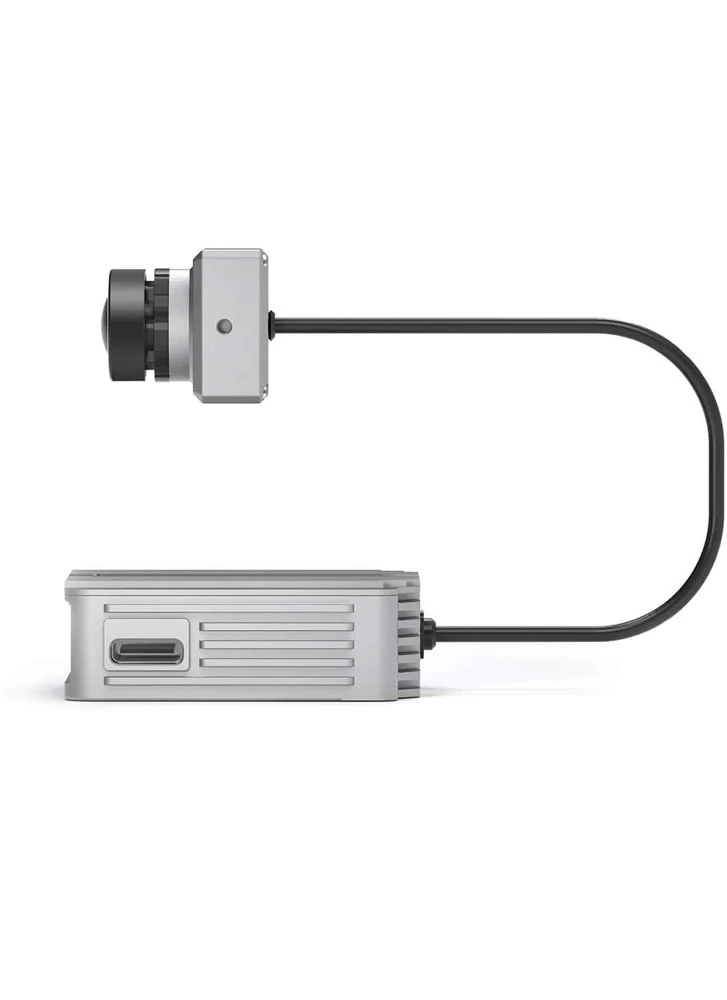

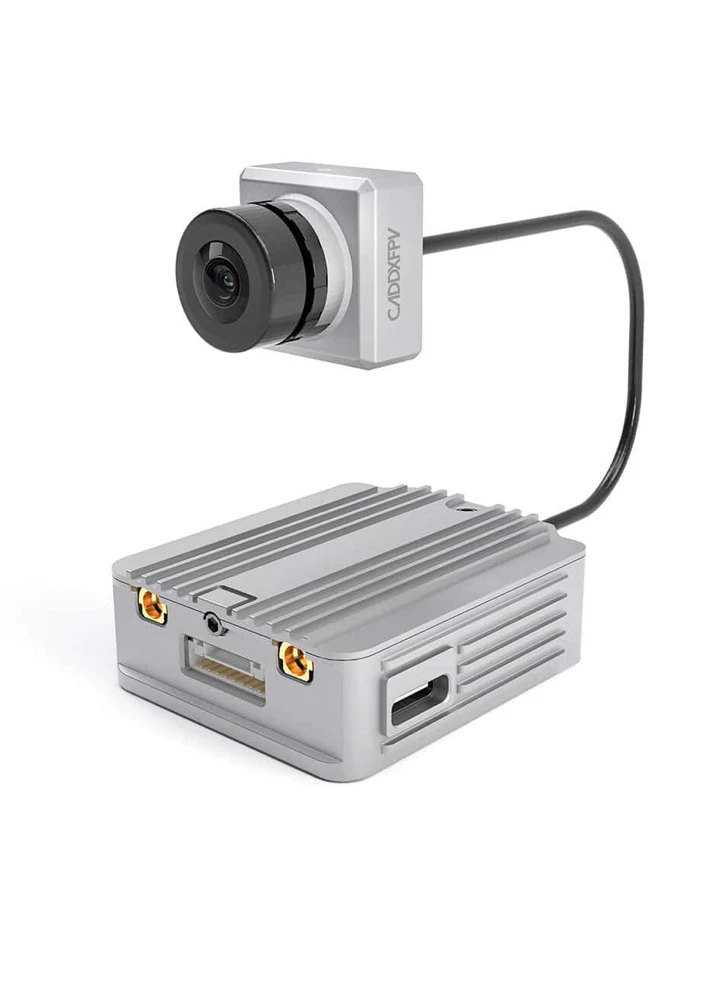

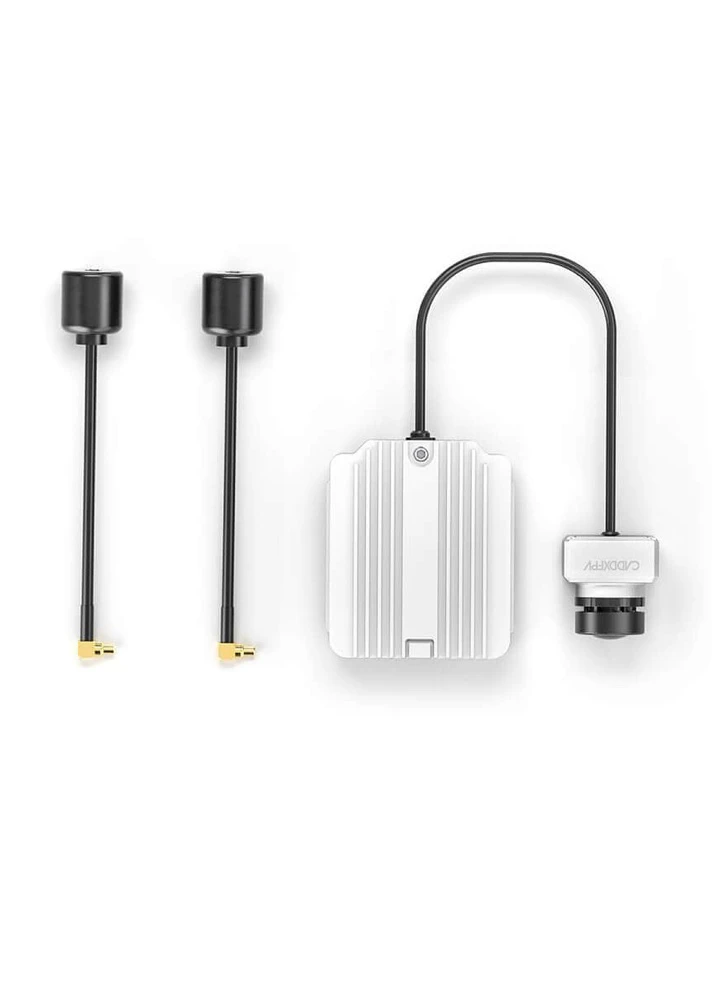

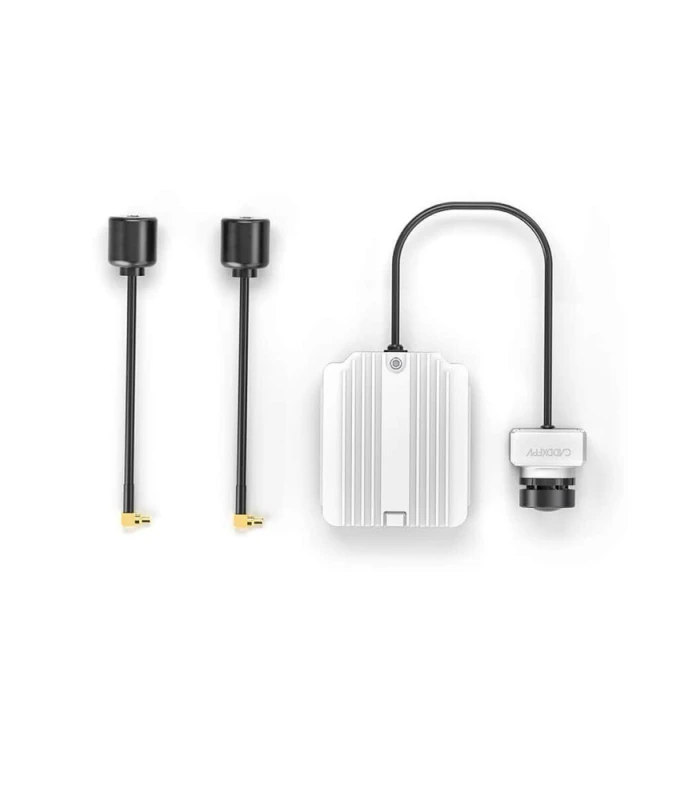

Discontinued: Caddx Air Unit Micro Version for DJI Digital HD FPV System

Name: Discontinued: Caddx Air Unit Micro Version for DJI Digital HD FPV System - Flying Tech
Brand: CaddxFPV
SKU: HD-FPV-CDXAIRMIC

Caddx’s version of the original DJI Air Unit set.

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the Privacy policy

Compare

0 People watching this product now!

SKU: HD-FPV-CDXAIRMIC Categories: VTX Air Units, FPV, Digital FPV, DJI HD FPV Tags: Air Unit, Camera, DJI, FPV, HD

Description

This product is now discontinued. For an alternative please see other DJI Compatible Air Units.

The Caddx Air Unit Micro Version is a replacement for the DJI Air Unit. With a micro-sized 19×19 camera, the Caddx Air Unit has all the features and performance of the original.

The FPV Air Unit features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording, and eight frequency channels, allowing eight pilots to fly simultaneously.

Compatible with DJI’s Digital FPV Goggles, the Air Unit (Digital VTX + HD FPV Camera) provides amazingly clear video, low latency, and even a built-in 1080P/60 FPS DVR. The Air Unit is also compatible with the DJI FPV Remote Controller.

Features

4-in1 Closed Loop control for the DJI FPV RC
Embedded remote controller receiver
8 Channels for up to 8 Drones
Multi-antenna technology
1080p Aerial Footage
Micro Sized

Specification

Weight:
- Air Unit: 41.6g
- Antenna: 3.7g(MMCX Straight) 3.9g (MMCX Elbow) 6g (reverse polarity female SMA)
Operating Temperature: 32 to 104 F (0 to 40 C)Input Power: 7.4-17.6V
Transmitter Power: FCC/SRRC: <30dBm CE: <14dBm
I/O Interface: USB-C, MMCX, 3-in1 Port, MicroSD
Output Power: 25mW3200mW/500mW/700mW
Video Transmission: 28ms Low Latency
Dimensions:
- Air Unit: 44×37.8×14.4mm
- Camera:20.7x19x19mm
Flight Control System: BetaFlight
Max Transmission Range: 4km
Coaxial Cable Length: 100mm
FOV: 150(D); 122(H); 93(V)
Goggle Compatibility: DJI
Closed Loop 4-in-1: Yes
Frequency Channels: 8
Shutter: Rolling Shutter
Sensor: 1/3.2″ CMOS
Effective Pixels: 4 M
Image: 720p/120fps
Video Format: MP4
Video: 1080p/60fps
Lens: 2.1mm, F/21
ISO: 100-256000

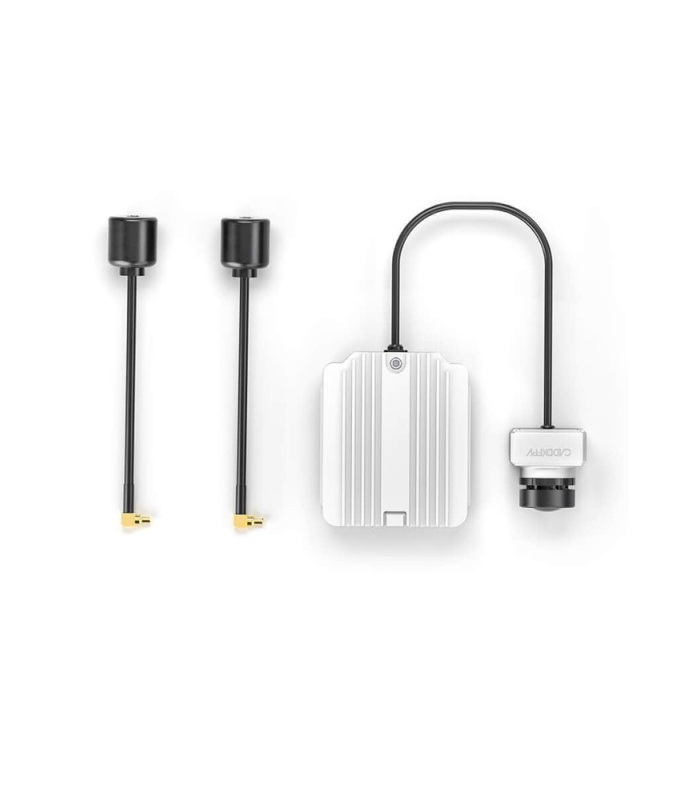

Included:

1x Caddx Air Unit Micro Version
1x 3-in1 Cable/Coaxial/Antenna
1x M2 Screws
