BetaFPV BT2.0 Connectors

£0.90£7.65 Inc. VAT

BetaFPV BT2.0 Connectors designed for Tiny Whoops.

0 People watching this product now!
SKU: N/A Categories: , Tags: , ,
Description

Introducing the most significant revolution in Tiny Whoop power trains – the all new BT2.0 connector from BetaFPV. Say goodbye to bottlenecks and current throttling; this custom designed 1mm bullet connector can safely carry up to 9A continuous, with a burst rating of 15A.

The increased cross-sectional area of the bullet compared to the tiny pins in a JST-PH connector means lowered internal resistance, which means less voltage drop, which means more power and longer flight times!

At just 0.34g per connector on the ESC side, and 0.24g per connector on the battery side, you don’t need to worry about being weighed down.

This graph shows a comparison between BT2.0 connector and PH2.0 connector for a BETAFPV 1S 300mAh battery. The discharge current is 9A in this testing. It shows using the BT2.0 connector has achieved double the flight time (about 2minutes) in comparison to using the PH2.0 connector.

BT2.0 vs. PH2.0We sell these connectors individually and lso as a pack of 5 male and 5 female, so you can easily upgrade your existing Whoops and batteries!

BT2.0 Connector SizeBT2.0 Wiring PosNeg

Specification
  • Current Rating: 9A continuous / burst rating of 15A.

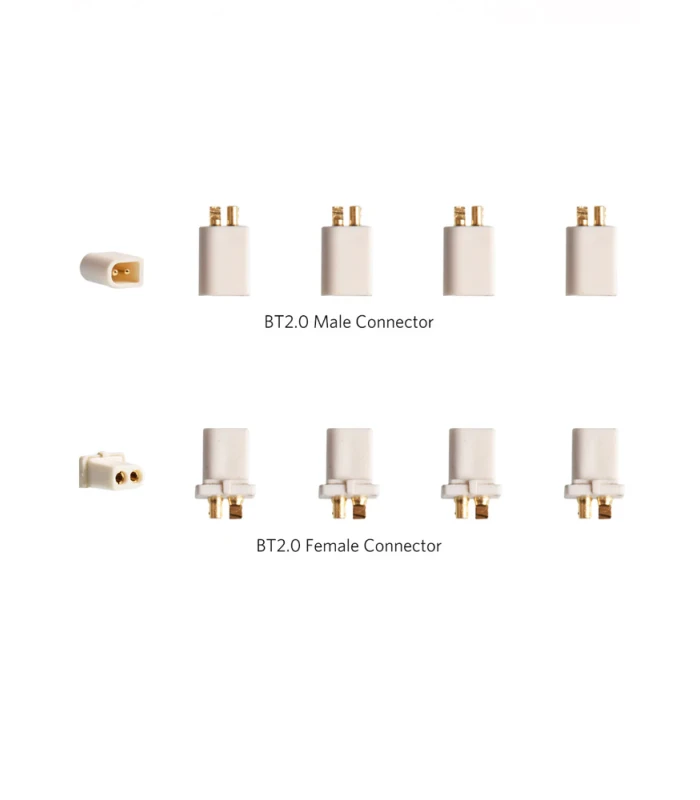

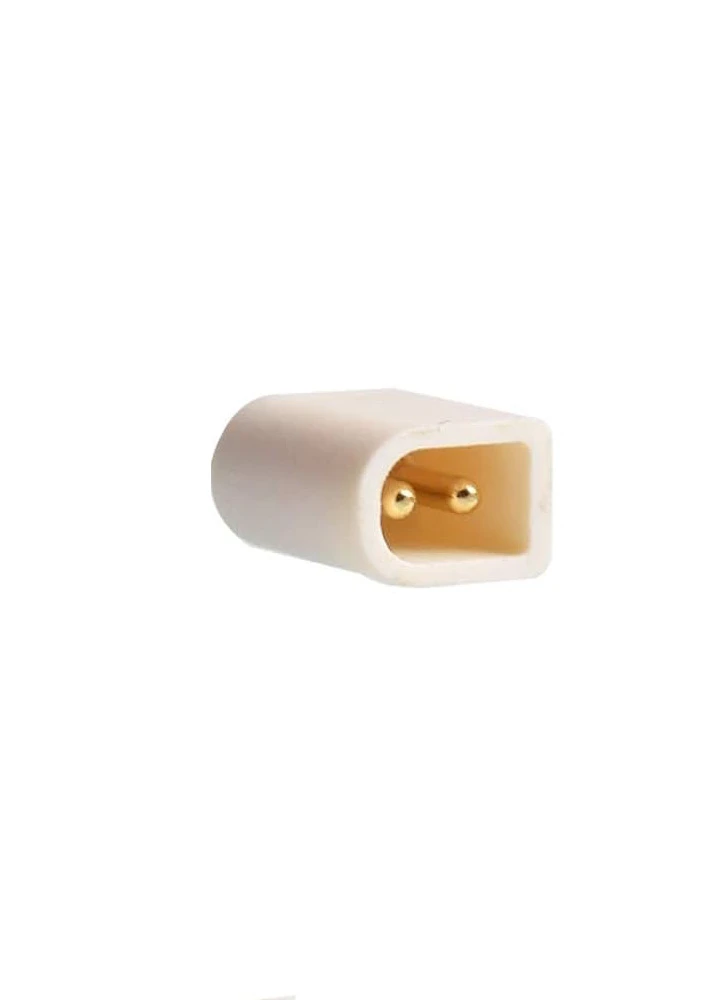

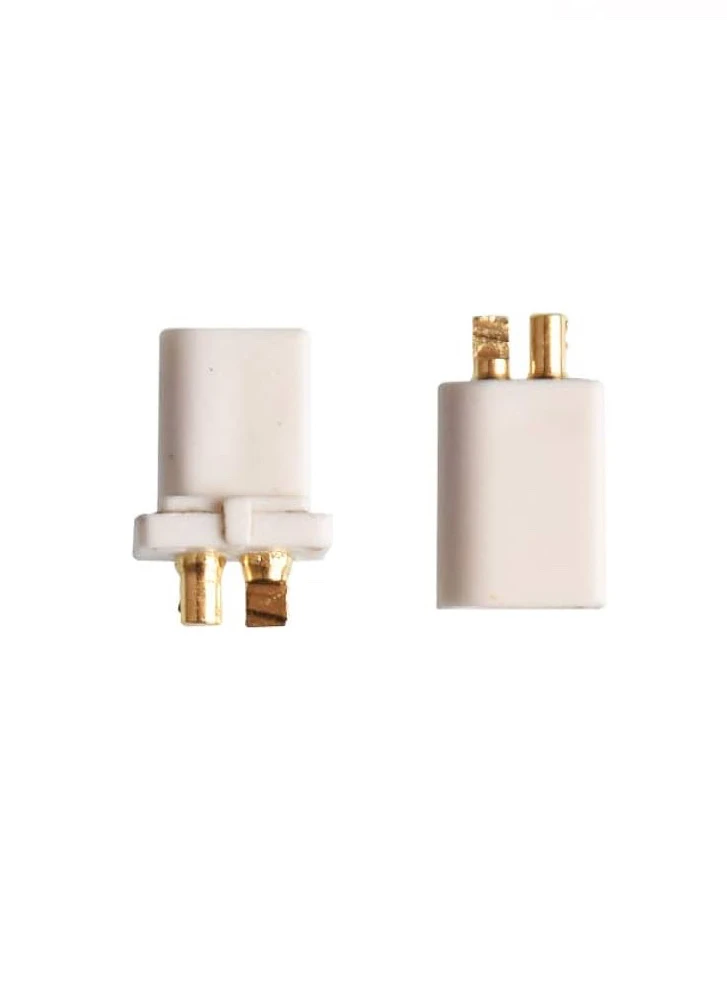

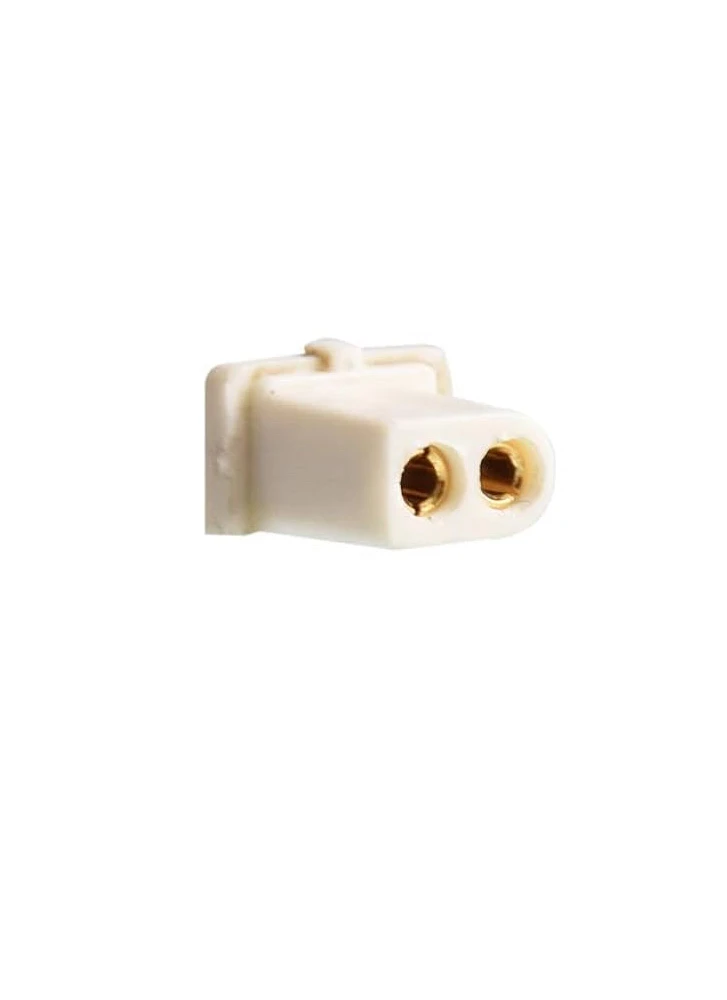

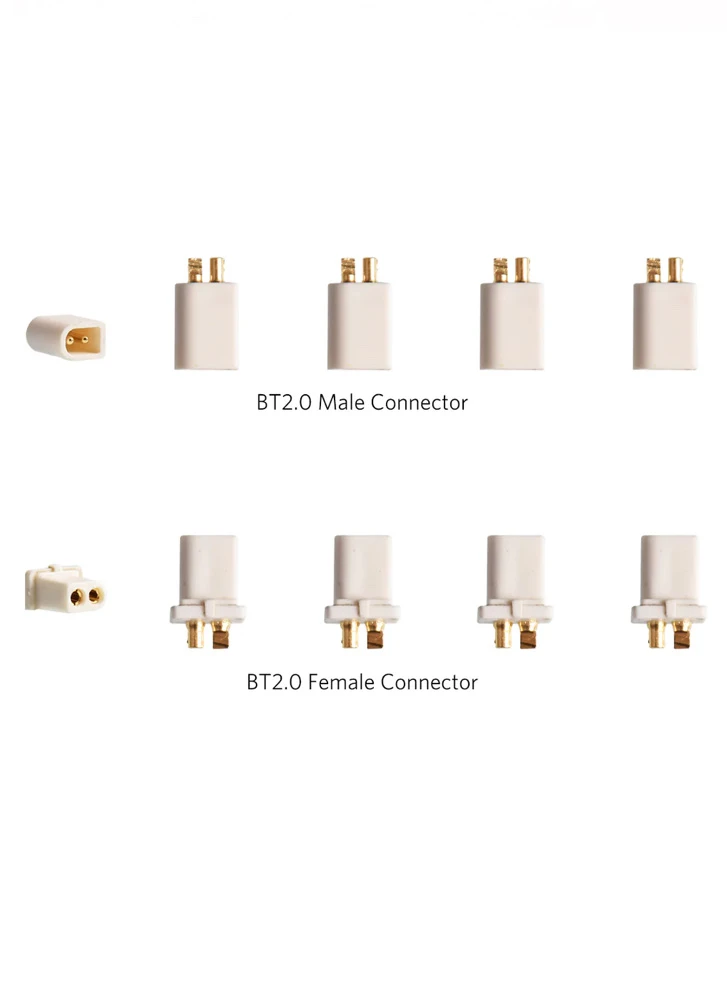

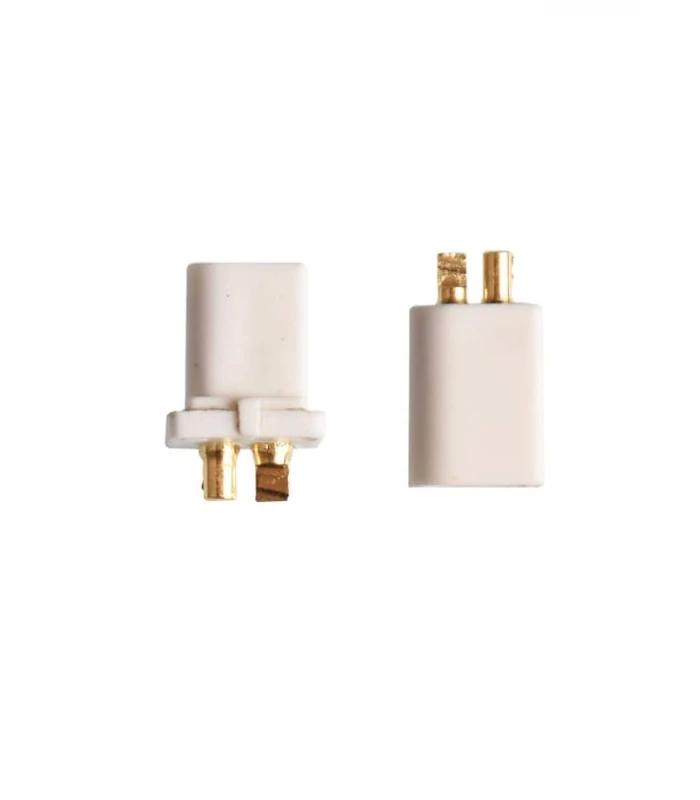

  • Size: Male Connector – 6.0×4.2×0.5mm / Female Connector – 6.0×4.2×8.3mm
  • Weight: Male Connector 0.34g / Female Connector 0.24g
Videos
Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

Choosing the right connector:ย There is a massive array of connectors on the market and they are not universally suitable for all multicopters. In basic terms, a connector is a device used to connect two or more electrical elements in order to allow current to flow from one to the other. In reality this could be achieved without a connector, so this correctly implies that there are other requirements. Technical requirements such as, current rating, resistance, and reliability should principally guide your choice; however personal preference based on ease of use/soldering, past experience and recommendations is usually the deciding factor. There are 2 main kinds of connectors, those that have the electrical contacts covered, or housed, and those that are exposed. Housed connectors include connectors like Deans and exposed are like bullets. While housed connectors are marginally heavier, they are safer as their shielding helps to prevent electrical shorts. Bare connectors can be made safer by applying heat shrink. Another advantage of housed connectors is that they typically prevent you mixing up the polarities and shorting the battery. Connector choice is most critical for high current applications, it’s best to err on the side of caution when it comes to current rating. Always remember that there is no problem with using a larger connector than is required, apart from added weight and cost. Generally speaking small JST connectors are used to connect auxiliaries (BECs, LEDs etc), while 3.5mm bullets are often employed to connect ESCs to Motors. Finally, Deans, EC3s, XT60s, HXT 3.5mm are generally used for mid current applications, while 5.5mm bullets, EC5s and XT90s for high current applications.
