BDI Patch G2 Plug & Play Foldable Antenna for the DJI Goggles 2

Name: BDI Patch G2 Plug & Play Foldable Antenna for the DJI Goggles 2 - Flying Tech
Brand: British Drone Industries (BDI)
SKU: HD-FPV-BDIG2ANT
Price: 56.99 GBP
Availability: InStock

£56.99 Inc. VAT

Upgrade antenna for the DJI FPV Goggles 2.

In stock

Compare

0 People watching this product now!

SKU: HD-FPV-BDIG2ANT Categories: Digital FPV Antennas, Digital FPV, DJI HD FPV, FPV Tags: Antenna, DJI FPV

Description

Extended range – Zero connector cycles – UIltimate performance

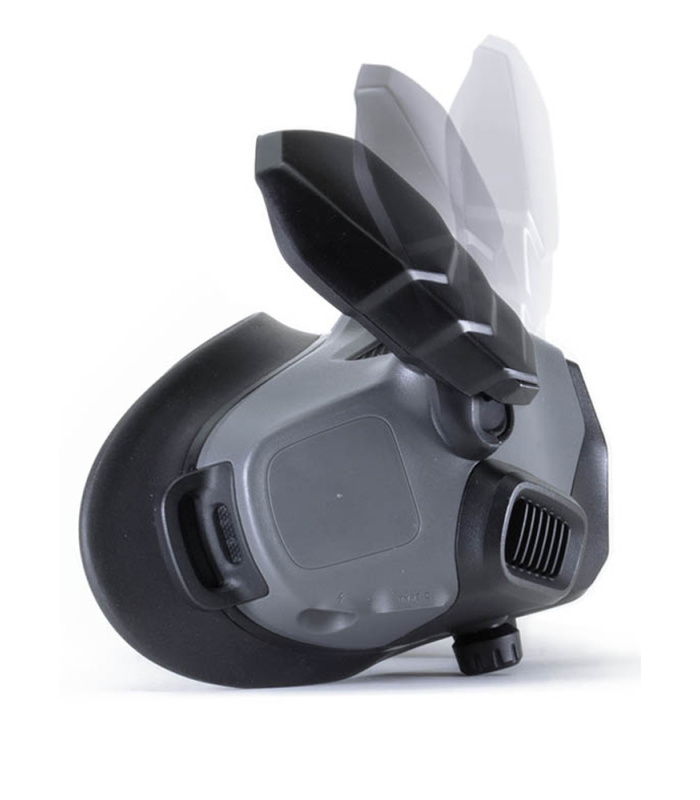

Ready to go at a moments notice: A Unique pivoting design enables instant deployment and storage of the antenna, whilst saving excessive cycling of the MCX connectors.

Adjustable Position: Ultra smooth adjustable friction PTFE ball and socket allows for pilot specific pan and tilt positioning for optimal signal reception.

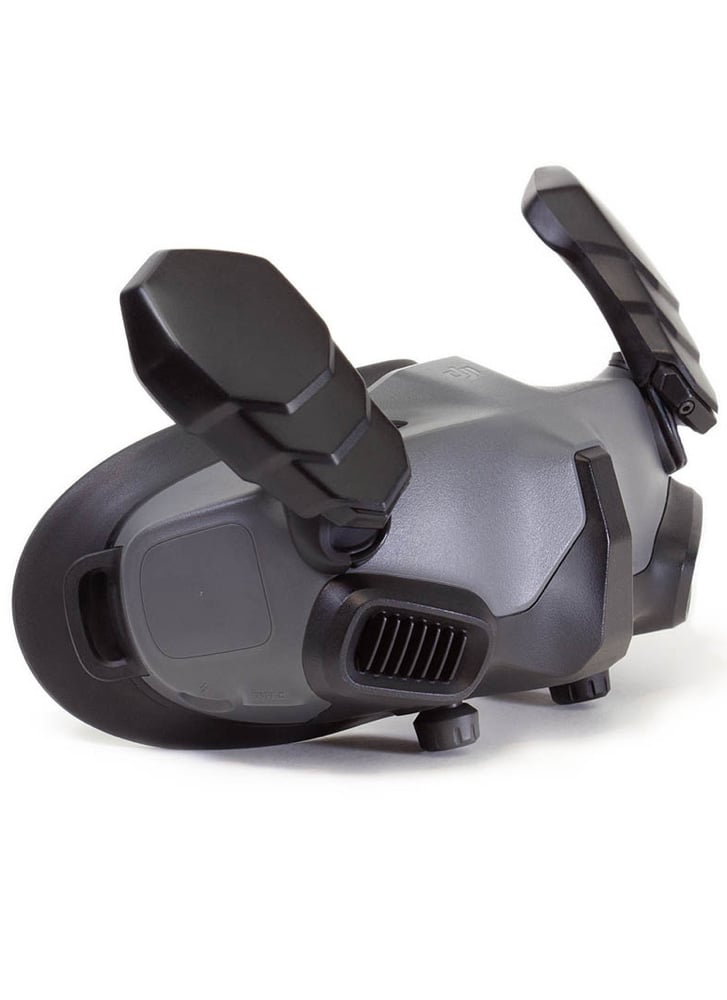

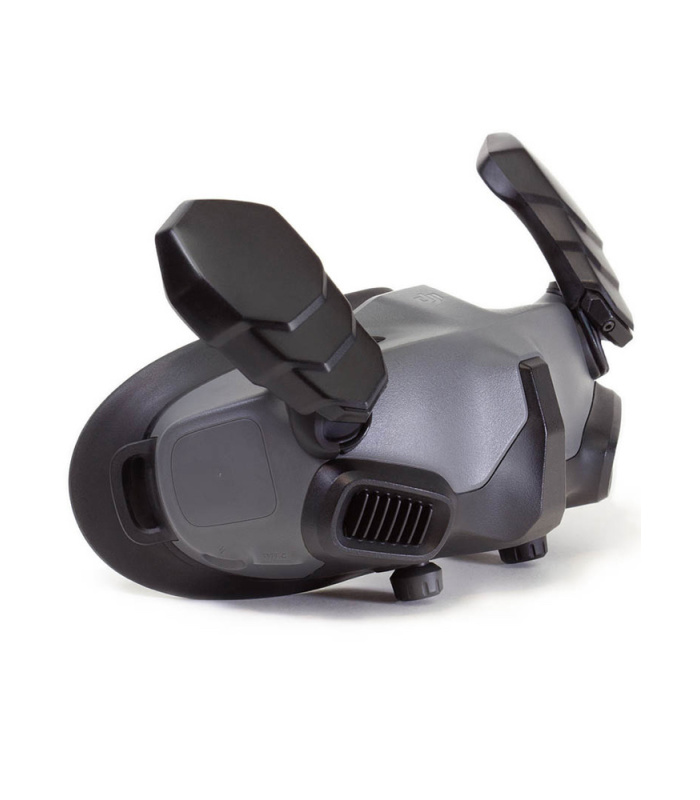

Improved Range & Penetration: This original design features two high gain circularly polarized antennas that can be folded out to achieve best-in-class signal penetration and range, maintaining higher datarate for longer.

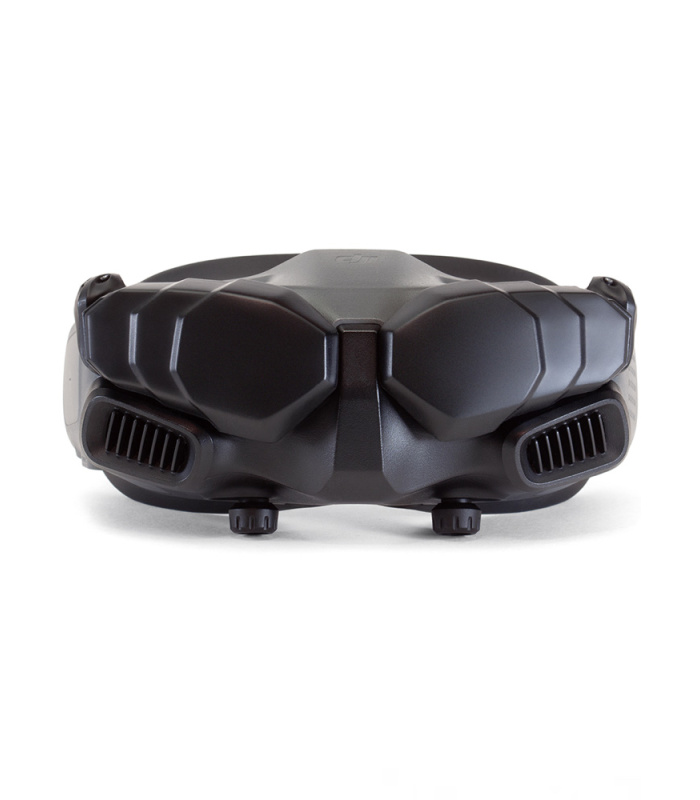

Plug & Play: Screwless attachment means you simply remove the stock antennas and insert the Patch G2 upgrade, and you are ready to fly.

Simple Storage
Complete your setup with an ultra soft Luxe Goggle Bag Mini – available HERE. This made to measure bag includes a weather proof zipper pocket for any extras.

Luxe Goggle Bag Mini – not included

Specification

Gain: 8.25-9.0 dBic
POLARISATION: LHCP
AXIAL RATIO: < 1.5
IMPEDANCE: 50 Ω
HORIZONTAL BEAM WIDTH: 134 deg
VERTICAL BEAM WIDTH: 108 deg
HORIZONTAL BEAM WIDTH (-3dB): 72 deg
VERTICAL BEAM WIDTH(-3dB): 60 deg
BANDWIDTH: 5.2 GHz – 6.8 GHz
PEAK EFFICIENCY: > 99%
WEIGHT (ANTENNA PAIR): 42g
WEIGHT (BOXED): 150g

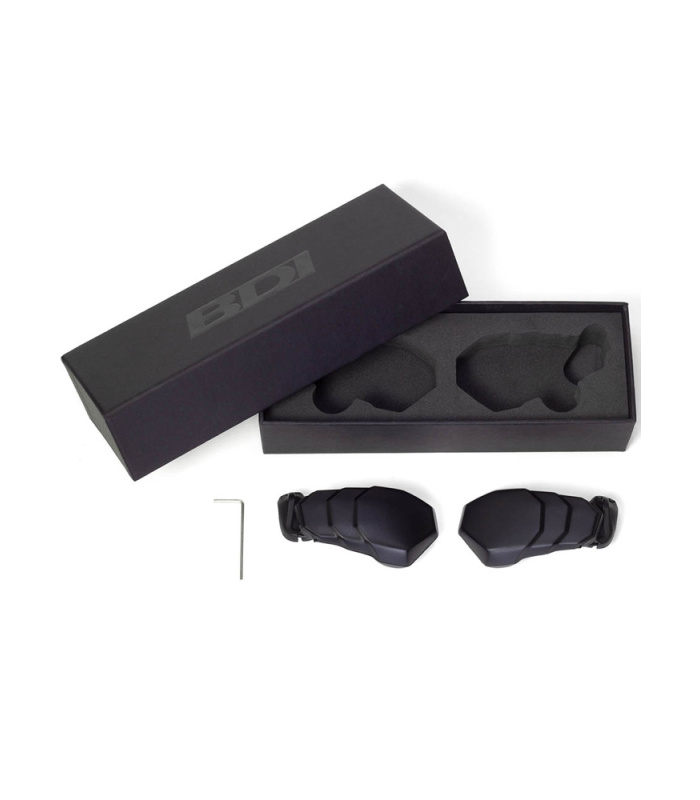

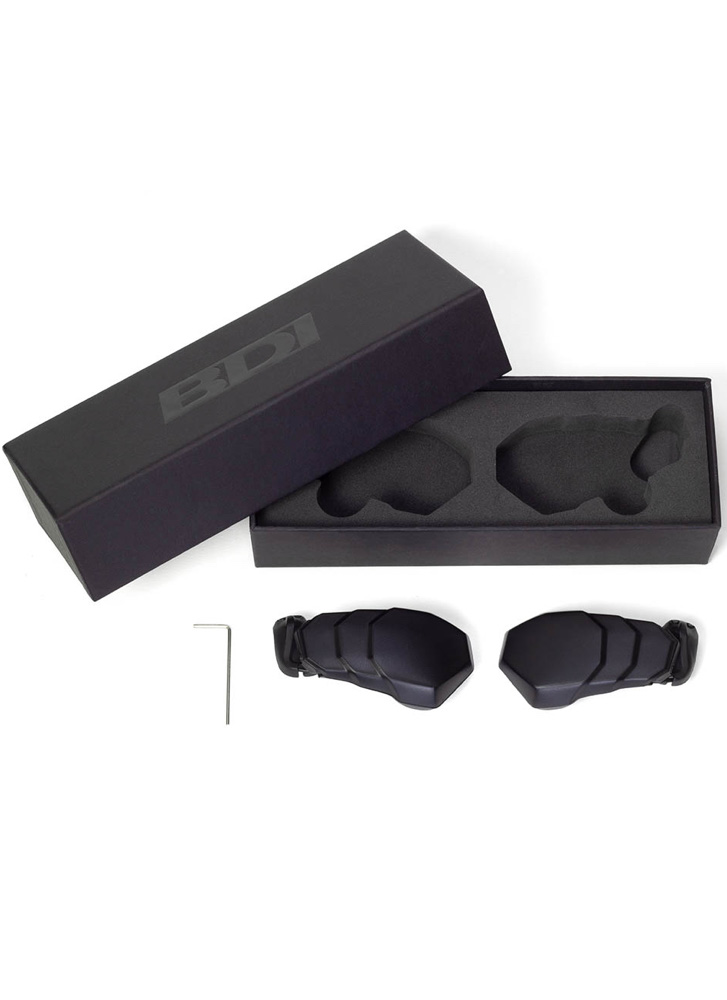

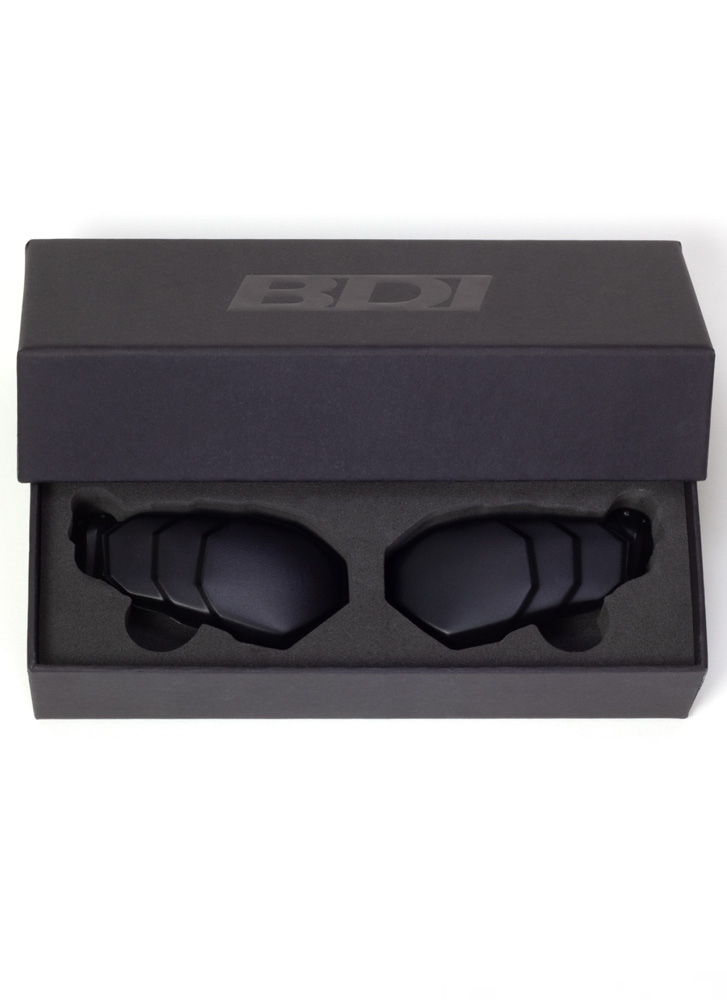

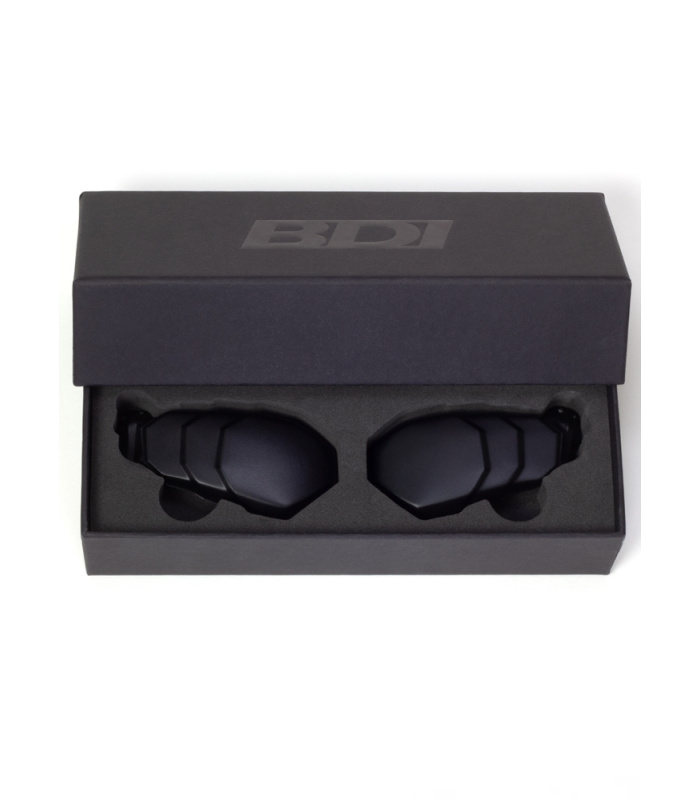

Included:

2x LHCP Patch G2 Antenna
1x 1.5mm hex wrench (For friction adjustment)
