Bandit 915/868MHz Moxon Antenna

Name: Bandit 915/868MHz Moxon Antenna - Flying Tech
Brand: RadioMaster
SKU: ELRS-ANT-BANMOX
Price: 19.90 GBP
Availability: InStock

£19.90 Inc. VAT

Directional 4.6dBi Moxon Antenna for 915/868MHz with RP-SMA connection.

In stock

Add to compare

0 People watching this product now!

SKU: ELRS-ANT-BANMOX Categories: Radio Transmitter Antennas, Radio Control, Long Range RC, ExpressLRS, RadioMaster Bandit Tags: 868MHz, 915/868MHz, 915MHZ, Antenna, Bandit, Bandit Series, ELRS, ExpressLRS, Moxon Antenna

Description

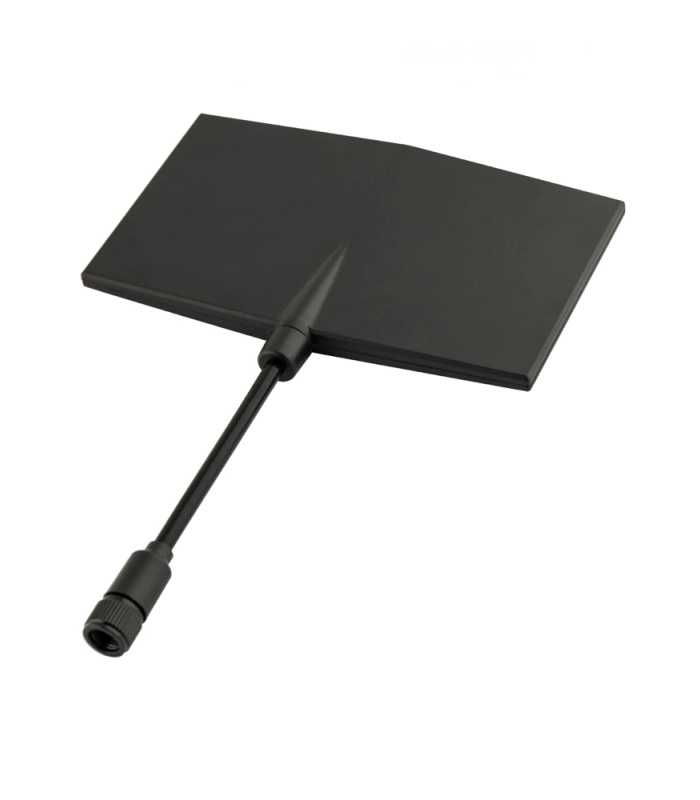

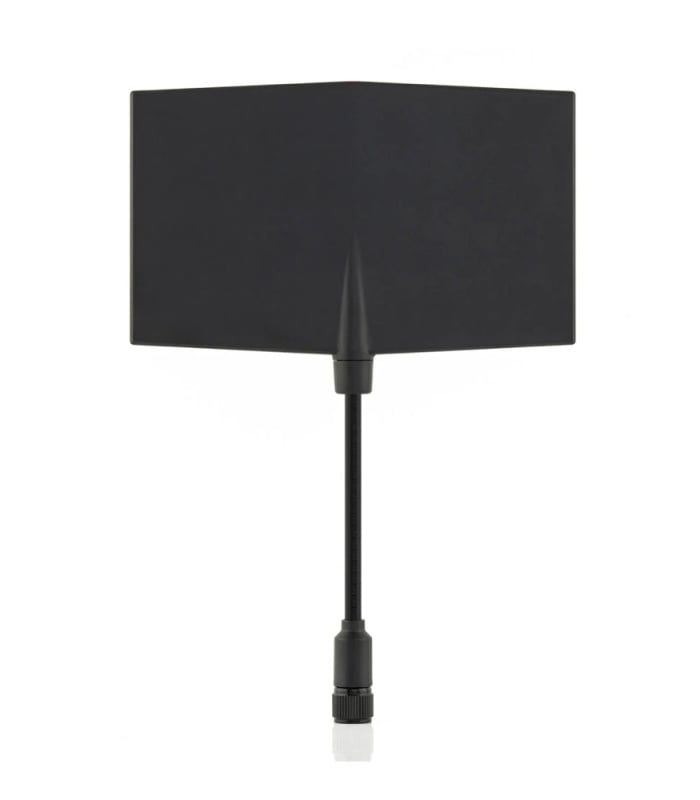

RadioMaster Bandit Moxon Antenna is a high gain, high efficiency directional transmitter antenna with a compact design and rugged housing to protect the internal components.

The Bandit Moxon Antenna, with its 80mm length, provides superior interference separation. Utilizing a professionally designed RF PCB substrate and optimized the bandit series the Bandit Moxon antenna is ideal for long range applications. The Bandit Moxon features a heavy-duty RG402 coax to optimize signal transmission and reduce external interference. The antenna also features a customized 360° swivel RP-SMA socket to allow for position adjustment.

Note: A Moxon antenna is intended for long range and has a more narrow field of operation. It is important to keep the Moxon antenna pointed in the general direction of your aircraft.

Features:

High gain, high efficiency directional transmitter antenna
Compact and rugged housing
Using professional RF PCB substrate, optimised for traditional MOXON design

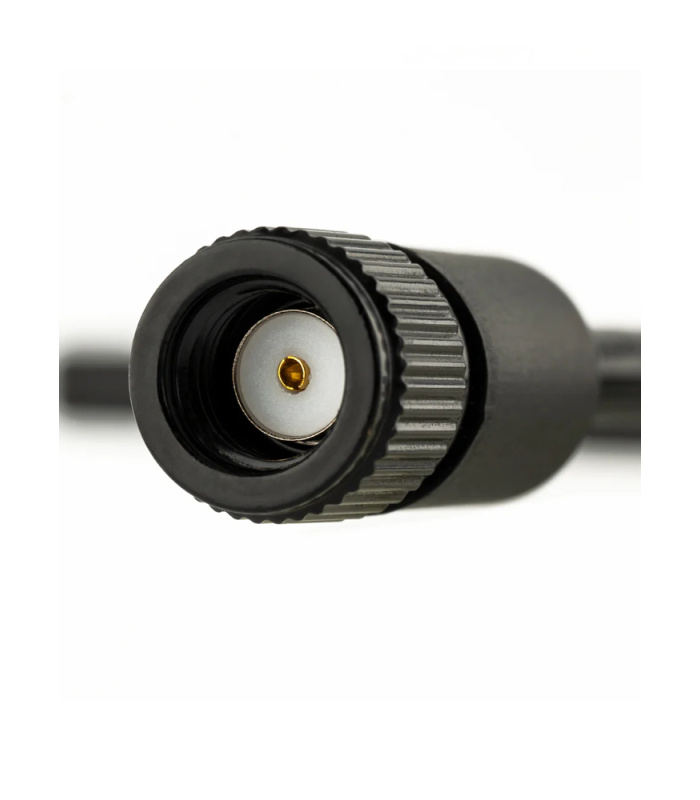

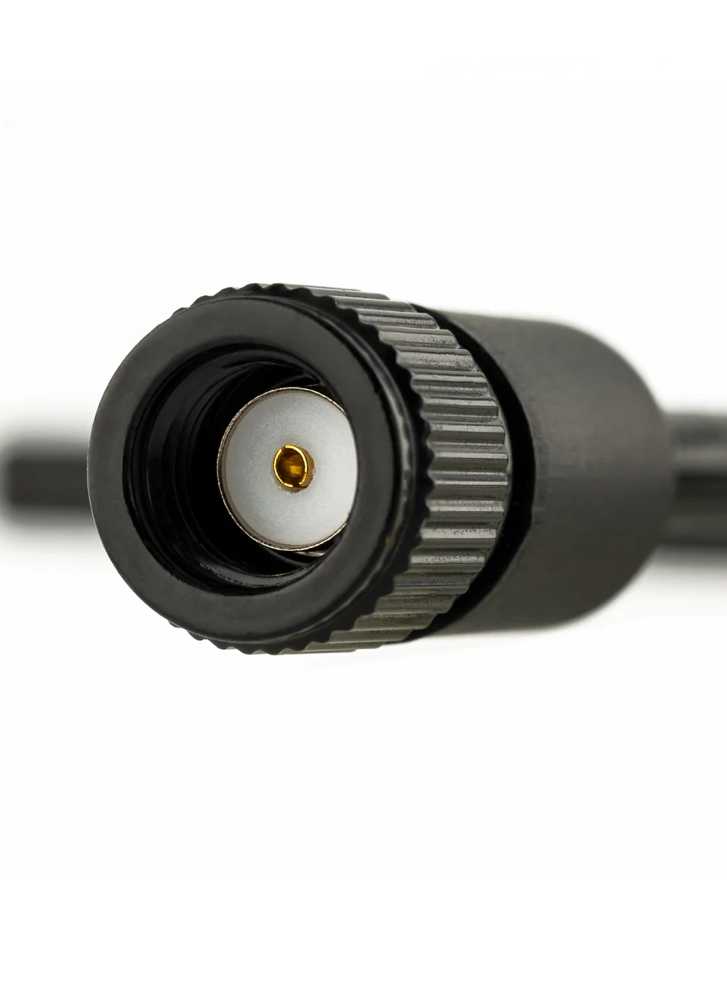

Uses heavy-duty RG402 coax cable and customised 360° swivel RP-SMA socket
Featuring an 80mm coax cable, reduces interference to the transmitter

Specification

Bandwidth: 860-930MHz
Polarisation: Linear
Radiation Direction: Directional
Beam Width @-3dB: 145°
Gain: 4.6dBi
VSWR: >1.5
Connector: RP-SMA
Input Impedance: 50Ω
Dimension: 107*155mm

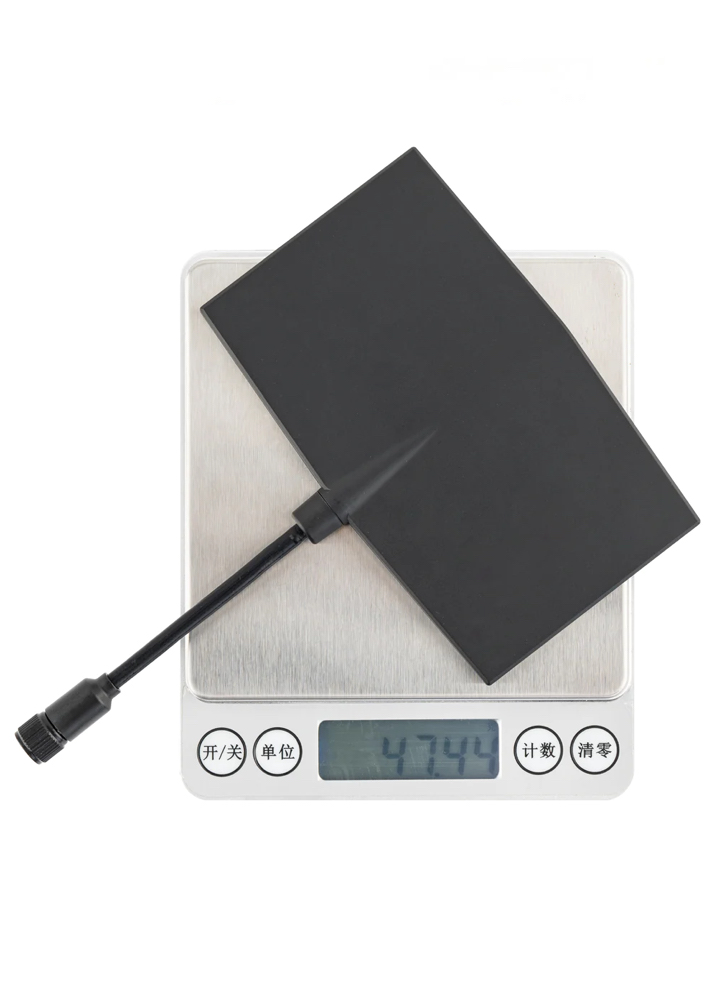

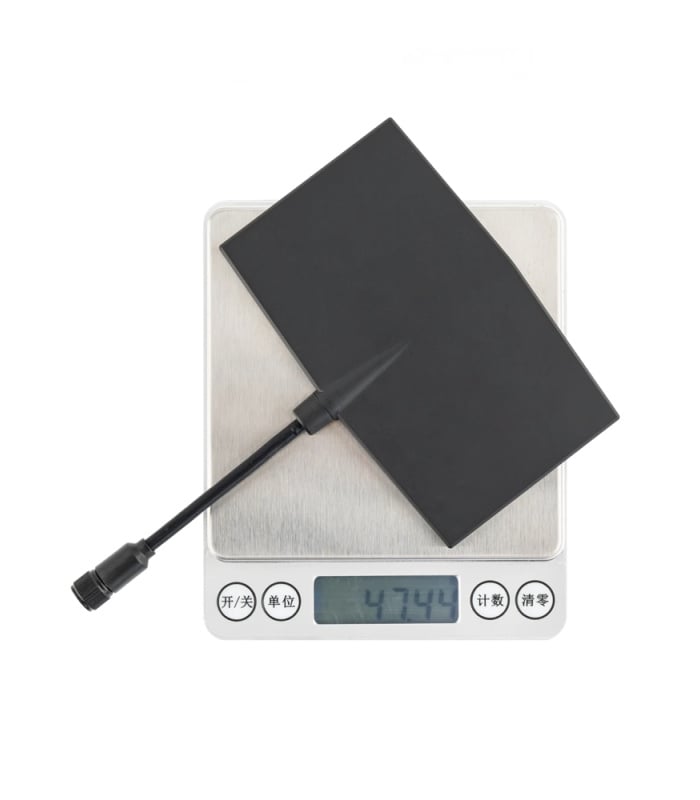

Weight: 47.44g

Included:

1x Bandit Moxon Antenna
