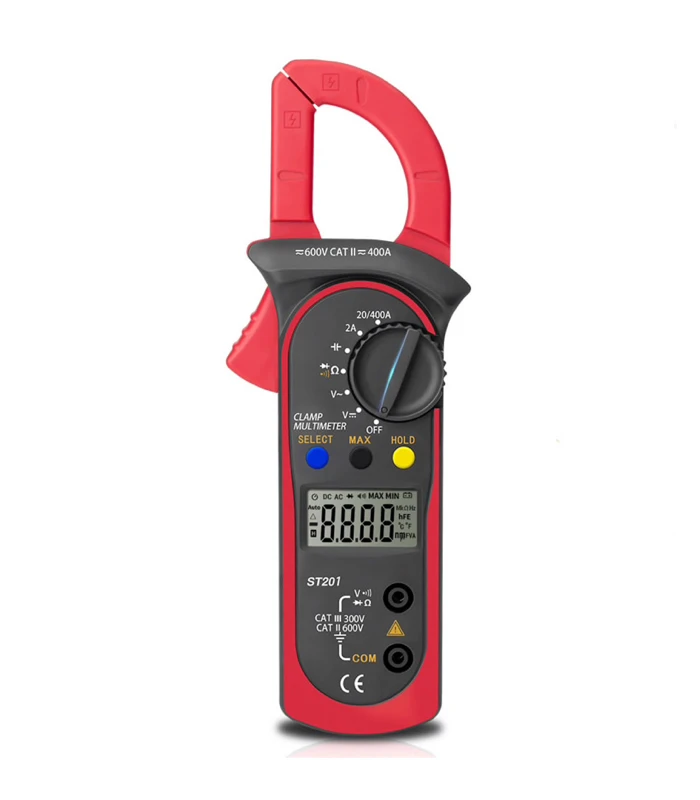

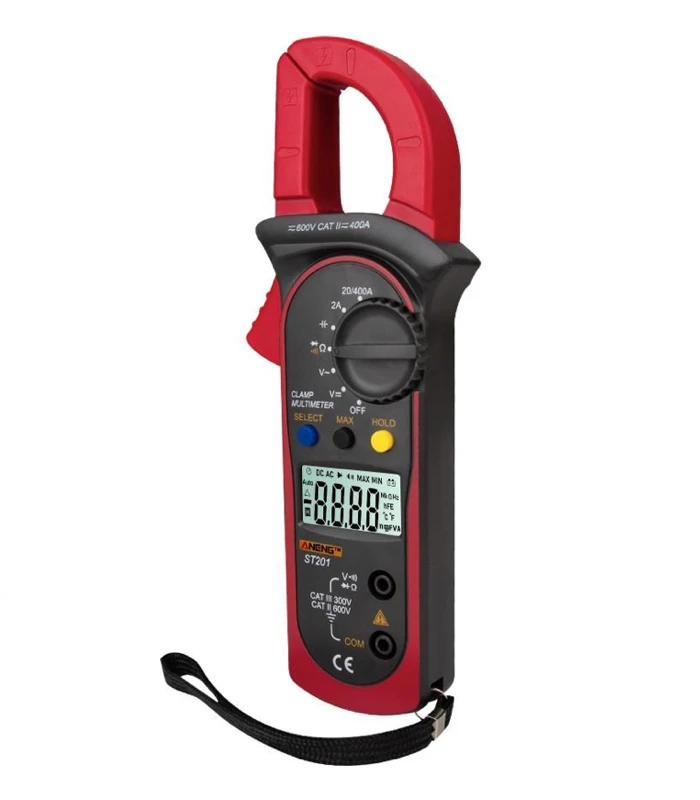

ANENG ST201 Digital Clamp Multimeter Resistance ohm Tester

Name: ANENG ST201 Digital Clamp Multimeter Resistance ohm Tester - Flying Tech
SKU: ACC-ST201
Price: 18.90 GBP
Availability: InStock

£18.90 Inc. VAT

Can be used as a multimeter, but also as a clamp meter to measure AC current.

In stock

Add to compare

0 People watching this product now!

SKU: ACC-ST201 Categories: Multimeters / Power Analysers, Accessories, Measuring Equipment Tags: Current, Electronics, Measuring, Meter, Multimeter, Power Meter, Tester, Tool, Volt Meter, Watt, Wiring

Description

Most people are familiar with a multimeter for measuring voltage, a clamp meter is another type of electrical test tool that combines a basic digital multimeter with a current sensor. It has a hinged jaw which allows the user to clamp the jaws around a wire, cable or other conductor, then measure current in that circuit without disconnecting/deenergizing it. This particalar clamp meter can measure AC current up to 400A. It can also be used to measure AC/DC voltage, resistance, and perform a diode check and continuity test.

FEATURES:

Measuring functions:
- AC/DC voltage
- AC current
- Resistance
- Diode check
- Continuity test
Auto ranging
Data hold function
Sleep mode
Low battery display
35 mm maximum jaw diameter
Compact and comfortable design
Compliance with safety requirements IEC 61010-1 CAT II 600 V

2x AAA 1.5V battery required

Specification

DC Voltage: 200mV-2V-20V-200V-600V
AC Voltage: 200mV-2V-20V-200V-600V
AC Current: 2A-20A-400A
Measuring Capacitance Range: 40nF-400nf-4uF-40uF-400uF
Resistance ohm: 200-2K-20K-200K-2M-20M
Buzzer Function: Yes
Max LCD display: Yes
Data Hold Function: Yes
Max Display: 4000 Counts
Battery Type: 2 x 1.5V (AAA Battery) (Not Included)

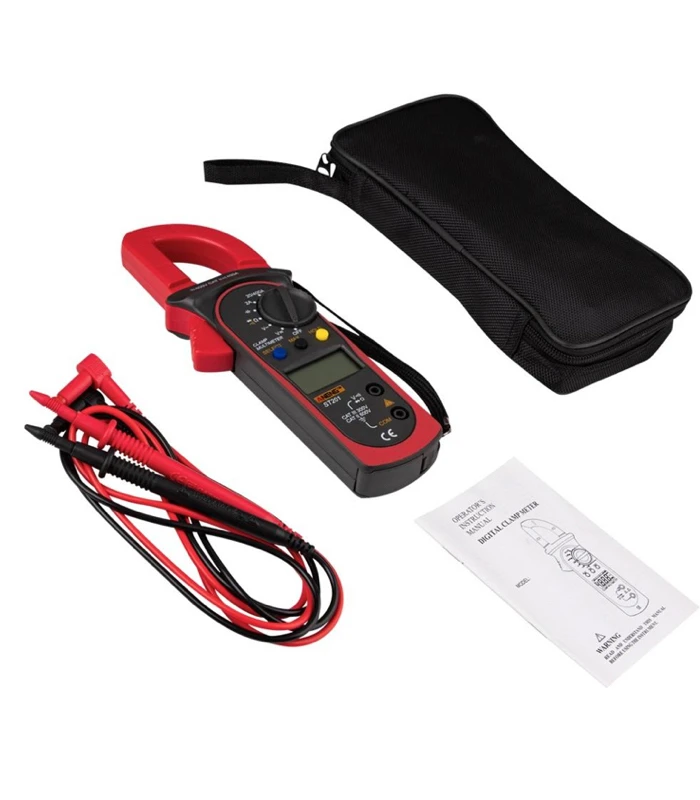

Included:

1 x Clamp Digital Multimeter

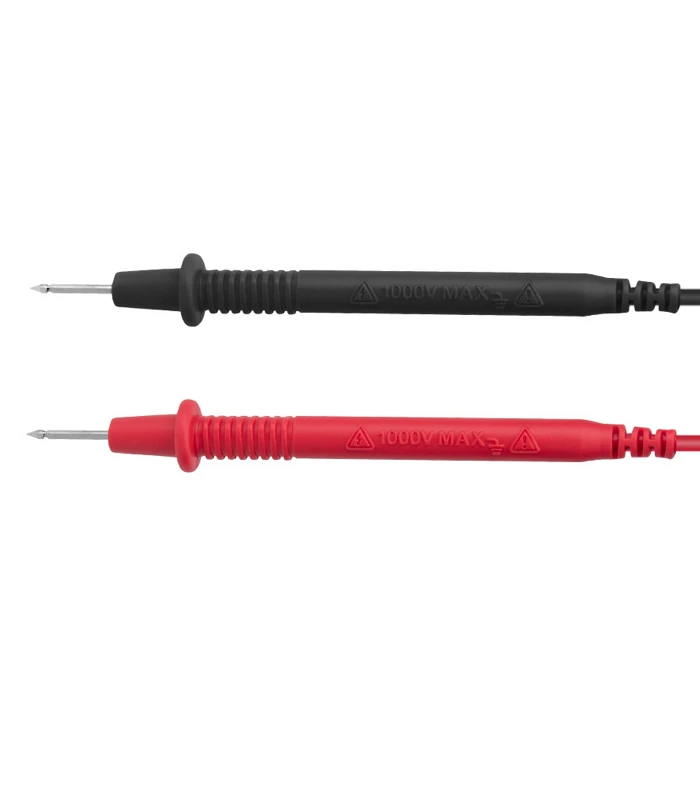

1 x Test leads
1 x User Manual
1 x Storage bag
