Product Discontinued – for an alternative please see TBS Lucid 3S-12S 90A Single ESC

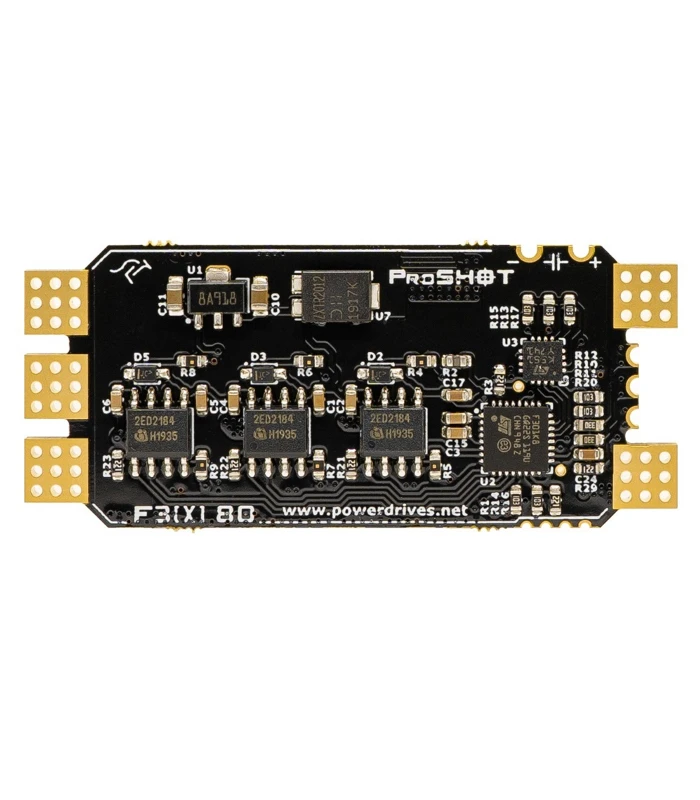

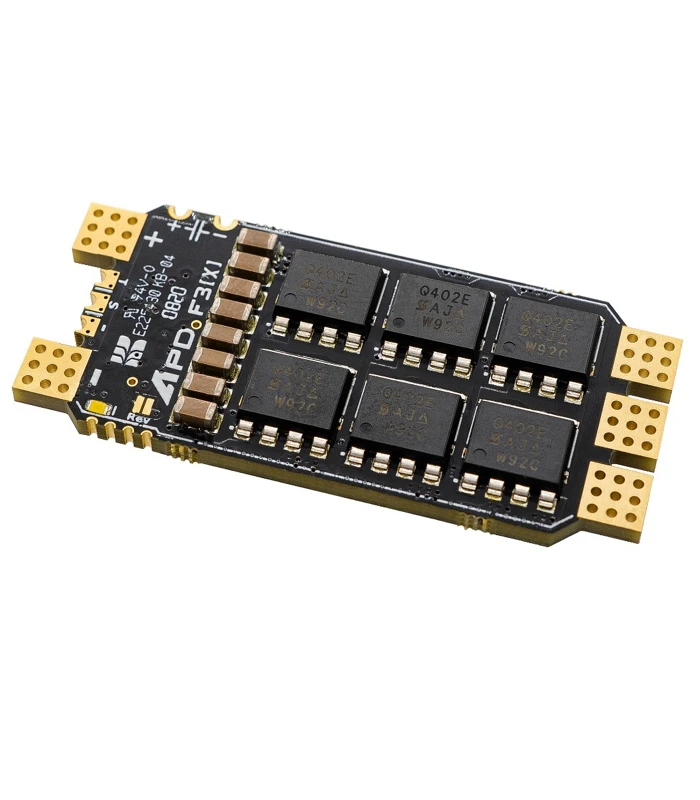

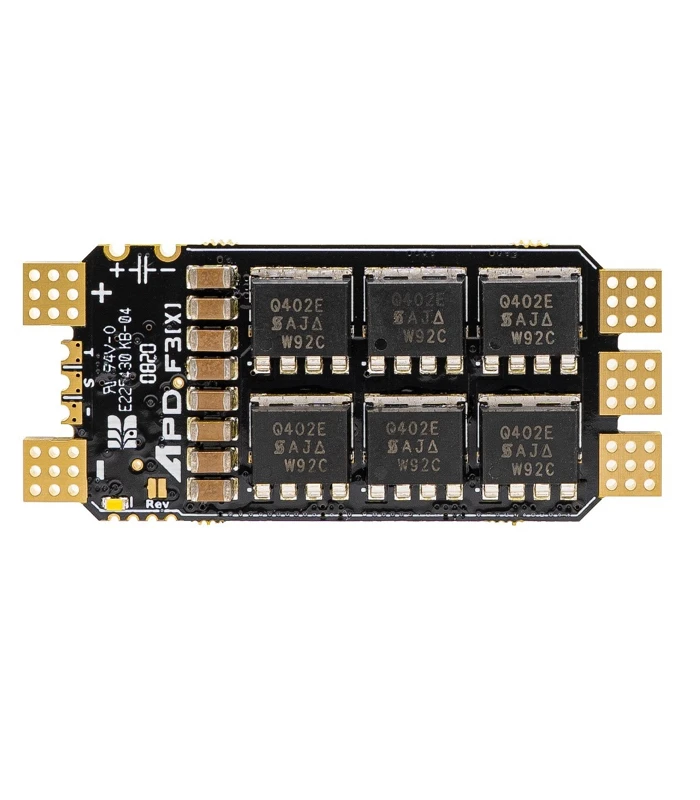

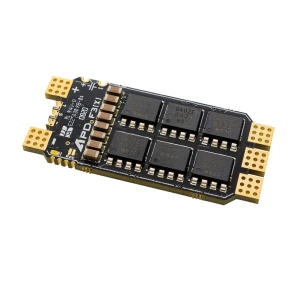

The APD F-Series ESCs bring forward a ground-breaking new design utilising a Powerful 32-bit F3 processor running brand-new firmware (APD Proprietary) developed from the ground up.
The F3 processor ensures no input commands are missed, even at the highest input update rates. Its bleeding-edge features include ‘PWM-frequency dithering, and Active Phase-current Demagnetisation to ensure the smoothest control at high power, whilst maintaining maximum efficiency.
Compatible with the latest Protocols including ProShot up to 3MBs/S.
With peak power ratings up to 4.7kW, these ESCs will have no trouble powering your craft. Ideal for macro-scale aircraft with propeller sizes up to 11inch. Input capacitor included.
Documentation and Datasheets can be found at: docs.powerdrives.net
CAD File: HERE
Features:
- Designed and manufactured in Australia using only the highest quality components, ensuring no sacrifice in reliability.
- Plug and play firmware
- Up to 8S capable
- Up to 80 A Continuous* current
- 140 A Burst current
- True 10bit resolution
- Virtually no setup time, with simple motor reverse solder tab
- Auto-detect ProShot or Dshot any frequency range
- ProShot1000 capable (1Mbs/s)
- Dshot300 to Dshot1200 capable (0.3-1.2Mbs/s)
- Up to 750,000 eRPM
- Auto PWM-freq
- Auto Timing Advance
- HBM (Hectic Boost Mode) ensures this will deliver maximum thrust, outperforming any other ESC
- Telemetry output
- Intelligent current sensing
- LED indication
- Digital commands over Proshot (including anti-turtle mode)
- Digital commands over Dshot

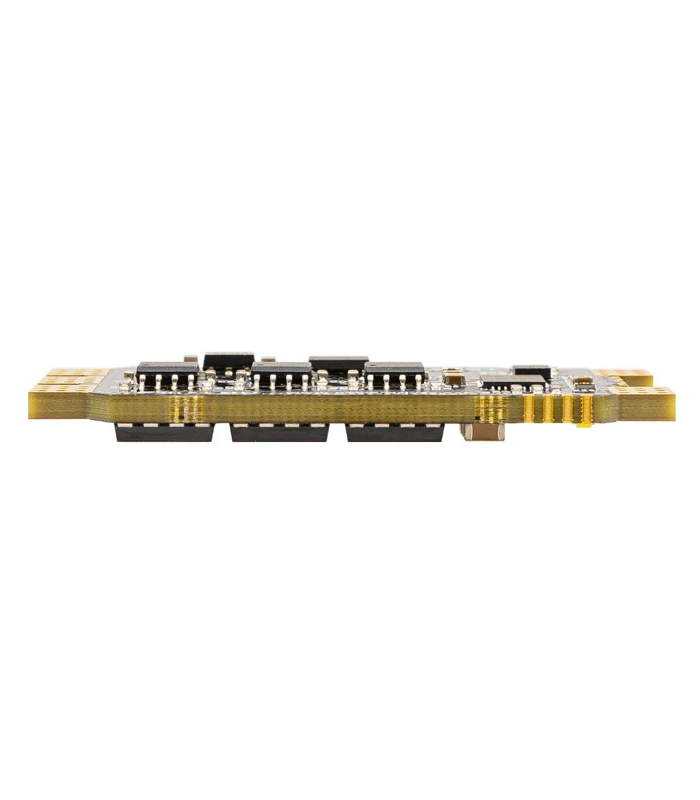

- 8-Layer PCB to ensure minimal track resistance
* Continuous current ratings are at a 100% throttle duty cycle. Continuous rating is defined as max sustained current at 100% throttle for 60 seconds with 33 m/s airflow.
