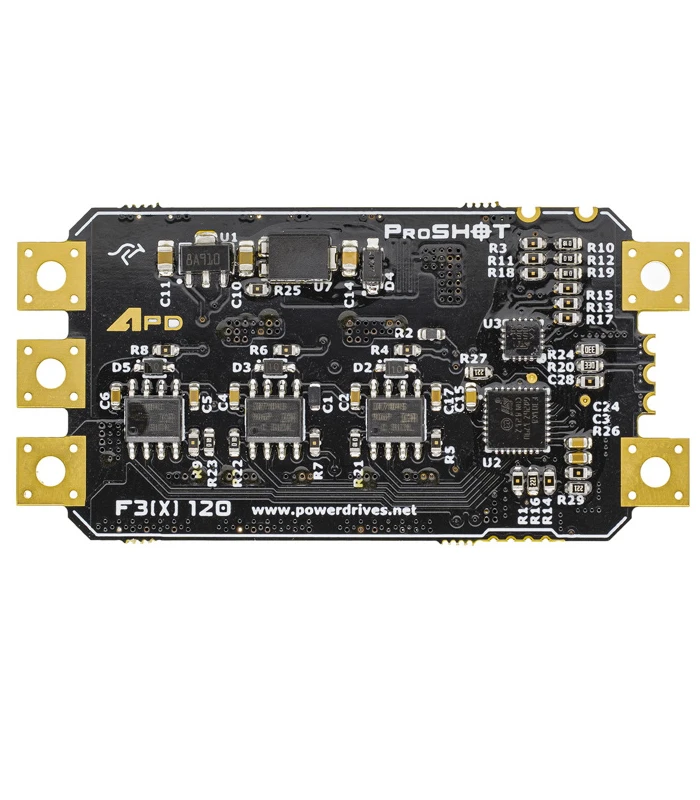

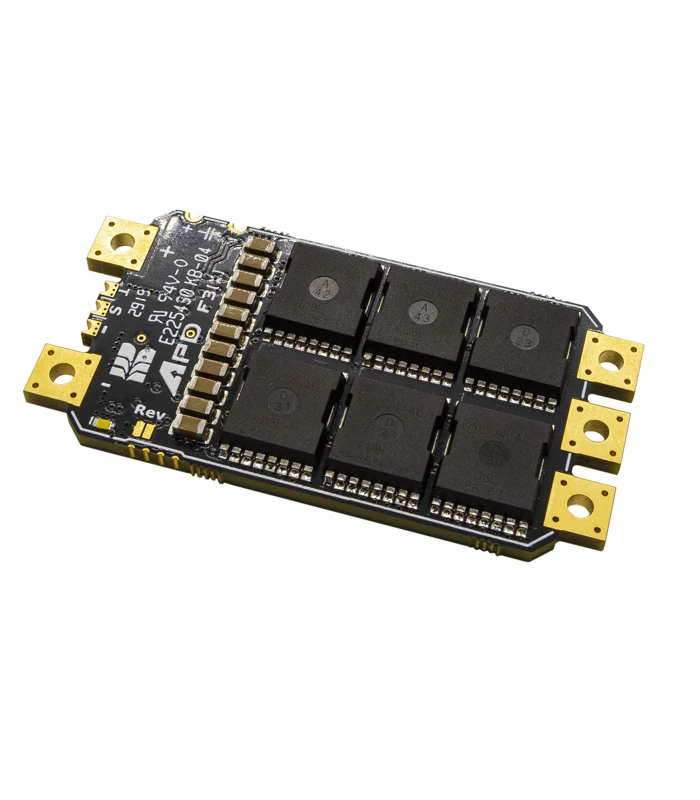

Advanced Power Drives APD 120F3[x] 12S 50V 120A F-Series ESC

Click to enlarge

Discontinued: Advanced Power Drives APD 120F3[x] 12S 50V 120A F-Series ESC

Name: Discontinued: Advanced Power Drives APD 120F3[x] 12S 50V 120A F-Series ESC - Flying Tech
Brand: Advanced Power Drives
SKU: ESC-APD120F3

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the privacy policy

Add to compare

0 People watching this product now!

SKU: ESC-APD120F3 Categories: Single ESCs, Electronics, Speed Controllers (ESCs) Tags: 30A, 40A, 70A, BEC, BLHeli, BLHeli_32, Dshot1200, ESC, OPTO, SimonK, Speed Controller, X Class

Description

Product Discontinued – for an alternative please see HERE

The APD F-Series ESCs bring forward a ground-breaking new design utilising a Powerful 32-bit F3 processor running brand-new firmware (APD Proprietary) developed from the ground up.

The F3 processor ensures no input commands are missed, even at the highest input update rates. Its bleeding-edge features include ‘PWM-frequency dithering, and Active Phase-current Demagnetisation to ensure the smoothest control at high power, whilst maintaining maximum efficiency.

Compatible with the latest Protocols including ProShot up to 3MBs/S.

With peak power ratings up to 9kW, these ESCs will have no trouble powering your craft.

Documentation and Datasheets can be found at: docs.powerdrives.net

Features:

Designed and manufactured in Australia using only the highest quality components, ensuring no sacrifice in reliability.
Plug and play firmware
Up to 12S capable
Up to 120 A Continuous* current
180 A Burst current
True 10bit resolution
Virtually no setup time, with simple motor reverse solder tab
Auto-detect ProShot or Dshot any frequency range
ProShot1000 capable (1Mbs/s)
Dshot300 to Dshot1200 capable (0.3-1.2Mbs/s)
Up to 750,000 eRPM
Auto PWM-freq
Auto Timing Advance
HBM (Hectic Boost Mode) ensures this will deliver maximum thrust, outperforming any other ESC
Telemetry output
Intelligent current sensing
LED indication
Digital commands over Proshot (including anti-turtle mode)
Digital commands over Dshot
8-Layer PCB to ensure minimal track resistance

* Continuous current ratings are at a 100% throttle duty cycle. Continuous rating is defined as max sustained current at 100% throttle for 60 seconds with 33 m/s airflow.

Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

Here at Flying Tech we have a wide choice of electronic speed controllers (ESCs).

There are two main types of ESCs: 4-in-1 ESCs and single ESCs. A 4-in-1 ESC integrates four individual ESCs onto a single circuit board, each controlling a separate motor. A single ESC controls only one motor.

This 4-in-1 ESC is a more popular choice for racing quads, while single motor aircraft such as fixed wings would use a single ESC. Single ESCs are still used by some drone racers though, as after a crash or a burnt up ESC, they only have to replace one, not an entire 4-in-1 or stack which is a lot more costly. Single ESCs are also available which much greater current ratings (80amp +) so they are also used by power hungry multi-rotors, for example X-Class racing quads, professional camera flying “Cinelifters”.

When using individual ESCs, they typically need to be connected to a single power distribution board (PDB) or an “AIO flight controller” (a type of flight controller with integrated PDB) for power supply.
